Name: Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO)
Brand: Wenling Keying Abrasives Co., Ltd.

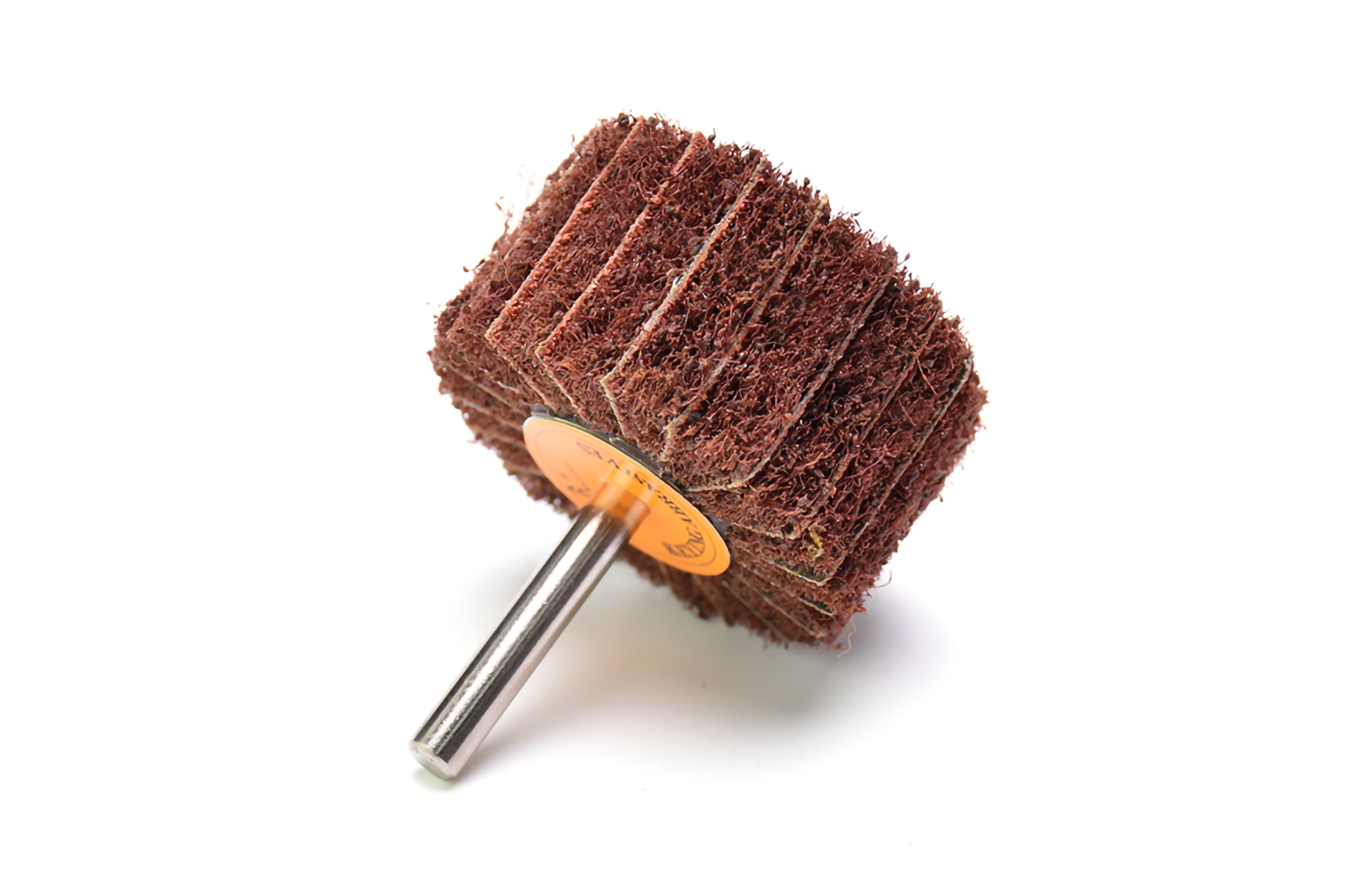

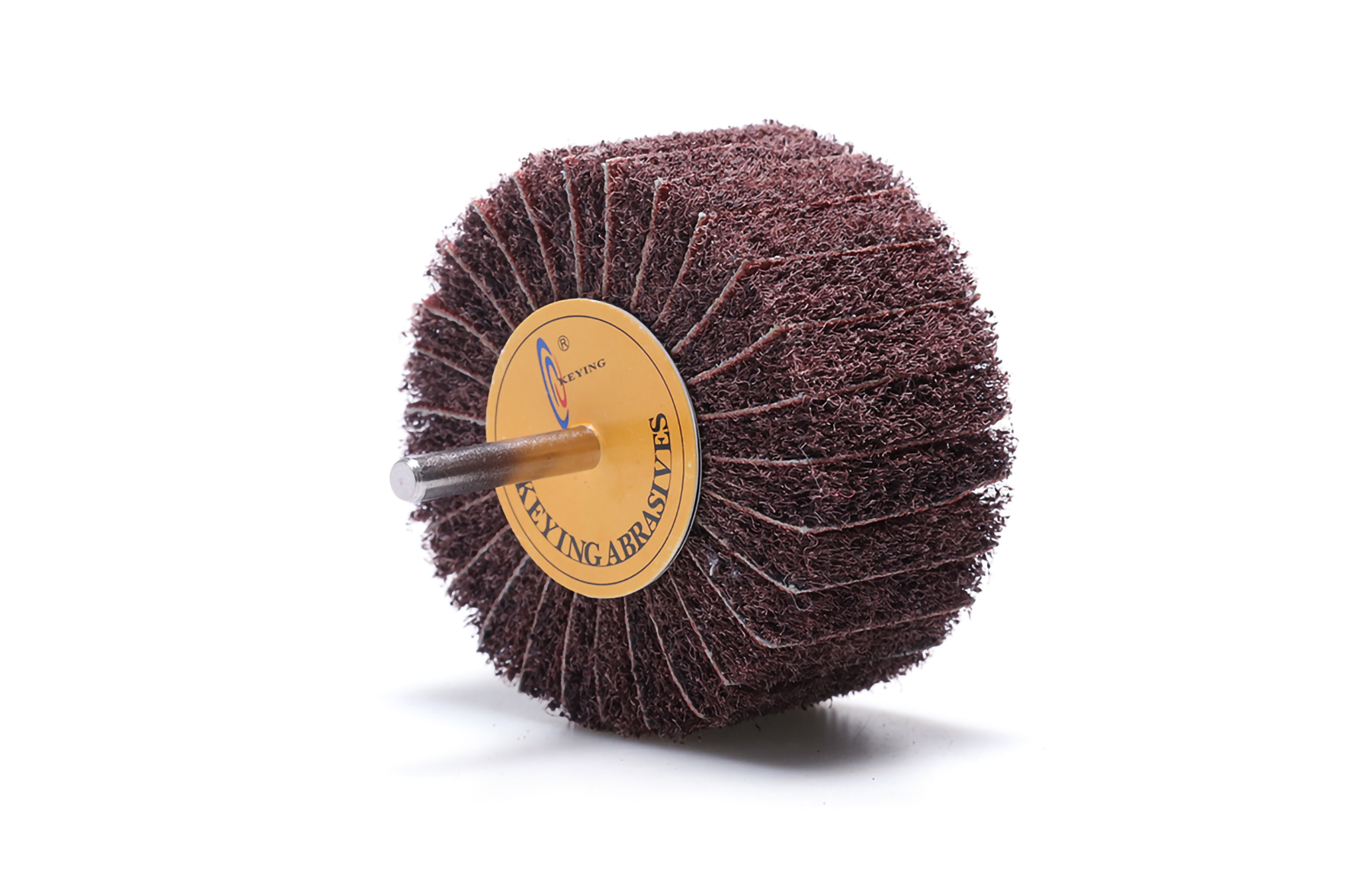

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO)



Premium aluminum oxide grain with durable resin bond and web that wears away continually exposing fresh abrasives.

It is a common non woven flap wheel used in the polishing treatment of workpiece surface polishing. It can be applied to grinding and polishing the surface of workpieces of various materials and has a good polishing effect.

 Contact us

Call us +86(0)576-86711667

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Grit Size Table Corresponding To Raw Materials

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Non-woven Flap Wheel (with Abrasive) Size Table

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Specification:

Max. RPM:7000~19000 RPM
Other Raw Materials: Silicon Carbide(SC)
Grit Size (Aluminum Oxide): Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Materials that can be worked:

Aluminium
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconell and Hasteloy)
Bronze
Hard non-ferrous metal
Titanium
Titanium alloys
Copper
Soft non-ferrous metal
Brass
Zinc
Stainless steel (INOX)
Thermoplastics
Fibre-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Applicable Industries

Applications

Roughening
Deburring
Surface work
Cleaning
Structuring (matt finishing, brush matting, and satin finishing)
Fine grinding in multiple steps

Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO) Applicable Industries

Safety Warning of Aluminum Oxide Non-woven Abrasive Cloth Flap Wheel With Shank (AO)

Instructions:

safety-warning-of-aluminum-oxide-non-woven-abrasive-cloth-flap-wheel-with-shank-(ao).png

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
