Name: Aluminum Oxide Unmounted Non-woven Flap Wheel (AO)
Brand: Wenling Keying Abrasives Co., Ltd.

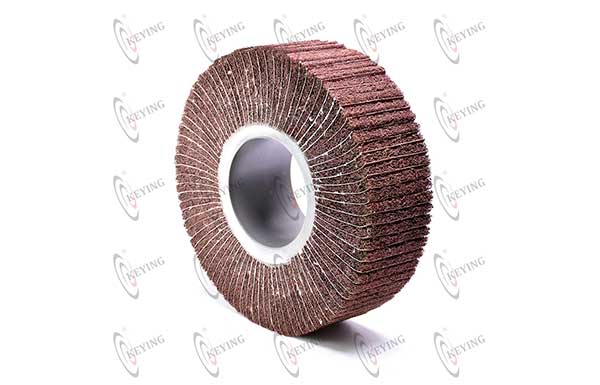

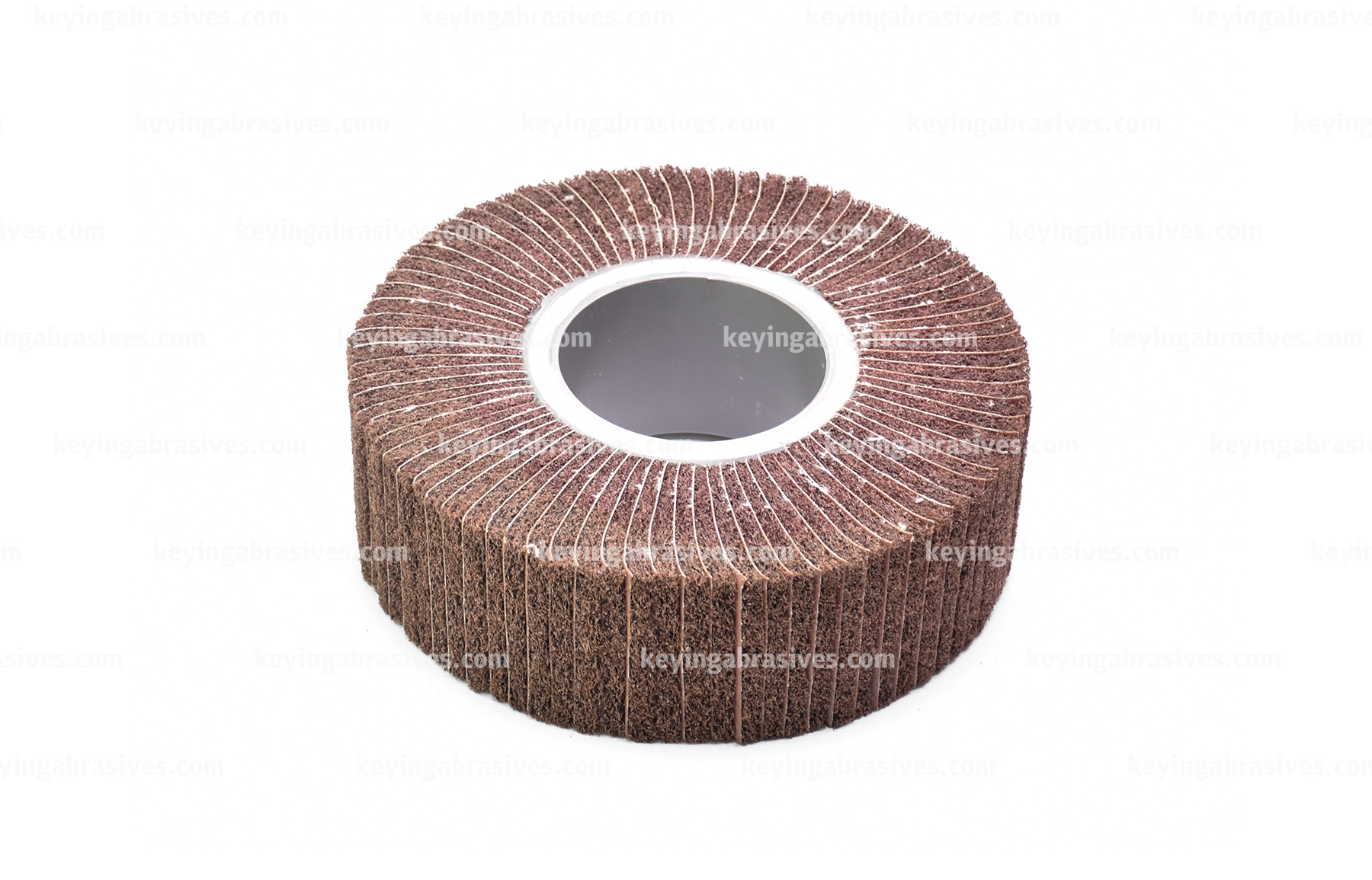

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO)

Premium aluminum oxide grain with durable resin bond and web that wears away continually exposing fresh abrasives.

It is a common abrasive used in the polishing treatment of workpiece surface polishing. It can be applied to grinding and polishing the surface of workpieces of various materials and has a good polishing effect.

 Contact us

Call us +86(0)576-86711667

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Grit Size Table Corresponding To Raw Materials

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Non-woven Flap Wheel (Jumbo Size) Size Table

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Specification:

Max. RPM:7000~19000 RPMA
Other Raw Materials: Silicon Carbide(SC)
Grit Size (Aluminum Oxide): Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Materials that can be worked:

Aluminium
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconel and Hastelloy)
Bronze
Hard non-ferrous metal
Titanium
Titanium alloys
Copper
Soft non-ferrous metal
Brass
Zinc
Stainless steel (INOX)
Thermoplastics
Fiber-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Applicable Industries

Applications

Roughening
Deburring
Surface work
Cleaning
Structuring (matt finishing, brush matting, and satin finishing)
Fine grinding in multiple steps

Aluminum Oxide Unmounted Non-woven Flap Wheel (AO) Applicable Industries

Safety Warning of Aluminum Oxide Unmounted Non-woven Flap Wheel (AO)

Instructions:

Safety Warning of Aluminum Oxide Unmounted Non-woven Flap Wheel (AO)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
