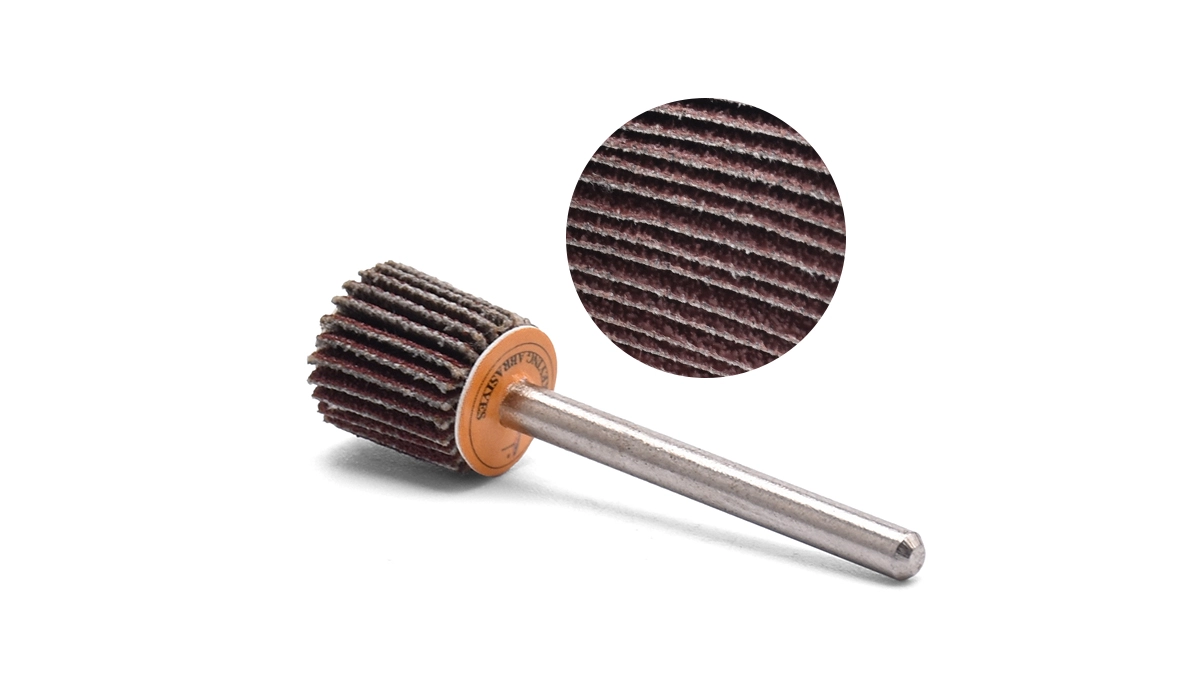

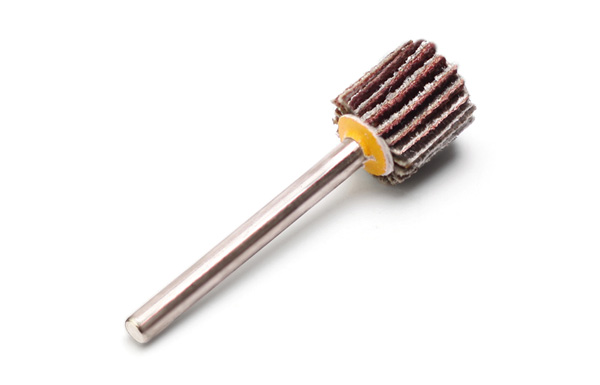

Flap Wheel 3/8inch

flap wheel 3 8inch
mounted flap wheels 10 10 3 2

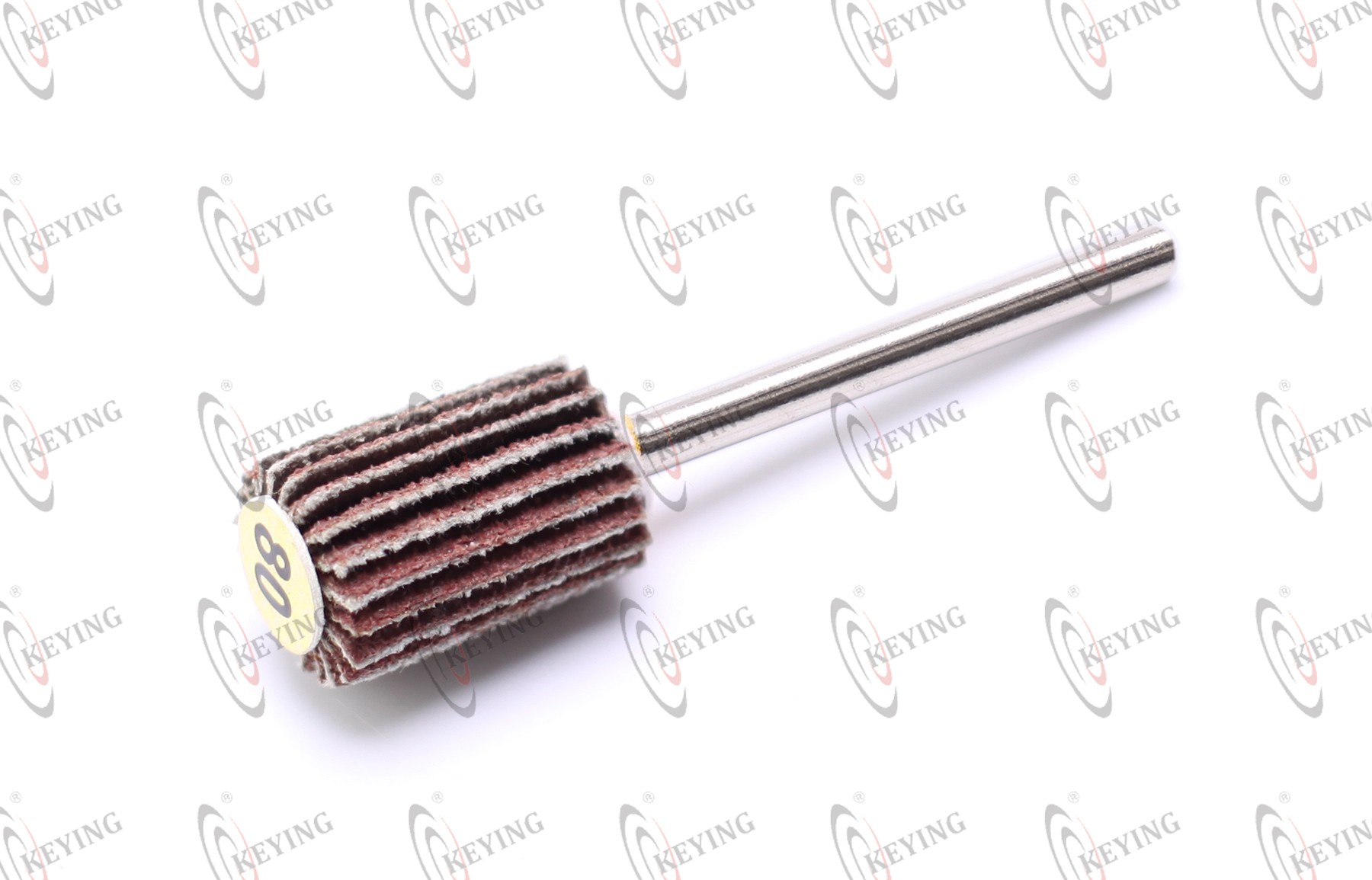

mounted flap wheels 10 15 3 3

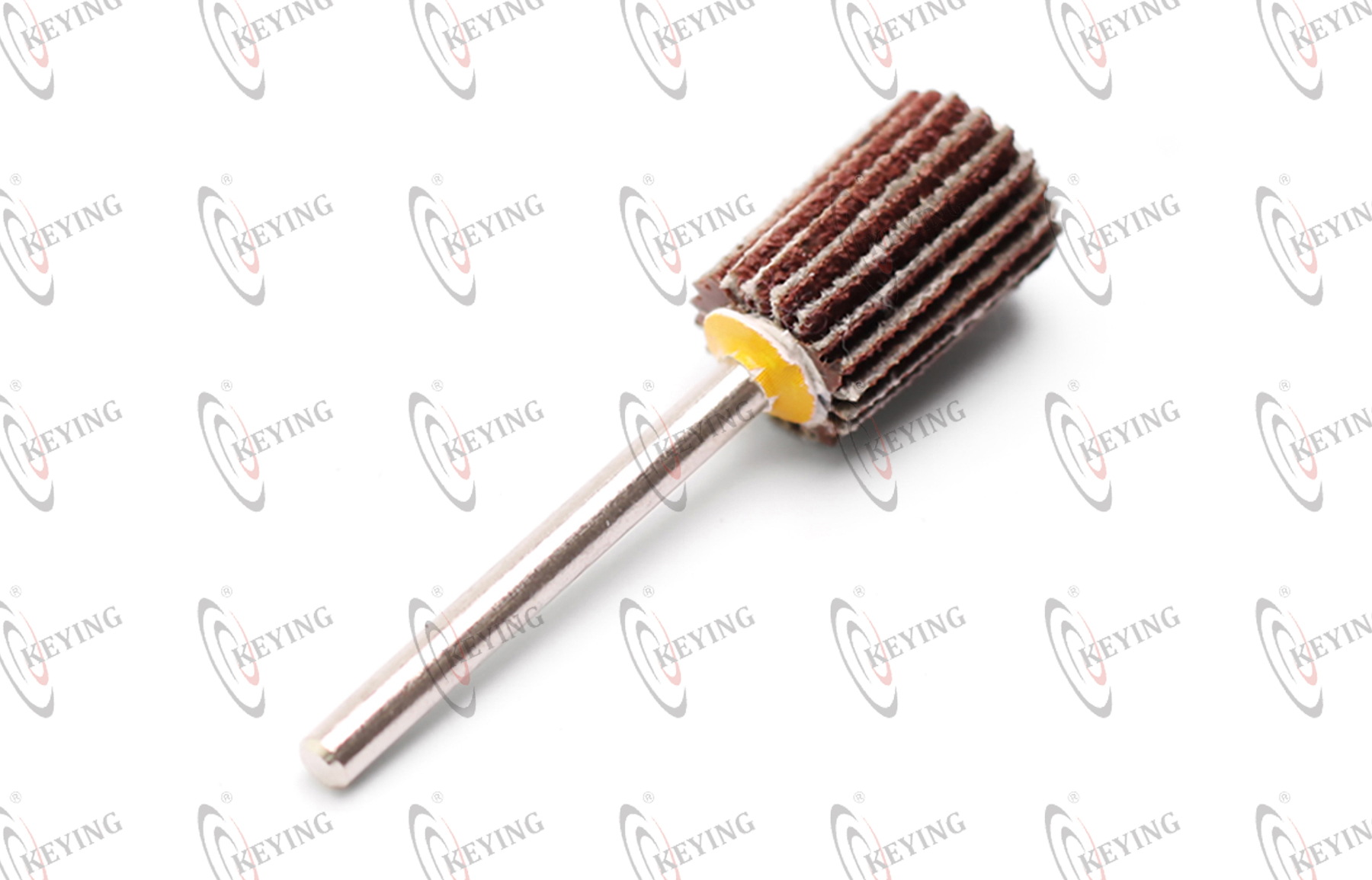

mounted flap wheels 10 15 3 1

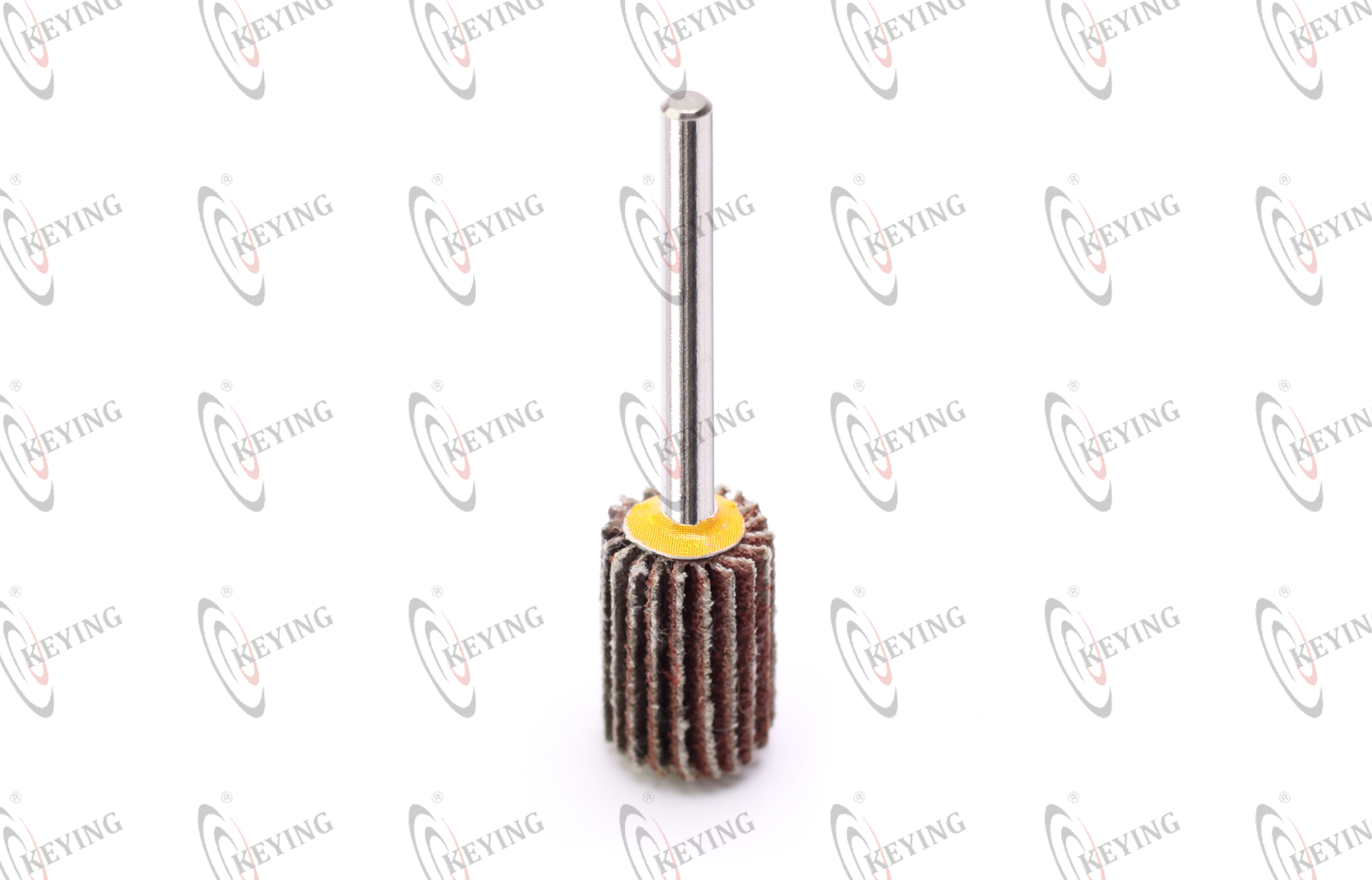

mounted flap wheels 10 15 3 4

The flexibility of 8 inch flap wheel enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

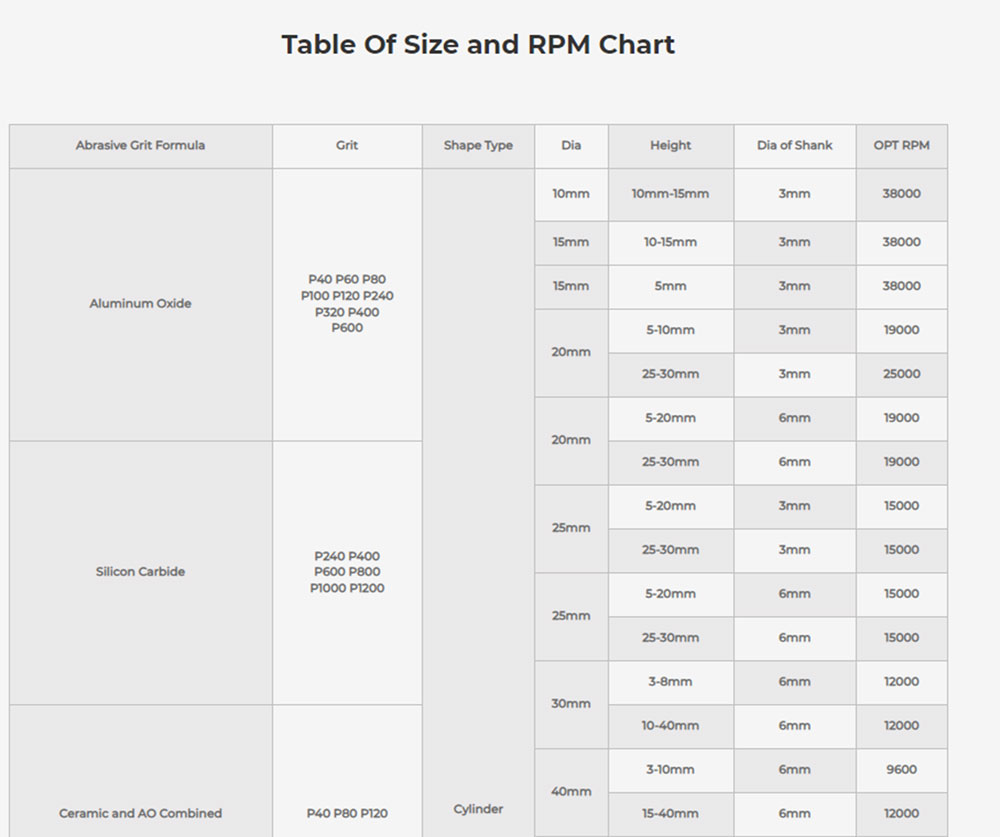

Table of Flap Wheel 3/8inch Size

Table of Flap Wheel 3/8inch Size


Flap Wheel 3/8inch Specification:

  • Diameter: 3/8 inch=10mm

  • Max. RPM: 25000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#

  • Shank Diameter: 3mm/3.175mm (Other sizes can be customized)


Flap Wheel 3/8inch Materials that can be Worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel


Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages:

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.


Flap Wheel 3/8inch Applications:

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Flap Wheel 3/8inch of Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel 3/8inch of Applicable Industries

Application Purpose

  • Levelling

  • Deburring and Welding grinding

  • Structuring Surfaces

  • Step-by-step fine grinding

Flap Wheel 3/8inch of Applicable Industries

Safety Warning of Flap Wheel 3/8inch

Instructions:

Safety Warning of Flap Wheel 3/8inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Standard Mounted Flap Wheel Products
Aluminium Oxide Ceramic Flap Wheel (CAO)
Aluminium Oxide Ceramic Flap Wheel (CAO)
Silicon Carbide Flap Wheel (SC)
Silicon Carbide Flap Wheel (SC)
Flap Wheel 1-9/16 Inch
Flap Wheel 1-9/16 Inch
