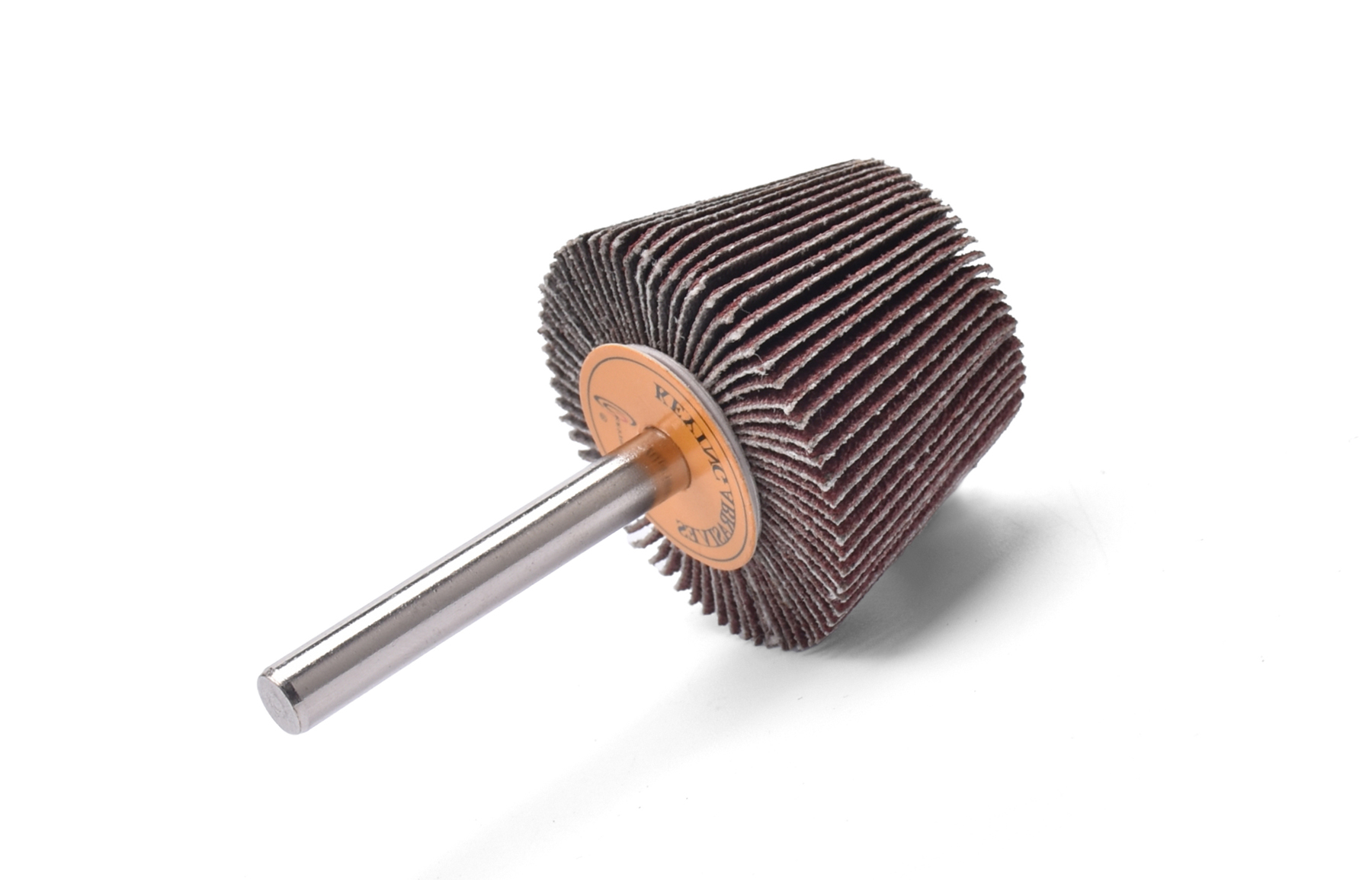

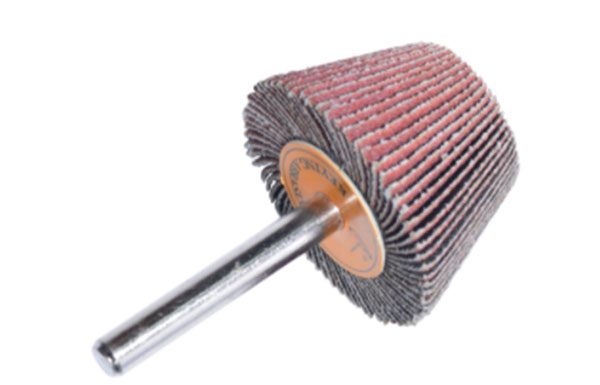

Flap Wheel - Trapezoid Shape (TR)

flap wheel trapezoid shape tr

On the Mounted Flap Wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.

Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

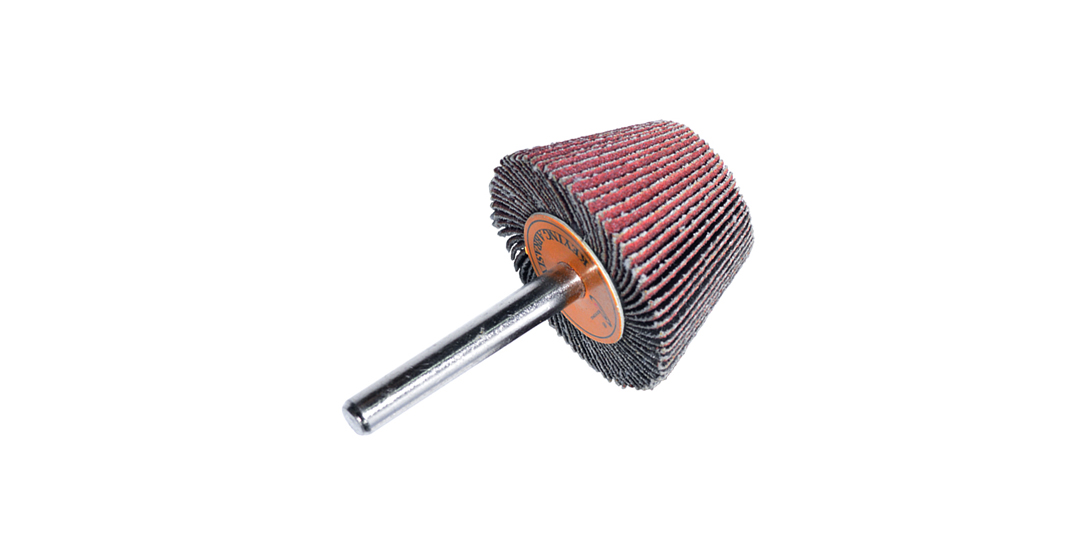

Shape Chart of Flap Wheel - Trapezoid Shape (TR)

Shape Chart of Flap Wheel - Trapezoid Shape (TR)

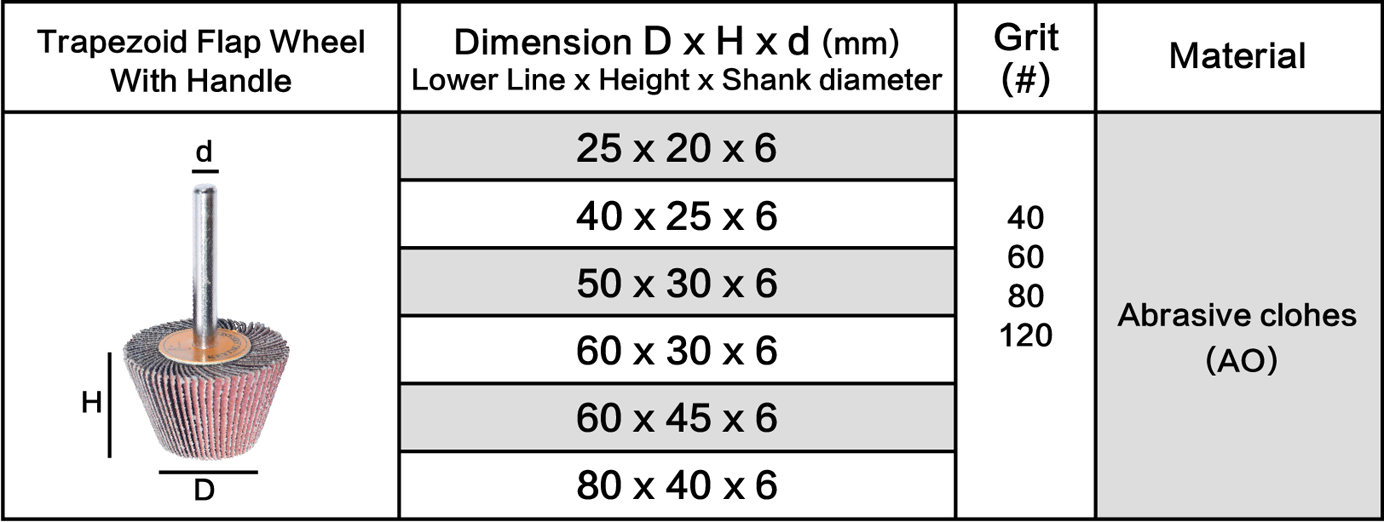

Flap Wheel - Trapezoid Shape (TR) size table


Flap Wheel - Trapezoid Shape (TR) Specification

  • Max. RPM: 6120~76300 RPM

  • Shape: Trapezoid Shape

  • Diameter: 10mm/15mm/20mm/25mm/30mm/40mm/50mm/60mm/75mm/80mm/100mm

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#


Flap Wheel - Trapezoid Shape (TR) Materials that can be Worked:

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.

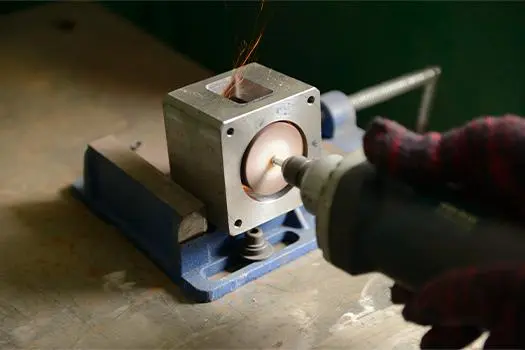

Flap Wheel-Trapezoid Shape (TR) Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel-Trapezoid Shape (TR) Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Flap Wheel-Trapezoid Shape (TR) Applicable Industries

Safety Warning of Flap Wheel-Trapezoid Shape (TR)

Instructions:

Safety Warning of Flap Wheel-Trapezoid Shape (TR)


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Flap Wheel (Special Shape) Products

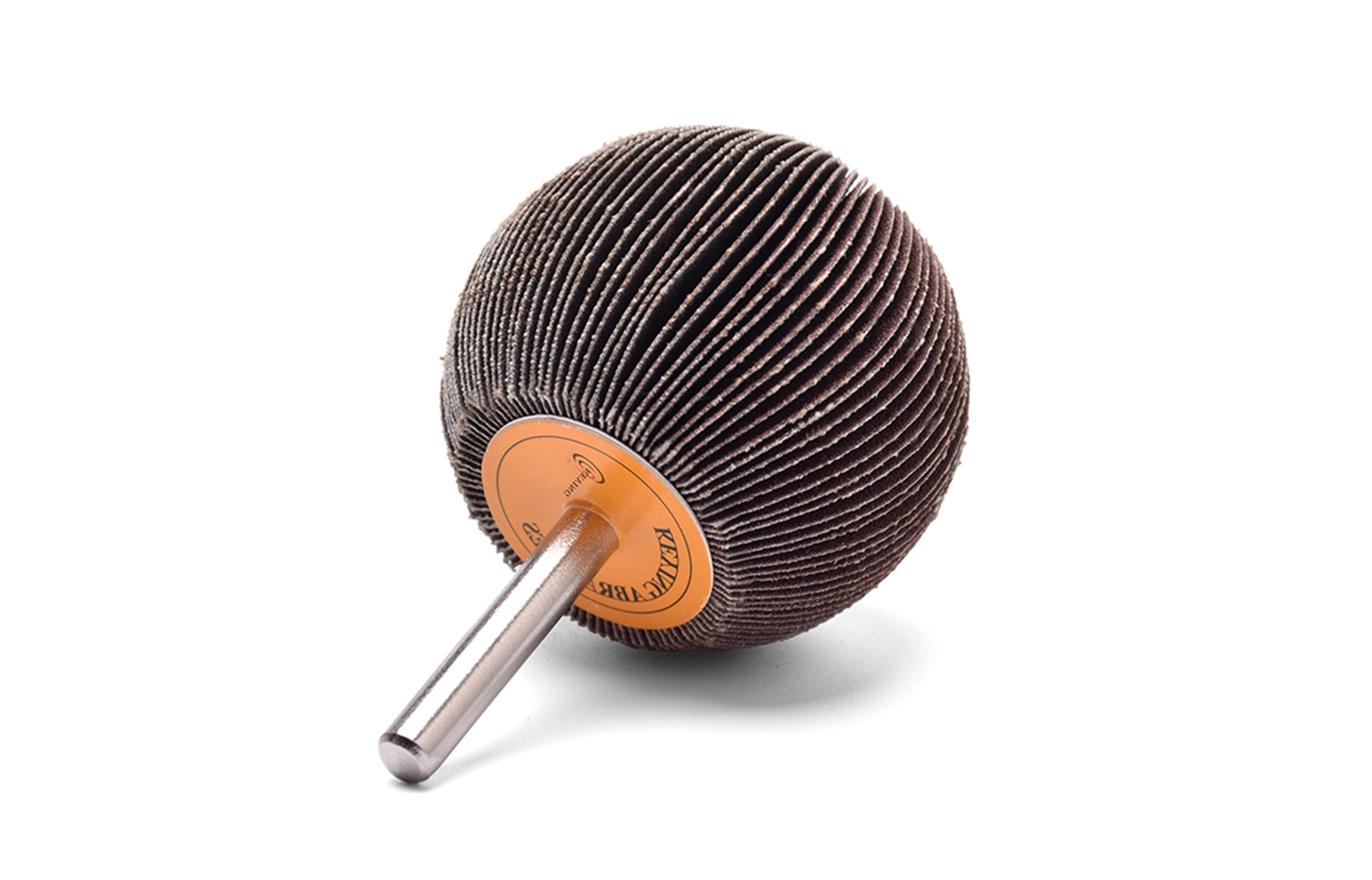

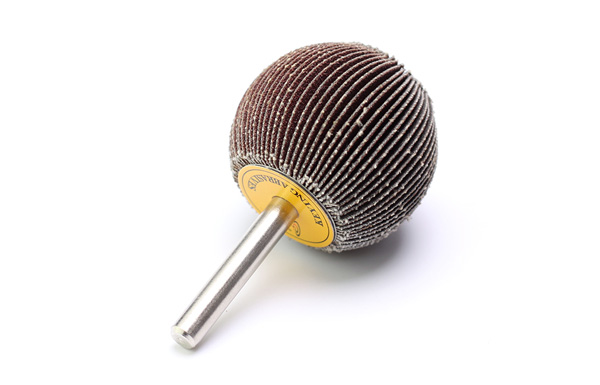

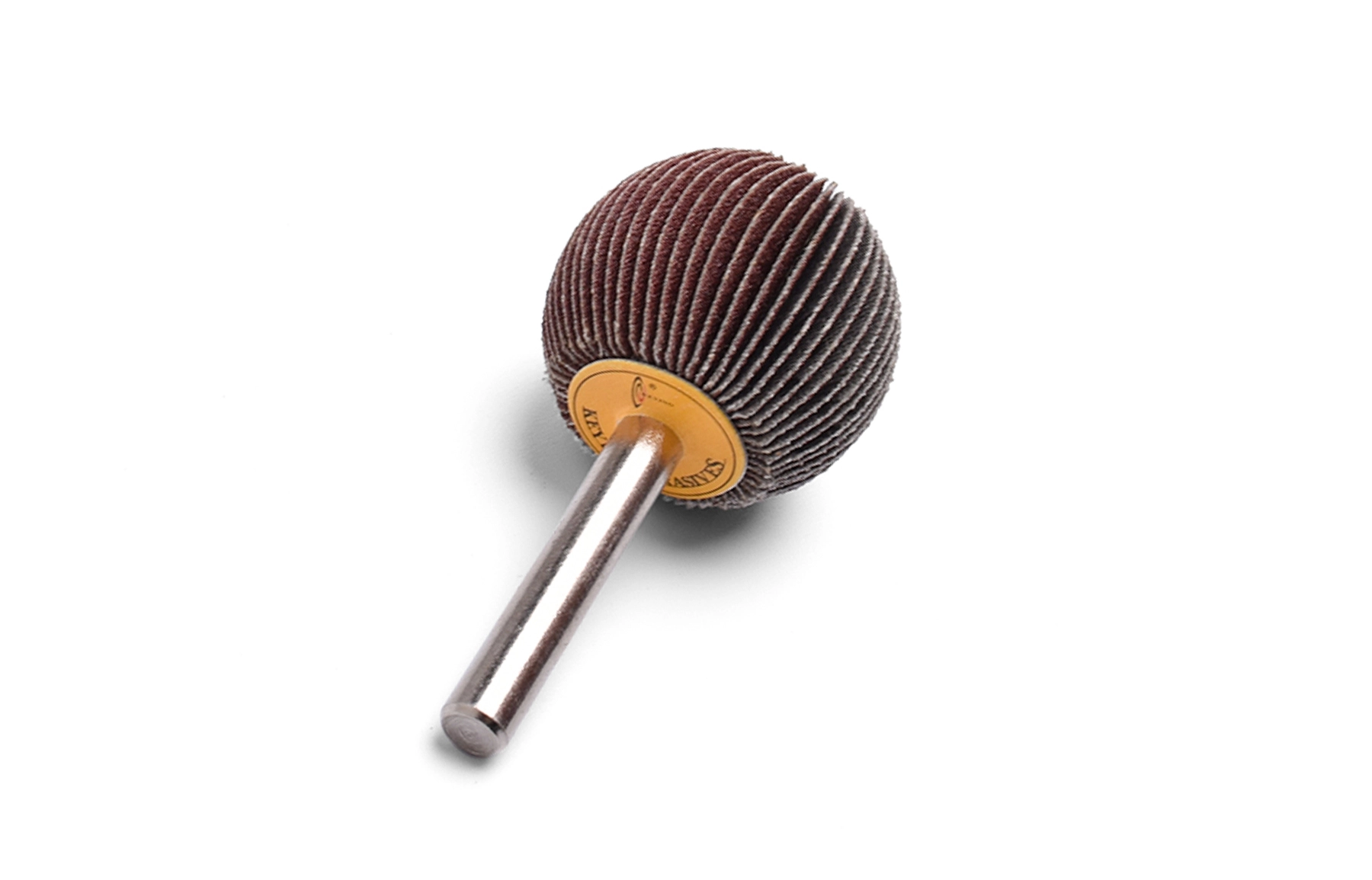

Spherical Flap Wheel 40mm 1-9/16''
