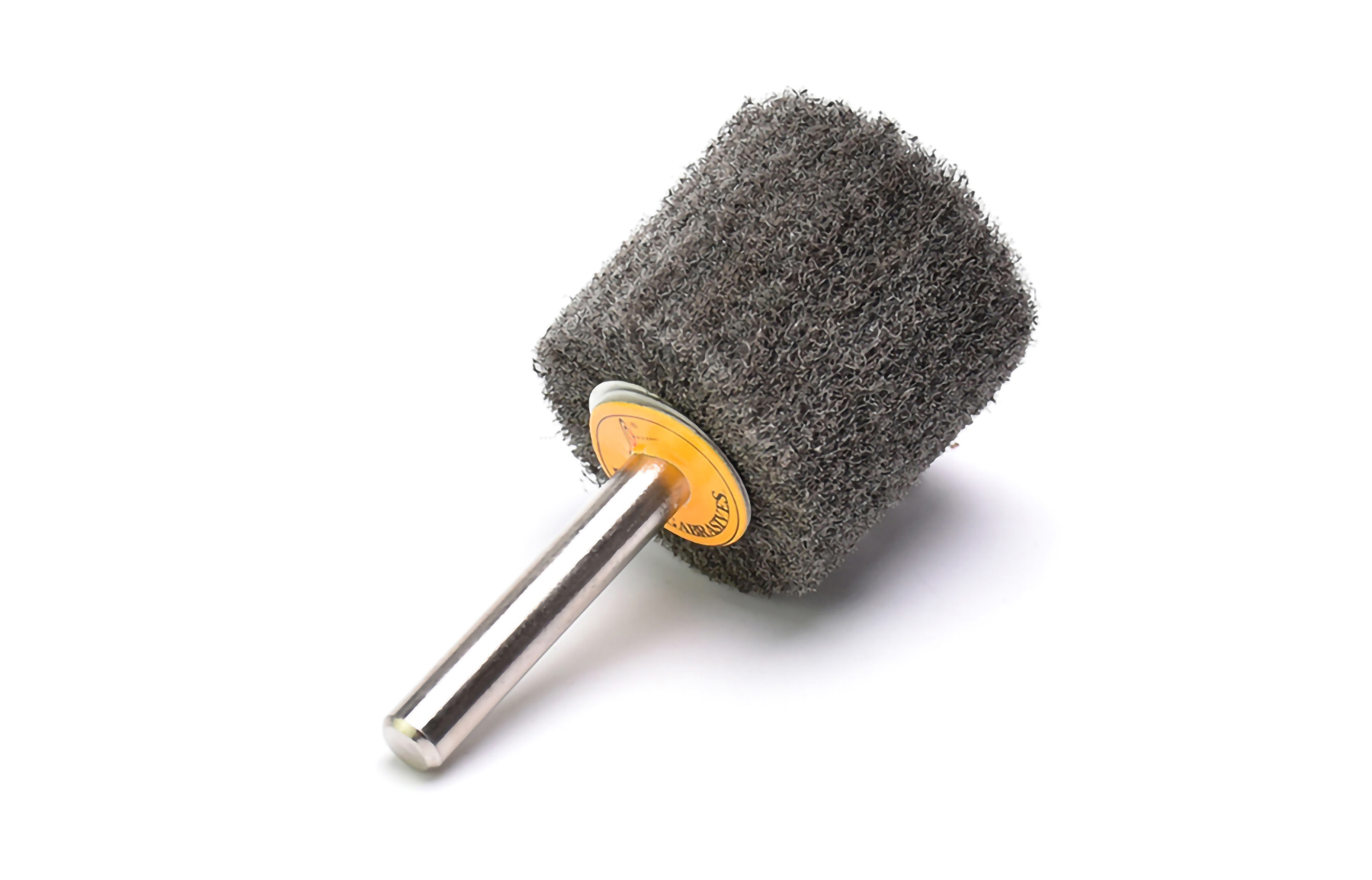

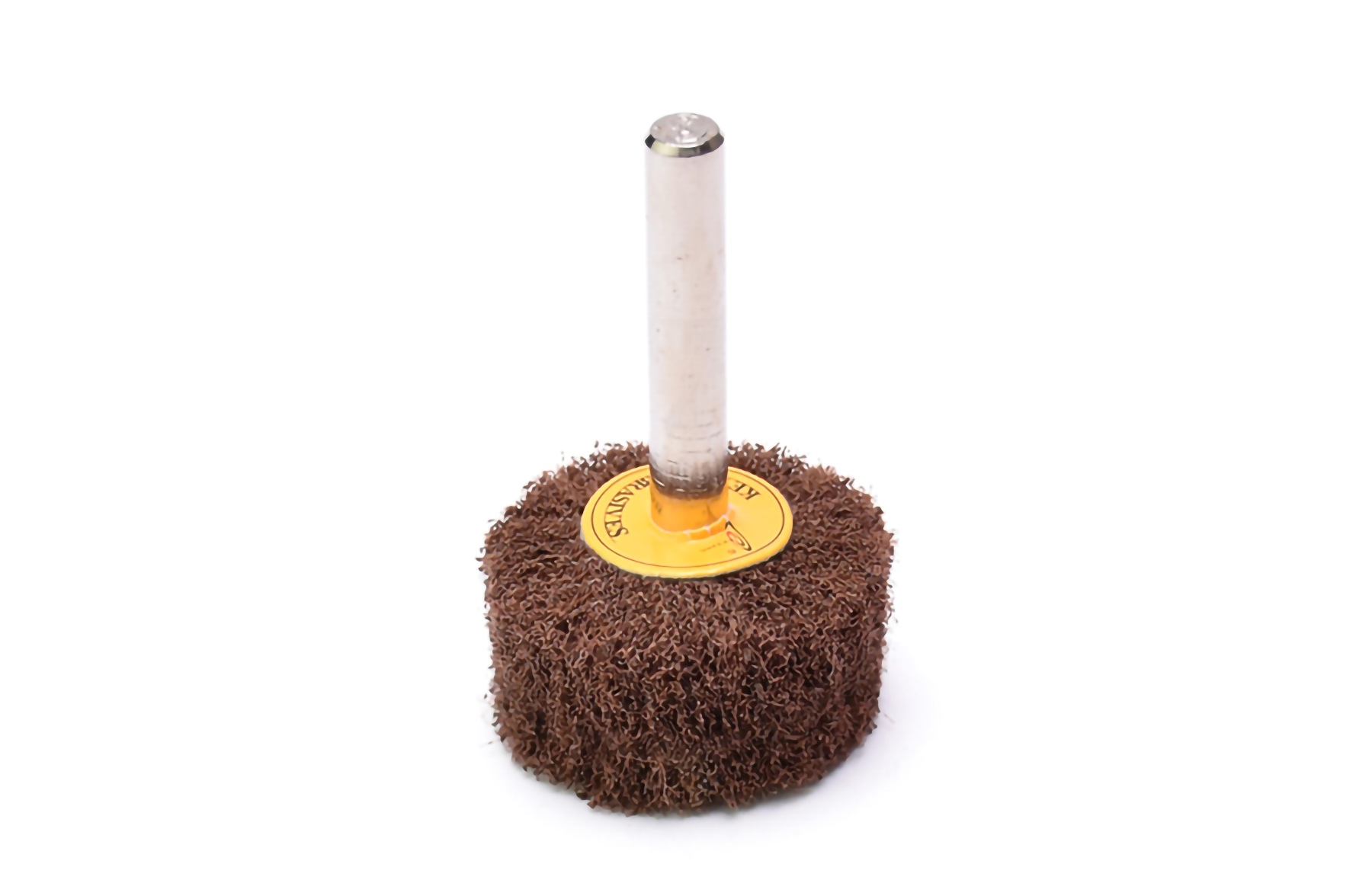

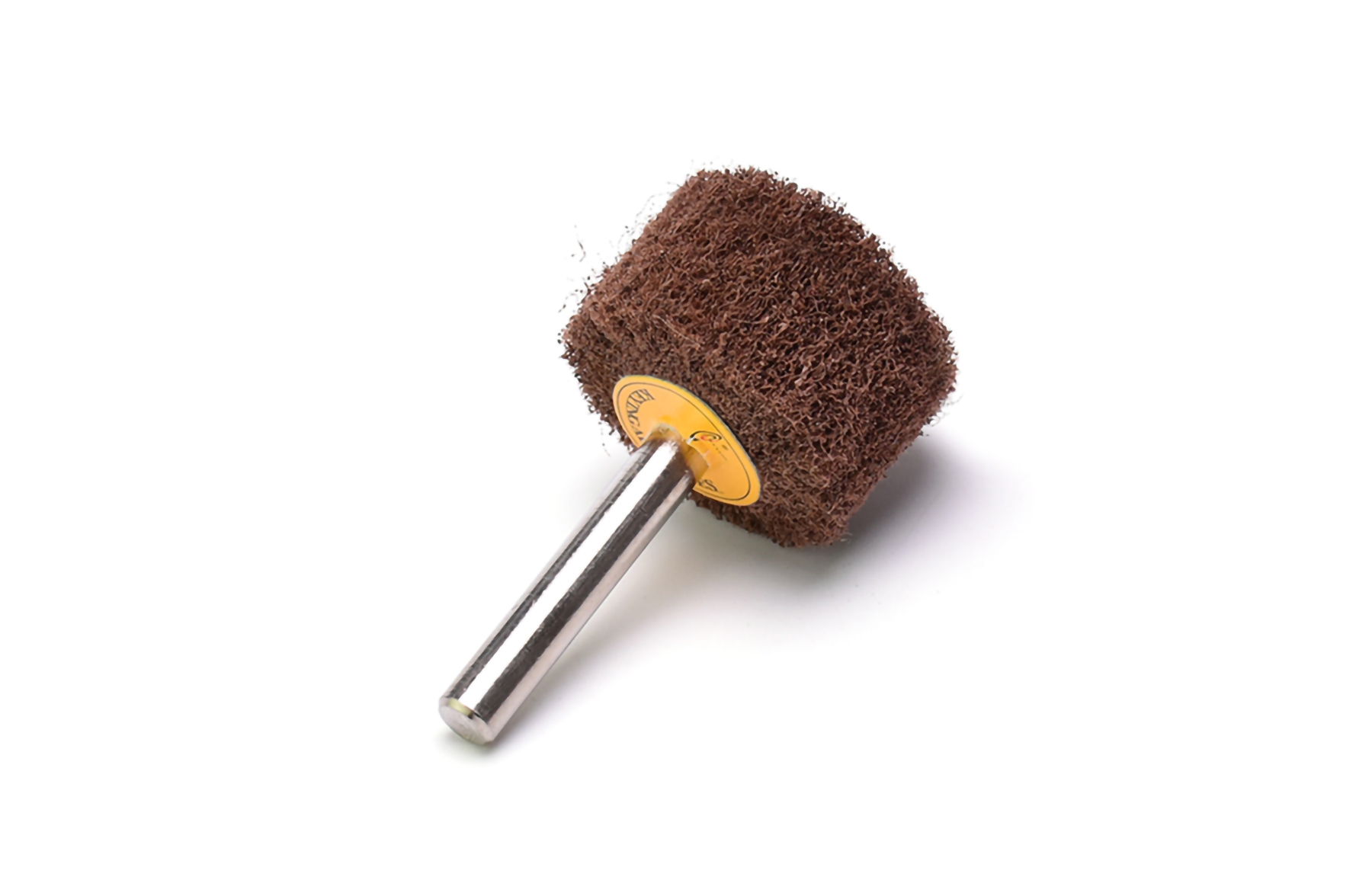

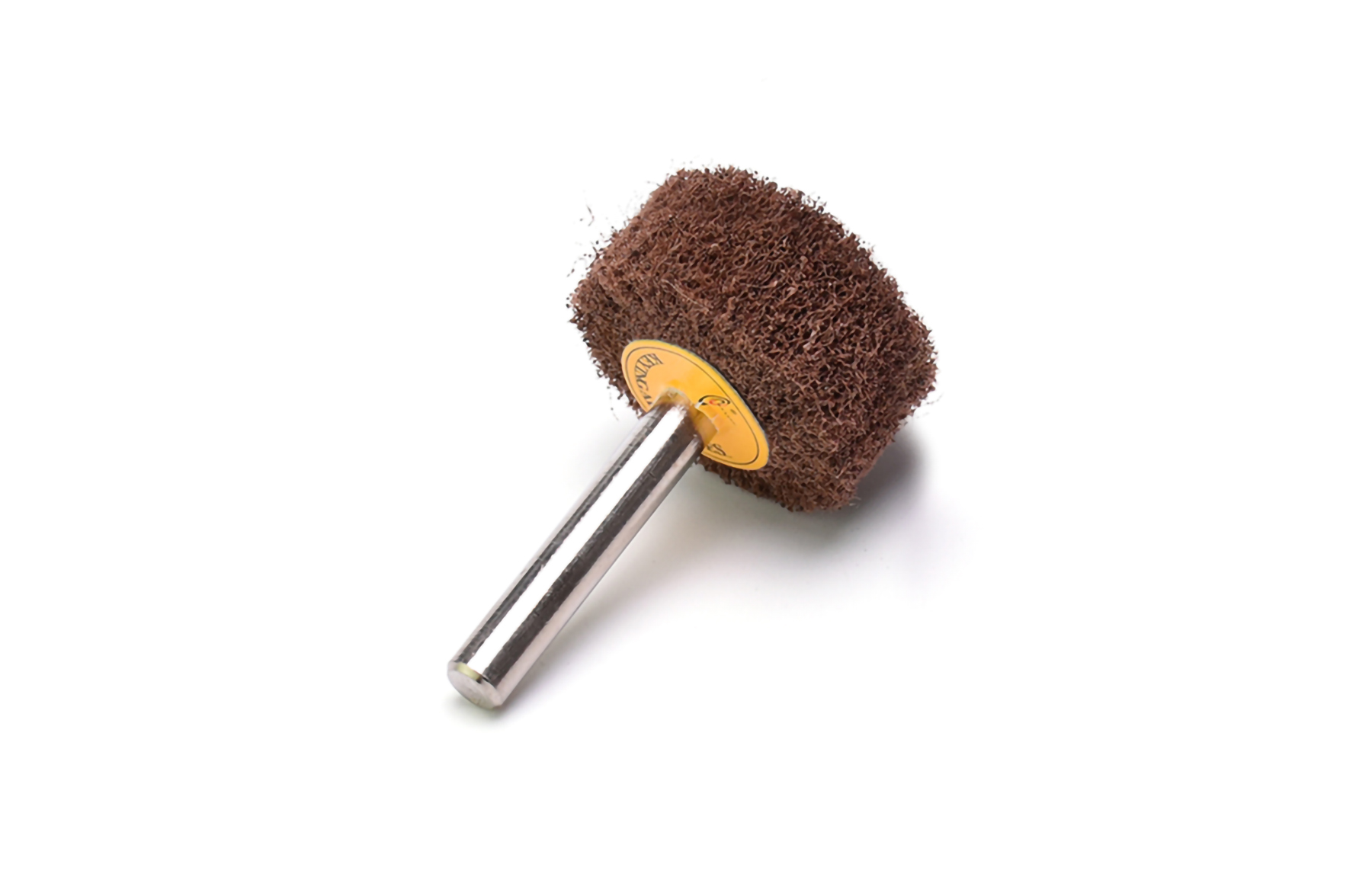

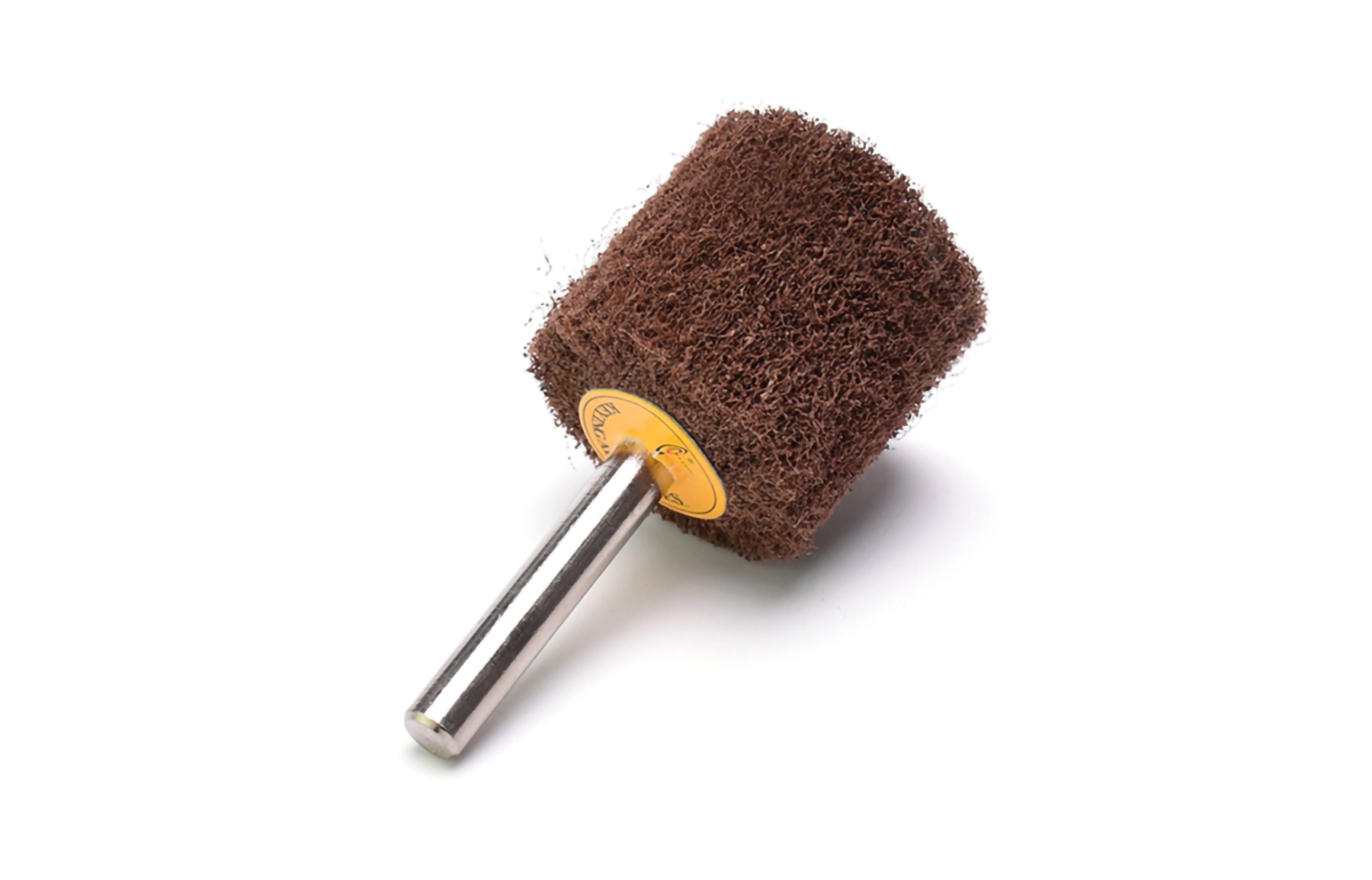

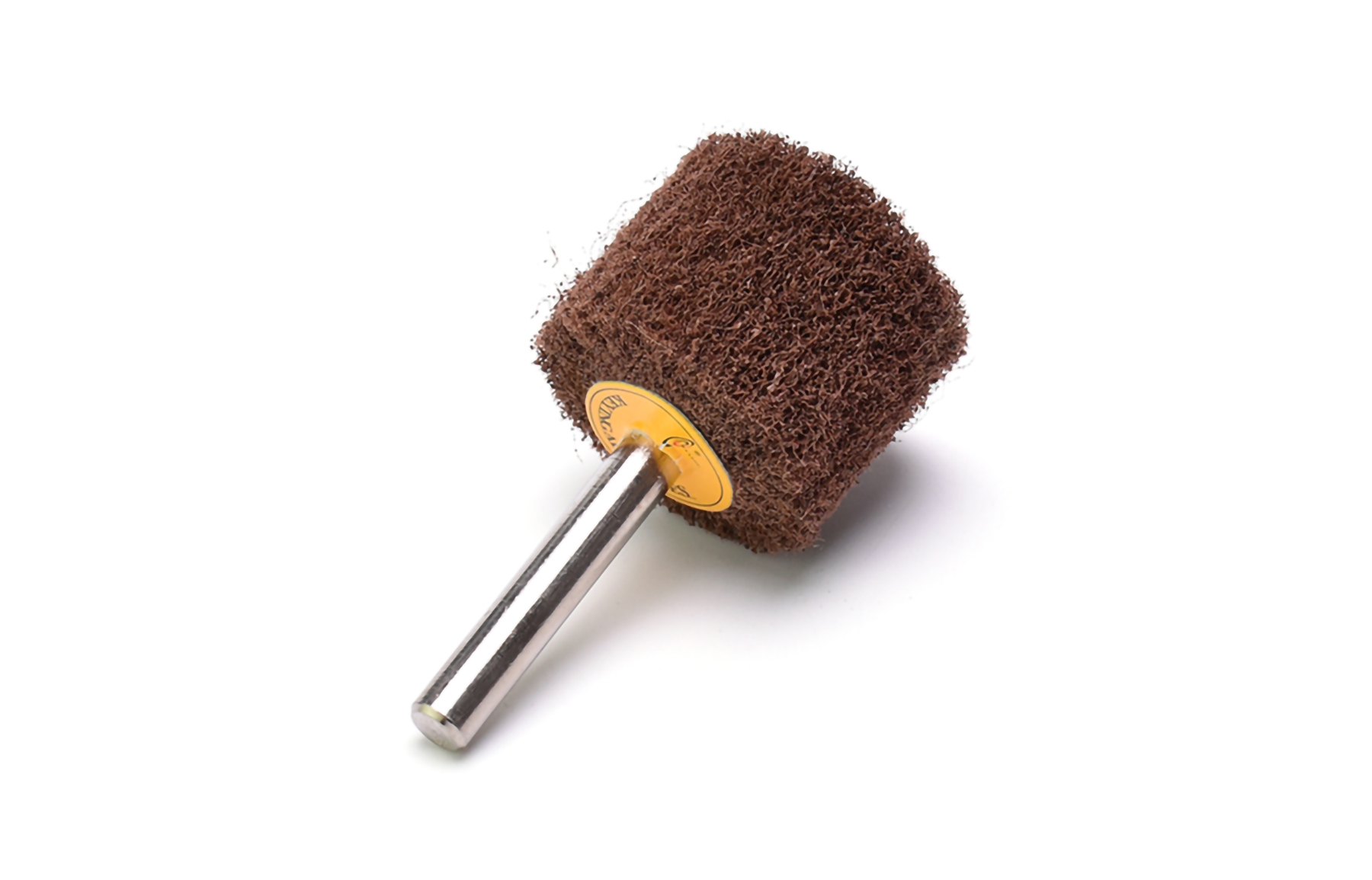

Full Non-woven Flap Wheel With Shank 1-3/16inch

Full Non-woven Flap Wheel with Shank 1-3/16inch-1
Full Non-woven Flap Wheel with Shank 1-3/16inch-2
Full Non-woven Flap Wheel with Shank 1-3/16inch-3
Full Non-woven Flap Wheel with Shank 1-3/16inch-4
Full Non-woven Flap Wheel with Shank 1-3/16inch-5
Full Non-woven Flap Wheel with Shank 1-3/16inch-6
Full Non-woven Flap Wheel with Shank 1-3/16inch-7
30 20 6 4

Made of radially arranged flaps of non-woven abrasive material. Long tool life is achieved through the dense packing of the flaps.

The tool is particularly used for surface work.

Table of Full Non-woven Flap Wheel with Shank 1-3/16inch

Table of Full Non-woven Flap Wheel with Shank 1-3/16inch


Full Non-woven Flap Wheel with Shank 1-3/16inch Specification:

  • Diameter: 1-3/16 inch=30mm

  • Max. RPM: 19000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC)

  • Grit Size: Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

  • Shank Diameter: 3mm, 6mm, 3.175mm, 6.35mm (Other sizes can be customized)


Full Non-woven Flap Wheel with Shank 1-3/16inch Materials that can be worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Titanium alloys

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Zinc

  • Stainless steel (INOX)

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Full Non-woven Flap Wheel With Shank 1-3/16inch Applicable Industries

Applications

  • Roughening

  • Deburring

  • Surface work

  • Cleaning

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Full Non-woven Flap Wheel With Shank 1-3/16inch Applicable Industries

Safety Warning of Full Non-woven Flap Wheel With Shank 1-3/16inch

Instructions:

Safety Warning of Full Non-woven Flap Wheel With Shank 1-3/16inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Non-woven Flap Wheel (Full) Products
Full Non-woven Flap Wheel With Shank - Cylinder Shape (CL)
Full Non-woven Flap Wheel With Shank - Cylinder Shape (CL)
Silicon Carbide Full Non-woven Flap Wheel With Shank (SC)
Silicon Carbide Full Non-woven Flap Wheel With Shank (SC)

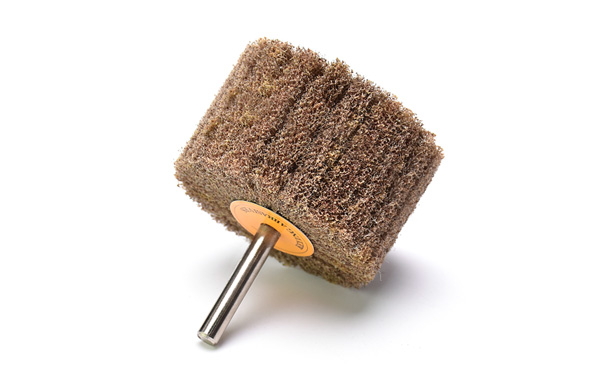

Full Non-woven Flap Wheel With Shank 2-3/8inch
