Name: Grinding Head G - Inverted Trapezoid Shape (IT)
Brand: Wenling Keying Abrasives Co., Ltd.

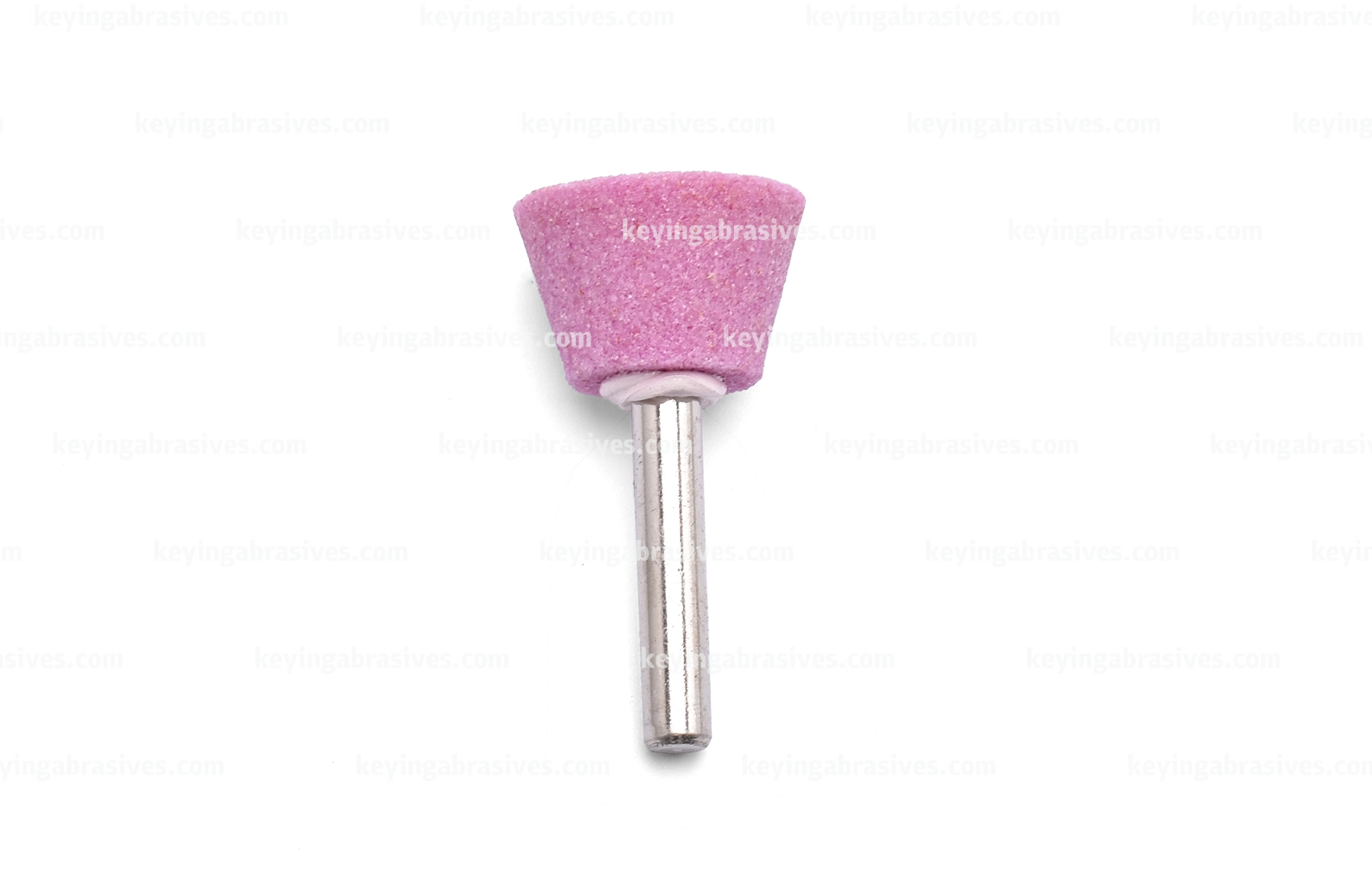

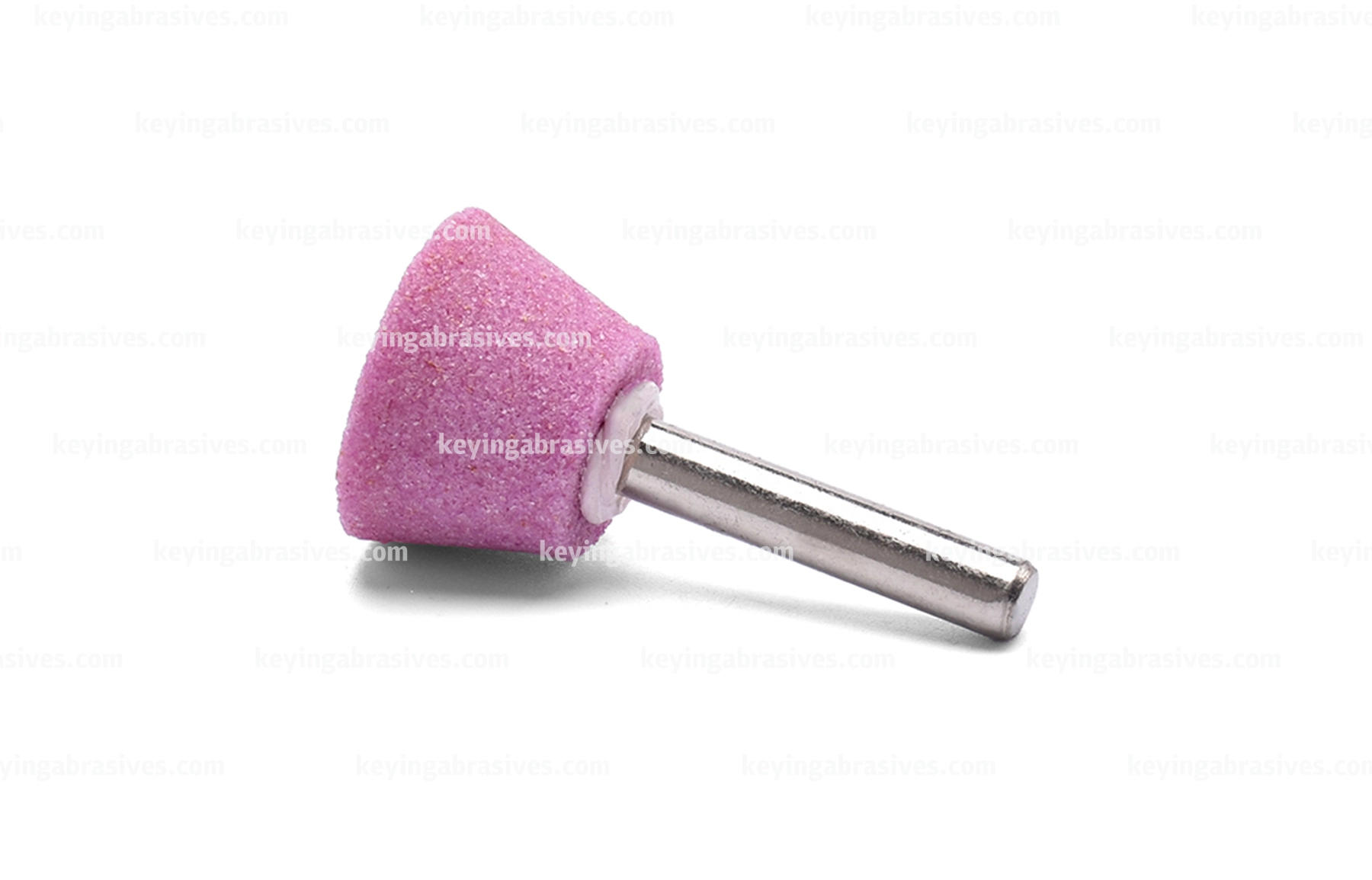

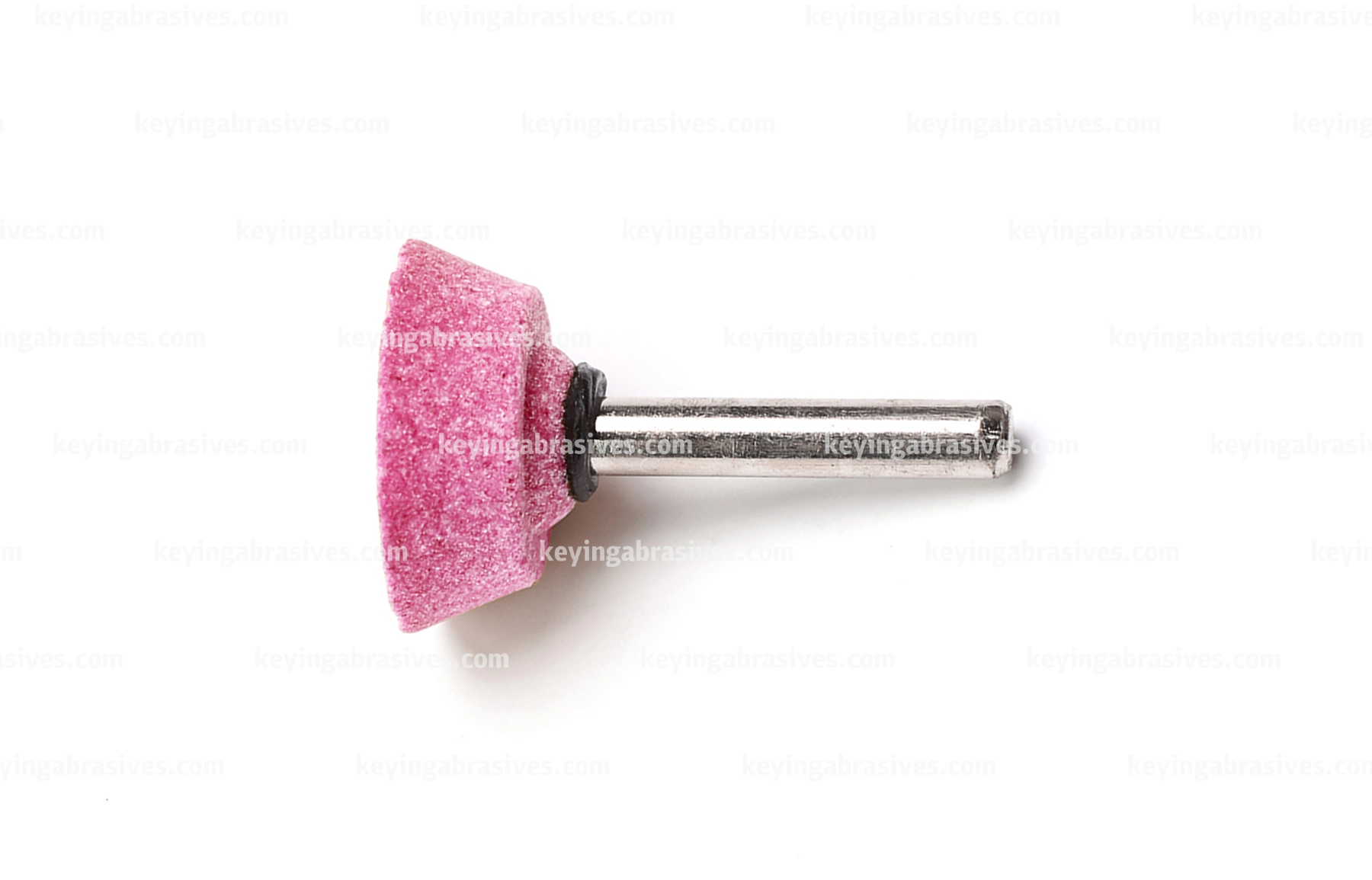

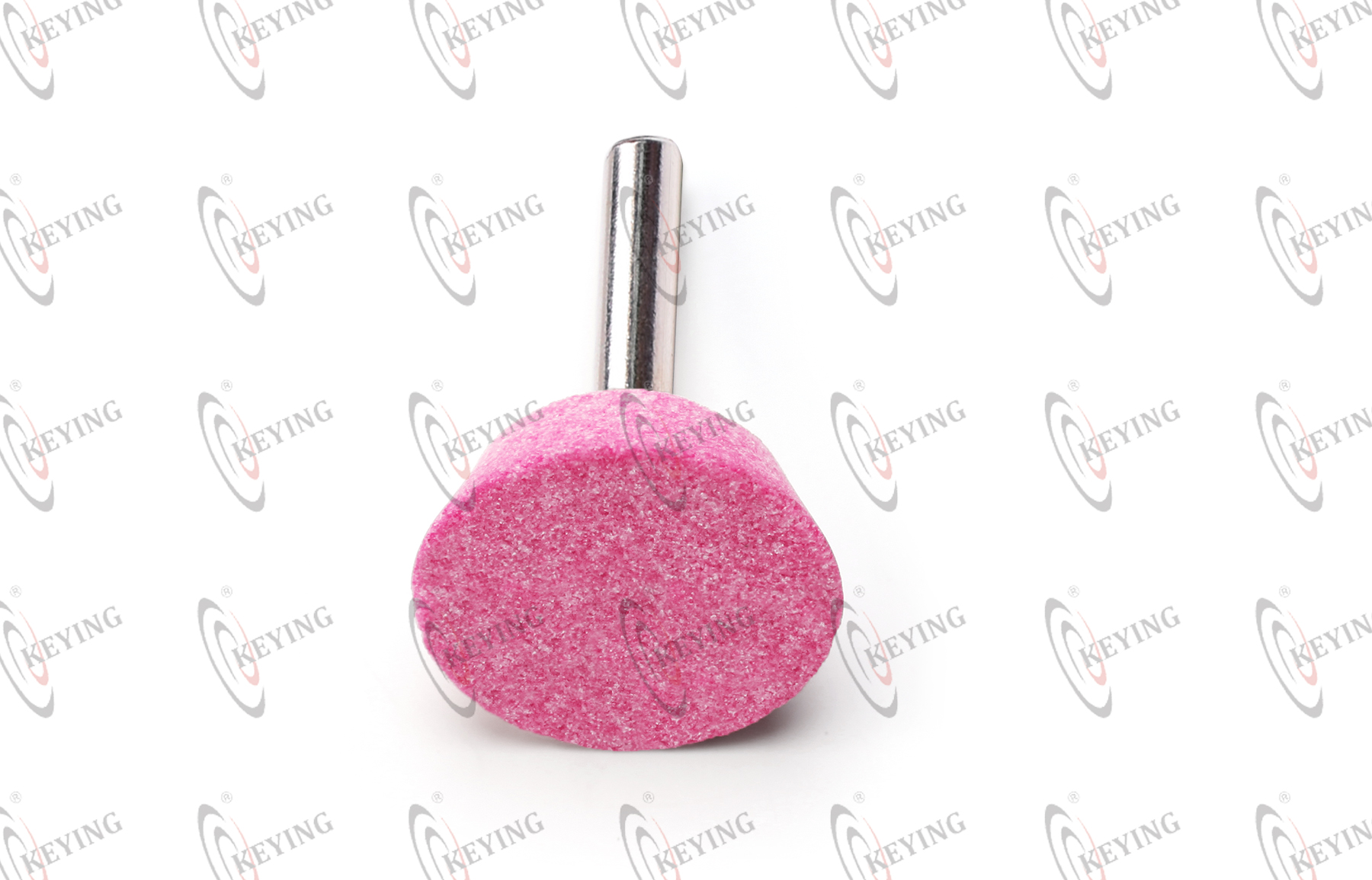

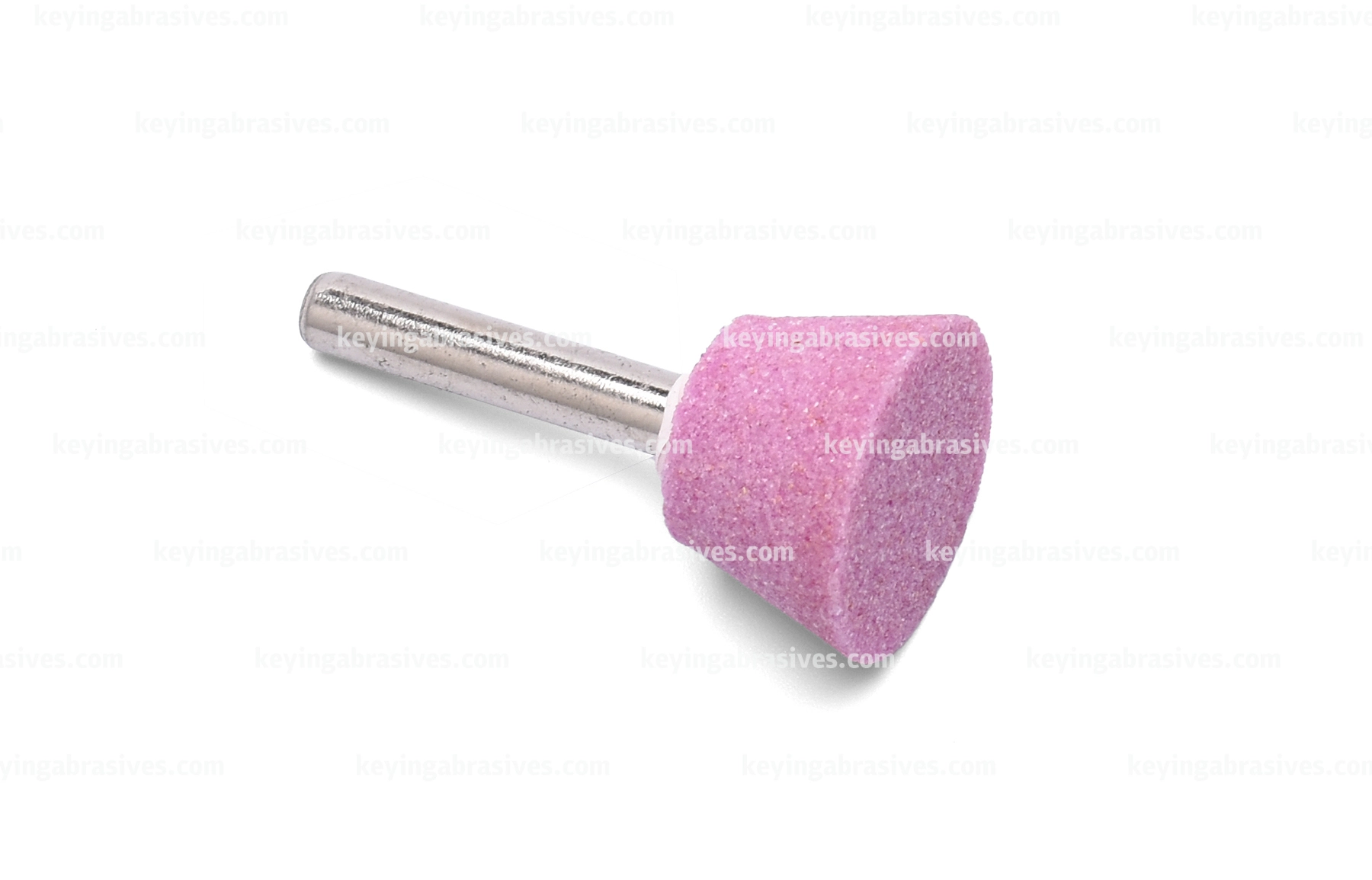

Grinding Head G - Inverted Trapezoid Shape (IT)

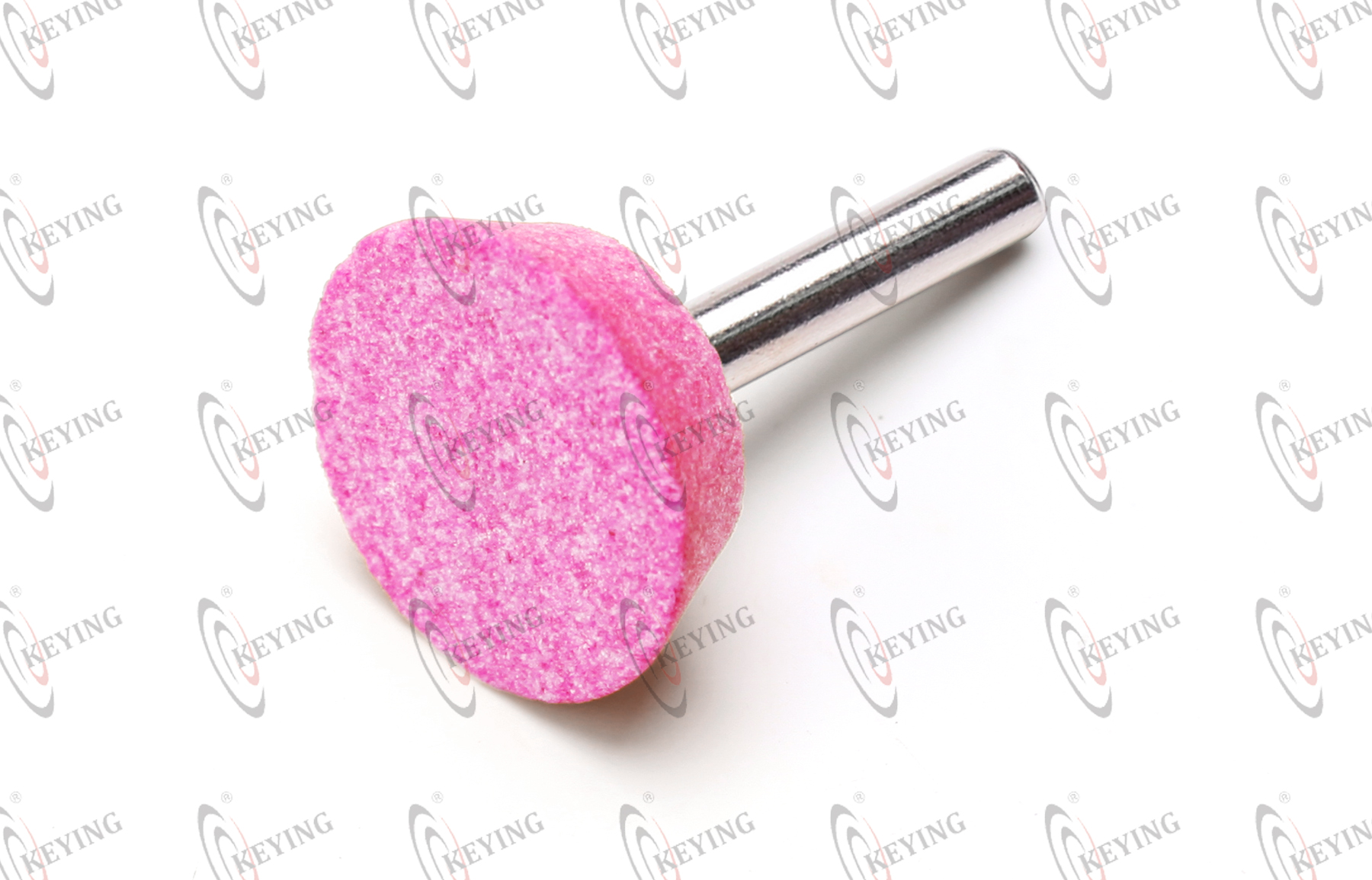

grinding head g inverted trapezoid shape it b34 3

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels and shapes. To select the correct installation point, consideration must be given to the material, main application area and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

 Contact us

Call us +86(0)576-86711667

Specifications of Grinding Head G - Inverted Trapezoid Shape (IT)

Application	Surface: Edges And Difficult Reached Angels, Deburring, Grinding, Welading Removing, Finishing, Prepare For Grouting, Roughening Material Apply: Steel, Cast Steel, Stainless Steel, Non-Ferrous Metals, Cast Iron, Plastics, Rubber, Wood	Brand	KEYING	Commodity Code	CGB34P+Grit+PA
Compatible Tool	Flexible Shaft Drive Straight Grinder	Country Of Origin	China	Raw Material	Brown Fused Alumina White Fused Alumina Single Crystal Corundum Chrome Corundum Zircon Corundum Black Corundum Green Silicon Carbide Black Silicon Carbide Microlite Corundum
Hardness	Very Hard Hard Medium Soft Very Soft Extremely Soft	For Use On	Carbon Steel, General Alloy Steel, Calcined Cast Iron, Hard Bronze	Grit Size	60#, 80#, 100#,120#
Shank Diameter	1-1/4"	Industries	High-Speed Railway, Aviation, Metal Casting And Other High Precision Industries	Colour	Brown, Blue, Orange, White, Black, Pink, Light Blue, Grey Black, Green
Maximum RPM	6000-29800	Shape	倒梯形IT-Inverted Trapezoid	Standard Pack Quantity	5pcs

Table of Grinding Head G - Inverted Trapezoid Shape (IT)


Features of Grinding Head G - Inverted Trapezoid Shape (IT)

Designed to meet individual grinding tool application needs, these products come in a broad range of grain types, grit sizes, hardness grades, and shapes.
The mounted points are manufactured on modern production lines to high standards of dimensional accuracy and stability, consistent quality, and close tolerances.
To select the correct mounting point, the material, main fields of application, and specific operating requirements have to be taken into consideration.

Grinding Head G - Inverted Trapezoid Shape (IT) Applicable Industries

Applications

Surface: Edges and difficult reached angels, Deburring, Grinding, Welding removing, Finishing, Prepare for grouting, Roughening
Material Apply: Steel, Cast steelVStainless steel, Non-ferrous metals, Cast iron, Plastics, Rubber, Woo

Grinding Head G - Inverted Trapezoid Shape (IT) Applicable Industries

Matching Tool Drives:

Flexible shaft drive
Straight grinder

Safety Instructions of Grinding Head G - Inverted Trapezoid Shape (IT)

How To Grinding Head G - Inverted Trapezoid Shape (IT)

Instructions:

Safety Instructions of Grinding Head G - Inverted Trapezoid Shape (IT)

Please try to choose operation indoors environment and wear protective guards and goggles.
Never to exceed the recommanded maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
