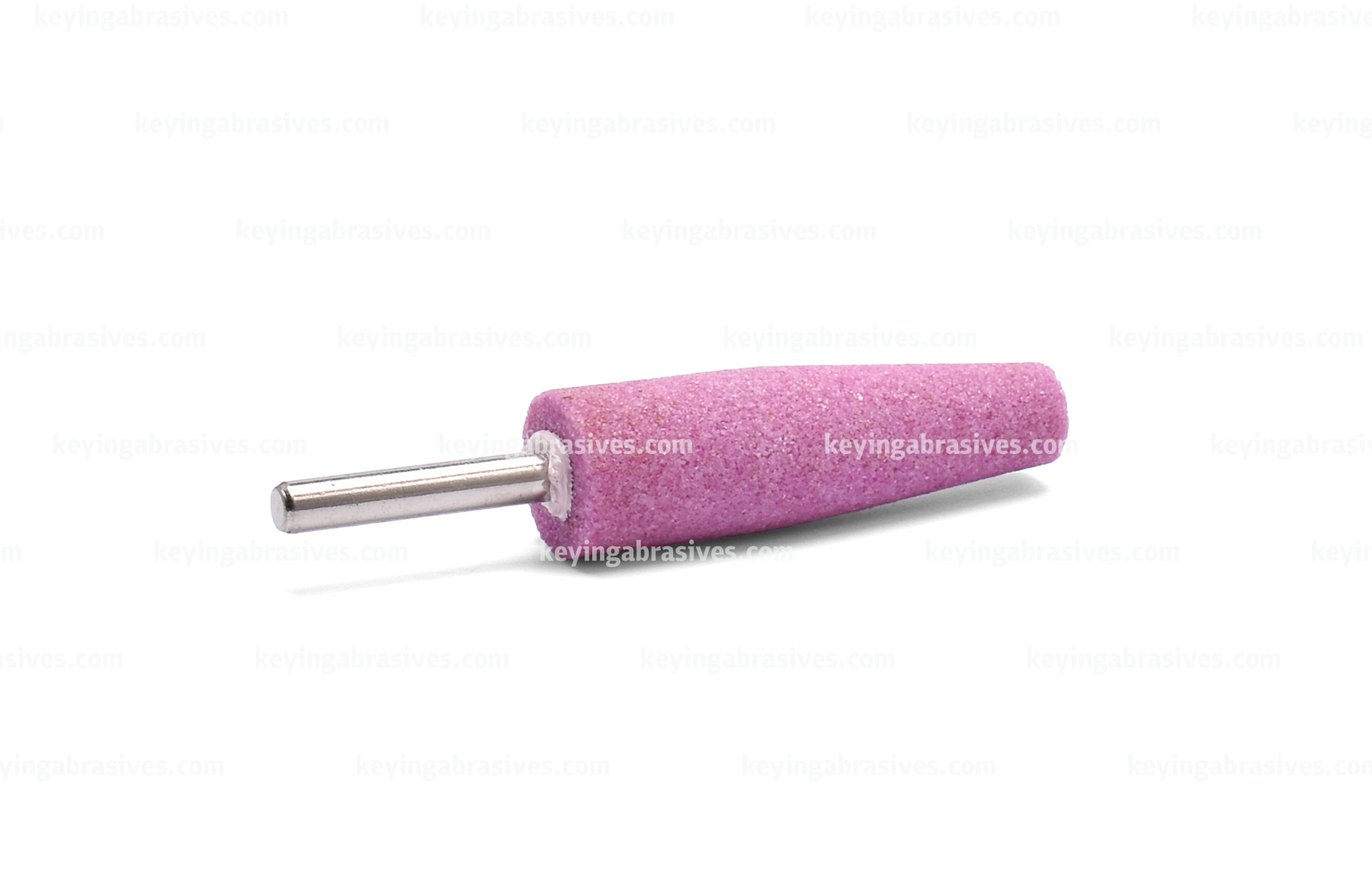

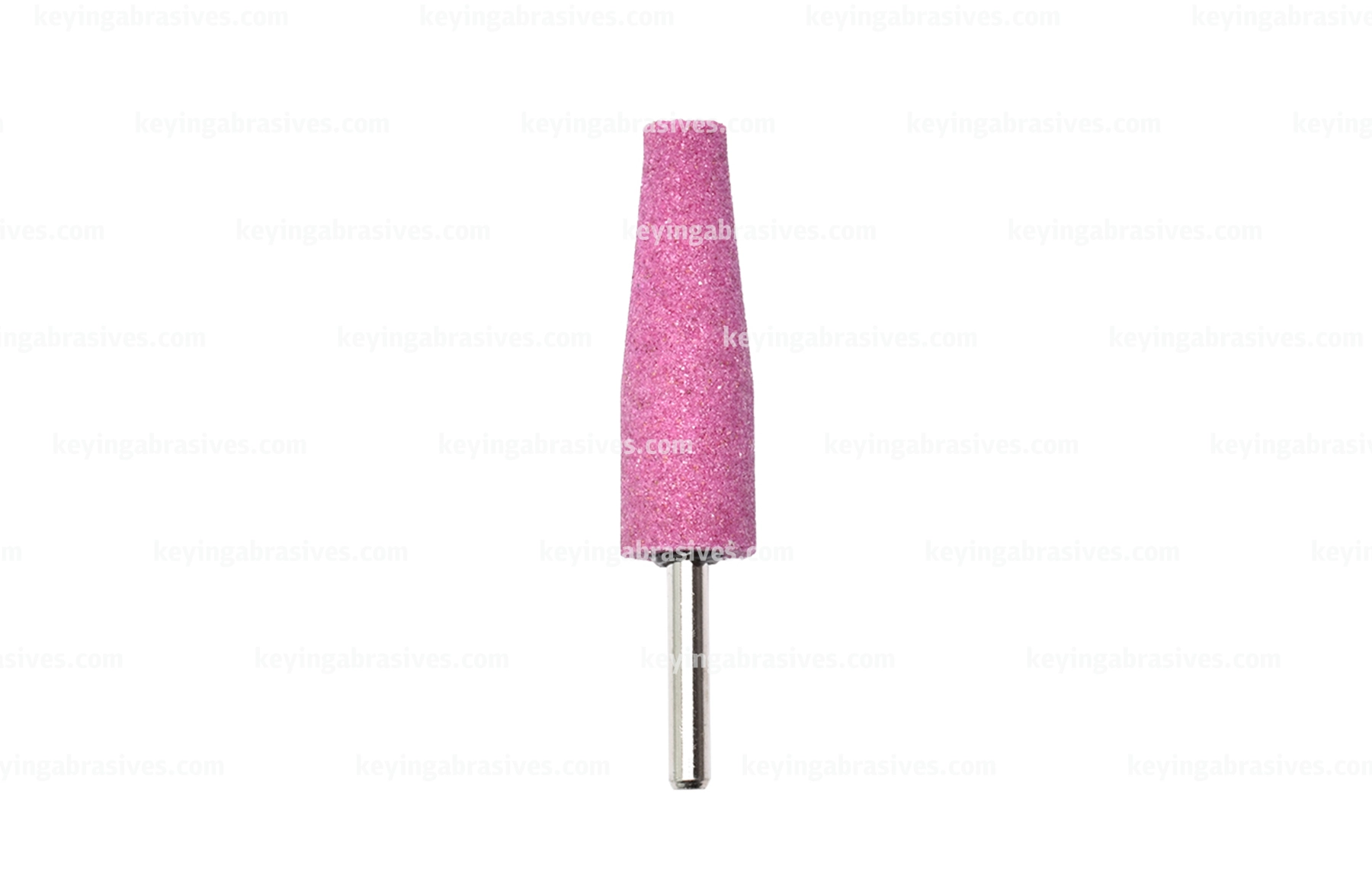

Grinding Head G - Triangular Trapezoid Shape (TA1)

b32 1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Grinding Head G - Triangular Trapezoid Shape (TA1)

Application

Surface: Edges And Difficult Reached Angels, Deburring, Grinding, Welding Removing, Finishing, Prepare For Grouting, Roughening

Material Apply: Steel, Cast Steel, Stainless Steel, Non-Ferrous Metals, Cast Iron, Plastics, Rubber, Wood

BrandKEYINGCommodity CodeCGB32P+Grit+PA
Compatible ToolFlexible Shaft Drive Straight GrinderCountry   Of OriginChinaRaw   MaterialBrown Fused Alumina
White Fused Alumina
Single Crystal Corundum
Chrome Corundum
Zircon Corundum
Black Corundum
Green Silicon Carbide
Black Silicon Carbide
Microlite Corundum
HardnessVery Hard
Hard
Medium
Soft
Very Soft
Extremely Soft
For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit   Size60#, 80#, 100#,120#
Shank Diameter
IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourBrown, Blue, Orange, White, Black, Pink, Light Blue, Grey Black, Green
Maximum RPM9500-47700ShapeTA1-Triangular TrapezoidStandard   Pack Quantity5pcs


Table of Grinding Head G - Triangular Trapezoid Shape (TA1)



Features of Grinding Head G - Triangular Trapezoid Shape (TA1)

  • Designed to meet individual grinding tool application needs, these products come in a broad range of grain types, grit sizes, hardness grades, and shapes.

  • The mounted points are manufactured on modern production lines to high standards of dimensional accuracy and stability, consistent quality, and close tolerances.

  • To select the correct mounting point, the material, main fields of application, and specific operating requirements have to be taken into consideration.

Grinding Head G - Triangular Trapezoid Shape (TA1) Applicable Industries

Applications

  • Surface: Edges and difficult reached angels, Deburring, Grinding, Welding removing, Finishing, Prepare for grouting, Roughening

  • Material Apply: Steel, Cast steel, Stainless steel, Non-ferrous metals, Cast iron, Plastics, Rubber, Woo

Grinding Head G - Triangular Trapezoid Shape (TA1) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Grinding Head G - Triangular Trapezoid Shape (TA1) Applicable Industries

Safety Instructions of Grinding Head G - Triangular Trapezoid Shape (TA1)

How To Grinding Head G - Triangular Trapezoid Shape (TA1)

Instructions:

Safety Instructions of Grinding Head G - Triangular Trapezoid Shape (TA1)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Grinding Head G Products
Grinding Head G - T Shape (T)
Grinding Head G - T Shape (T)
Single Crystal Corundum Grinding Head G (SA)
Single Crystal Corundum Grinding Head G (SA)

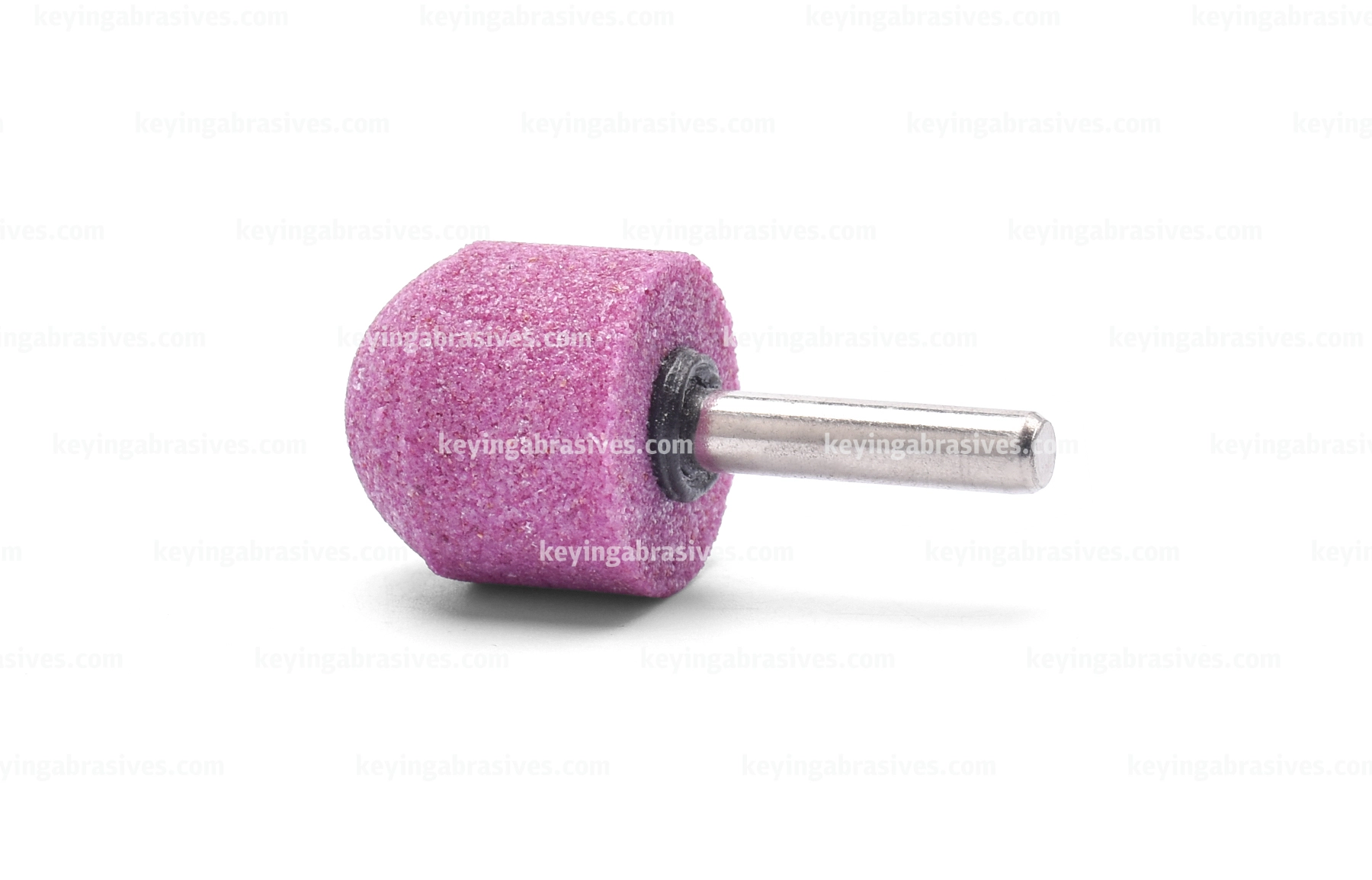

Grinding Head G - Round end Cylinder Shape (RC)
