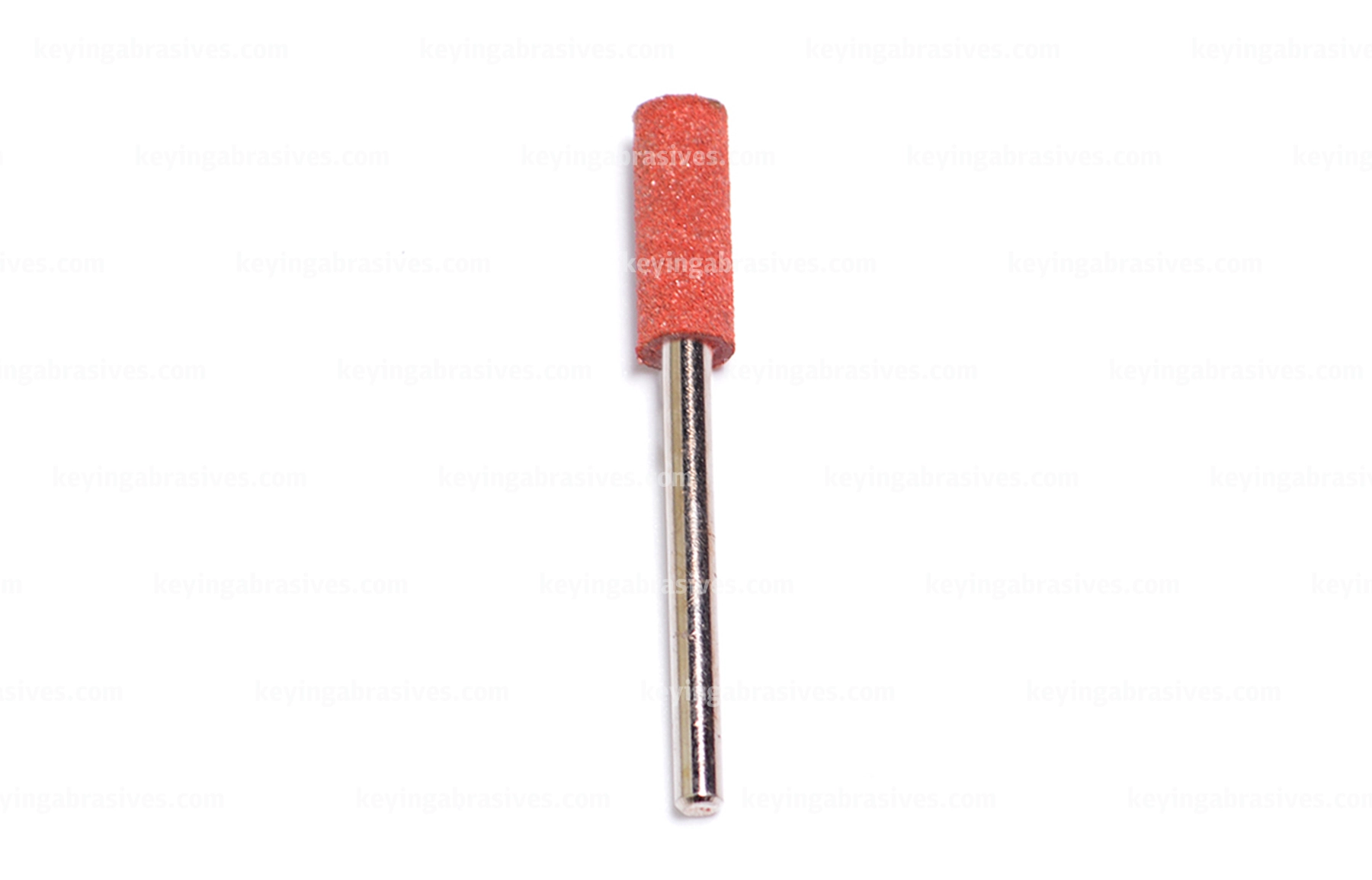

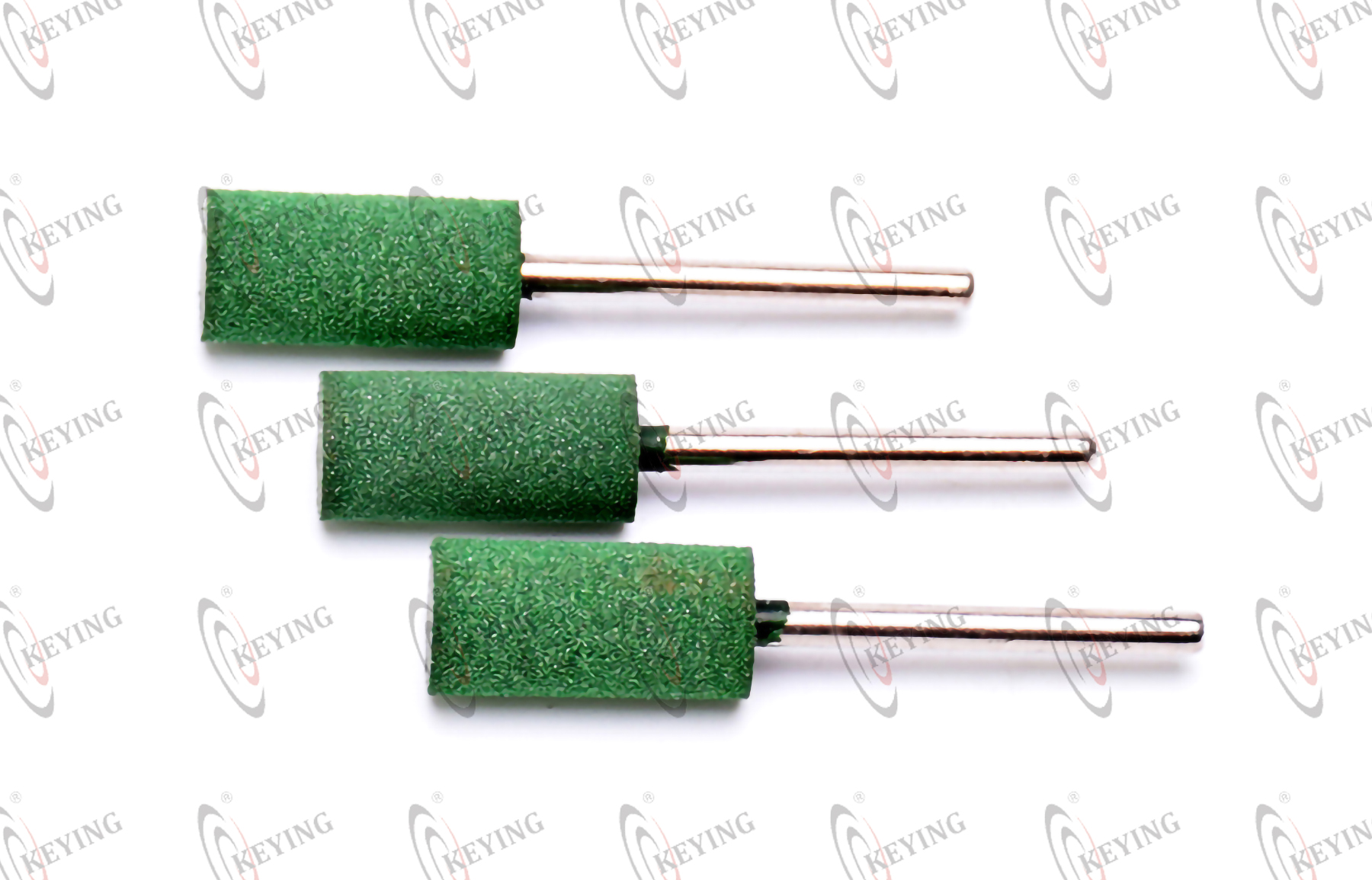

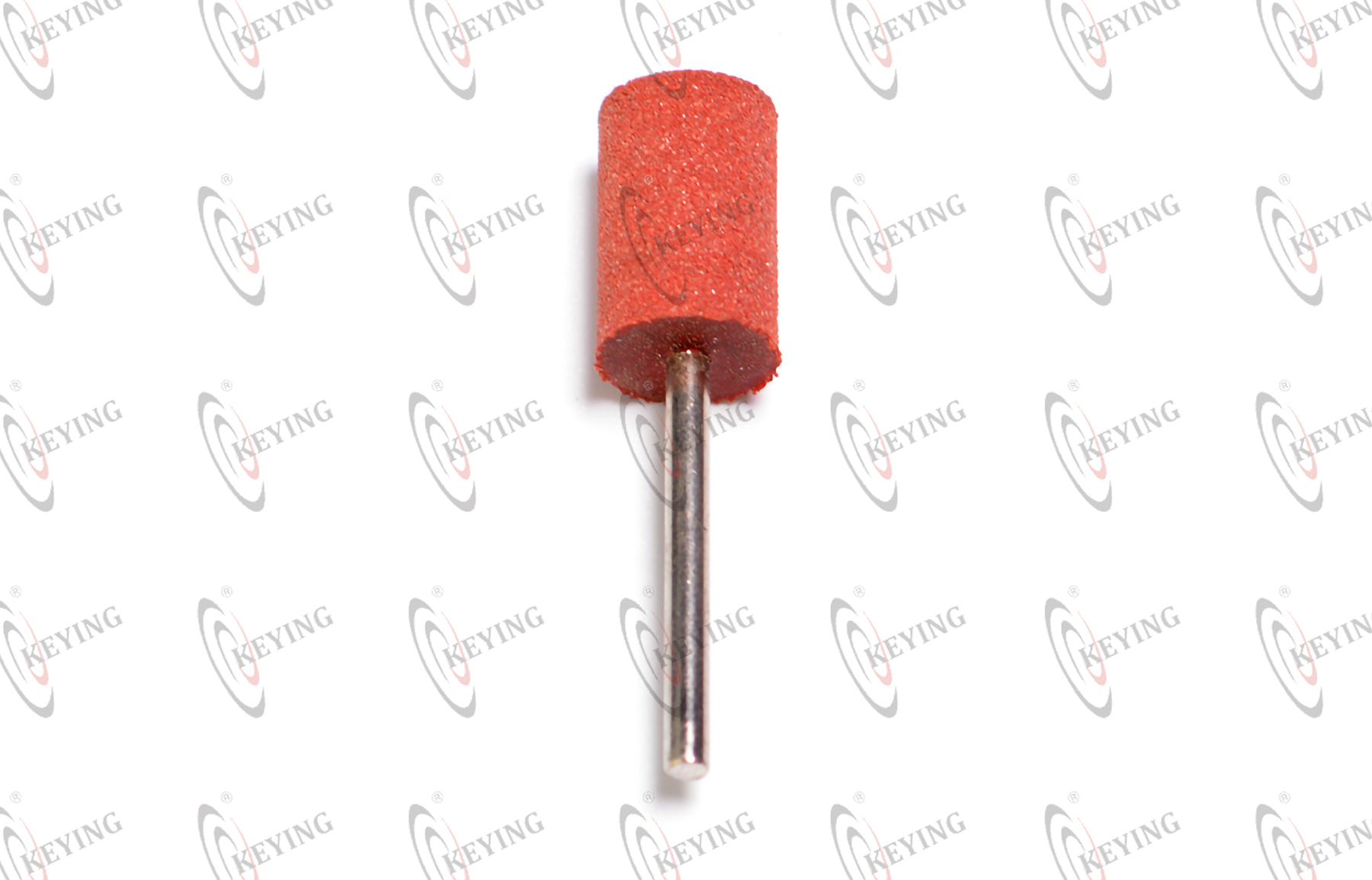

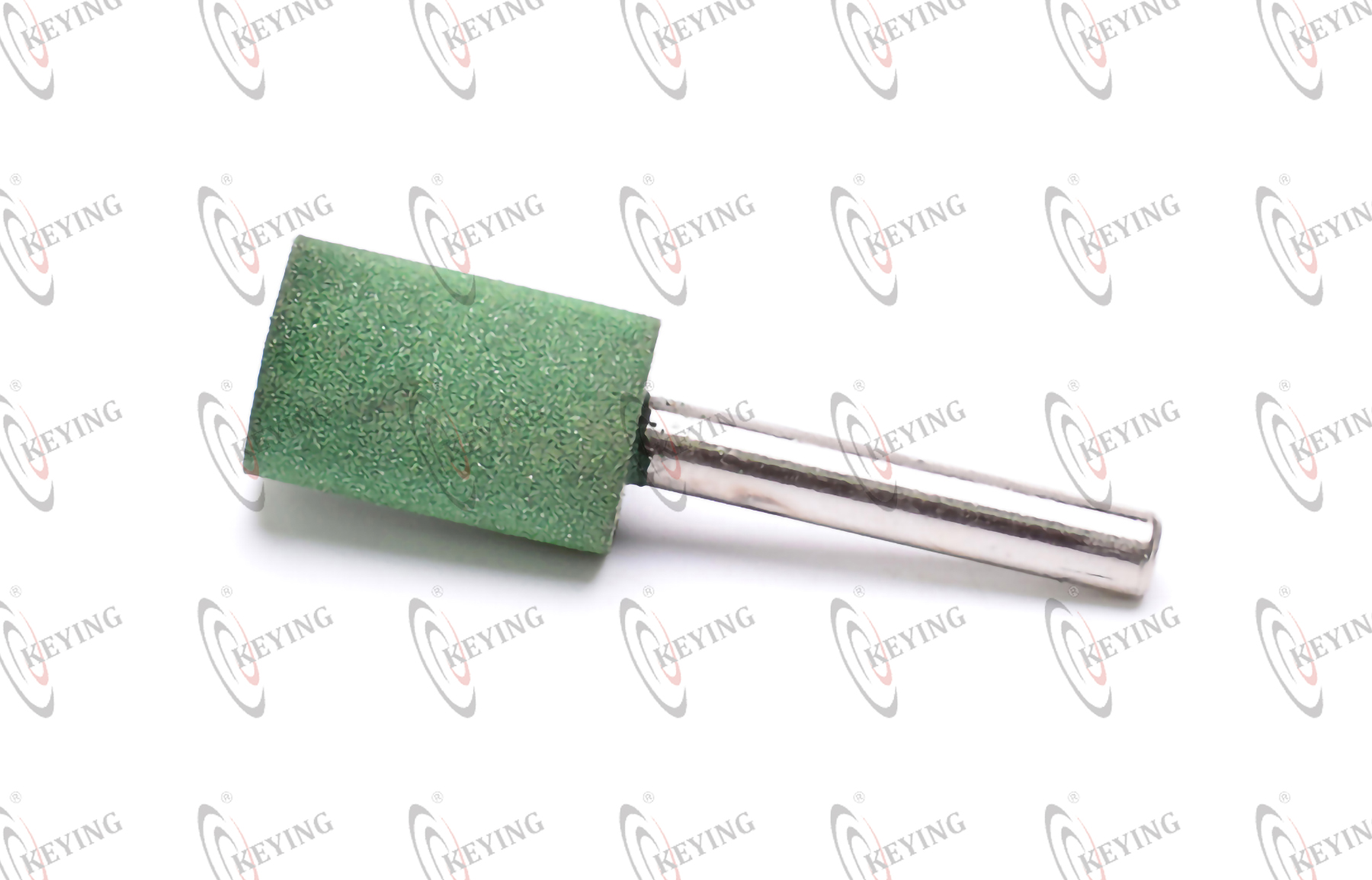

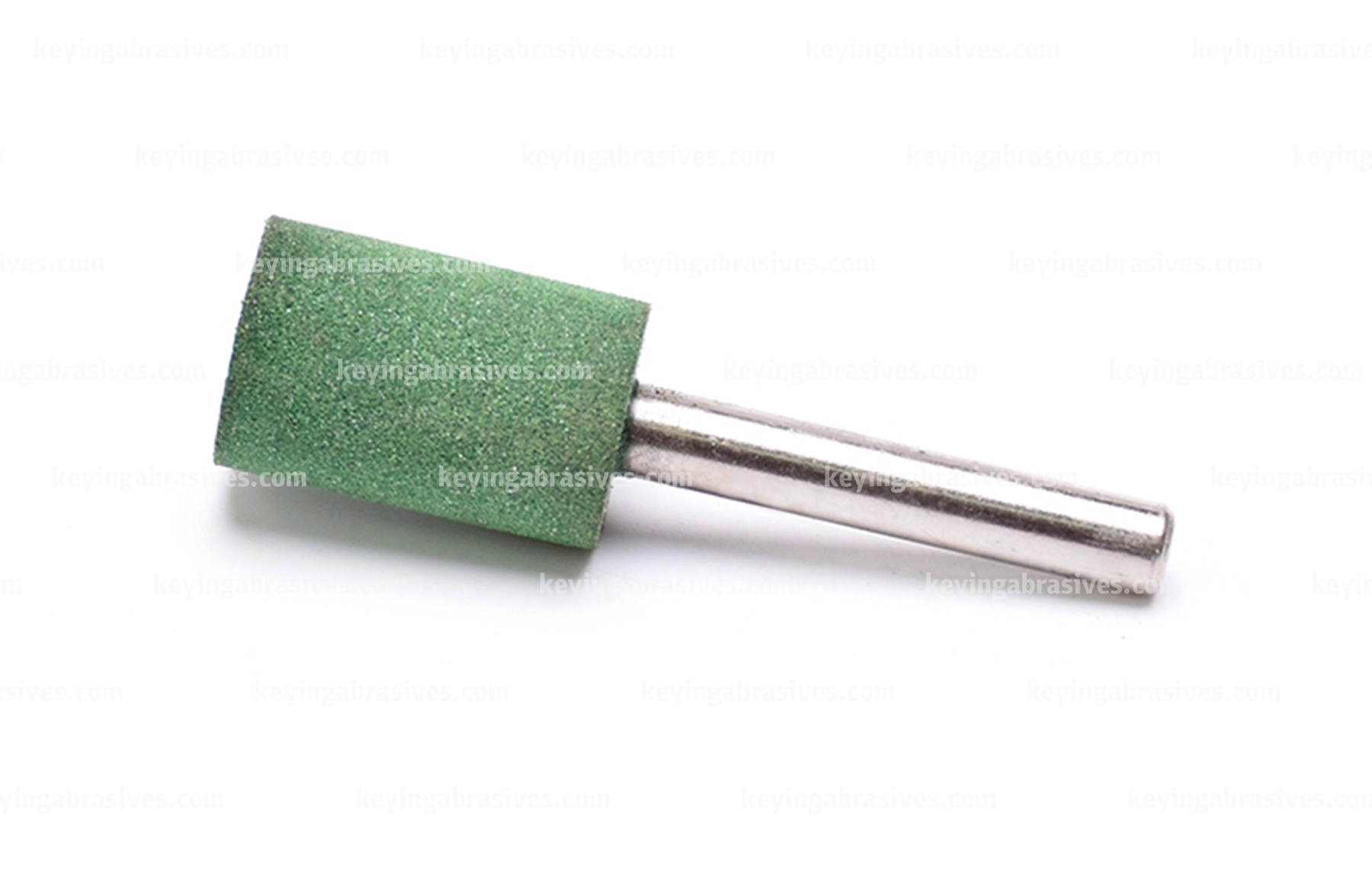

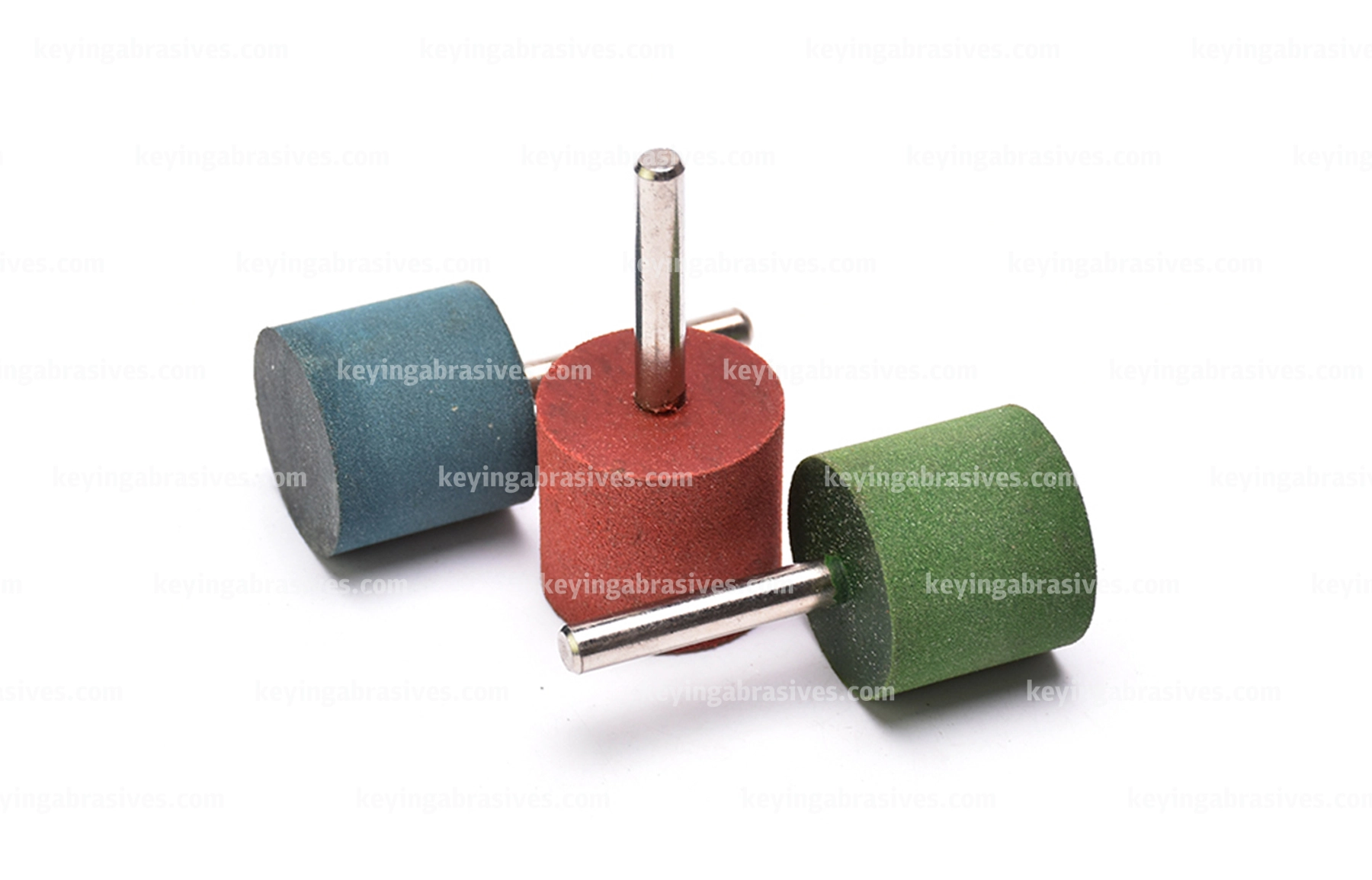

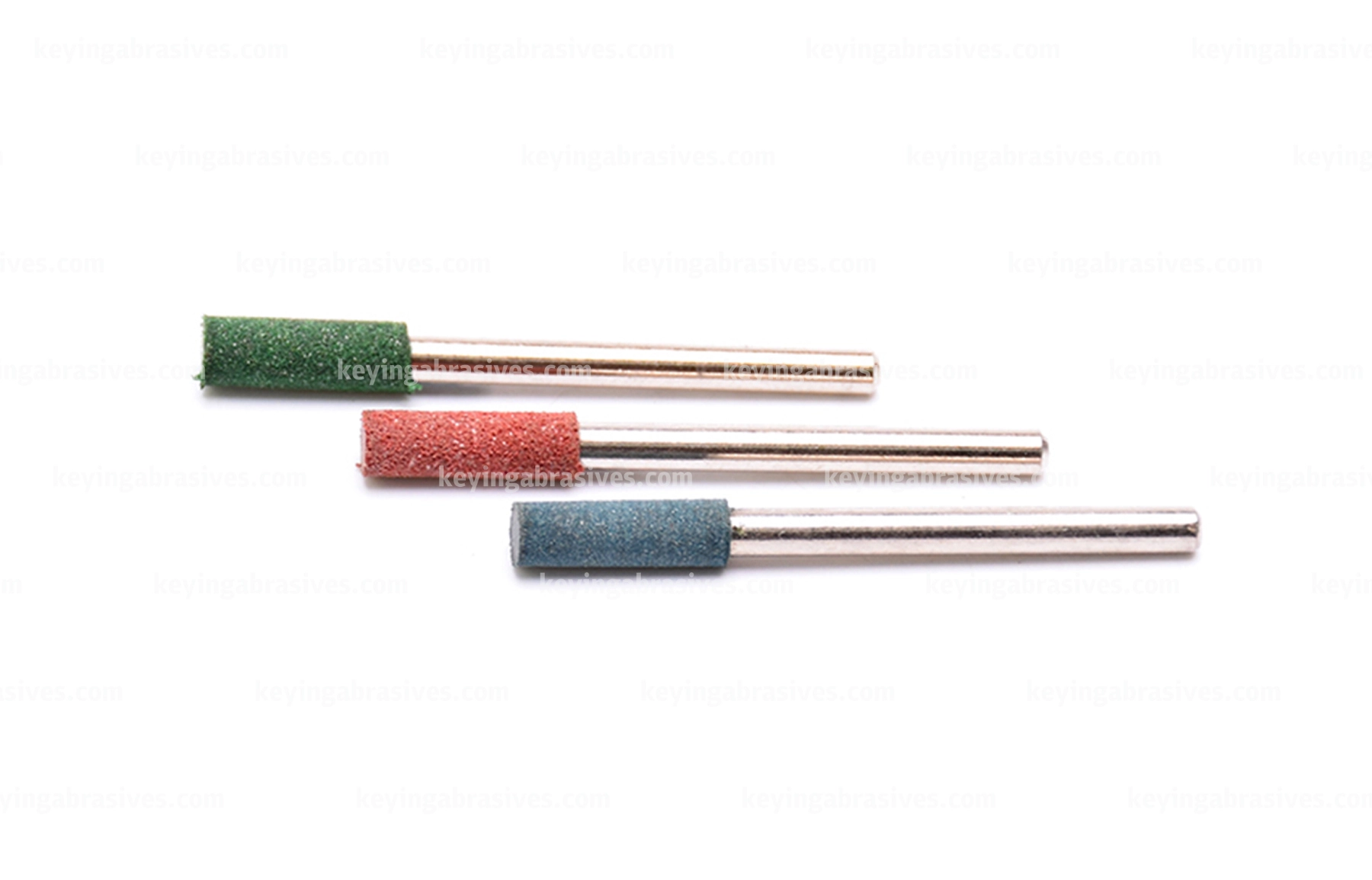

Grinding Head X - Cylinder Shape (CL)

Grinding Head X  - Cylinder Shape 1
Grinding Head X  - Cylinder Shape 2
Grinding Head X  - Cylinder Shape 3
Grinding Head X  - Cylinder Shape 4
Grinding Head X  - Cylinder Shape 5
Grinding Head X  - Cylinder Shape 6

KEYING Rubber Mounted Head has a variety of specifications and granularity, accept non-standard size customization, including diameter, handle diameter, material, handle length and so on. The most prominent characteristics of KEYING Rubber Mounted Head are good grinding force, stable performance, long service life, small dust, can cooperate with the use of various high speed power tools or pneumatic tools. Mainly suitable for all kinds of casting molds, metal products, such as grooves, edges and holes concave and convex cleaning, to weld, deburr and fine polishing processing.

Specifications of Grinding Head X  - Cylinder Shape (CL)

ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXCL6173+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 18mm, 20mm, 25mm, 30mm, 40mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeCylinderStandard   Pack Quantity40pcs/50pcs/100pcs

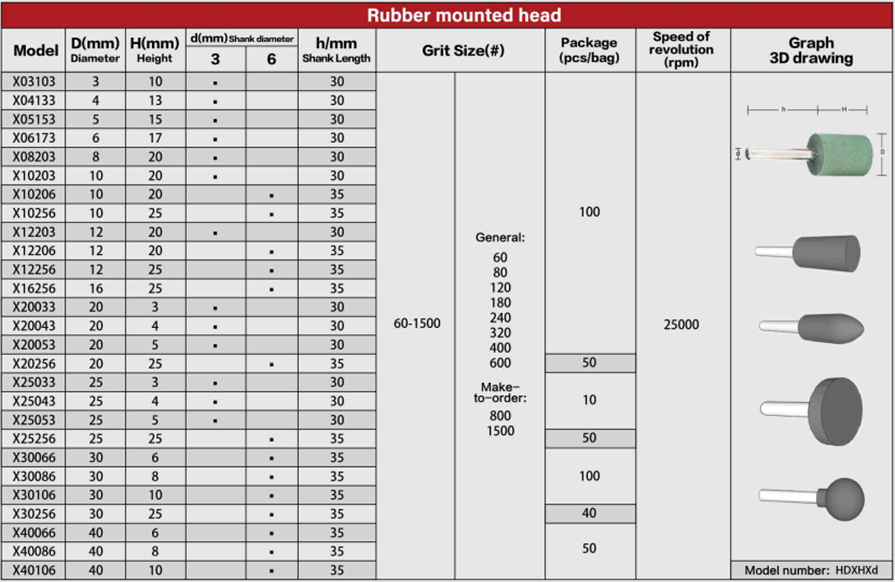

Table of Grinding Head X  - Cylinder Shape (CL)

Table of Grinding Head X  - Cylinder Shape (CL)


Features of Grinding Head X  - Cylinder Shape (CL)

  • The most prominent features of this series of products are soft polishing and fine polishing.

  • Used for fine grinding and polishing, can make the workpiece surface to a higher level of surface finish such as mirror.

  • Widely used in precision polishing and deburring technology, edge seam grinding process.

  • Can cooperate with various high speed electric tools or pneumatic tools.

Grinding Head X - Cylinder Shape (CL) Applicable Industries

Applications

  • Remove burn marks, scales, rust, scratches, dents and chuck marks of the resin mold cleaning treatment

  • As well as suitable for paint removal, electroplating and coating

Grinding Head X  - Cylinder Shape (CL) Applicable Industries

Recommendations for Use:

  • By adjusting the granularity of the rubber material, the processing scratches can be prevented.

Grinding Head X  - Cylinder Shape (CL) Applicable Industries

Matching Tool Drives:

  • Angle grinders

  • Mini angle grinder

Grinding Head X  - Cylinder Shape (CL) Applicable Industries

Safety Instructions of Grinding Head X - Cylinder Shape (CL)

How To Use Grinding Head X - Cylinder Shape (CL)

Instructions:

Safety Instructions of Grinding Head X  - Cylinder Shape (CL)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
