Grinding Head Z - Cylinder Shape (CL)

Name: Grinding Head Z - Cylinder Shape (CL)
Brand: Wenling Keying Abrasives Co., Ltd.



KEYING Granule Rubber Mounted Head has a variety of specifications and granularity, accepts non-standard size customization, including diameter, handle diameter, material, handle length, and so on. This series of cylinder head grinding machine for sale are composed of special abrasive particles and original rubber, which is also a three-in-one polishing head for grinding, polishing, and cleaning, with the rubber wheel, the elasticity is smaller, the density is higher, the hardness is higher, more suitable for the rough, dirty metal, aluminum alloy and other surfaces for derusting, removing barbs, and welding interface and other uneven surfaces of the initial polishing.

 Contact us

Call us +86(0)576-86711667

Specifications of Grinding Head Z - Cylinder Shape (CL)

Application	Remove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And Coating	Brand	KEYING	Commodity Code	ZGCL6173+Grit+AO
Compatible Tool	High Speed Power Tools Pneumatic Tools	Country Of Origin	China	Grit Type	Aluminium oxide Silicon Carbide
Diameter	3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm	For Use On	Clean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine Polish	Grit	80#, 120#, 180#
Shank Diameter		Industries	Automobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing Industry	Colour	Red, Green, Earthy Yellow
Maximum RPM	25000	Shape	Cylinder	Standard Pack Quantity	40pcs/50pcs/100pcs

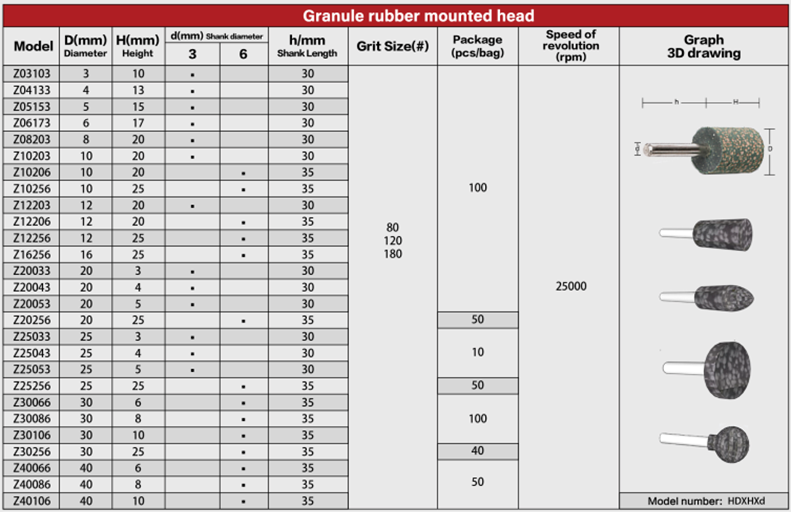

Table of Silicon Grinding Head Z - Cylinder Shape (CL)

Features of Silicon Grinding Head Z - Cylinder Shape (CL)

The most prominent features of this series of products are soft polishing and fine polishing.
Used for fine grinding and polishing, can make the workpiece surface to a higher level of surface finish such as mirror.
Widely used in precision polishing and deburring technology, edge seam grinding process.
Can cooperate with various high speed electric tools or pneumatic tools.

Grinding Head Z - Cylinder Shape (CL) Applicable Industries

Applications

Remove burn marks, scales, rust, scratches, dents and chuck marks of the resin mold cleaning treatment
As well as suitable for paint removal, electroplating and coating

Grinding Head Z - Cylinder Shape (CL) Applicable Industries

Recommendations for Use:

By adjusting the granularity of the rubber material, the processing scratches can be prevented.

Matching Tool Drives:

Angle grinders
Mini angle grinder

Safety Instructions of Grinding Head Z - Cylinder Shape (CL)

How To Grinding Head Z - Cylinder Shape (CL)

Instructions:

Safety Instructions of Grinding Head Z - Cylinder Shape (CL)

Please try to choose operation indoors environment and wear protective guards and goggles.
Never to exceed the recommanded maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
