Keying Flap Wheel Drum

Can be used for universal work on medium-sized and large metallic surfaces, e.g. fine grinding work on large radii in container, kitchen and apparatus construction, and achieving homogeneous finishes (grinding patterns) on large surfaces and contours in manual applications.

flap drum sander is suitable for all conventional keyway systems.

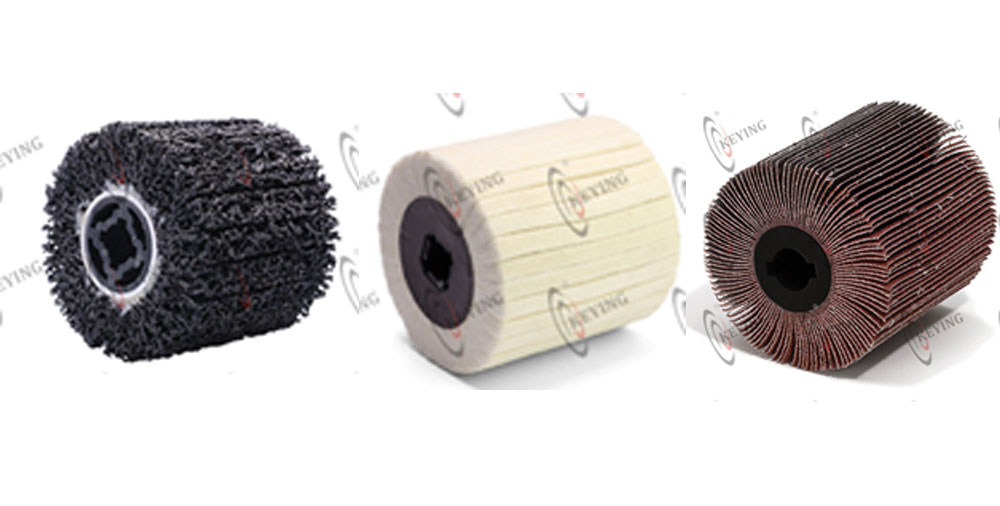

Shape Chart of Flap Wheel Drum

Shape Chart Of Flap Wheel Drum

Shape Chart of Flap Wheel Drum

Shape Chart of Flap Wheel Drum

Shape Chart of Flap Wheel Drum

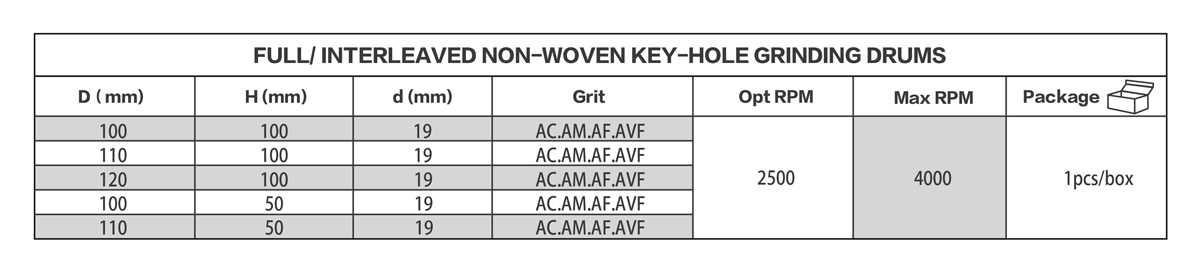

Flap Wheel Drum Specification:

  • Max. RPM: 25000 RPM

  • Center Hole Diameter: 19mm

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 60#~600#


Flap Wheel Drum Materials that can be Worked:

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so they can touch closely to the edges and corners.

Keying Flap Wheel Drum Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Keying Flap Wheel Drum Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Keying Flap Wheel Drum Applicable Industries

Safety Warning of Keying Flap Wheel Drum

Instructions:

Safety Warning of Keying Flap Wheel Drum


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Flap Wheel Drum Products
Silicon Carbide Flap Wheel Drum (SC)
Silicon Carbide Flap Wheel Drum (SC)
Flap Wheel Drum 4inch
Flap Wheel Drum 4inch
Flap Wheel Drum 4-3/4inch
Flap Wheel Drum 4-3/4inch
