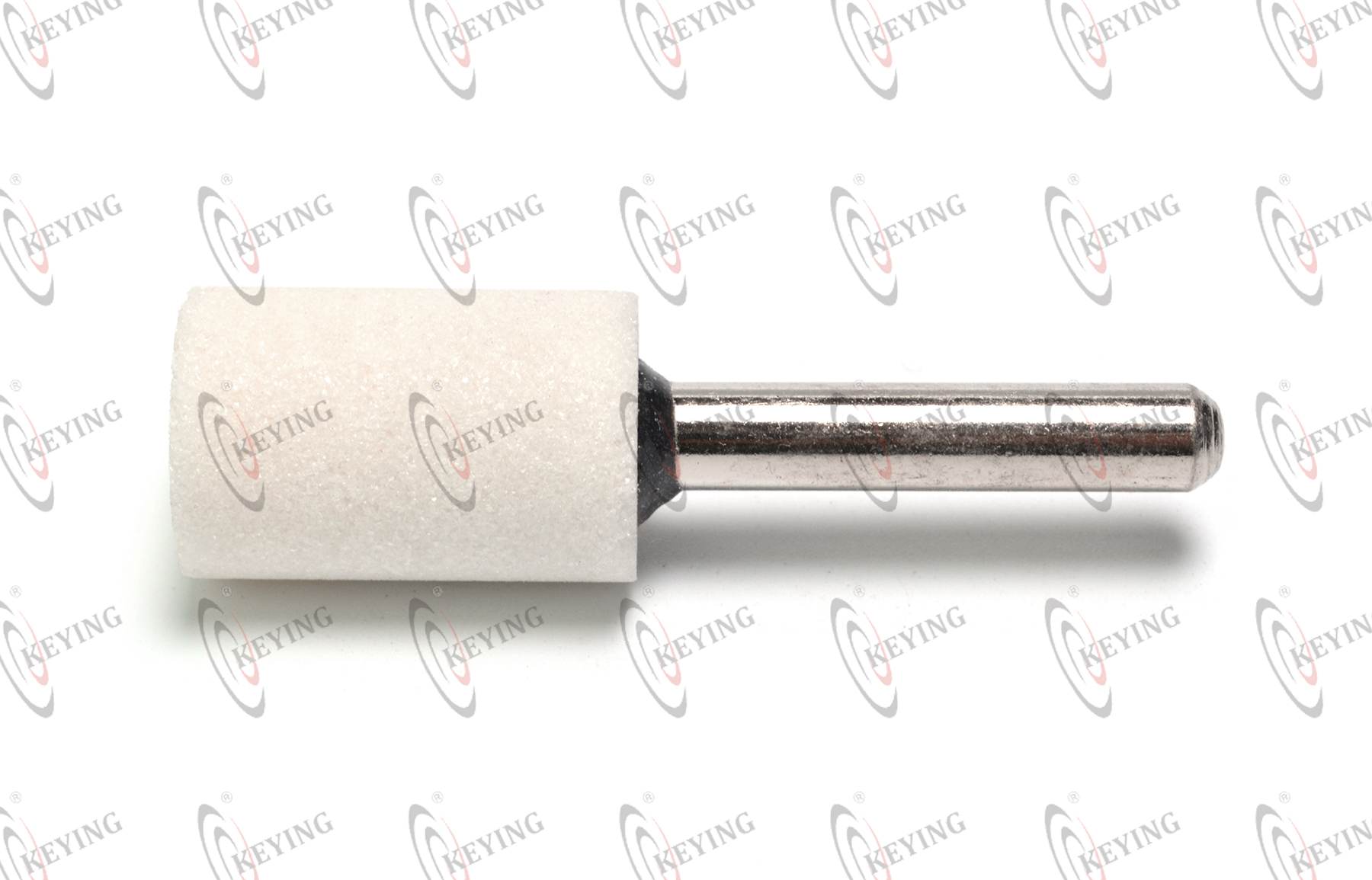

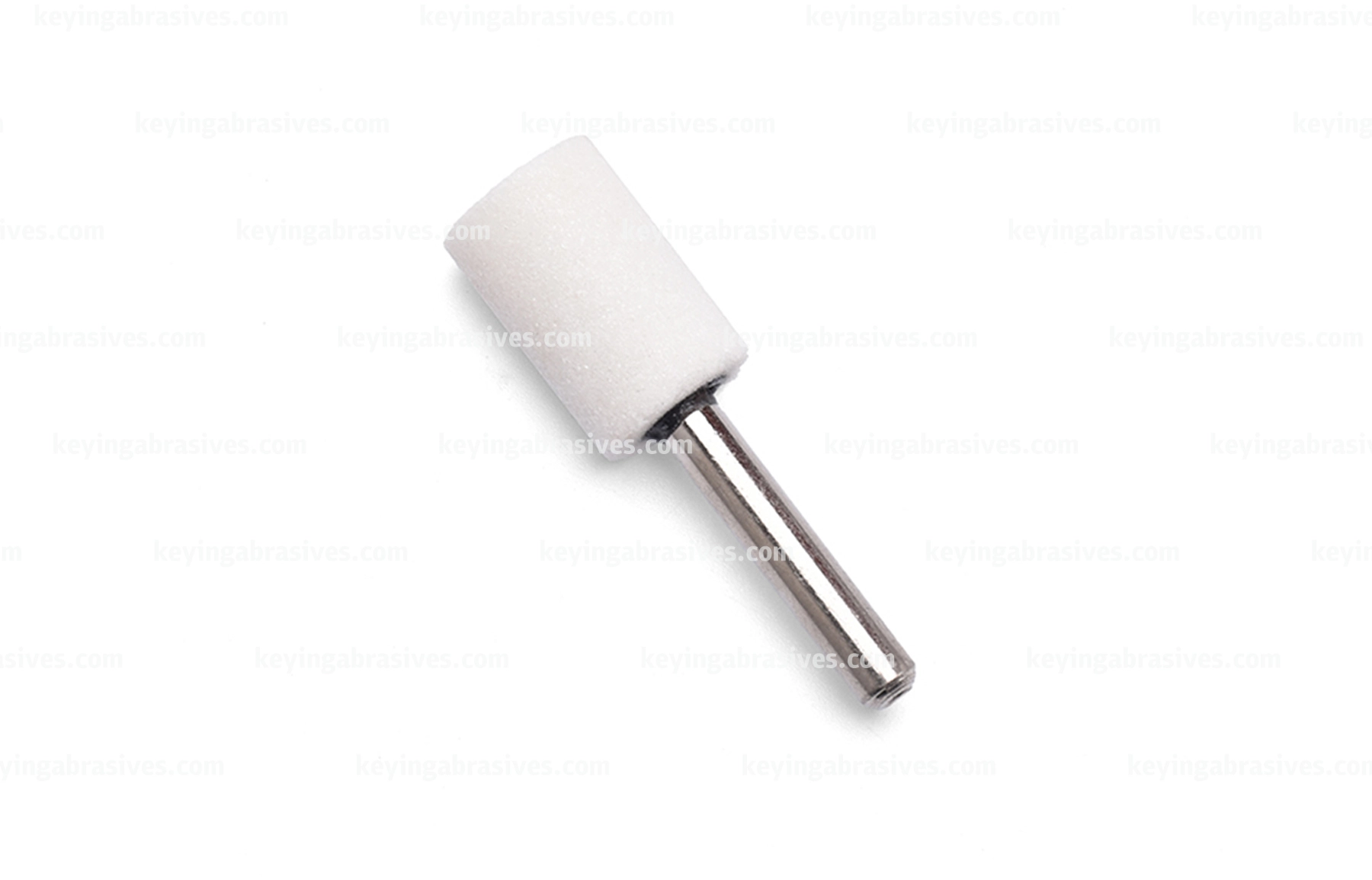

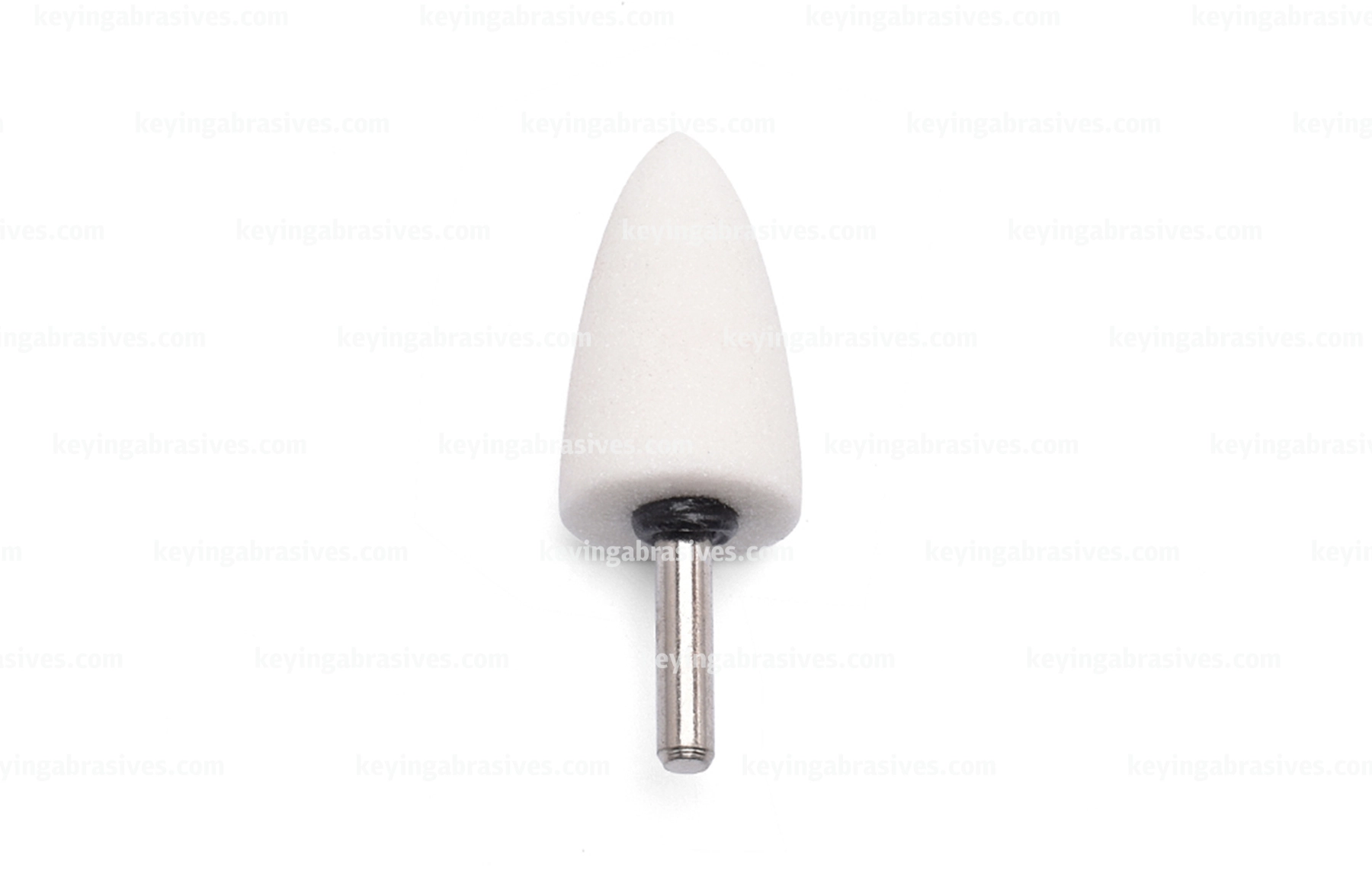

Microcrystalline Fused Alumina Grinding Head G (MA)

microcrystalline fused alumina grinding head g ma 1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Microcrystalline Fused Alumina Grinding Head G (MA)

ApplicationSuitable For Grinding Stainless Steel, Carbon Steel, Ball Milling Cast Iron, Etc. Suitable For Forming Mill, Cutting Mill, Fine Grinding And Heavy Load Grinding.BrandKEYINGCommodity CodeCGA1+Grit+MA
Compatible ToolFlexible Shaft Drive Straight GrinderCountry   Of OriginChinaRaw   MaterialMicrolite   corundum
HardnessVery Hard
Hard
Medium
Soft
Very Soft
Extremely Soft
For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourN/A
Maximum RPM4800-477500ShapeCL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid
Standard   Pack Quantity5pcs/10pcs


Table of Microcrystalline Fused Alumina Grinding Head G (MA)

Table of Microcrystalline Fused Alumina Grinding Head G (MA)


Features of Microcrystalline Fused Alumina Grinding Head G (MA)

  • It is a derivative of brown corundum.

  • It is similar to brown corundum in appearance, color and chemical composition.

  • It is characterized by small crystal size (50-280μm).

Microcrystalline Fused Alumina Grinding Head G (MA) Applicable Industries

Applications

  • Suitable for grinding stainless steel, carbon steel, ball milling cast iron, etc.

  • Suitable for forming mill, cutting mill, fine grinding and heavy load grinding.

Microcrystalline Fused Alumina Grinding Head G (MA) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Microcrystalline Fused Alumina Grinding Head G (MA) Applicable Industries

Safety Instructions of Microcrystalline Fused Alumina Grinding Head G (MA)

How To Microcrystalline Fused Alumina Grinding Head G (MA)

Instructions:

Safety Instructions of Microcrystalline Fused Alumina Grinding Head G (MA)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
