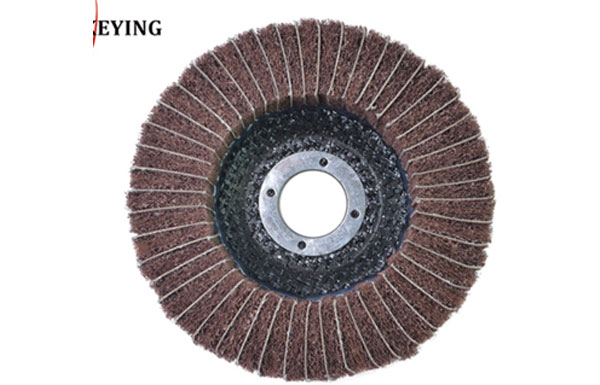

Non-woven Flap Disc (with Abrasive)-1

non woven flap disc with abrasive
non woven flap disc with abrasive

The non-woven and abrasive-cloth flaps are stuck to a glass-fabric backing pad, meaning that the discs can be used face-down on large surfaces. A long tool life is achieved through the dense packing of the flaps.

The tool is designed for working on large surfaces with speed-adjustable angle grinders.

Shape Chart of Non-woven Flap Disc (with Abrasive)-1

Shape Chart of Non-woven Flap Disc (with Abrasive)-1

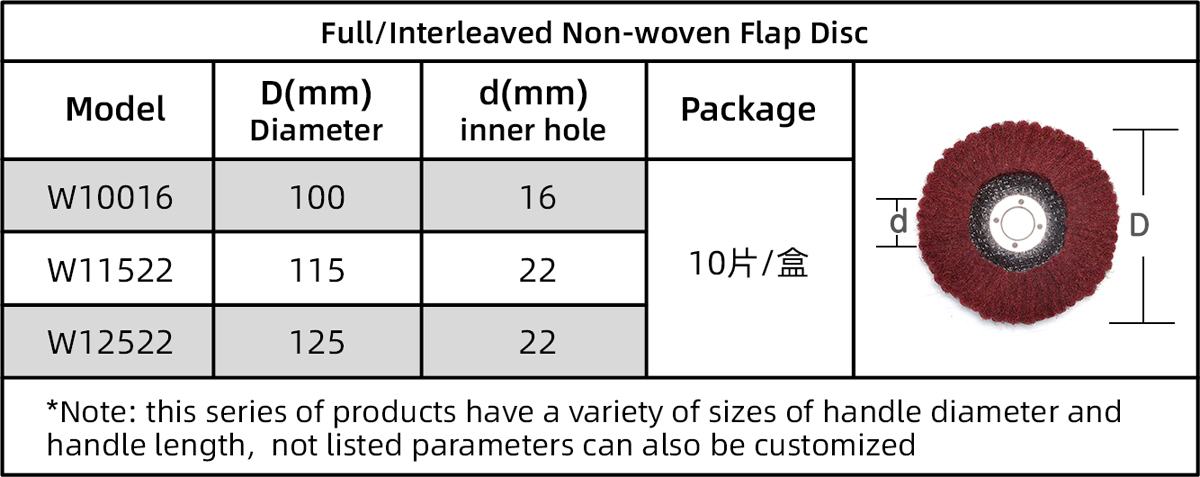

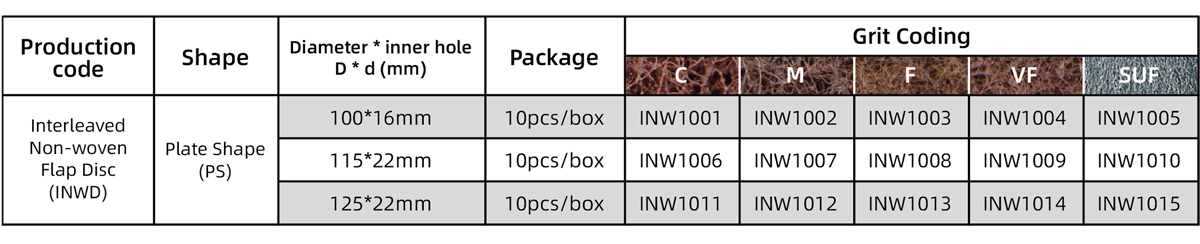

Table Of Non-woven Flap Disc (with Abrasive)-1

Table Of Non-woven Flap Disc (with Abrasive)-1


Specification Of Non-woven Flap Disc (with Abrasive)-1

▶ Type: Plate Shape

▶ Max. RPM: 7000~19000 RPM

▶ Outer Diameter: 100mm/115mm/125mm/150mm/175mm

▶ Centre Hole Diameter: 16mm/22mm

▶ Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC)

▶ Grit Size: Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

Safety Instructions of Non-woven Flap Disc (with Abrasive)-1

Instructions:


1. Please try to choose an operation indoor environment and wear protective guards and goggles.

2. Never exceed the recommended maximum permitted rotational speed for safety reasons.

3. In order to have a good stock removal rate, quality of surface, and thermal laoding on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.


If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Vertical Flap Disc Products

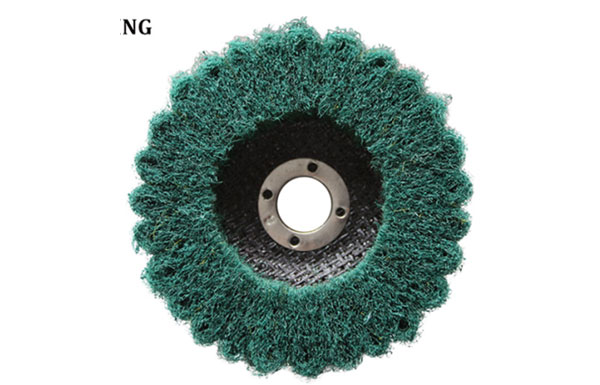

Non-woven Flap Disc (Full)-1
Non-woven Flap Disc (Full)-1

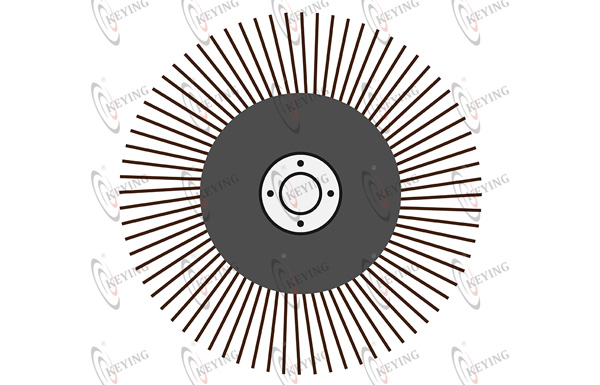

Abrasive Cloth Flap Disc Vertical Type
