Name: Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC)
Brand: Wenling Keying Abrasives Co., Ltd.

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC)

Silicon carbide is a kind of synthetic abrasive particle with sharp edge, low toughness and high hardness. non woven flap disc is suitable for use in the aviation industry, especially silicon carbide is the only approved abrasive such as for engine parts. It is often used to process hard alloy, titanium alloy, high speed steel tool and other hard grinding materials.

 Contact us

Call us +86(0)576-86711667

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Grit Size Table Corresponding To Raw Materials

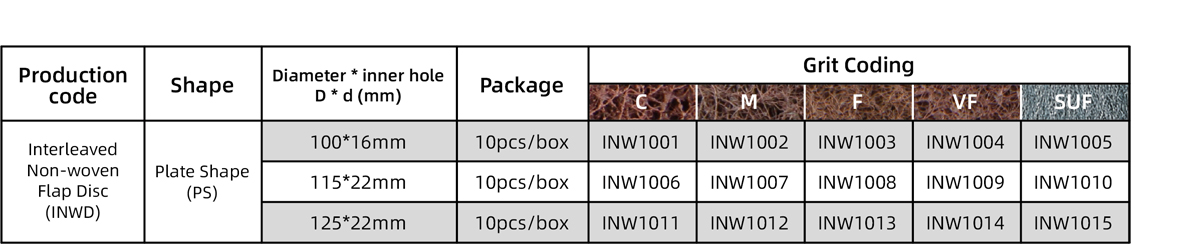

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Non-woven Flap Disc (with Abrasive) Size Table

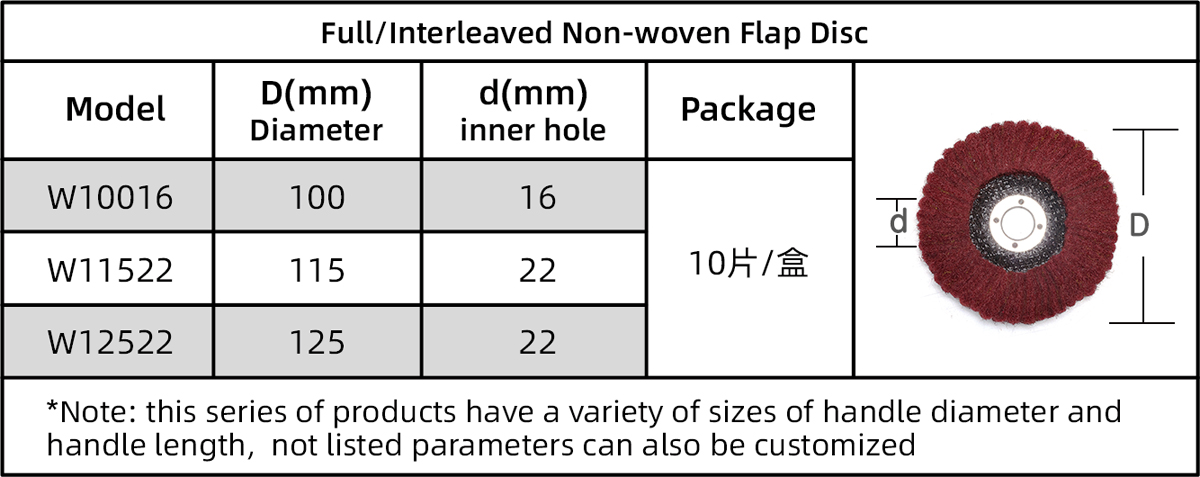

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Non-woven Flap Disc Size Table

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Specification:

Max. RPM:7000~19000 RPM
Other Raw Materials: Aluminum Oxide(AO)
Grit Size (Silicon Carbide): Medium-150#/180#, Fine-240#/320#

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Materials that can be worked:

Aluminum
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconel and Hastelloy)
Bronze
Hard non-ferrous metal
Titanium
Titanium alloys
Copper
Soft non-ferrous metal
Brass
Zinc
Stainless steel (INOX)
Thermoplastics
Fibre-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Applicable Industries

Applications

Roughening
Deburring
Surface work
Cleaning
Structuring (matt finishing, brush matting, and satin finishing)
Fine grinding in multiple steps

Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC) Applicable Industries

Safety Warning of Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC)

Instructions:

Safety Warning of Silicon Carbide Non-woven Abrasive Cloth Flap Disc (SC)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
