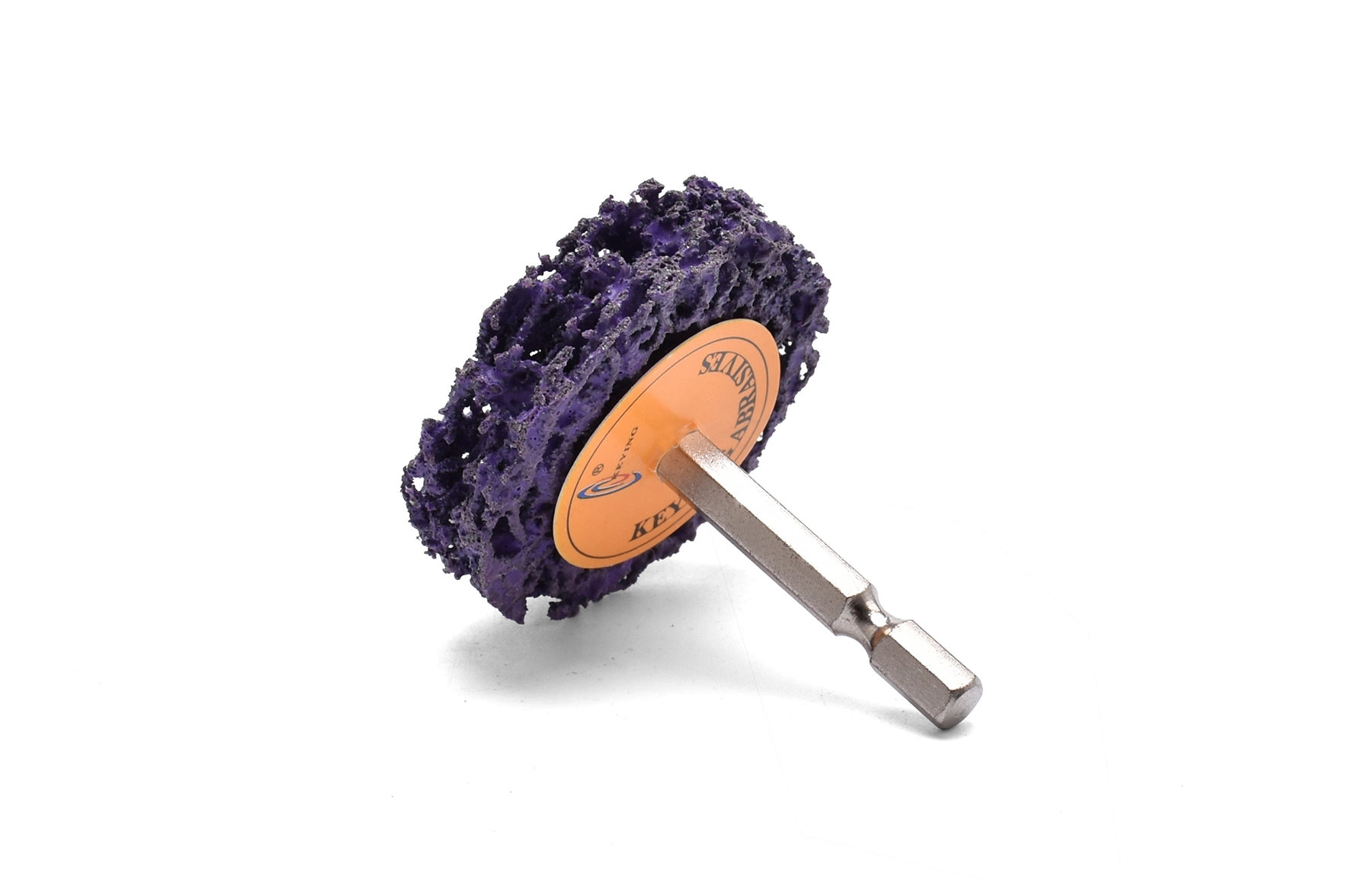

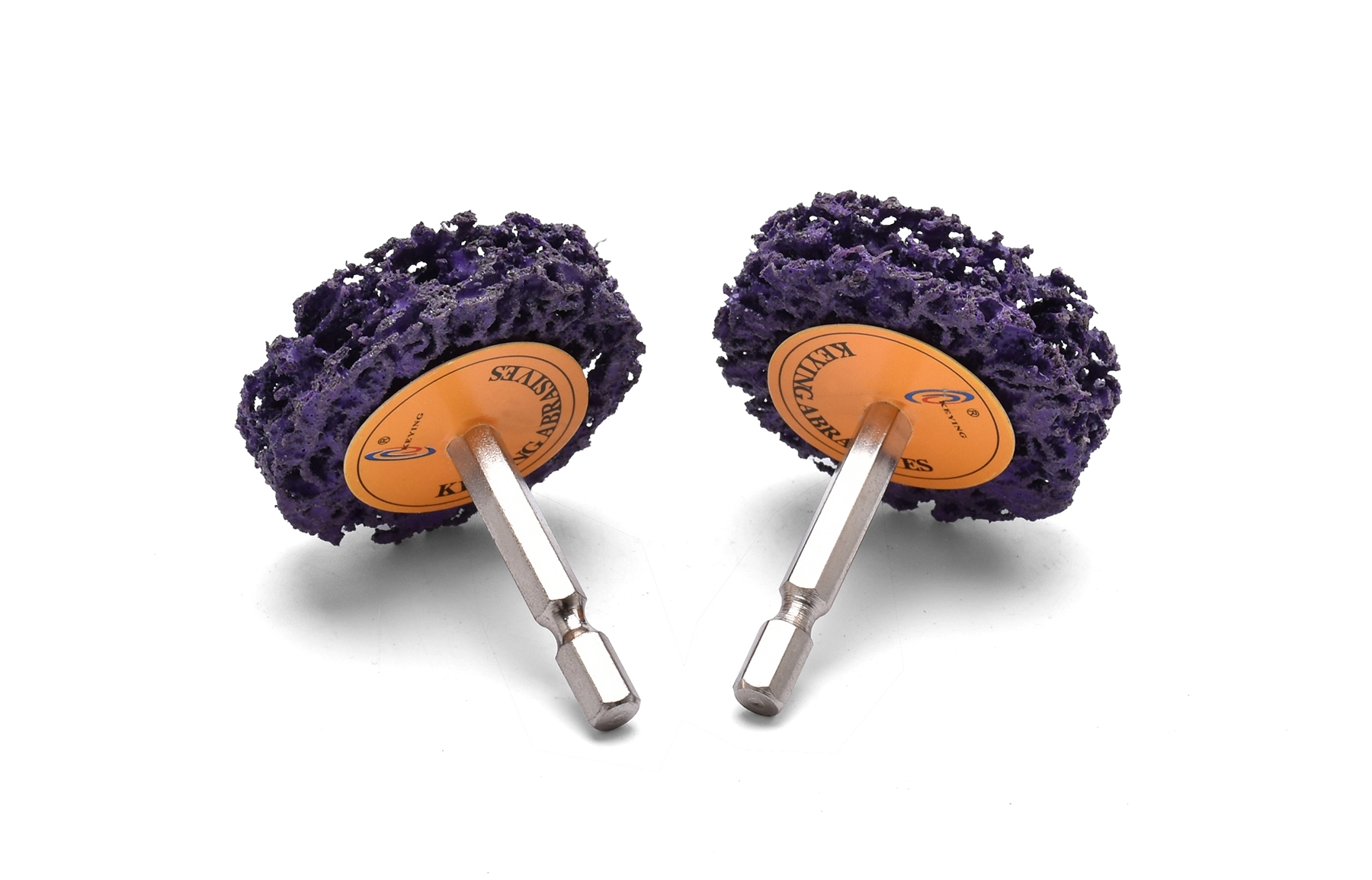

Silicon Carbide Paint Striper Disc With Shank (SC)

silicon carbide paint striper disc with shank sc

For general grinding of parts made of aluminum, copper, bronze, titanium and fiber reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation industry, especially silicon carbide is the only approved abrasive, such as engine components.

Silicon Carbide Paint Striper Disc with Shank (SC) Grit Size Table Corresponding To Raw Materials

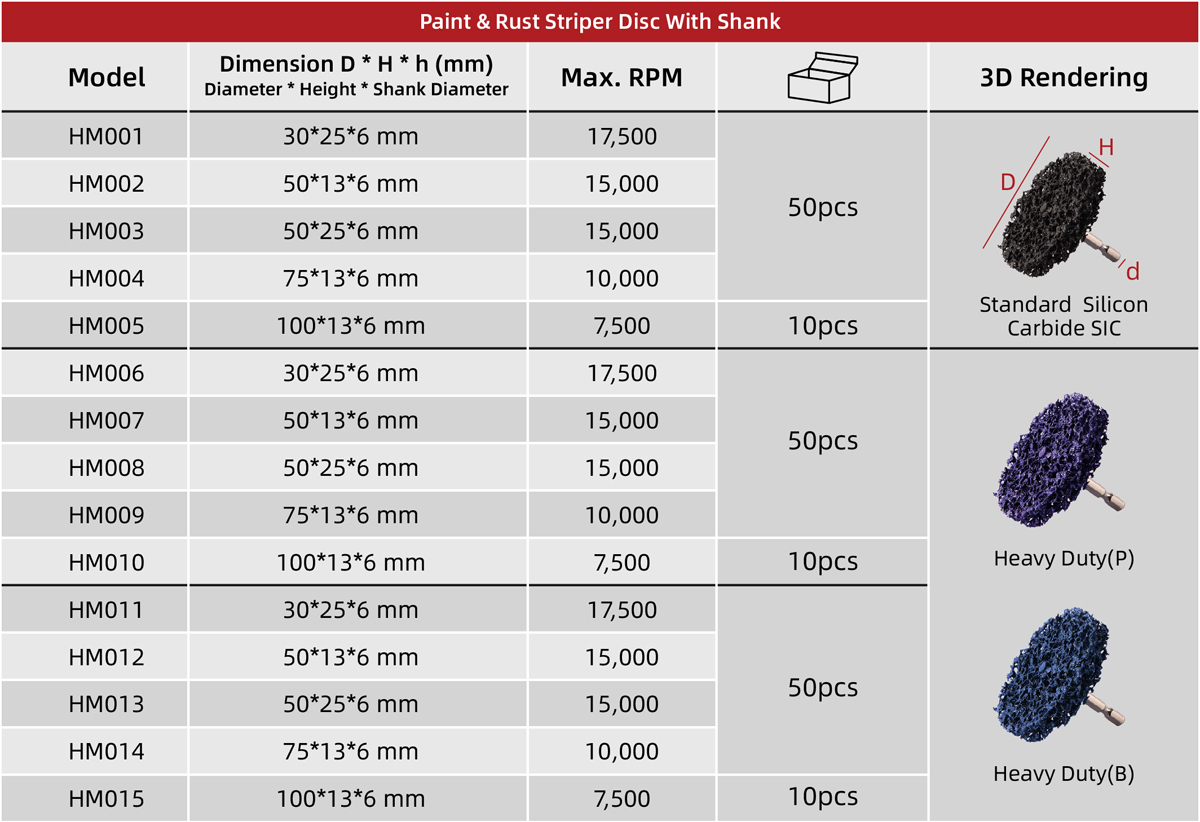

Silicon Carbide Paint Striper Disc with Shank (SC) Paint Striper Disc with Shank Size Table

Silicon Carbide Paint Striper Disc with Shank (SC) Paint Striper Disc with Shank Size Table


Silicon Carbide Paint Striper Disc with Shank (SC) Specification:

  • Max. RPM: 7000~10000 RPM

  • Outer Diameter: 100mm/115mm/125mm/150mm/180mm

  • Center Hole Diameter: 16mm/22mm

  • Other Raw Materials: Aluminum Oxide(AO)


Silicon Carbide Paint Striper Disc with Shank (SC) Materials that can be worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Titanium alloys

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Zinc

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Elastomers

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Silicon Carbide Paint Striper Disc With Shank (SC) Applicable Industries

Applications

  • Surface work

  • Roughening

  • Cleaning

Silicon Carbide Paint Striper Disc With Shank (SC) Applicable Industries

Safety Warning of Silicon Carbide Paint Striper Disc With Shank (SC)

Instructions:



Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
