Name: Silicon Carbide Slashed Flap Wheel (SC)
Brand: Wenling Keying Abrasives Co., Ltd.

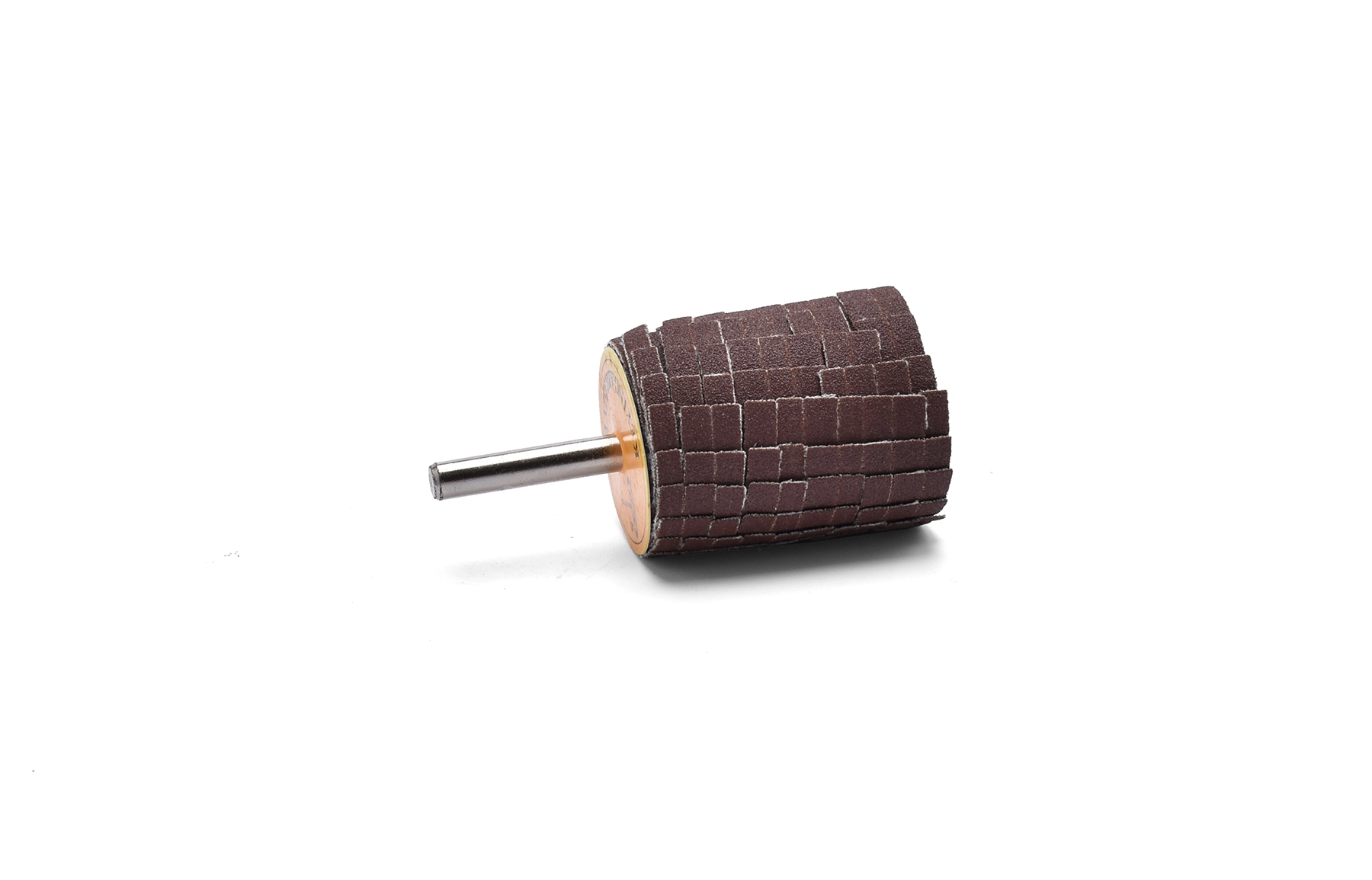

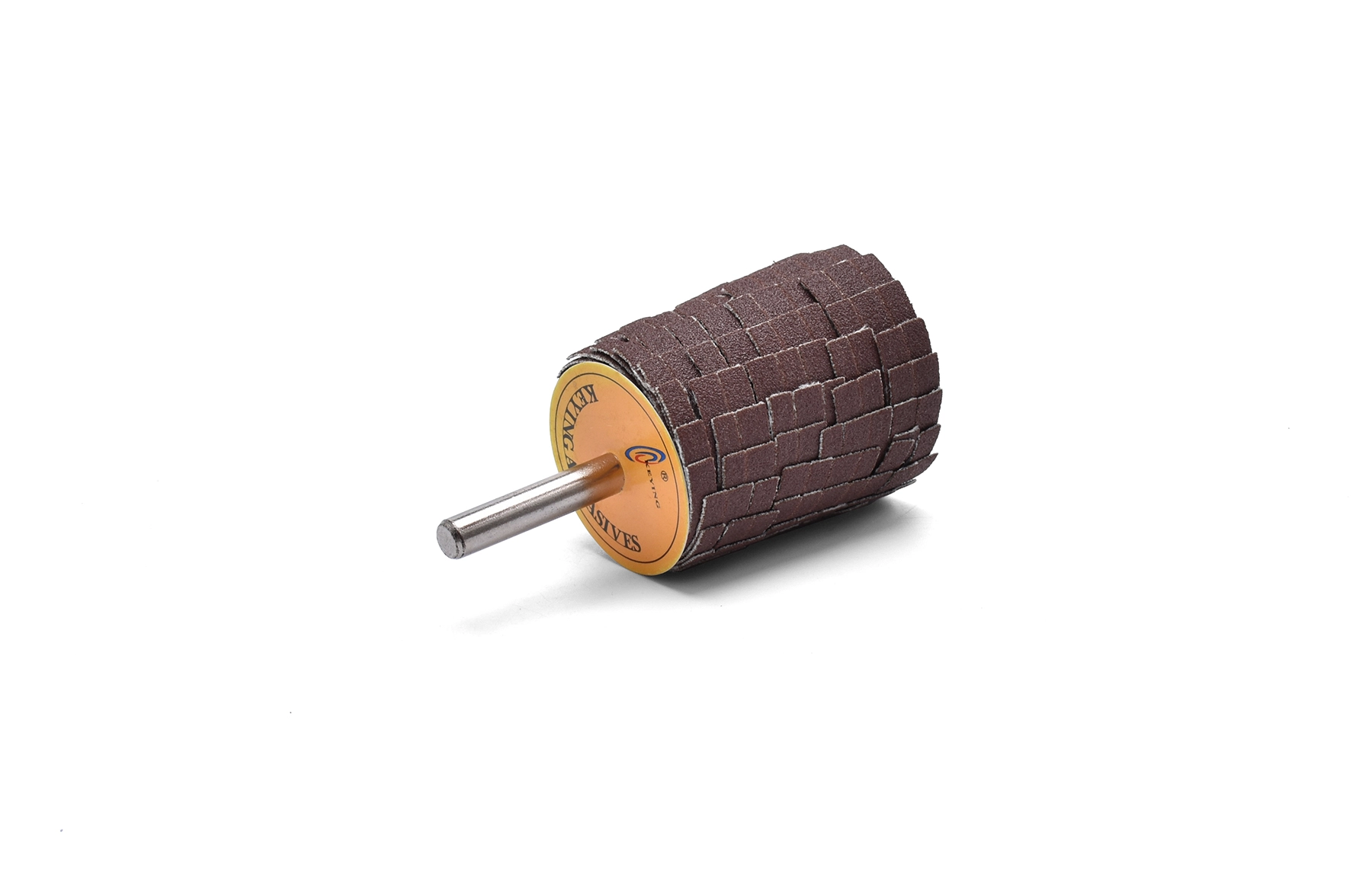

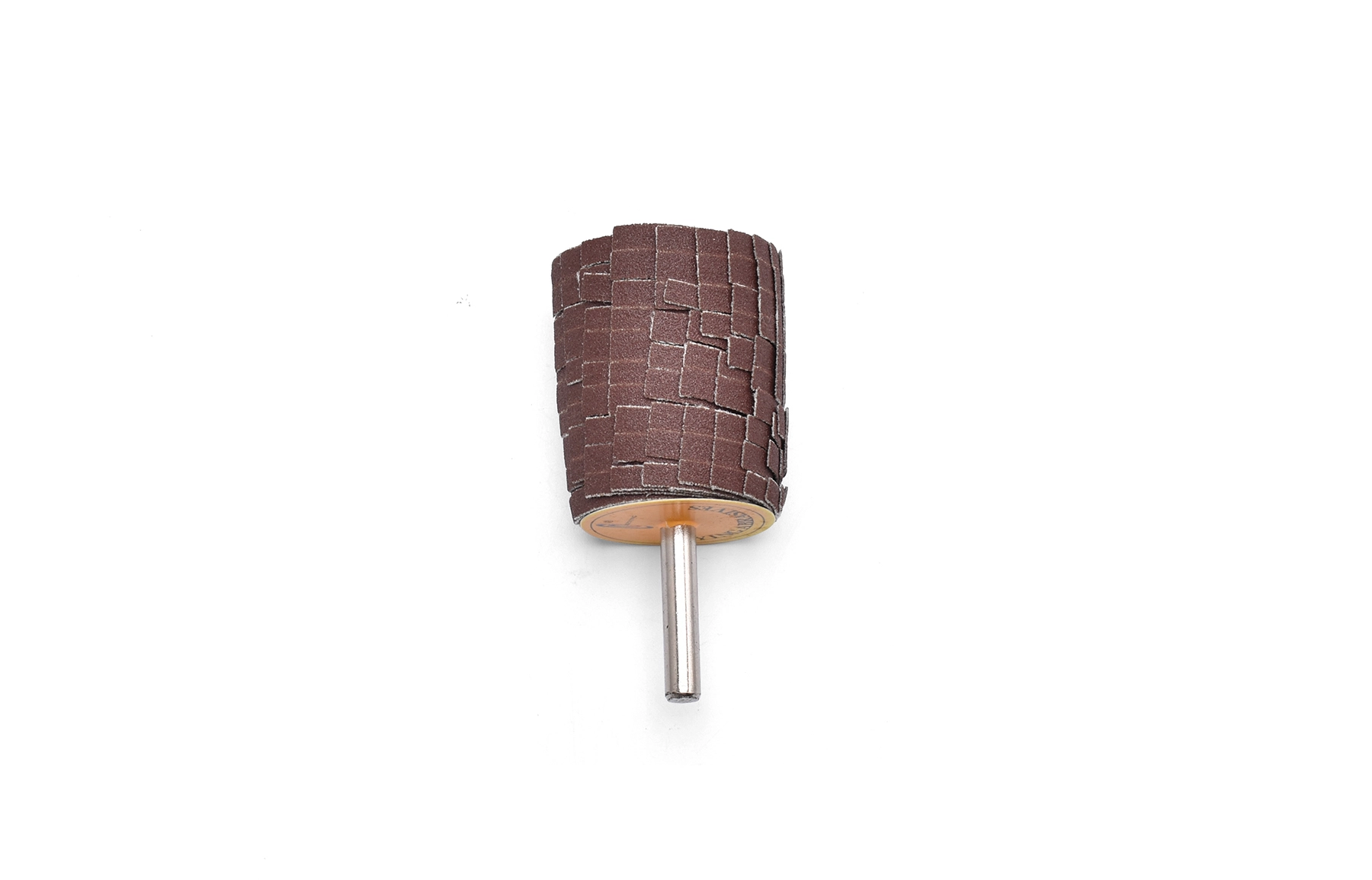

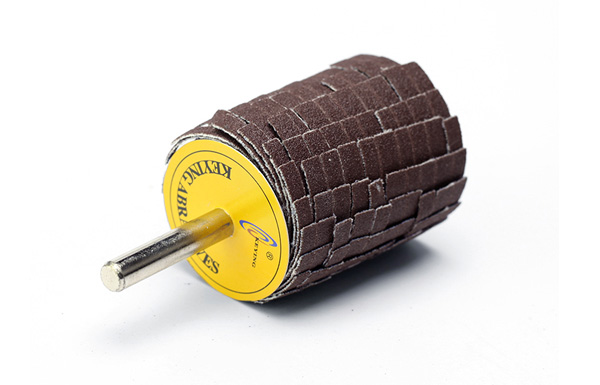

Silicon Carbide Slashed Flap Wheel (SC)

For general grinding of parts made of aluminum, copper, bronze, titanium and fiber reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation industry, especially silicon carbide is the only approved abrasive, such as engine components.

 Contact us

Call us +86(0)576-86711667

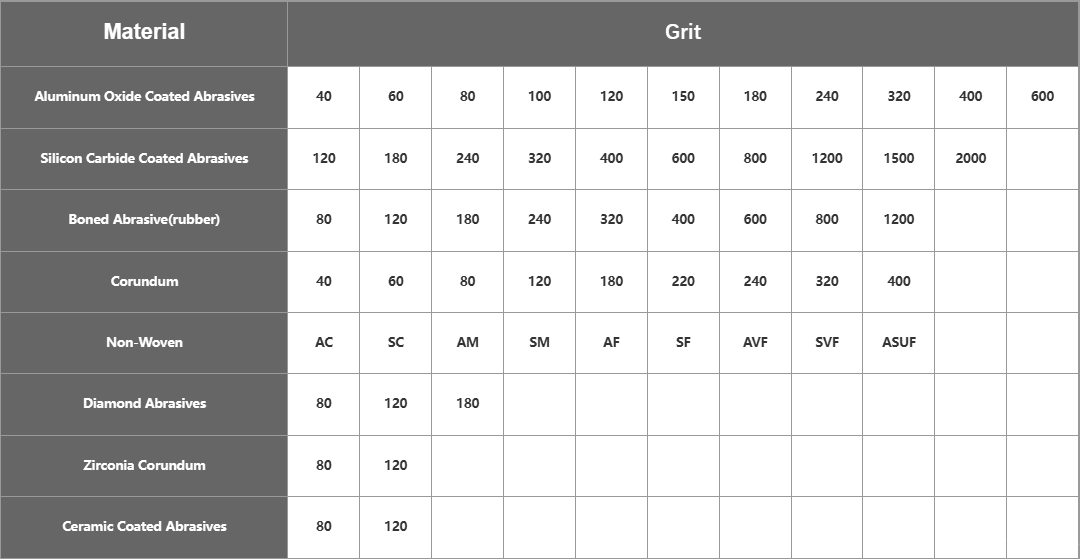

Silicon Carbide Slashed Flap Wheel (SC) Grit Size Table Corresponding To Raw Materials

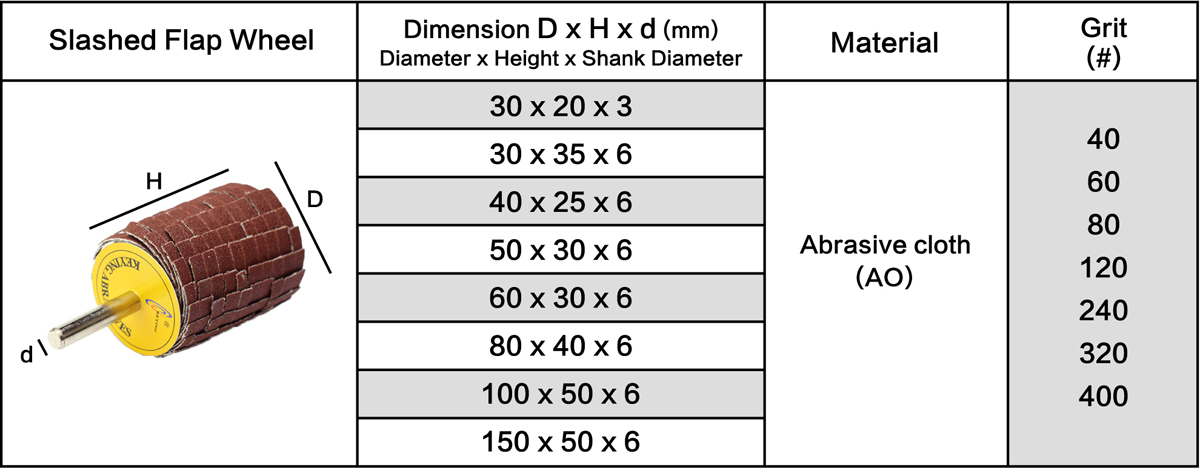

Silicon Carbide Slashed Flap Wheel (SC) Specification:

Max. RPM: 6120~76300 RPM
Other Raw Materials: Aluminum Oxide(AO), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size(Silicon Carbide): 120#/180#/240#/320#/400#/600#/800#/1200#/1500#/2000#

Silicon Carbide Slashed Flap Wheel (SC) Materials that can be worked:

Aluminium
Bronze
Stone
Titanium
Titanium alloys
Thermoplastics
Stainless steel (INOX)
Other non-ferrous metals
Hard non-ferrous metal
Fibre-reinforced duroplastics (GRP, CRP)

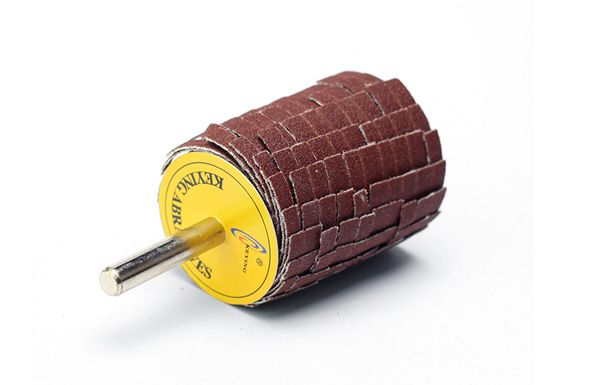

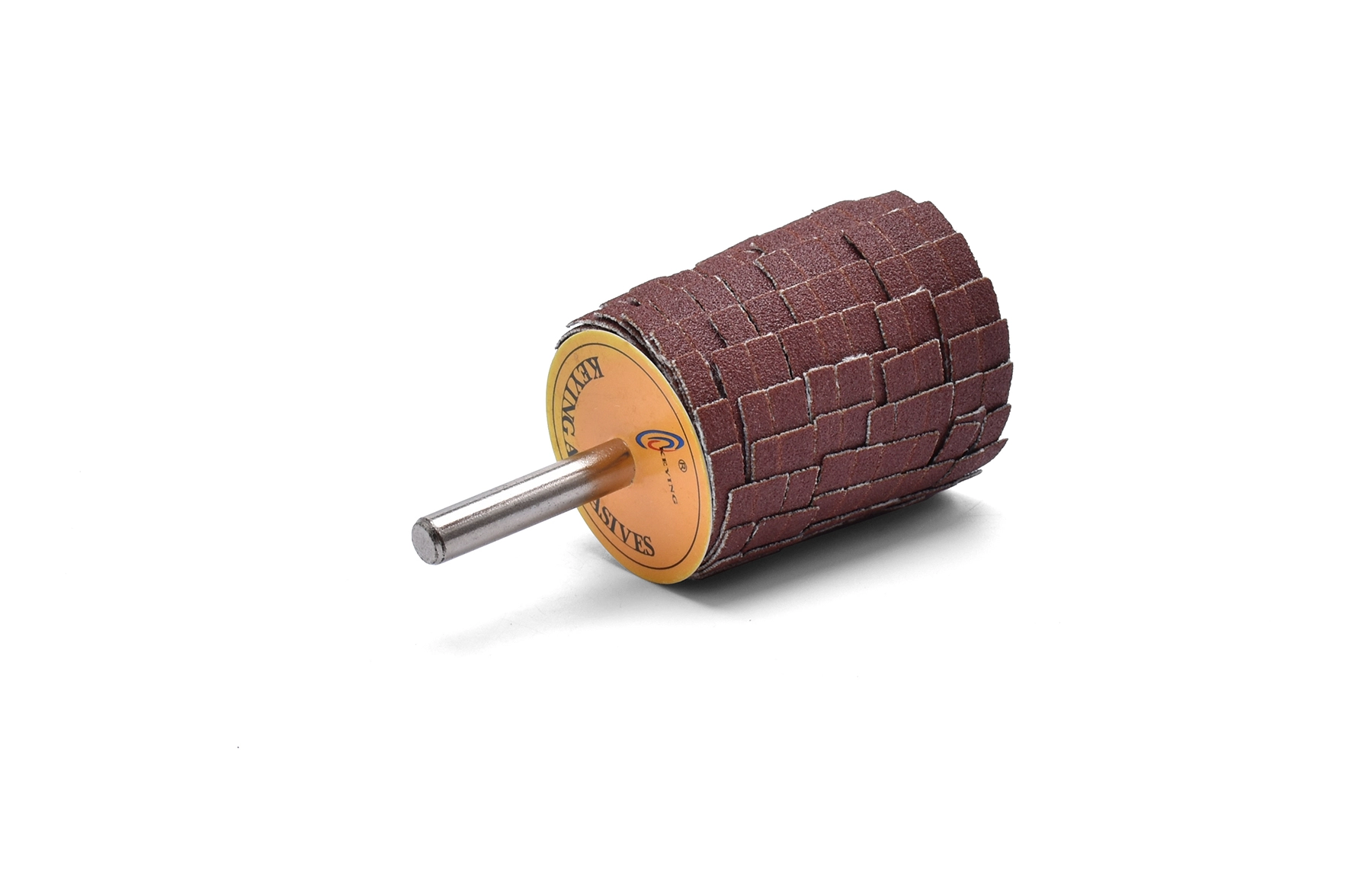

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.

Advantages：

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.

Silicon Carbide Slashed Flap Wheel (SC) Applications:

Leveling
Deburring
Surface work
Weld dressing
Fine grinding in multiple steps
Structuring (matt finishing, brush matting and satin finishing)

Silicon Carbide Slashed Flap Wheel (SC) Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Silicon Carbide Slashed Flap Wheel (SC) Applicable Industries

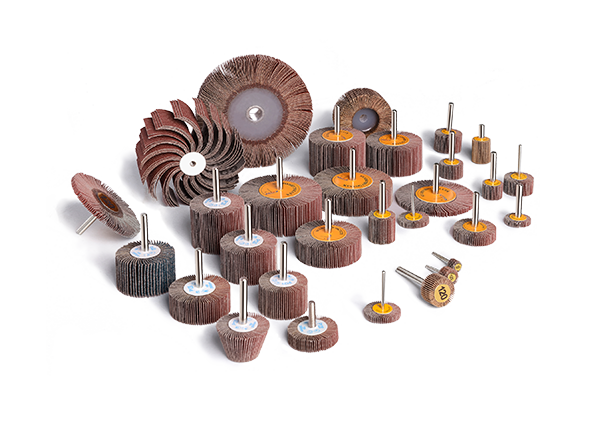

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Safety Warning of Silicon Carbide Slashed Flap Wheel (SC)

Instructions:

Safety Warning of Silicon Carbide Slashed Flap Wheel (SC)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
