Name: Silicon Carbide Strip Wheel Abrasive Drum (SC)
Brand: Wenling Keying Abrasives Co., Ltd.

Silicon Carbide Strip Wheel Abrasive Drum (SC)

For general grinding of parts made of aluminum, copper, bronze, titanium, and fiber reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation paint removal angle grinder attachment industry, especially since silicon carbide is the only approved abrasive, such as engine components.

 Contact us

Call us +86(0)576-86711667

Silicon Carbide Strip Wheel Abrasive Drum (SC) Grit Size Table Corresponding To Raw Materials

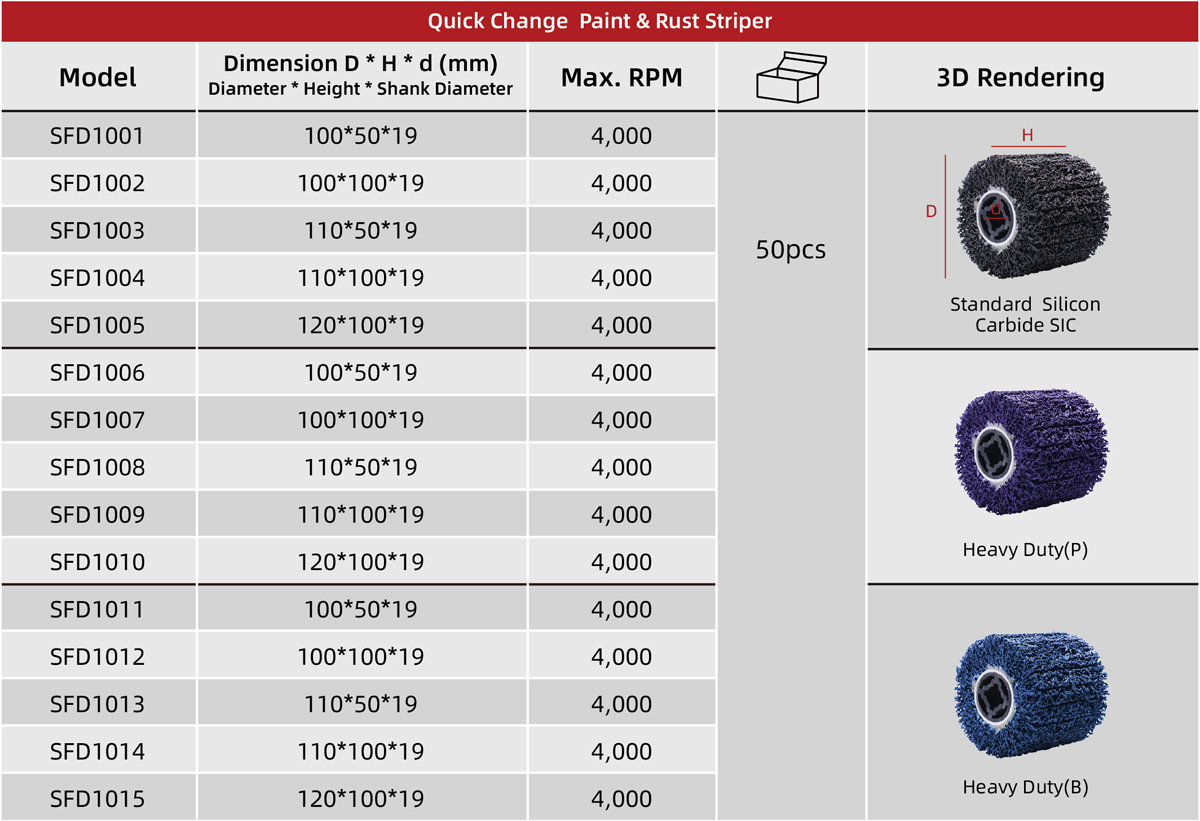

Silicon Carbide Strip Wheel Abrasive Drum (SC) Strip Wheel Abrasive Drum Size Table

Silicon Carbide Strip Wheel Abrasive Drum (SC) Specification:

Max. RPM: 7000~10000 RPM
Outer Diameter: 100mm/115mm/125mm/150mm/180mm
Center Hole Diameter: 16mm/22mm
Other Raw Materials: Aluminum Oxide(AO)

Silicon Carbide Strip Wheel Abrasive Drum (SC) Materials that can be worked:

Aluminum
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconel and Hastelloy)
Bronze
Hard non-ferrous metal
Titanium
Titanium alloys
Copper
Soft non-ferrous metal
Brass
Zinc
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Thermoplastics
Elastomers
Fiber-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Silicon Carbide Strip wheel abrasive Drum (SC) Applicable Industries

Applications

Surface work
Roughening
Cleaning

Silicon Carbide Strip wheel abrasive Drum (SC) Applicable Industries

Safety Warning of Silicon Carbide Strip Wheel Abrasive Drum (SC)

Instructions:


Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
