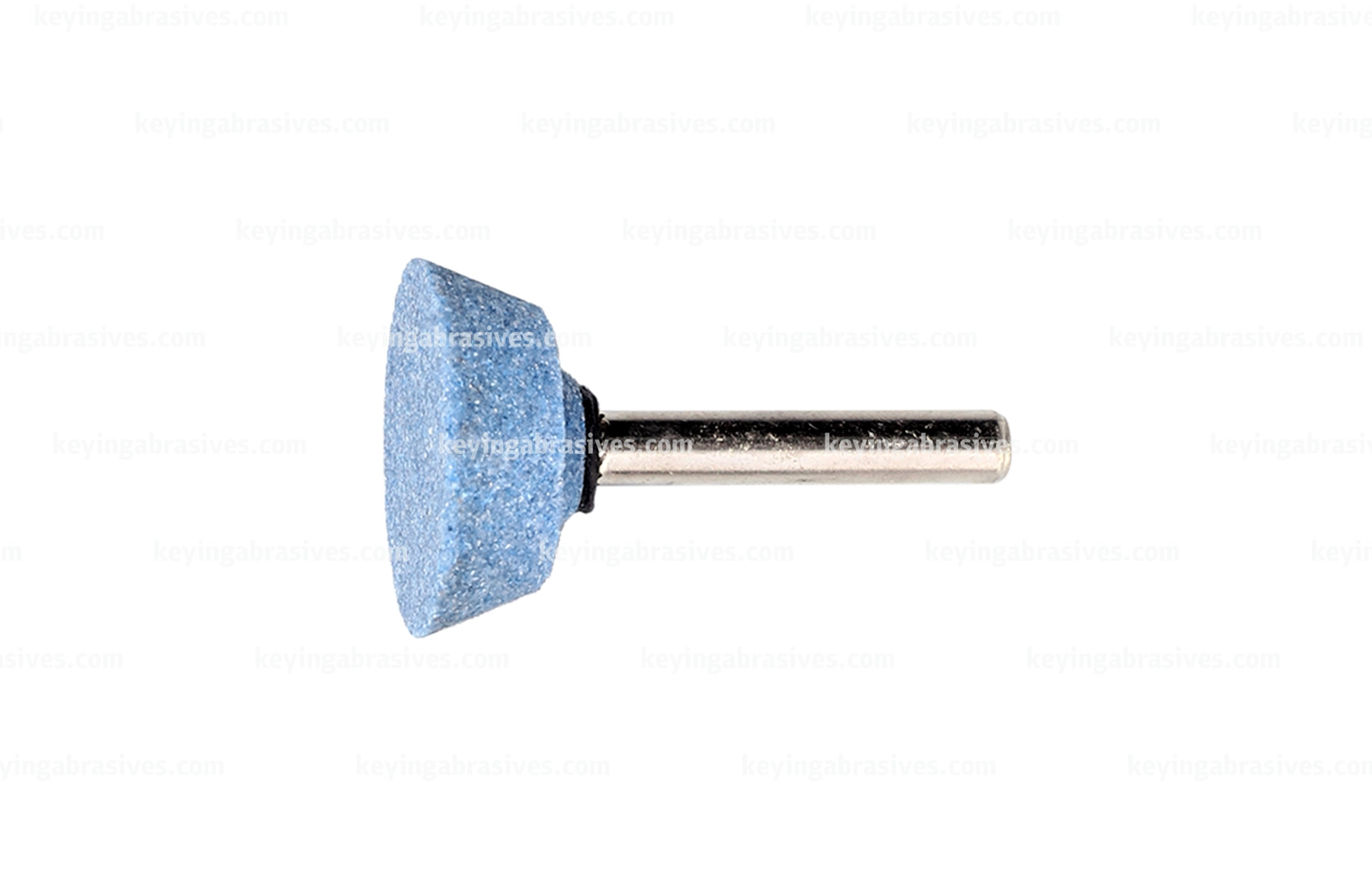

Single Crystal Corundum Grinding Head G (SA)

Name: Single Crystal Corundum Grinding Head G (SA)
Brand: Wenling Keying Abrasives Co., Ltd.

single crystal corundum grinding head g sa or1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

 Contact us

Call us +86(0)576-86711667

Specifications of Single Crystal Corundum Grinding Head G (SA)

Application	Can Be Used For Grinding Hard And Toughness Of Hard Metal Materials, Such As Stainless Steel, High Vanadium High-Speed Steel, Heat Resistant Alloy Steel And Variable, Easy To Burn The Workpiece	Brand	KEYING	Commodity Code	CGA1OR+Grit+SA
Compatible Tool	Flexible Shaft Drive Straight Grinder	Country Of Origin	China	Raw Material	Single Crystal Corundum
Hardness	Very Hard Hard Medium Soft Very Soft Extremely Soft	For Use On	Carbon Steel, General Alloy Steel, Calcined Cast Iron, Hard Bronze	Grit Size	46#, 60#, 80#, 100#,120#
Shank Diameter	5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"	Industries	High-Speed Railway, Aviation, Metal Casting And Other High Precision Industries	Colour	Light Blue
Maximum RPM	4800-477500	Shape	CL-Cylinder TT-Triangular Trapezoid PE-Peach C-Triangle Cone BS-Conical with Radius end RO-Ball LP-Lengthen Peach Tip LB-Lengthen Bullet Shape T-T-Shape SS-Dish BW-Cup(Bowl) RC-Cylinder with Radius end PC-Pointed end cylinder M-Mushroom IT-Inverted Trapezoid TA1-Triangular Trapezoid	Standard Pack Quantity	5pcs/10pcs

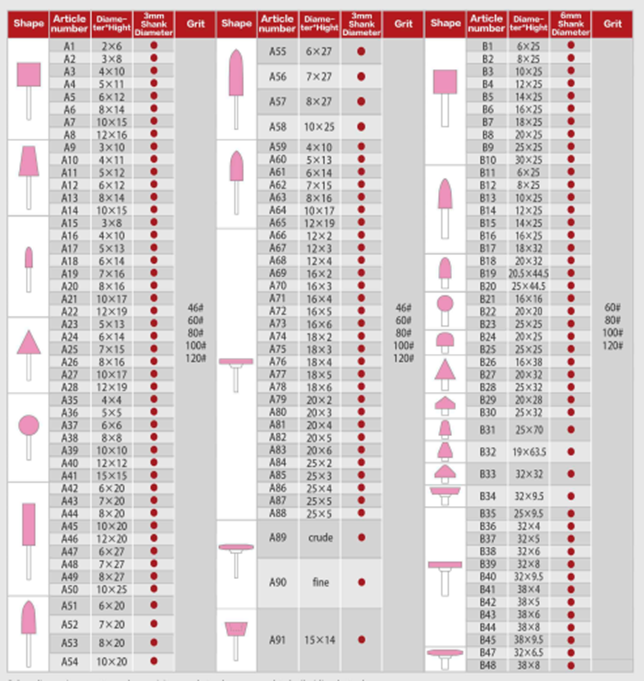

Table of Single Crystal Corundum Grinding Head G (SA)

Features of Single Crystal Corundum Grinding Head G (SA)

Single crystal corundum abrasive particles are composed of a single crystal
The disadvantage is that the generation cost is higher, the production of waste gas, waste water generation, low output.

Single Crystal Corundum Grinding Head G (SA) Applicable Industries

Applications

Grinding hard and toughness of hard metal materials
Such as stainless steel, high vanadium high-speed steel, heat resistant alloy steel and variable, easy to burn the workpiece

Single Crystal Corundum Grinding Head G (SA) Applicable Industries

Matching Tool Drives:

Flexible shaft drive
Straight grinder

Safety Instructions of Single Crystal Corundum Grinding Head G (SA)

How To Single Crystal Corundum Grinding Head G (SA)

Instructions:

Safety Instructions of Single Crystal Corundum Grinding Head G (SA)

Please try to choose operation indoors environment and wear protective guards and goggles.
Never to exceed the recommanded maximum permitted rotational speed for safety reasons.
In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
