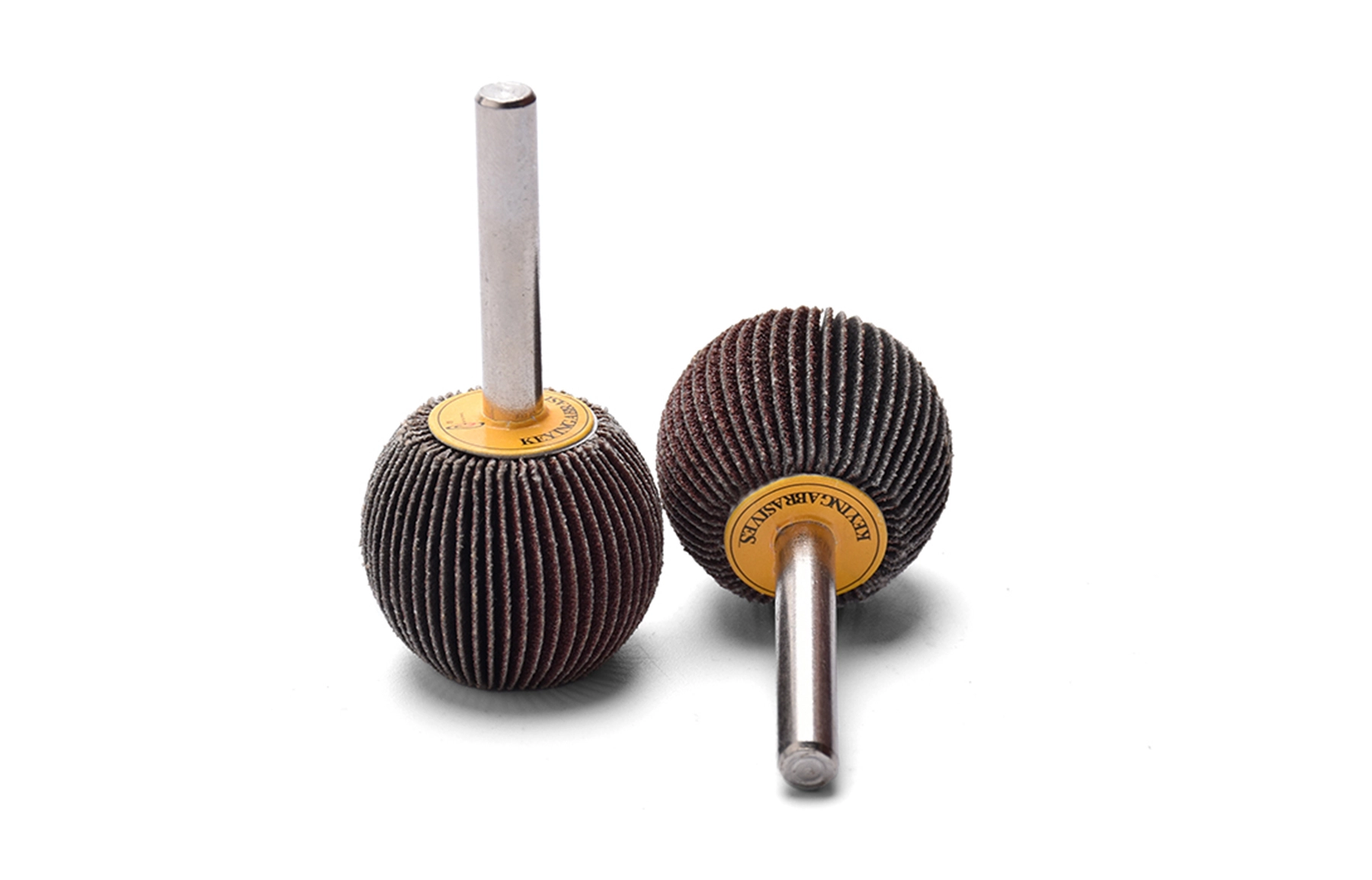

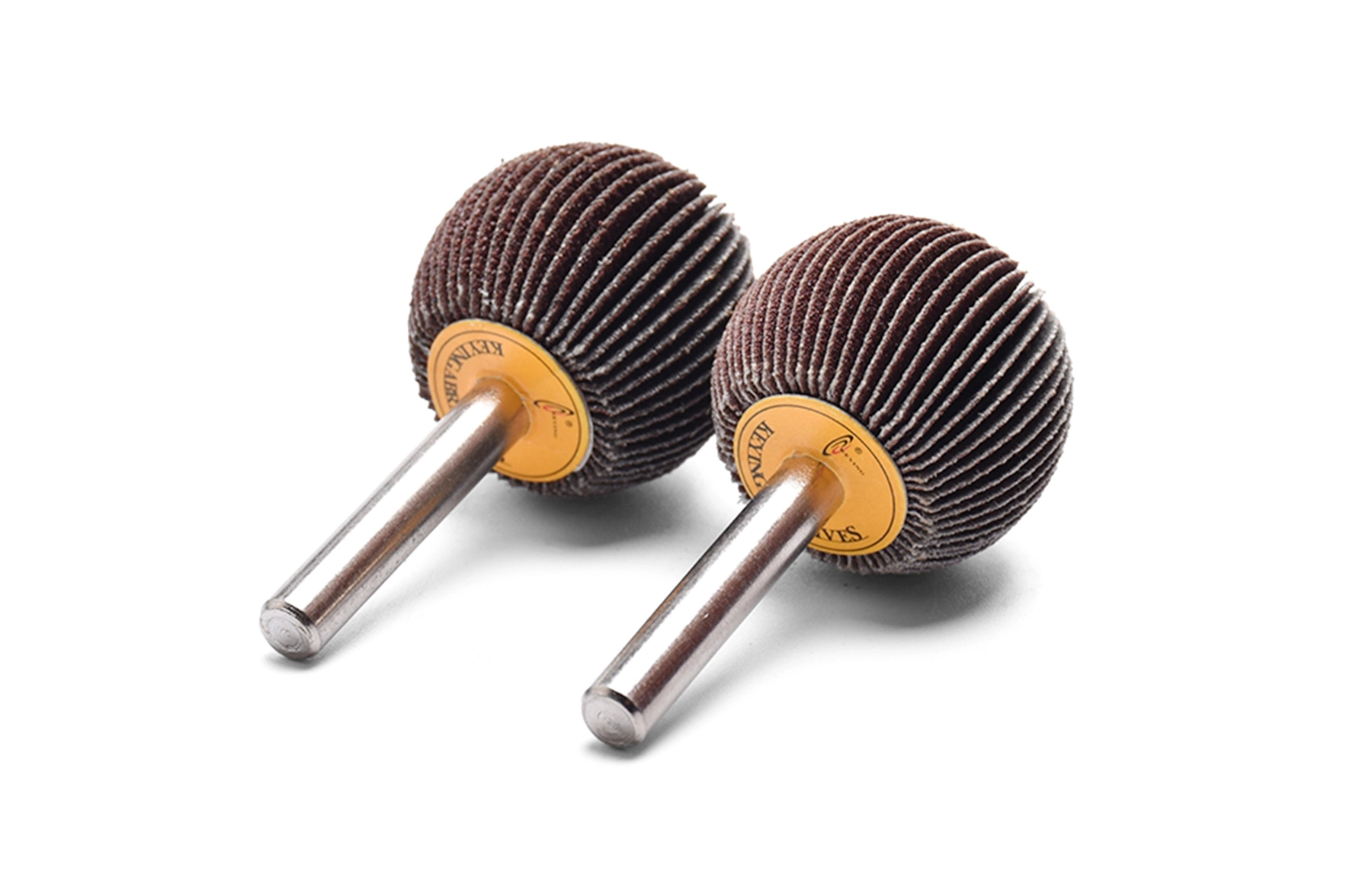

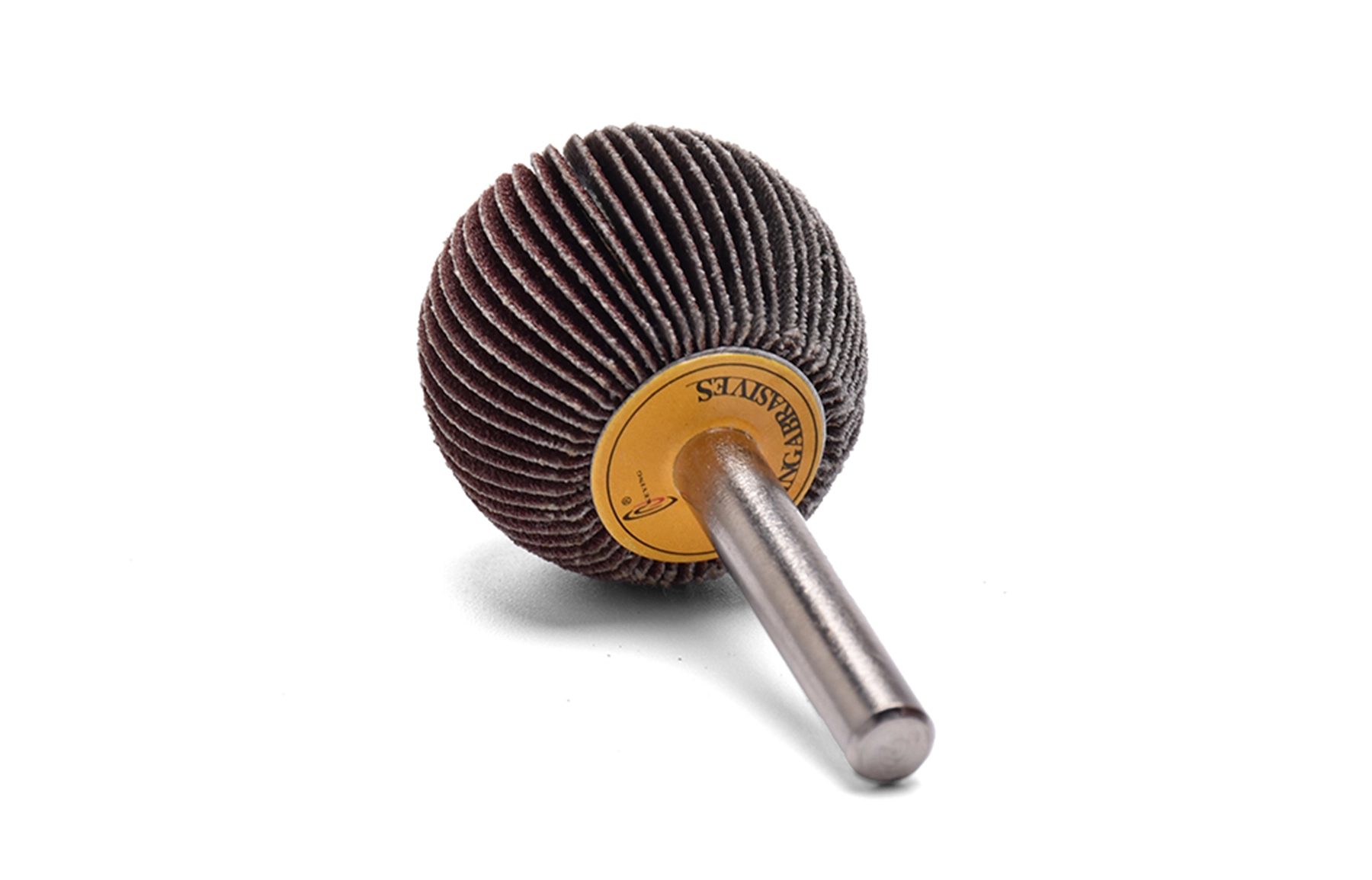

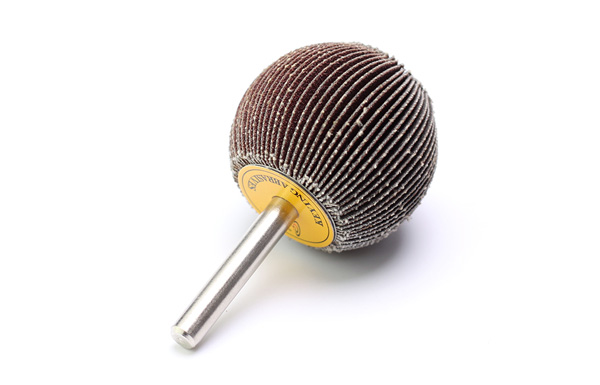

Spherical Flap Wheel 30mm 1-3/16''

special shape flap wheel 1 3 16inch

KEYING Special Shape Flap Wheel is manufactured from high-quality domestic cloth and pure imported cloth, this product uses imported binder (glue), this series of products have high performance, strong grinding force, synchronous consumption stability, long service life, small dust, beautiful appearance, high-cost performance characteristics.

Table of Special Shape Flap Wheel 1-3/16inch Size

Table of Special Shape Flap Wheel 1-3/16inch Size

Table of Special Shape Flap Wheel 1-3/16inch Size


Special Shape Flap Wheel 1-3/16inch Specification:

  • Diameter: 1-3/16 inch=30mm

  • Max. RPM: 20000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)


Special Shape Flap Wheel 1-3/16inch Materials that can be Worked

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel


Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.


Special Shape Flap Wheel 1-3/16inch Applications

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting and satin finishing)

  • Fine grinding in multiple steps

Safety Warning of Special Shape Flap Wheel 1-3/16inch

Instructions:

Safety Warning of Special Shape Flap Wheel 1-3/16inch


Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

Special Shape Flap Wheel 1-3/16inch Applicable Industries
