Spiral Holder 1-3/16inch

spiral holder 1 3 16inch
spiral holder 1 3 16inch

The Spiral Band fits onto a Rubber Drum Holder for use with a die grinder or rotary drill. The spiral bands come in a range of widths and lengths to suit different contours and tasks and are often used in foundry work. Typically, the rubber drum attaches to portable drills, die grinders, straight shafts, and angle grinders. The great news is, that the drum requires no extra tools for band changes.

Contact us
Call us +86(0)576-86711667

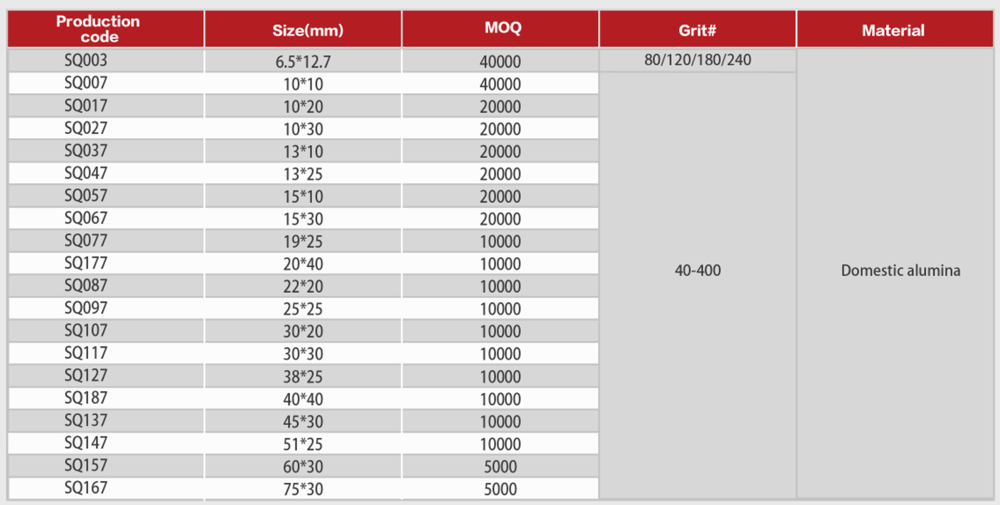

Table of Spiral Holder 1-3/16inch

Table of Spiral Holder 1-3/16inch


Specification of Spiral Holder 1-3/16inch:

  • Max. RPM:5000~55000 RPM

  • Outer Diameter: 1-3/16 inch=30mm

  • Raw Materials: Aluminum Oxide (AO)/Silicon Carbide (SC)

  • Grit Size (Aluminum Oxide): 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#


Spiral Holder 1-3/16inch Materials that can be worked:

  • Aluminium

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Bronze

  • Hard non-ferrous metal

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Spiral Holder 1 3/16Inch Applicable Industries

Applications

  • Roughening

  • Leveling

  • Deburring

  • Surface work

  • Work on edges

  • Sharpening

  • Weld dressing

  • Fine grinding in multiple steps

Spiral Holder 1 3/16Inch Applicable Industries
