Name: Straight Hole Flap Wheel 2-3/8inch
Brand: Wenling Keying Abrasives Co., Ltd.

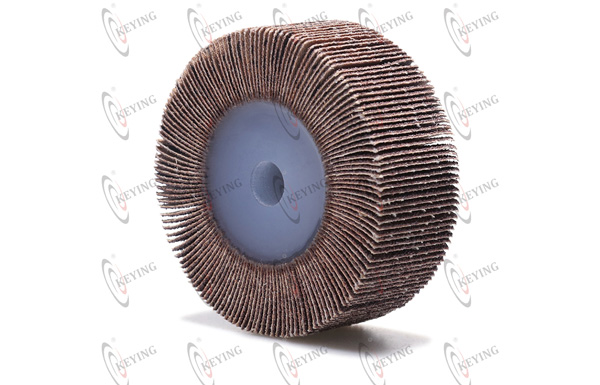

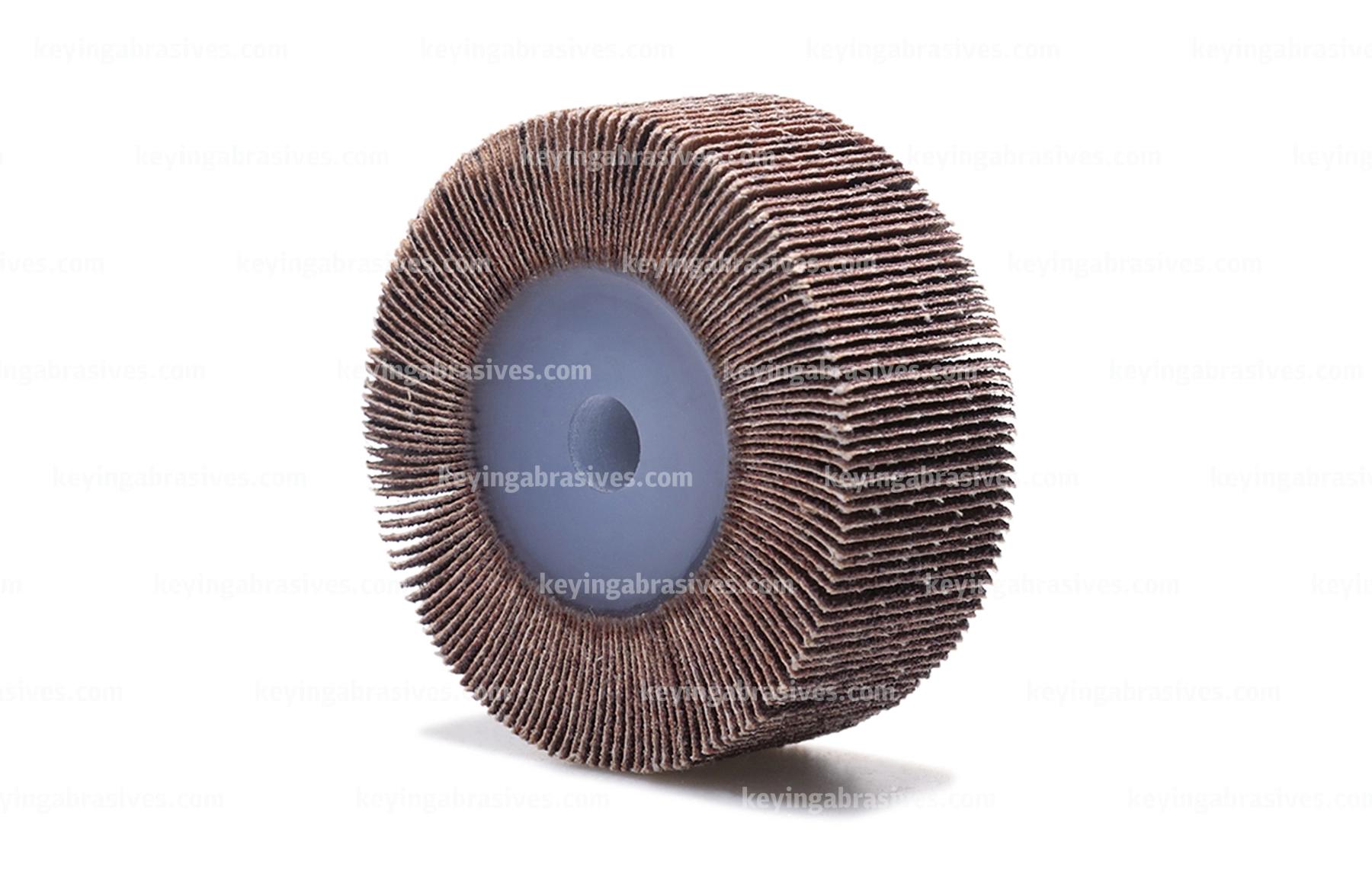

Straight Hole Flap Wheel 2-3/8inch

aluminum oxide straight hole flap wheel ao

KEYING Straight Hole Flap Wheel is manufactured from high-quality domestic cloth and pure imported cloth, this product uses imported binder (glue), this series of products have high performance, strong grinding force, and synchronous consumption stability, long service life, small dust, beautiful appearance, high-cost performance characteristics.

 Contact us

Call us +86(0)576-86711667

Table of Straight Hole Flap Wheel 2-3/8inch Size

Straight Hole Flap Wheel 2-3/8inch Specification:

Diameter: 2-3/8 inch=60mm
Max. RPM: 15000~18000 RPM
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size: 40#~1200#
Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

Straight Hole Flap Wheel 2-3/8inch Materials that can be Worked

Aluminium
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconell and Hasteloy)
Bronze
Hard non-ferrous metal
Titanium
Copper
Soft non-ferrous metal
Brass
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Steel, cast steel

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.

Advantages：

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.

Straight Hole Flap Wheel 2-3/8inch Applications

Leveling
Deburring
Surface work
Weld dressing
Structuring (matt finishing, brush matting, and satin finishing)
Fine grinding in multiple steps

Straight Hole Flap Wheel 2-3/8inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Straight Hole Flap Wheel 2-3/8inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Safety Warning of Straight Hole Flap Wheel 2-3/8inch

Instructions:

Safety Warning of Straight Hole Flap Wheel 2-3/8inch

Please try to choose an operating indoor environment and wear protective guards and goggles.
Never to exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performance would with a recommended cutting speed at 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
