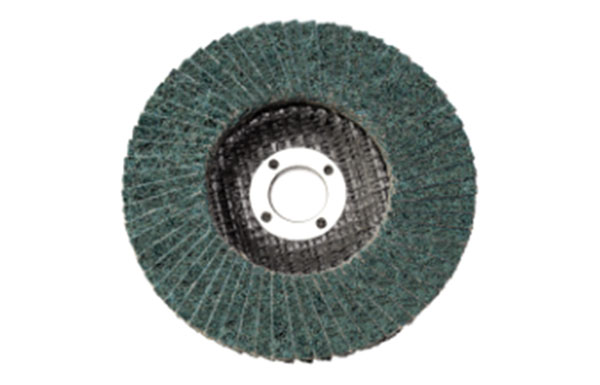

Surface Condition Material (SCM) Flap Discs

surface condition material scm flap discs

For general grinding of parts made of aluminum, copper, bronze, titanium and fiber reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation industry, especially silicon carbide is the only approved abrasive, such as engine components.

Surface Condition Material (SCM) Flap Discs Grit Size Table Corresponding To Raw Materials



Surface Condition Material (SCM) Flap Discs Size Table

Surface Condition Material (SCM) Flap Discs Size Table


Surface Condition Material (SCM) Flap Discs Heavy Duty

Surface Condition Material (SCM) Flap Discs Heavy Duty


Surface Condition Material (SCM) Flap Discs Hyperflex

Surface Condition Material (SCM) Flap Discs Hyperflex


Surface Condition Material (SCM) Flap Discs Low Stretch

Surface Condition Material (SCM) Flap Discs Low Stretch


Surface Condition Material (SCM) Flap Discs Standard

Surface Condition Material (SCM) Flap Discs Standard


Surface Condition Material (SCM) Flap Discs Specification:

▶ Max. RPM: 6120~76300 RPM

▶ Other Raw Materials: Aluminum Oxide (AO), Zirconia Blue (ZB), Zirconia Green (ZG), Ceramic (C)

▶ Grit Size(SCM): Coarse/Medium/Fine


Surface Condition Material (SCM) Flap Discs Materials that can be worked:

▶ Aluminium

▶ Bronze

▶ Stone

▶ Titanium

▶ Titanium alloys

▶ Thermoplastics

▶ Stainless steel (INOX)

▶ Other non-ferrous metals

▶ Hard non-ferrous metal

▶ Fibre-reinforced duroplastics (GRP, CRP)


Surface Condition Material (SCM) Flap Discs Applications:

▶ Leveling

▶ Deburring

▶ Surface work

▶ Weld dressing

▶ Fine grinding in multiple steps

▶ Structuring (matt finishing, brush matting and satin finishing)

Safety Warning of Surface Condition Material (SCM) Flap Discs

Instructions:

1. Please try to choose an operation indoor environment and wear protective guards and goggles.

2. Never exceed the recommended maximum permitted rotational speed for safety reasons.

3. In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.


Safety Warning:

1. The clamping length between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Abrasive Cloth Flap Disc Products
Abrasive Cloth Zirconia Blue Flap Discs (ZB)
Abrasive Cloth Zirconia Blue Flap Discs (ZB)

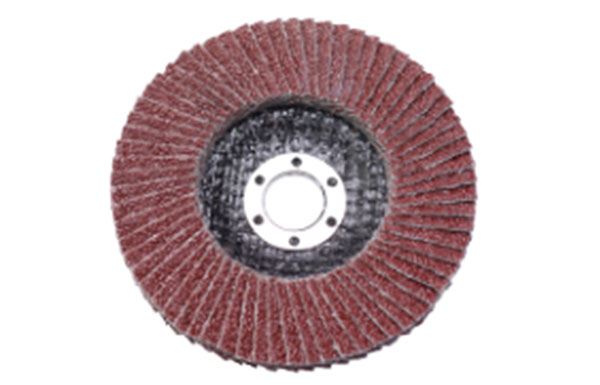

Abrasive Cloth Flap Discs (AO)
Abrasive Cloth Flap Discs (AO)

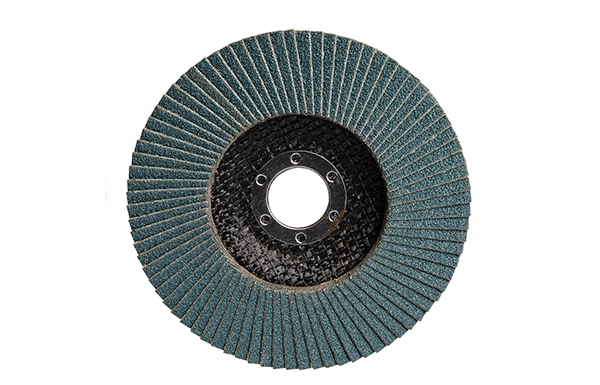

Abrasive Cloth Zirconia Green Flap Discs (ZG)
