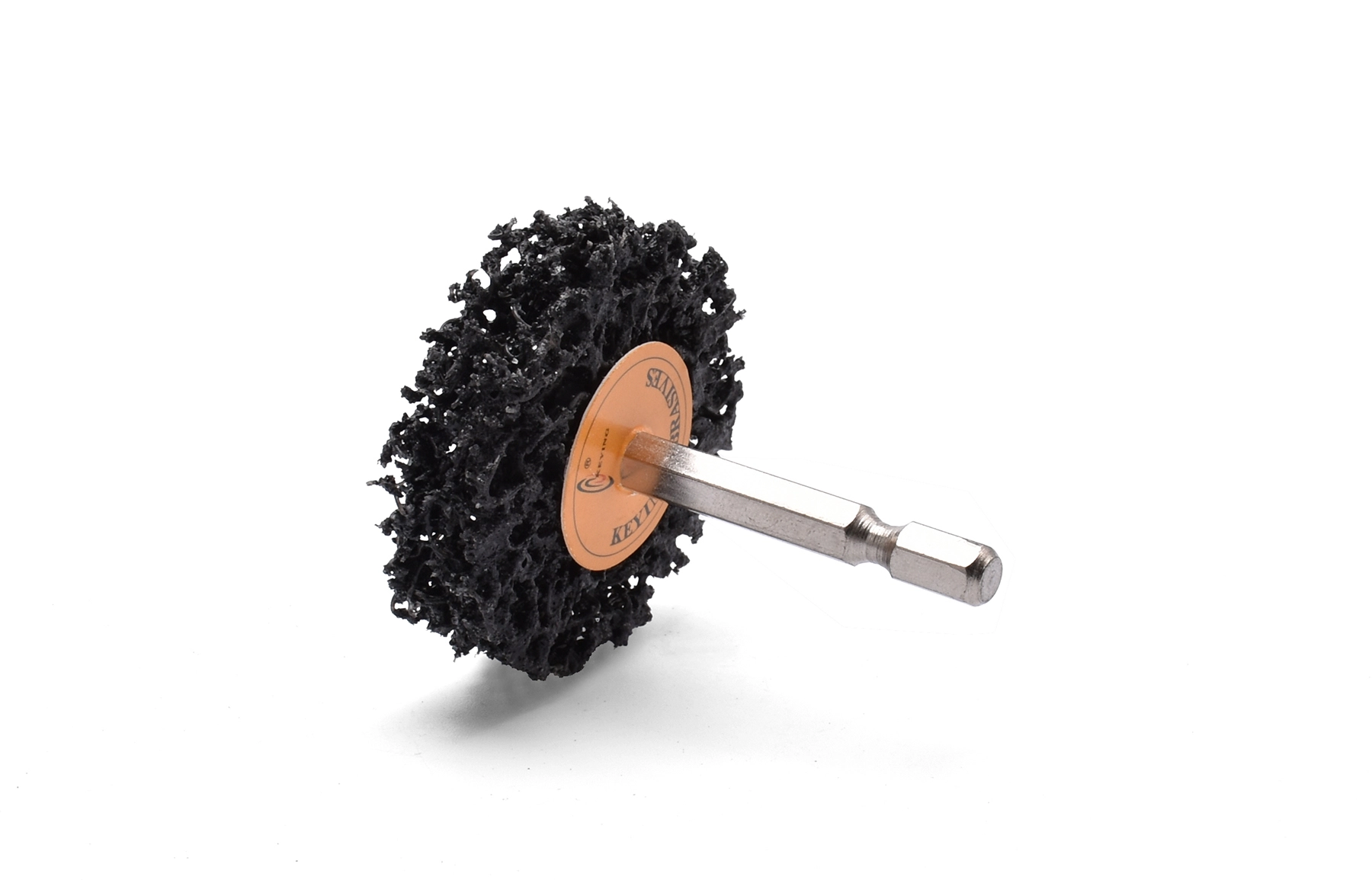

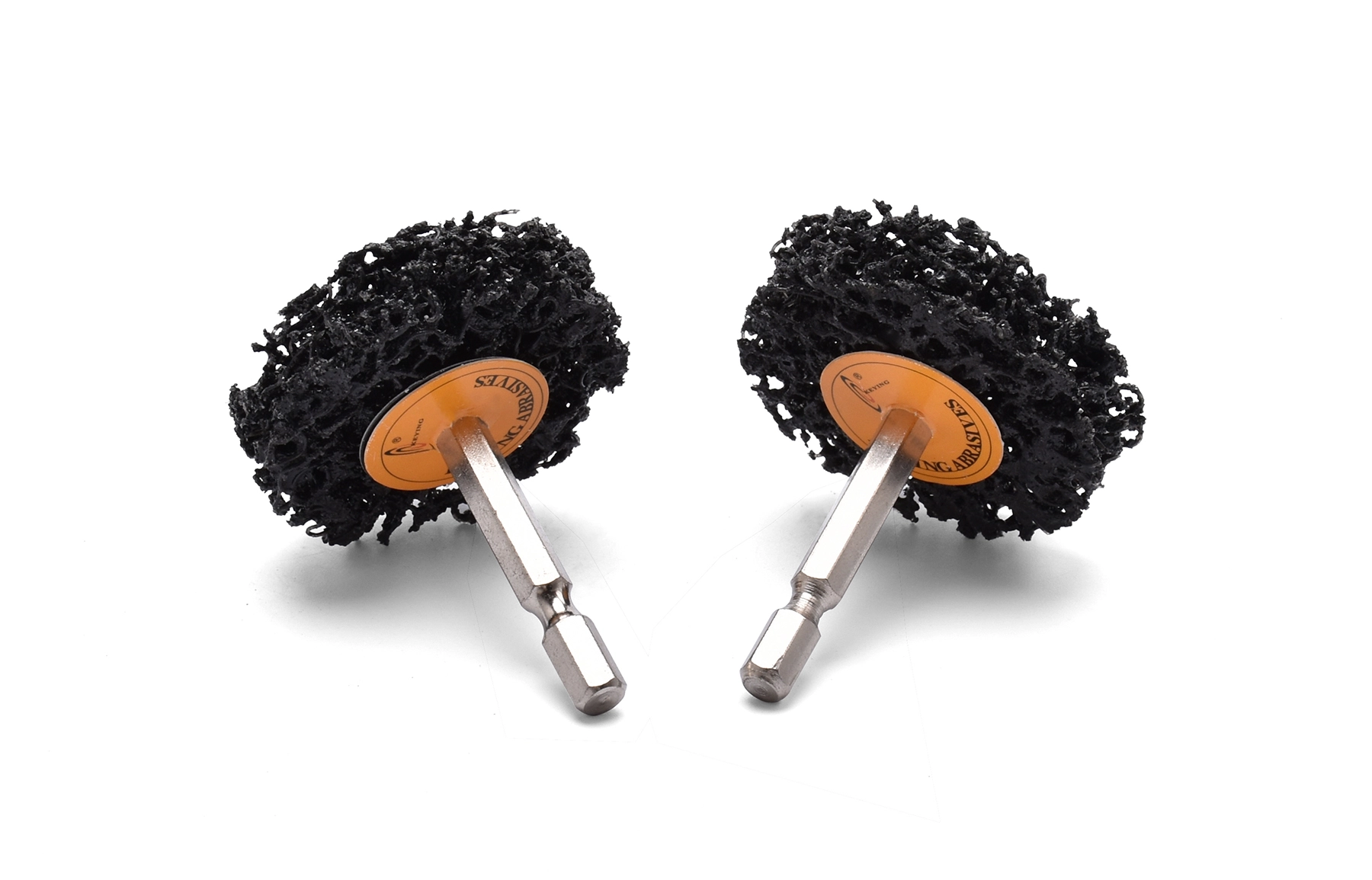

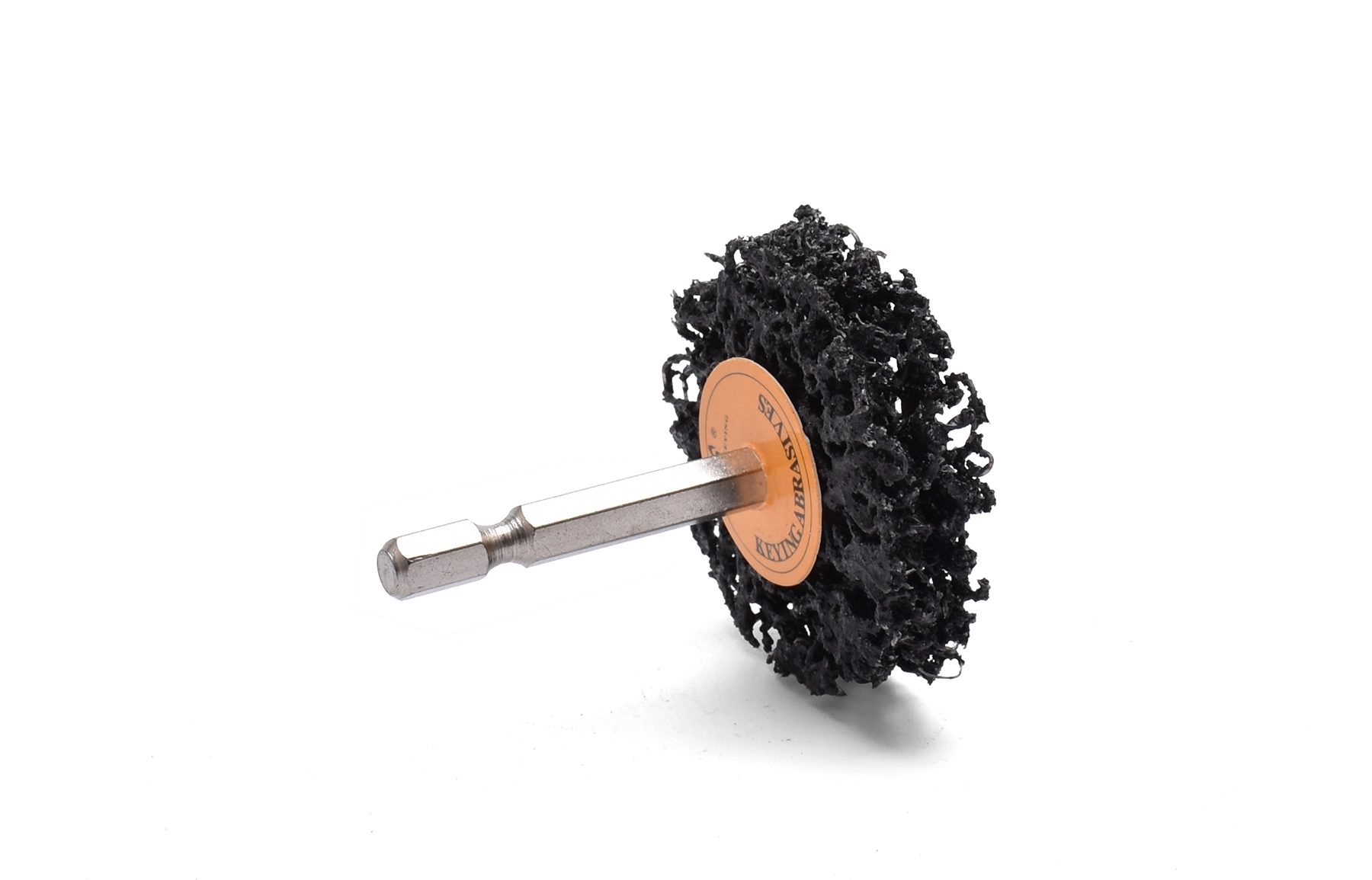

Name: Aluminium Oxide Paint Striper Disc With Shank (AO)
Brand: Wenling Keying Abrasives Co., Ltd.

Aluminium Oxide Paint Striper Disc With Shank (AO)

Aluminum oxide is a popular choice among industrial professionals because of its fast cut-rate and long life. This mineral makes a tough, durable abrasive that self-fractures to expose fresh cutting edges, whereas traditional natural abrasives dull more quickly. Due to its fast cut rate, hardness, and strength, it is widely used in grinding applications in addition to sanding and finishing applications.

 Contact us

Call us +86(0)576-86711667

Aluminium Oxide Paint Striper Disc with Shank (AO) Grit Size Table Corresponding To Raw Materials

Aluminium Oxide Paint Striper Disc with Shank (AO) Paint Striper Disc with Shank Size Table

Aluminium Oxide Paint Striper Disc with Shank (AO) Specification:

Max. RPM: 7000~10000 RPM
Outer Diameter: 100mm/115mm/125mm/150mm/180mm
Center Hole Diameter: 16mm/22mm
Other Raw Materials: Silicon Carbide (SC)

Aluminium Oxide Paint Striper Disc with Shank (AO) Materials that can be worked:

Aluminium
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconel and Hastelloy)
Bronze
Hard non-ferrous metal
Titanium
Titanium alloys
Copper
Soft non-ferrous metal
Brass
Zinc
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Thermoplastics
Elastomers
Fibre-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Aluminium Oxide Paint Striper Disc with Shank (AO) Applicable Industries

Applications

Surface work
Roughening
Cleaning

Aluminium Oxide Paint Striper Disc with Shank (AO) Applicable Industries

Safety Warning of Aluminium Oxide Paint Striper Disc With Shank (AO)

Instructions:

Safety Warning of Aluminium Oxide Paint Striper Disc With Shank (AO)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
