Name: Aluminum Oxide Slashed Flap Wheel (AO)
Brand: Wenling Keying Abrasives Co., Ltd.

Aluminum Oxide Slashed Flap Wheel (AO)



Aluminum oxide is a popular choice among industrial professionals because of its fast cut-rate and long life. This mineral makes a tough, durable abrasive that self-fractures to expose fresh cutting edges, whereas traditional natural abrasives dull more quickly. Due to its fast cut rate, hardness, and strength, it is widely used in grinding applications in addition to sanding and finishing applications.

 Contact us

Call us +86(0)576-86711667

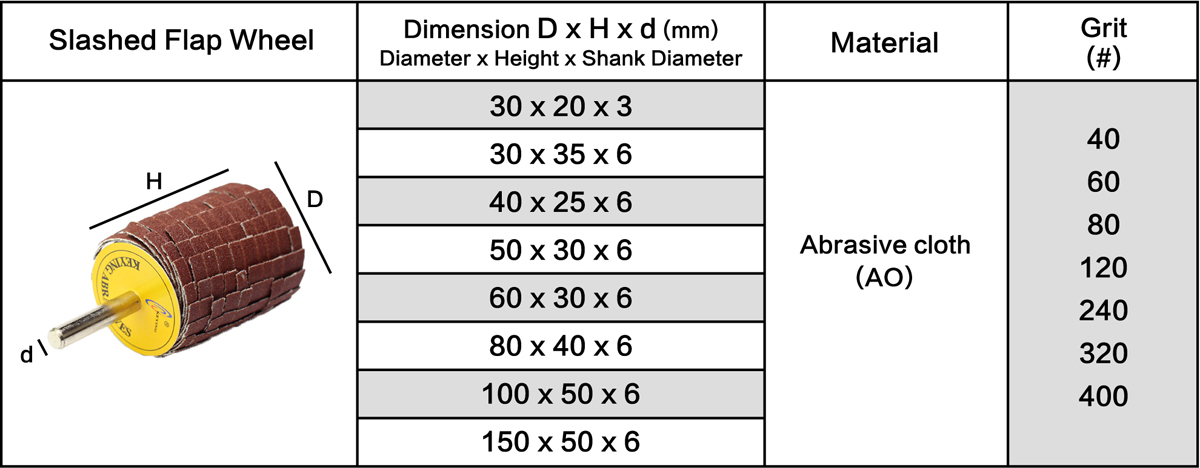

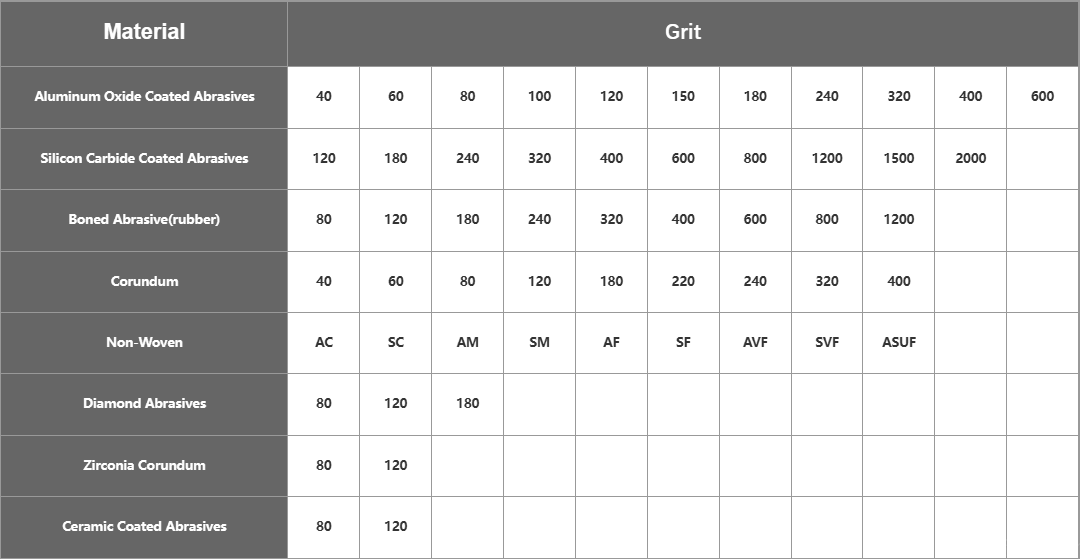

Aluminum Oxide Slashed Flap Wheel (AO) Grit Size Table Corresponding To Raw Materials

Aluminum Oxide Slashed Flap Wheel (AO) Specification:

Max. RPM: 6120~76300 RPM
Other Raw Materials: Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size(Aluminum Oxide): 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#/600#

Aluminum Oxide Slashed Flap Wheel (AO) Materials that can be worked:

Titanium
Other non-ferrous metals
Hard non-ferrous metal
Copper
Soft non-ferrous metal
Brass
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Thermoplastics
Fibre-reinforced duroplastics (GRP, CRP)
Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
Steel, cast steel

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.

Advantages：

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.

Aluminum Oxide Slashed Flap Wheel (AO) Applications:

Leveling
Deburring
Work on edges
Sharpening
Weld dressing
Fine grinding in multiple steps

Aluminum Oxide Slashed Flap Wheel (AO) Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Aluminum Oxide Slashed Flap Wheel (AO) Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Safety Warning of Aluminum Oxide Slashed Flap Wheel (AO)

Instructions:

Safety Warning of Aluminum Oxide Slashed Flap Wheel (AO)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
