Brown Fused Alumina Grinding Head G (A)

brown fused alumina grinding head g a 1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Brown Fused Alumina Grinding Head G (A)

ApplicationWidely Used For Rough Grinding Of Common Steel, Such As Carbon Steel, General Alloy Steel,   Calcined Cast Iron, Hard Bronze, Etc. Brown Fused Alumina Second Grade Abrasive Is Commonly Used For Grinding Rice Grinding Wheel, Resin Cutting Grinding Wheel, Sand Tile, Emery Cloth, Sand Paper, Etc.BrandKEYINGCommodity CodeCGA1BR+Grit+A
Compatible ToolFlexible Shaft Drive Straight GrinderCountry   Of OriginChinaRaw   MaterialBrown Fused Alumina
HardnessVery hard
Hard
Medium
Soft

Very soft

Extremely soft

For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourBrown
Maximum RPM4800-477500ShapeCL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid
Standard   Pack Quantity5pcs/10pcs

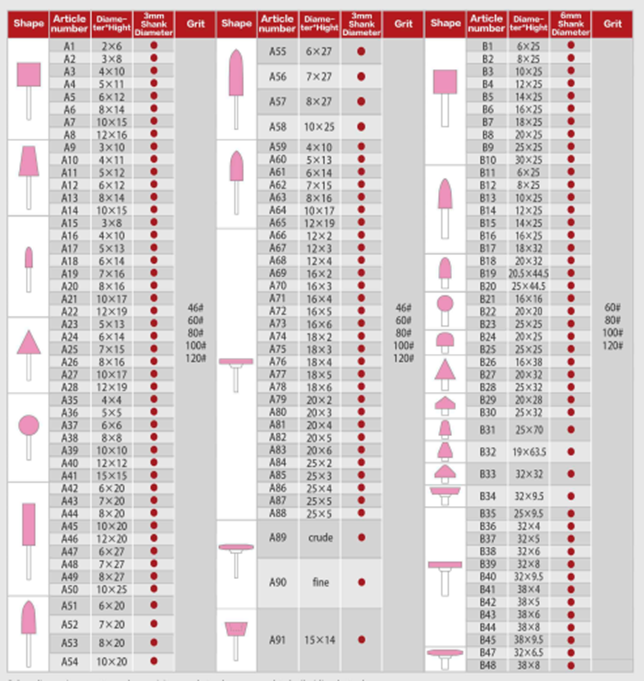

Table of Brown Fused Alumina Grinding Head G (A)

Table of Brown Fused Alumina Grinding Head G (A)


Features of Brown Fused Alumina Grinding Head G (A)

  • Brown Fused Alumina is brown

  • The main chemical composition is Aluminium Oxide, its content in 94.5-97%

Brown Fused Alumina Grinding Head G (A) Applicable Industries

Applications

  • Rough grinding of common steel, such as carbon steel, general alloy steel, calcined cast iron, hard bronze, etc.

  • Brown Fused Alumina second grade abrasive is commonly used for grinding rice grinding wheel, resin cutting grinding wheel, sand tile, emery cloth, sand paper, etc.

Brown Fused Alumina Grinding Head G (A) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Brown Fused Alumina Grinding Head G (A) Applicable Industries

Safety Instructions of Brown Fused Alumina Grinding Head G (A)

How To Brown Fused Alumina Grinding Head G (A)

Instructions:

Safety Instructions of Brown Fused Alumina Grinding Head G (A)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
