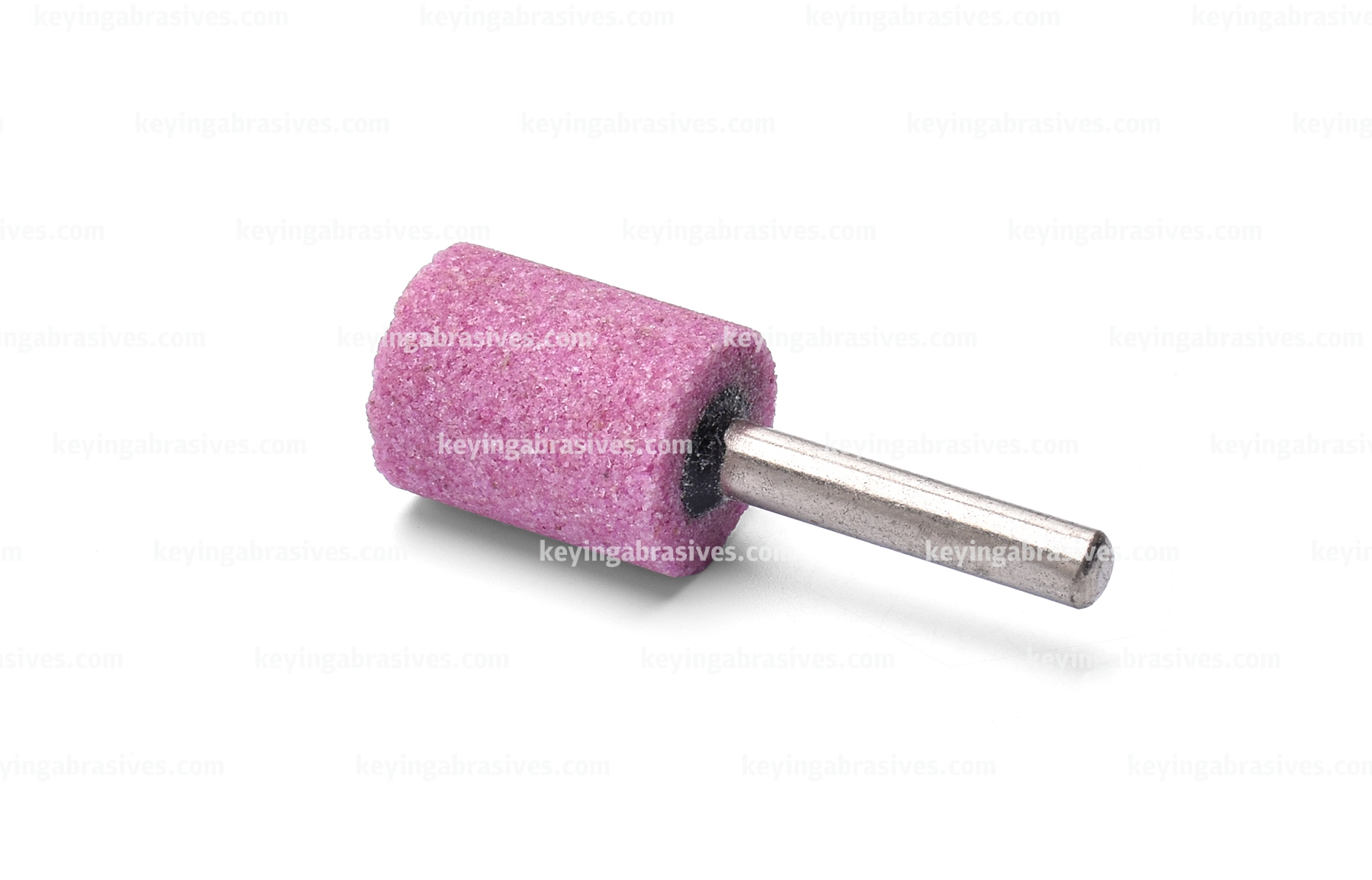

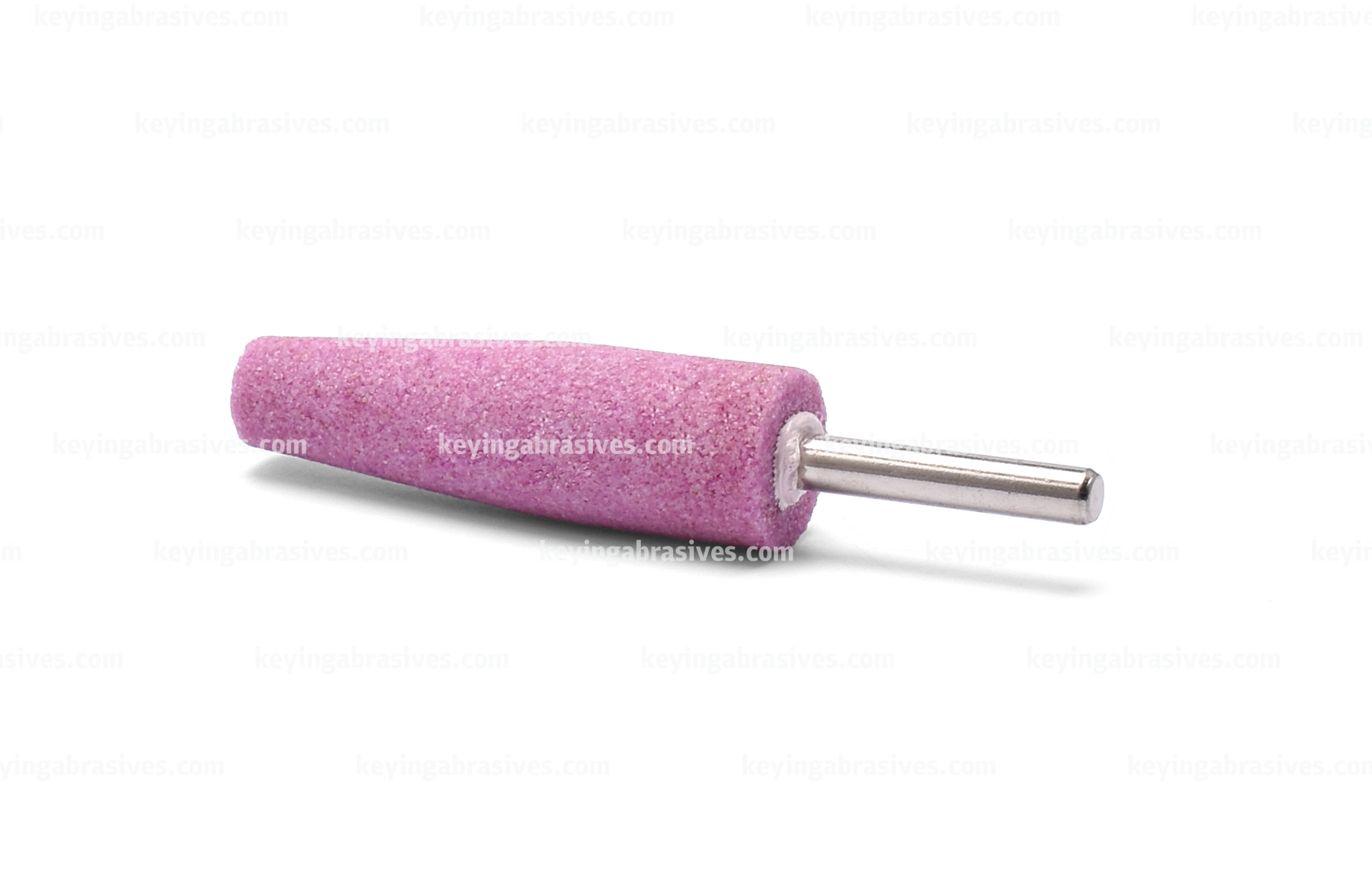

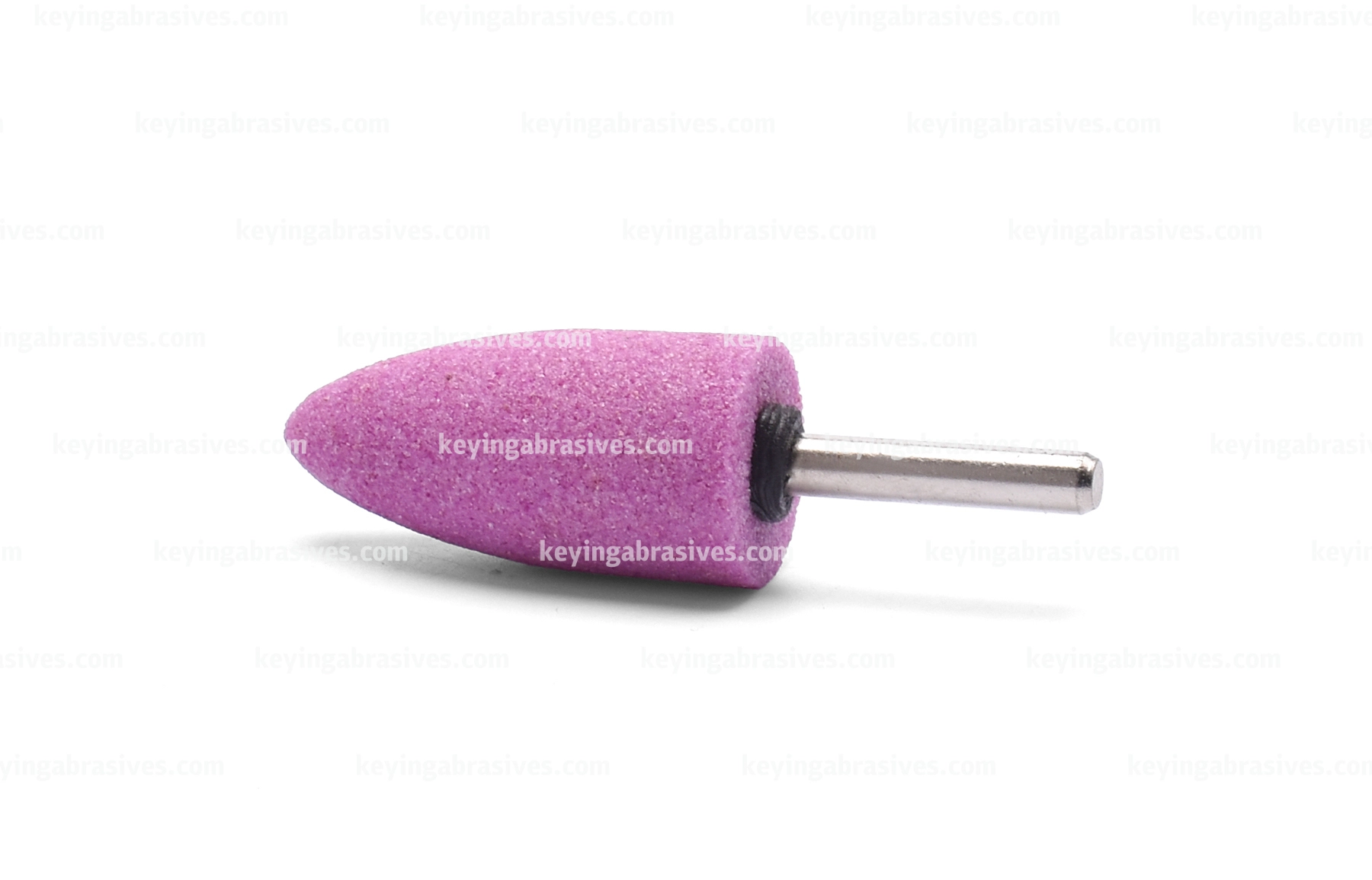

Grinding Head G - All Size

Name: Grinding Head G - All Size
Brand: Wenling Keying Abrasives Co., Ltd.



Grinding Head G adopts imported raw materials and special equipment, automatic production, and excellent quality. These products are designed to meet the needs of individual grinding tool applications with a wide range of grain types, sizes, hardness grades, and shapes. To select the right ceramic grinding head, it is necessary to consider the material, main application area, and specific operating requirements.

 Contact us

Call us +86(0)576-86711667

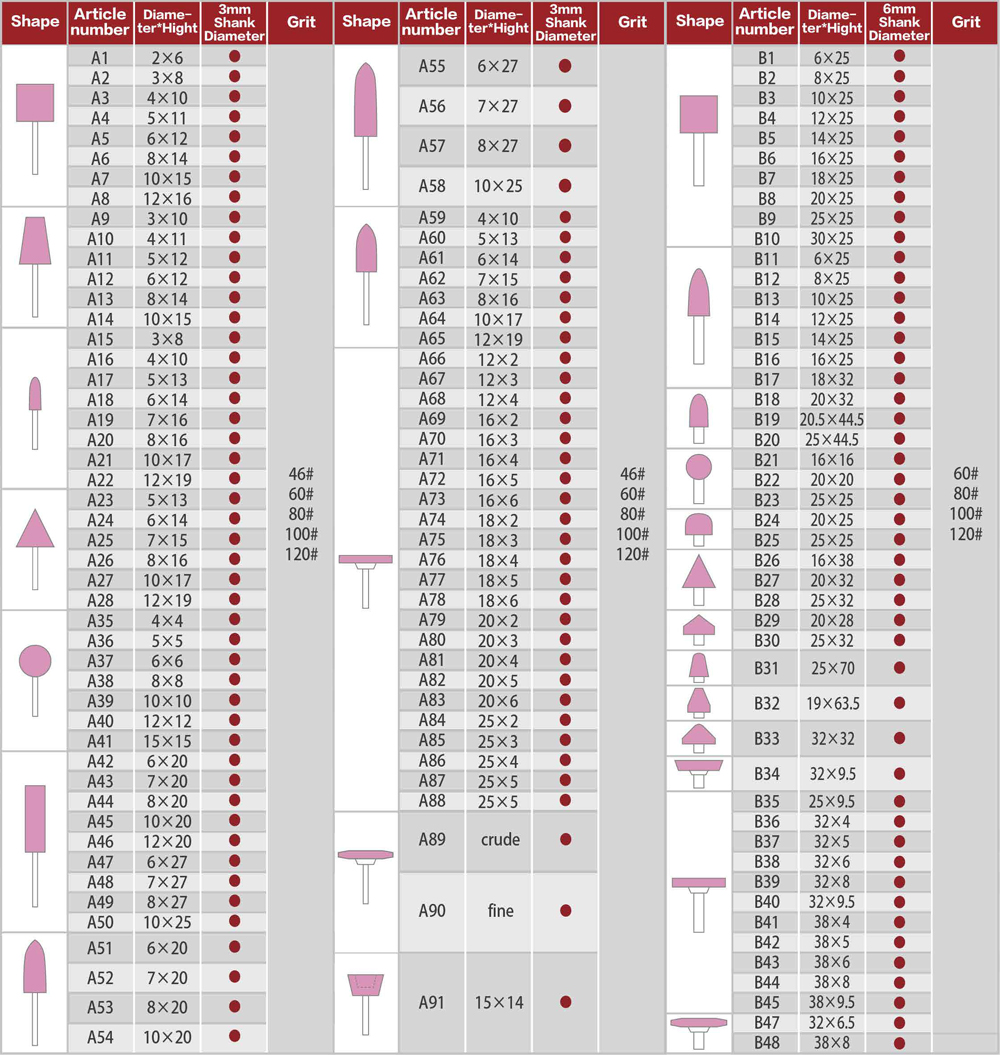

Table of Grinding Head G - All Size

Grinding Head G - All Size Specification:

Max. RPM: 150000-201800 RPM
Diameter: 2mm=5/64", 3mm=1/8", 4mm=5/32", 5mm=3/16", 6mm=1/4", 7mm=9/32", 8mm=5/16", 10mm=3/8", 12mm=15/22", 14mm=9/16", 15mm=19/32", 16mm=5/8", 18mm=23/32", 19mm=3/4", 20mm=25/32", 20.5mm=13/16", 25mm=1", 30mm=1-3/16", 32mm=1-1/4", 38mm=1-1/2"
Shank Diameter: 3mm, 6mm
Raw Materials: Brown Fused Alumina (A)/White Fused Alumina (WA)/Microcrystalline Fused Alumina (MA)/Single Crystal Corundum (SA)/Black Corundum (BA)/Green Silicon Carbide (GC)/Chrome Corundum (PA)/Zircon Corundum (ZA)/Black Silicon Carbide (C)

Grinding Head G - All Size Materials that can be worked:

Steel
Cast Steel

Grinding Head G-All Size Applicable Industries

Applications

Grouting
Grinding out
Leveling
Deburring
Surface work
Work on edges (chamfering, rounding)
Work on edges
Fine finishing
Weld dressing

Grinding Head G-All Size Applicable Industries

Safety Warning of Grinding Head G-All Size

Instructions:

Safety Warning of Grinding Head G-All Size

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
