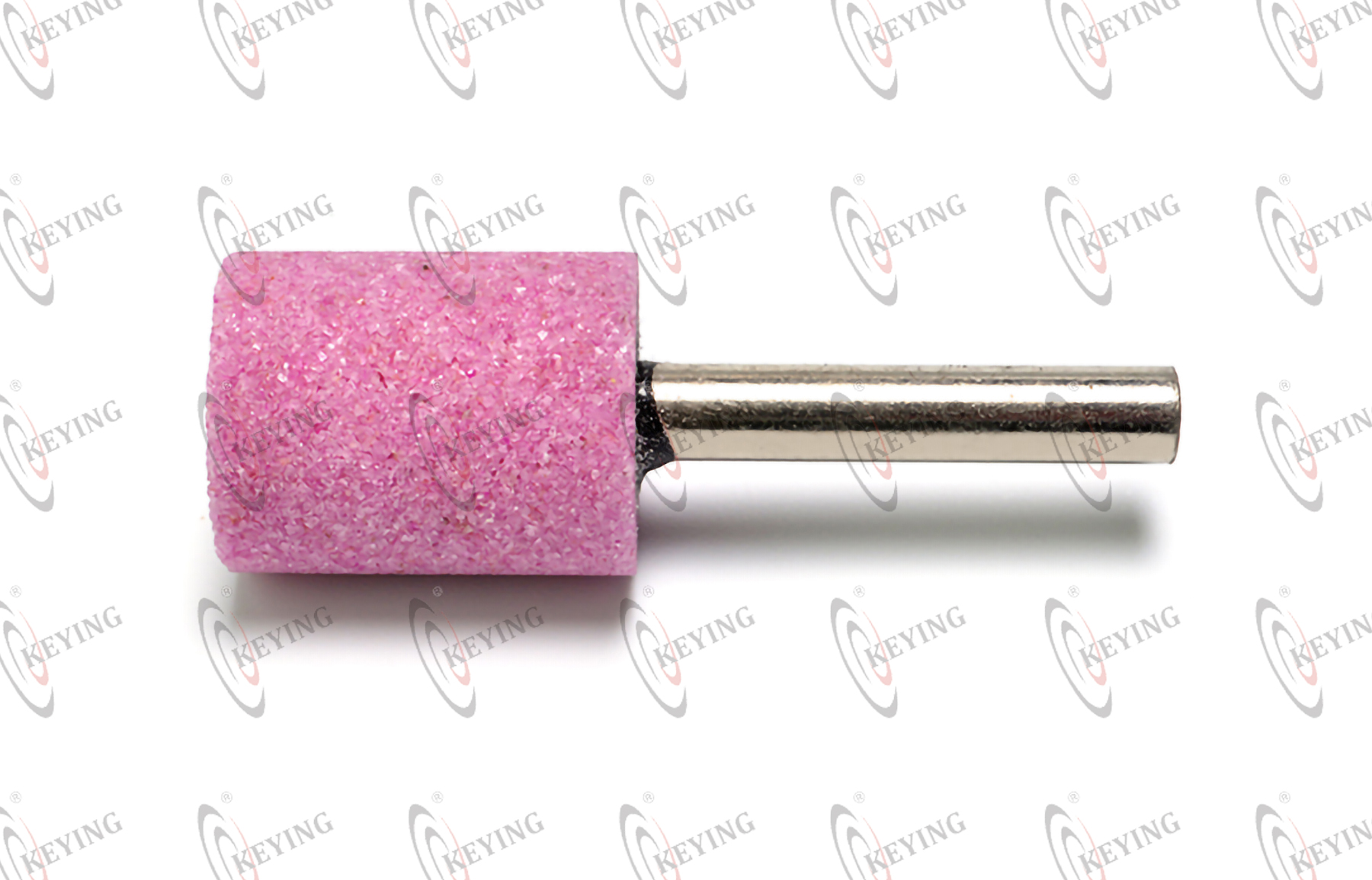

Chrome Corundum Grinding Head G (PA)

chrome corundum grinding head g pa p1
grinding head g   triangle cone shape c a32 1
a40 12 12 3
grinding head g   triangle cone shape c a25 1
1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Chrome Corundum Grinding Head G (PA)

ApplicationIts Application Scope Is Similar To That Of White Corundum. It Is Especially Suitable For Fine Grinding And Forming Grinding Of Various Cutting Tools, Measuring Tools And Instrument Parts.BrandKEYINGCommodity CodeCGA1P+Grit+PA
Compatible Tool

Flexible Shaft Drive Straight Grinder

Country   Of OriginChinaRaw   MaterialChrome   Corundum
HardnessVery Hard
Hard
Medium
Soft
Very Soft
Extremely Soft
For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourPink
Maximum RPM4800-477500ShapeCL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid
Standard   Pack Quantity5pcs/10pcs

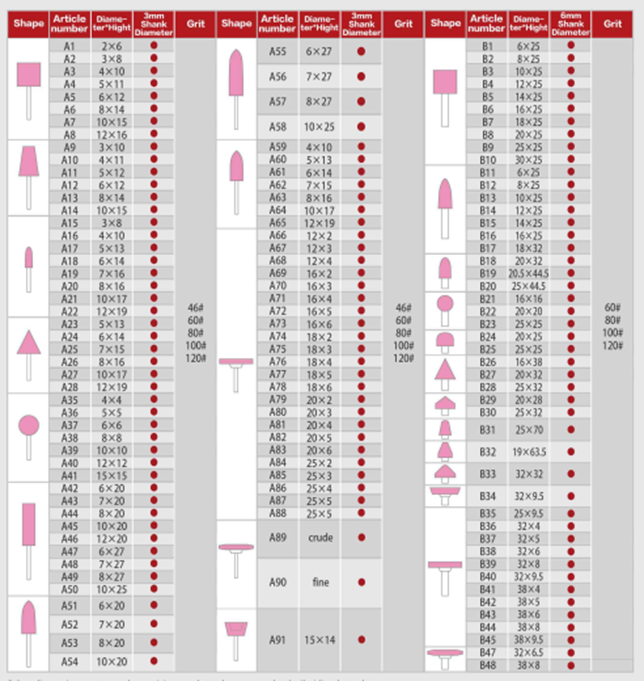

Table of Chrome Corundum Grinding Head G (PA)

Table of Chrome Corundum Grinding Head G (PA)


Features of Chrome Corundum Grinding Head G (PA)

  • Derived from white corundum, the appearance is rosy

  • The hardness is similar to the white corundum

  • The toughness is slightly higher than the white corundum

  • The strength is high, the grinding performance is good, the grinding precision is high.

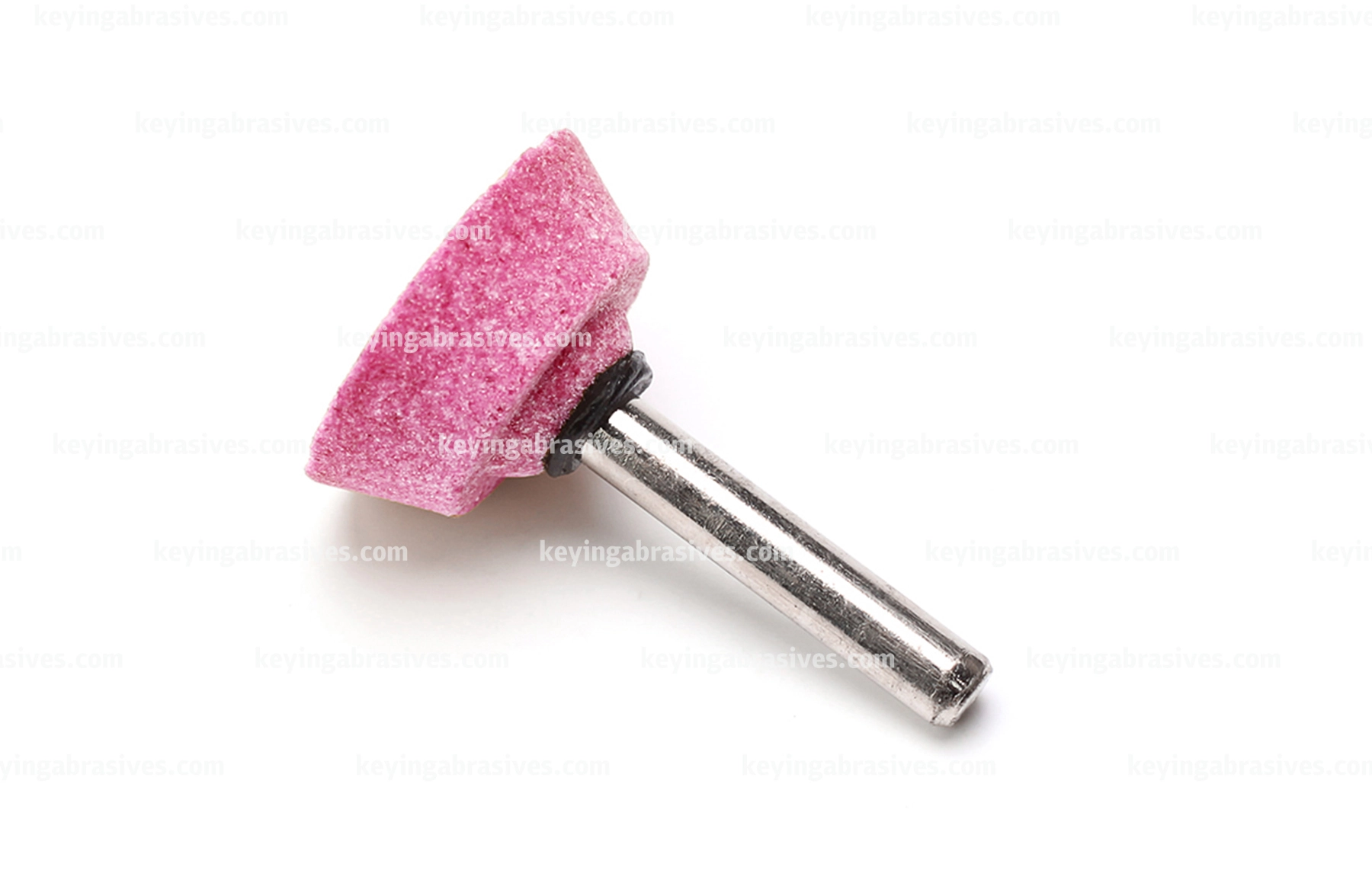

Chrome Corundum Grinding Head G (PA) Applicable Industries

Applications

  • Its application scope is similar to the white corundum

  • Fine grinding

  • Forming grinding of various cutting tools

  • Measuring tools and instrument parts

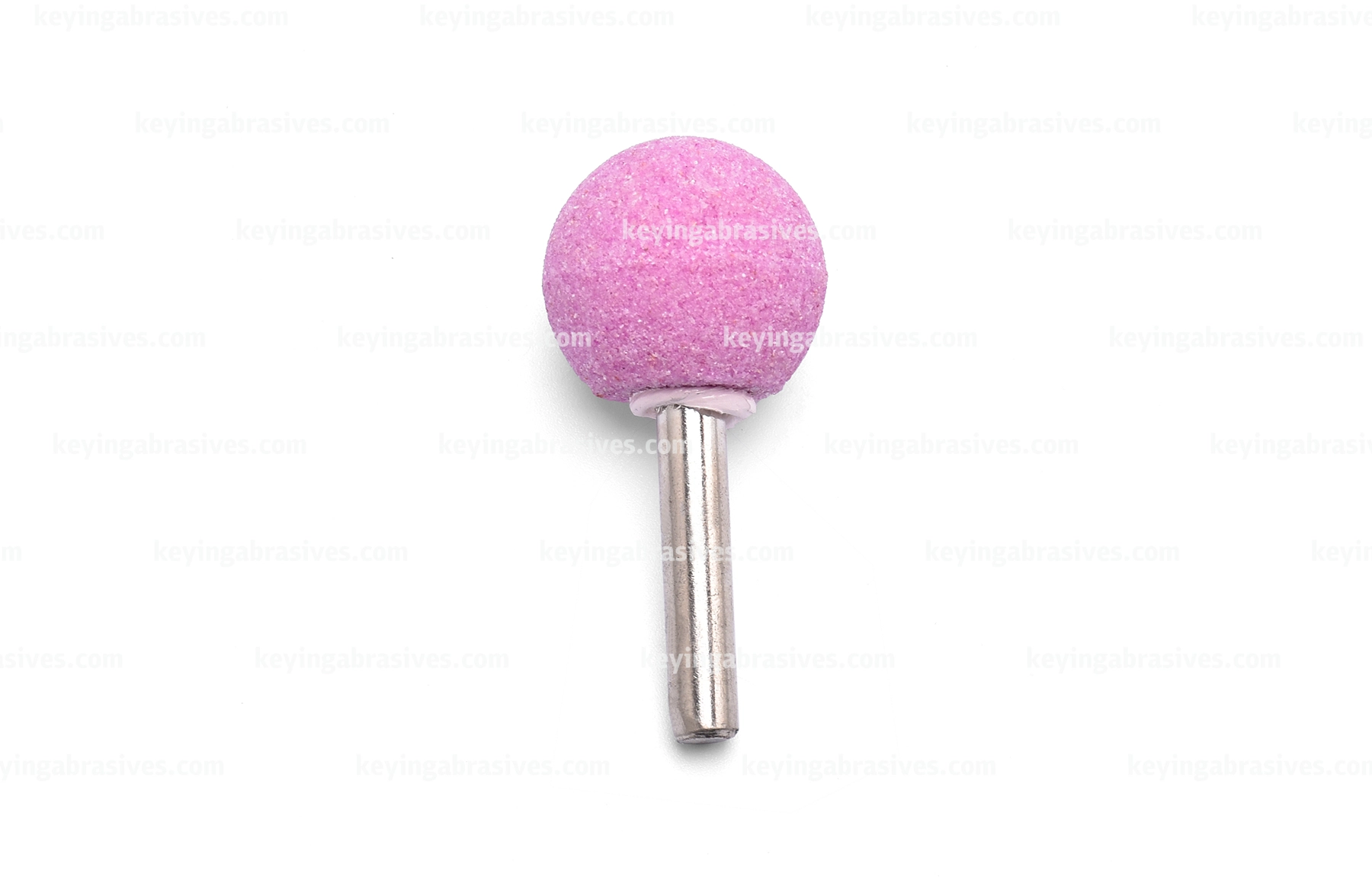

Chrome Corundum Grinding Head G (PA) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Chrome Corundum Grinding Head G (PA) Applicable Industries

Safety Instructions of Chrome Corundum Grinding Head G (PA)

How To Chrome Corundum Grinding Head G (PA)

Instructions:

Safety Instructions of Chrome Corundum Grinding Head G (PA)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.


If you have any questions, please contact us immediately
Contact Keying Abrasives Now
