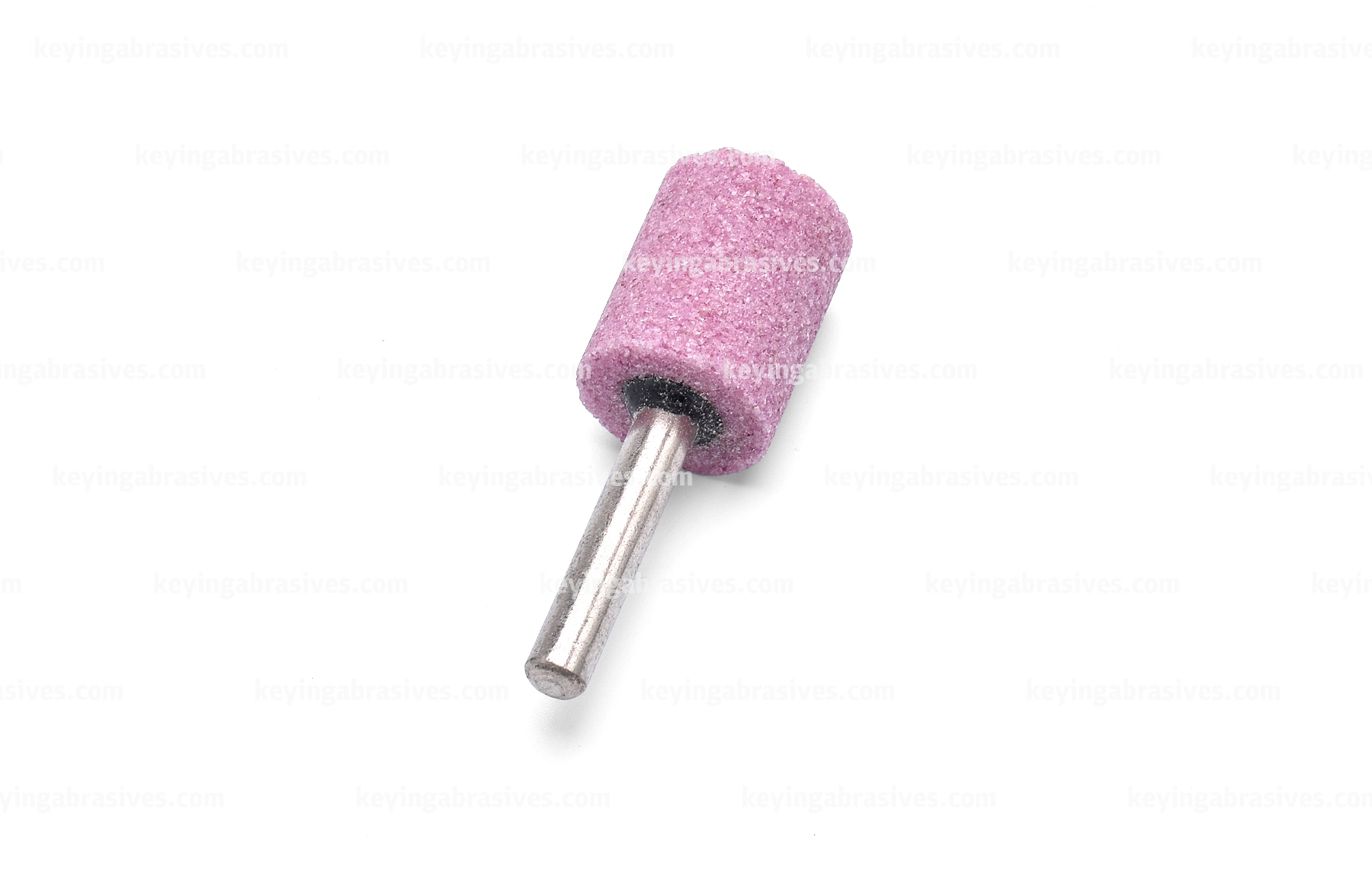

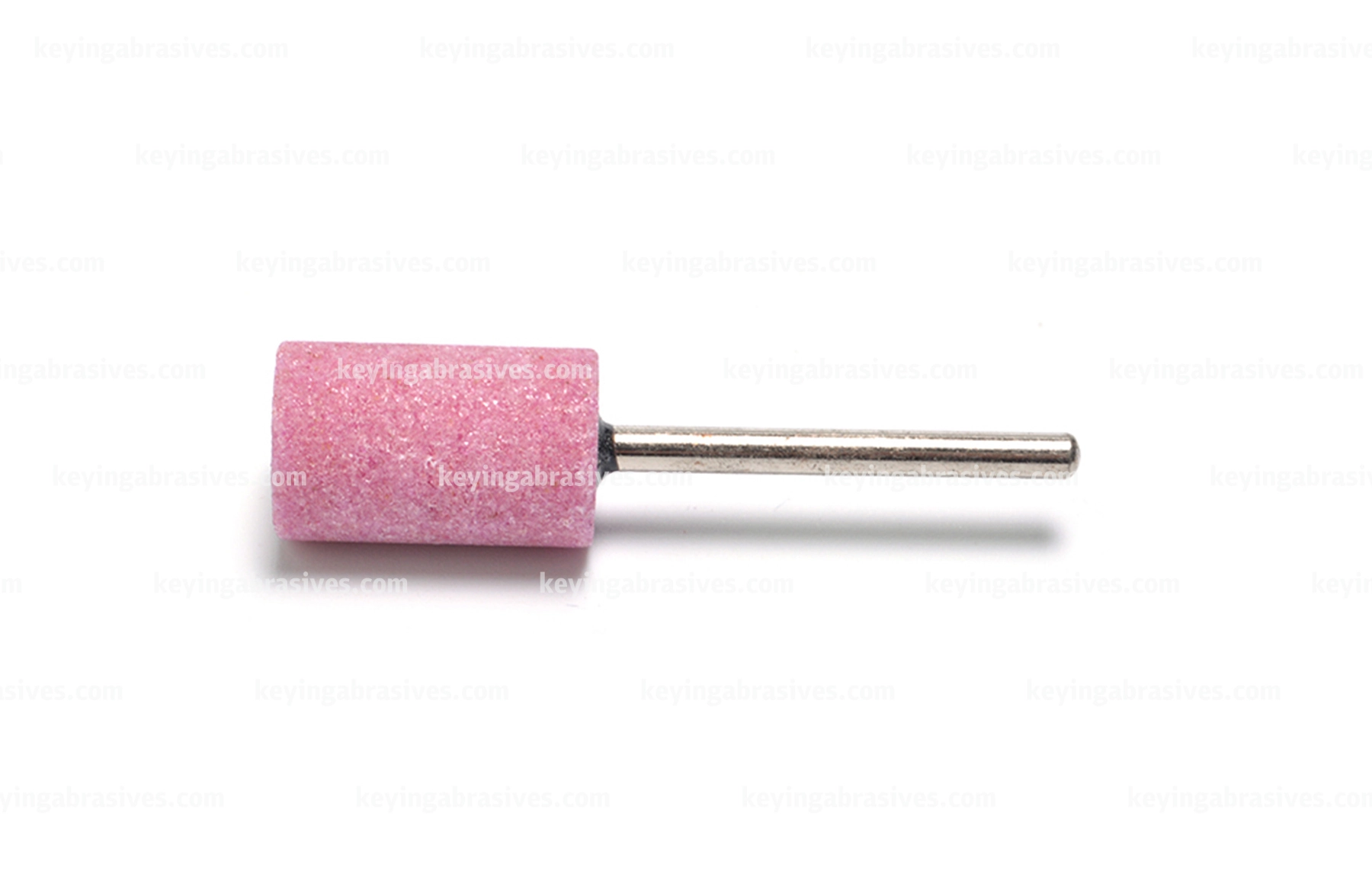

Grinding Head G - Cylinder Shape (CL)

Grinding Head G - Cylinder Shape (CL) 1
Grinding Head G - Cylinder Shape (CL) 2
Grinding Head G - Cylinder Shape (CL) 3
Grinding Head G - Cylinder Shape (CL) 4
Grinding Head G - Cylinder Shape (CL) 5
Grinding Head G - Cylinder Shape (CL) 6
Grinding Head G - Cylinder Shape (CL) 7
Grinding Head G - Cylinder Shape (CL) 8

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Grinding Head G - Cylinder Shape (CL)

ApplicationSurface: Edges And Difficult Reached Angels, Deburring, Grinding, Welding Removing, Finishing, Prepare For Grouting, Roughening
Material Apply: Steel, Cast Steel, Stainless Steel, Non-ferrous Metals, Cast iron, Plastics, Rubber, Wood
BrandKEYINGCommodity CodeCGA6P+Grit+PA
Compatible ToolFlexible Shaft Drive Straight GrinderCountry   Of OriginChinaRaw   MaterialBrown Fused Alumina
White Fused Alumina
Single Crystal Corundum
Chrome Corundum
Zircon Corundum
Black Corundum
Green Silicon Carbide
Black Silicon Carbide
Microlite Corundum
HardnessVery Hard
Hard
Medium
Soft

Very Soft

Extremely Soft

For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit   Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 5/8", 23/32", 25/32", 1", 1-3/16"
IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourBrown, Blue, Orange, White, Black, Pink, Light Blue, Grey Black, Green
Maximum RPM6000-477500ShapeCL-CylinderStandard   Pack Quantity10pcs

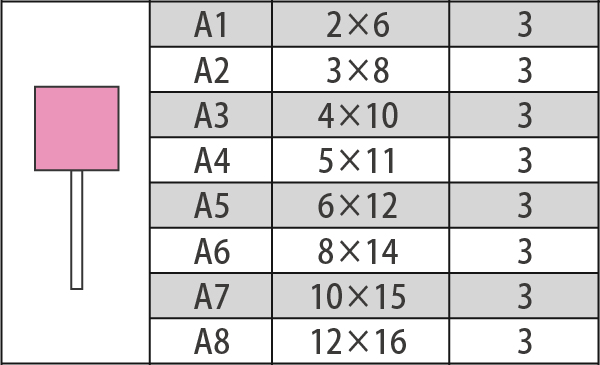

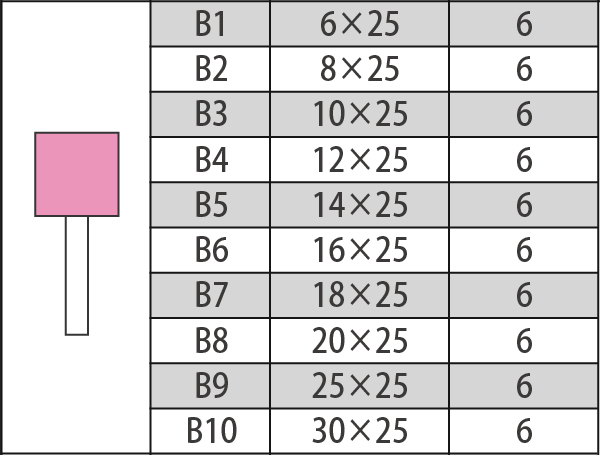

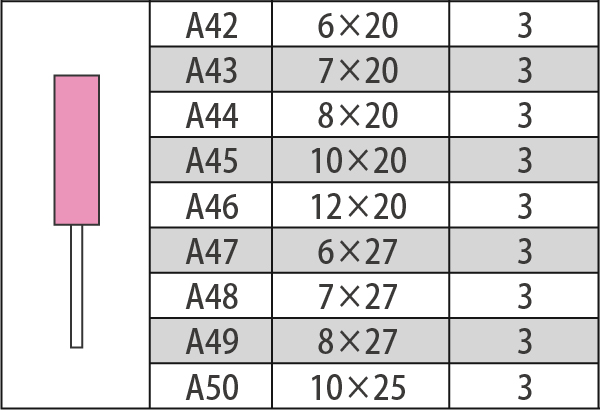

Table of Grinding Head G - Cylinder Shape (CL)

Grinding_Head_G_-_Cylinder_Shape_(CL)-1.jpg Grinding_Head_G_-_Cylinder_Shape_(CL)-2.jpg Grinding_Head_G_-_Cylinder_Shape_(CL)-3.jpg



Features of Grinding Head G - Cylinder Shape (CL)

  • Designed to meet individual grinding tool application needs, these products come in a broad range of grain types, grit sizes, hardness grades and shapes.

  • The mounted points are manufactured on modern production lines to high standards of dimensional accuracy and stability, consistent quality and close tolerances.

  • To select the correct mounting point, the material, main fields of application, and specific operating requirements have to be taken into consideration.

Grinding Head G - Cylinder Shape (CL) Applicable Industries

Applications

  • Surface: Edges and difficult reached angels, Deburring, Grinding, Welding removing, Finishing, Prepare for groutingVRoughening

  • Material Apply: SteelVCast steelVStainless steel, Non-ferrous metals, Cast iron, Plastics, Rubber, Wood

Grinding Head G - Cylinder Shape (CL) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Grinding Head G - Cylinder Shape (CL) Applicable Industries

Safety Instructions of Grinding Head G - Cylinder Shape (CL)

How To Grinding Head G - Cylinder Shape (CL)

Instructions:

Safety Instructions of Grinding Head G - Cylinder Shape (CL)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
