White Fused Alumina Grinding Head G (WA)

white fused alumina grinding head g wa w1
white fused alumina grinding head g wa b1
white fused alumina grinding head g wa o1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of White Fused Alumina Grinding Head G (WA)

ApplicationSuitable For Grinding Steel With High Hardness, Such As High Speed Steel, High Carbon Steel, Quenched Steel, Alloy Steel, Etc.BrandKEYINGCommodity CodeCGA1B+Grit+WA
Compatible Tool

Flexible Shaft Drive Straight Grinder

Country   Of OriginChinaRaw MaterialWhite Fused Alumina
Hardness

Very Hard

Hard

Medium

Soft

Very Soft

Extremely Soft

For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Ailway, Aviation, Metal Casting And Other High Precision IndustriesColourWhite/Orange/Blue
Maximum RPM4800-477500Shape

CL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid

Standard   Pack Quantity5pcs/10pcs

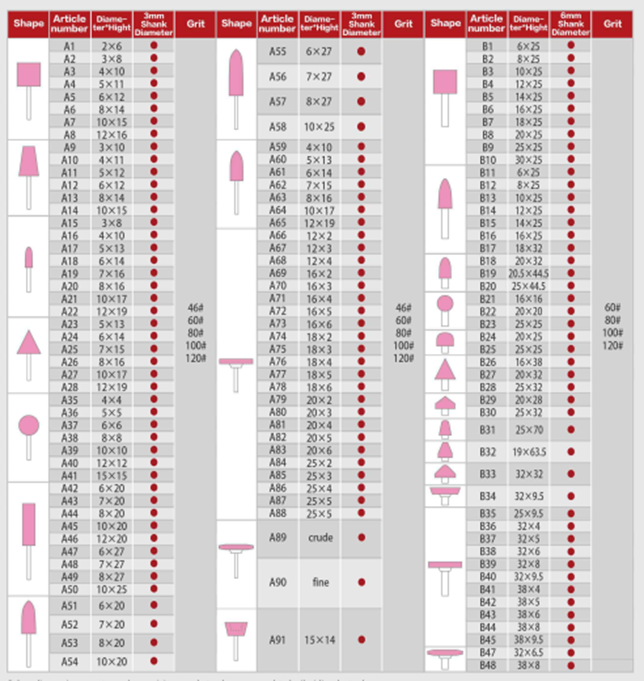

Table of White Fused Alumina Grinding Head G (WA)

Table of White Fused Alumina Grinding Head G (WA)


Features of White Fused Alumina Grinding Head G (WA)

  • The hardness of White Fused Alumina is slightly higher than the Brown Fused Alumina, but the toughness is slightly worse

  • The grinding is easy to cut into the work

  • The self-sharpening is better

  • The calorific value is smaller

  • The grinding ability is strong

  • The efficiency is high

  • The price is higher than the brown corundum

White Fused Alumina Grinding Head G (WA) Applicable Industries

Applications

  • Suitable for grinding steel with high hardness

  • Such as high speed steel, high carbon steel, quenched steel, alloy steel, etc.

White Fused Alumina Grinding Head G (WA) Applicable Industries

Matching tool drives:

  • Flexible shaft drive

  • Straight grinder

White Fused Alumina Grinding Head G (WA) Applicable Industries

Safety Instructions of White Fused Alumina Grinding Head G (WA)

How To White Fused Alumina Grinding Head G (WA)

Instructions:

Safety Instructions of White Fused Alumina Grinding Head G (WA)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
