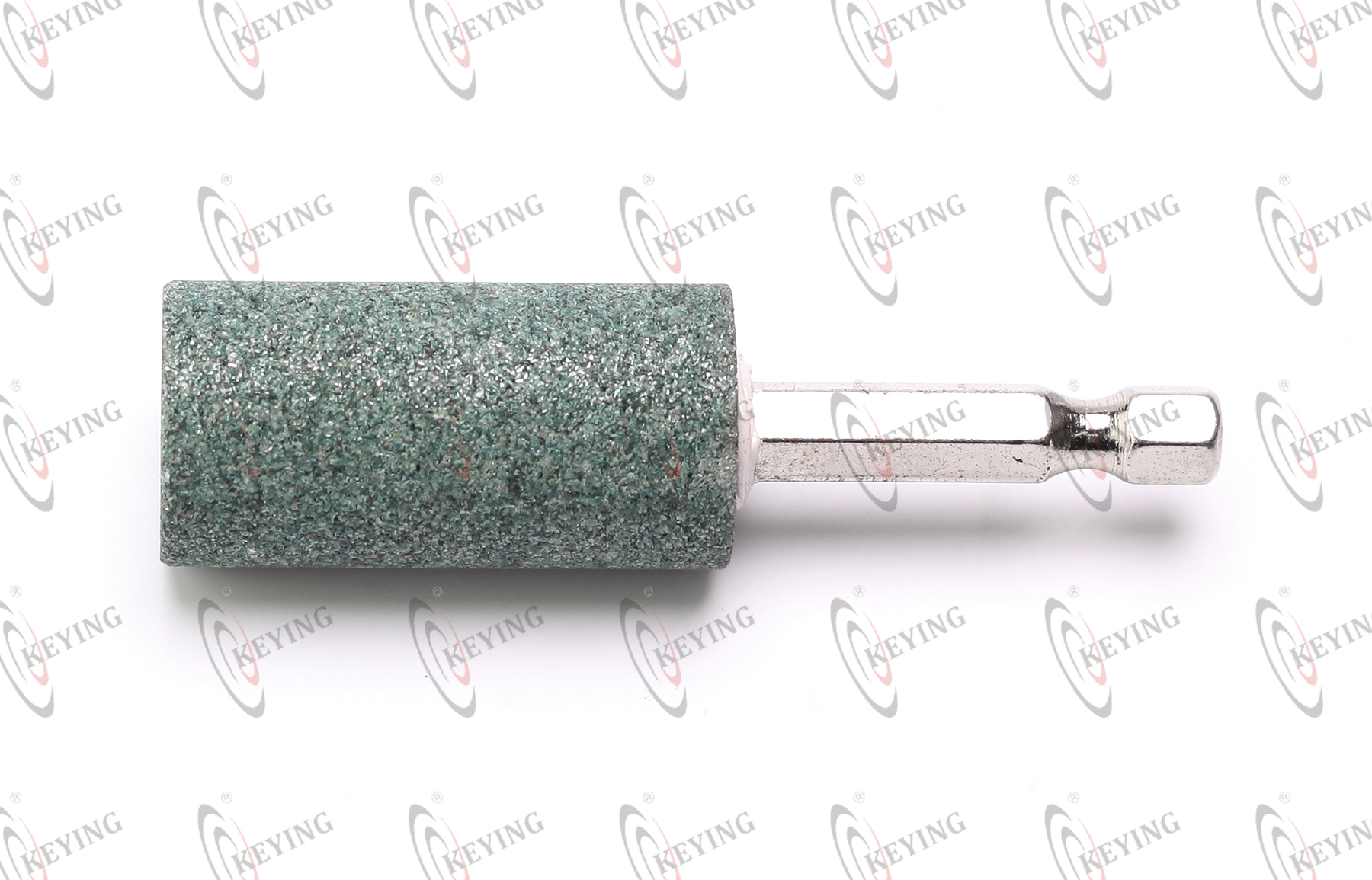

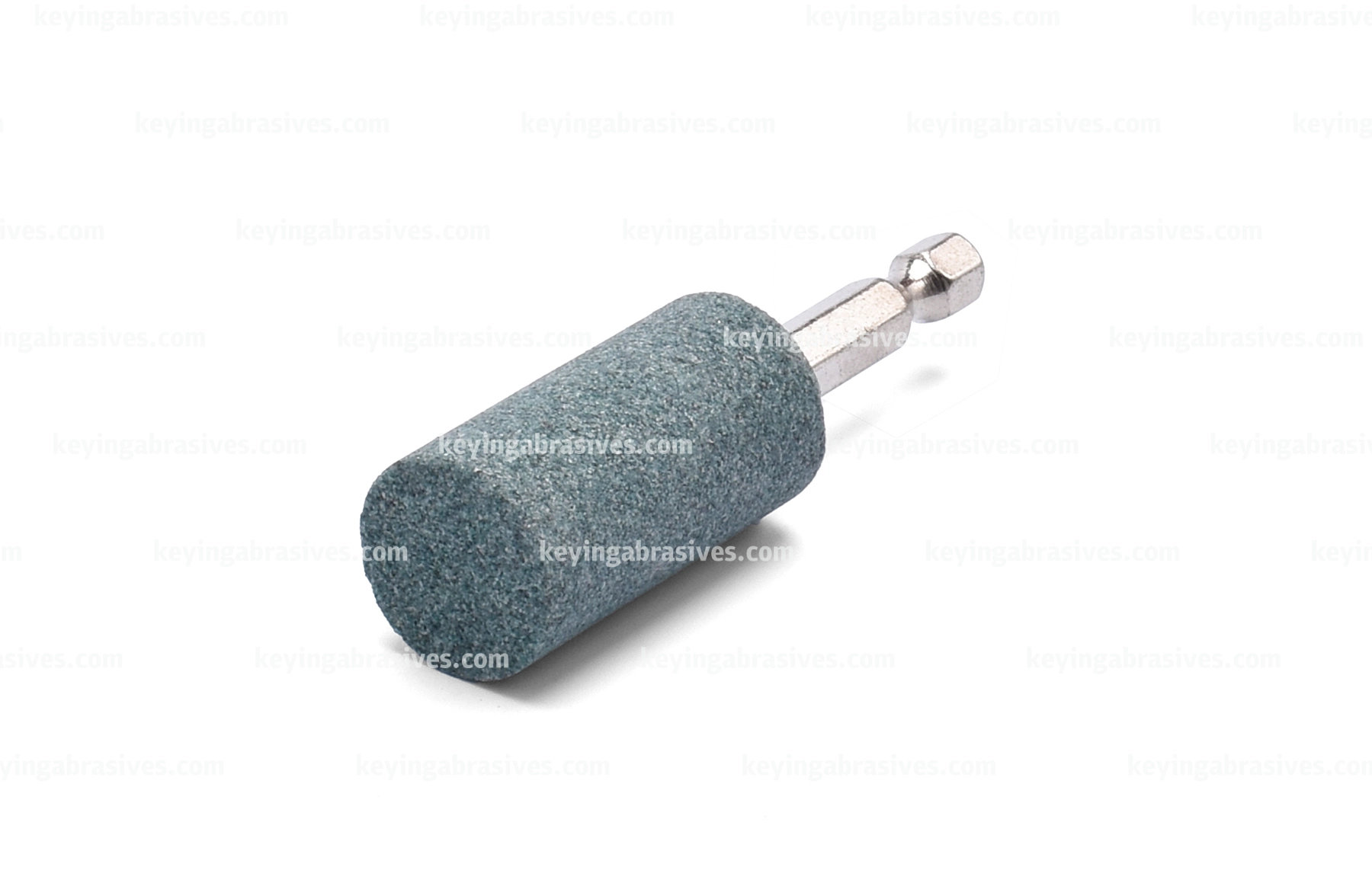

Zircon Corundum Grinding Head G (ZA)

zircon corundum grinding head g za 1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Zircon Corundum Grinding Head G (ZA)

ApplicationMainly Used For Heavy Load Grinding, Suitable For Grinding Heat Resistant Alloy Steel, Titanium Alloy Steel And Austenitic Stainless Steel.BrandKEYINGCommodity CodeCGA1+Grit+ZA
Compatible ToolFlexible Shaft Drive Straight GrinderCountry Of OriginChinaRaw MaterialZircon   Corundum
HardnessVery Hard
Hard
Medium
Soft
Very Soft
Extremely Soft
For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourN/A
Maximum RPM4800-477500ShapeCL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid
Standard   Pack Quantity5pcs/10pcs

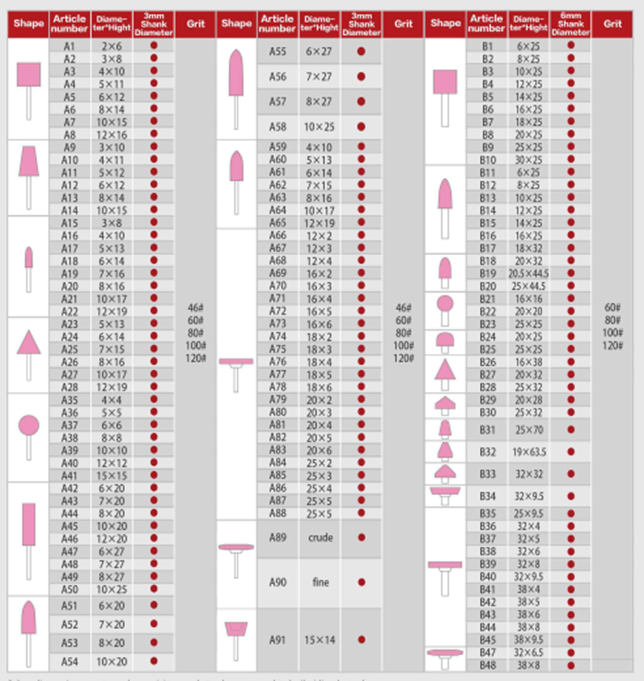

Table of Zircon Corundum Grinding Head G (ZA)

Table of Zircon Corundum Grinding Head G (ZA)


Features of Zircon Corundum Grinding Head G (ZA)

  • Zirconium Corundum is the eutectic compound of Q-AL2O3 and AL2O3-ZrO2.

  • Foreign Zirconium Corundum abrasive is mainly used for heavy load grinding, suitable for grinding heat resistant alloy steel, titanium alloy steel and austenitic stainless steel.

Zircon Corundum Grinding Head G (ZA) Applicable Industries

Applications

  • Heavy load grinding

  • Grinding heat resistant alloy steel

  • Titanium alloy steel

  • Austenitic stainless steel

Zircon Corundum Grinding Head G (ZA) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Zircon Corundum Grinding Head G (ZA) Applicable Industries

Safety Instructions of Zircon Corundum Grinding Head G (ZA)

How To Zircon Corundum Grinding Head G (ZA)

Instructions:

Safety Instructions of Zircon Corundum Grinding Head G (ZA)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.


If you have any questions, please contact us immediately
