Black Silicon Carbide Grinding Head G (C)

black silicon carbide grinding head g c st1

KEYING Mounted Head is made of imported raw materials and special equipment with automatic production and excellent quality. These products are designed to meet the needs of individual grinding tool applications and come in a wide range of particle types, granularity, hardness levels, and shapes. To select the correct installation point, consideration must be given to the material, main application area, and specific operational requirements. We will explain to you the appropriate materials for the different types (abrasives and binders) and the task at hand.

Specifications of Black Silicon Carbide Grinding Head G (C)

ApplicationWidely Used In Non-Ferrous Metal Materials (Copper, Aluminum) Gray Cast Iron Workpiaece, Glass, Ceramics, Stone, And Refractory Products.BrandKEYINGCommodity CodeCGA1ST+Grit+C
Compatible ToolFlexible Shaft Drive Straight GrinderCountry   Of OriginChinaRaw   MaterialBlack Silicon Carbide
HardnessVery Hard
Hard
Medium
Soft
Very Soft
Extremely Soft
For Use OnCarbon Steel, General Alloy Steel, Calcined Cast Iron, Hard BronzeGrit Size46#, 60#, 80#, 100#,120#
Shank Diameter5/64", 1/8", 5/32", 3/16", 1/4", 9/32", 5/16", 3/8", 15/22", 9/16", 19/32", 5/8", 23/32", 3/4", 25/32", 13/16", 1", 1-3/16", 1-1/4", 1-1/2"IndustriesHigh-Speed Railway, Aviation, Metal Casting And Other High Precision IndustriesColourGrey Black
Maximum RPM4800-477500ShapeCL-Cylinder
TT-Triangular Trapezoid
PE-Peach
C-Triangle Cone
BS-Conical with Radius end
RO-Ball
LP-Lengthen Peach Tip
LB-Lengthen Bullet Shape
T-T-Shape
SS-Dish

BW-Cup(Bowl)

RC-Cylinder with Radius end

PC-Pointed end cylinder
M-Mushroom
IT-Inverted Trapezoid
TA1-Triangular Trapezoid
Standard   Pack Quantity5pcs/10pcs

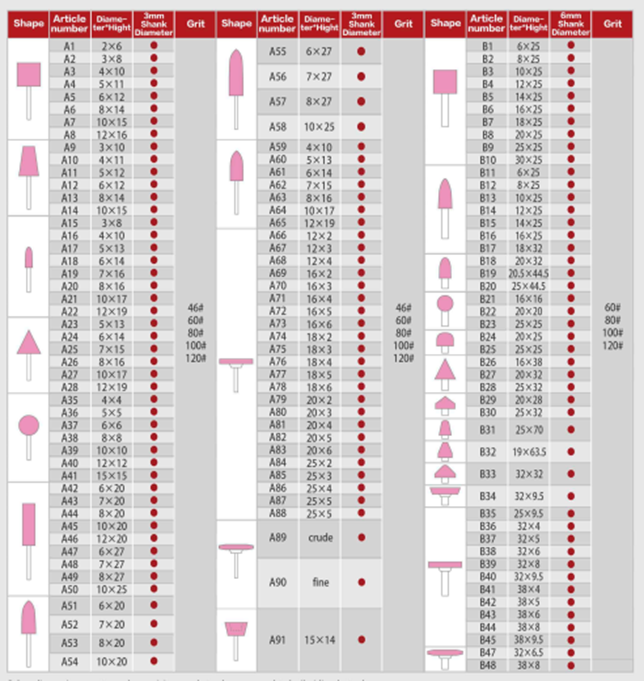

Table of Black Silicon Carbide Grinding Head G (C)

Table of Black Silicon Carbide Grinding Head G (C)


Features of Black Silicon Carbide Grinding Head G (C)

  • Black Silicon Carbide has high hardness, good self-sharpening

  • Not easy to burn the surface of the workpiece

  • Mostly used for cutting and grinding materials with low tensile strength.

Black Silicon Carbide Grinding Head G (C) Applicable Industries

Applications

  • Used in non-ferrous metal materials (copper, aluminum)

  • Gray cast iron workpiece

  • Glass

  • Ceramics

  • Stone

  • Refractory products.

Black Silicon Carbide Grinding Head G (C) Applicable Industries

Matching Tool Drives:

  • Flexible shaft drive

  • Straight grinder

Black Silicon Carbide Grinding Head G (C) Applicable Industries

Safety Instructions of Black Silicon Carbide Grinding Head G (C)

How To Black Silicon Carbide Grinding Head G (C)

Instructions:

Safety Instructions of Black Silicon Carbide Grinding Head G (C)



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.


If you have any questions, please contact us immediately
