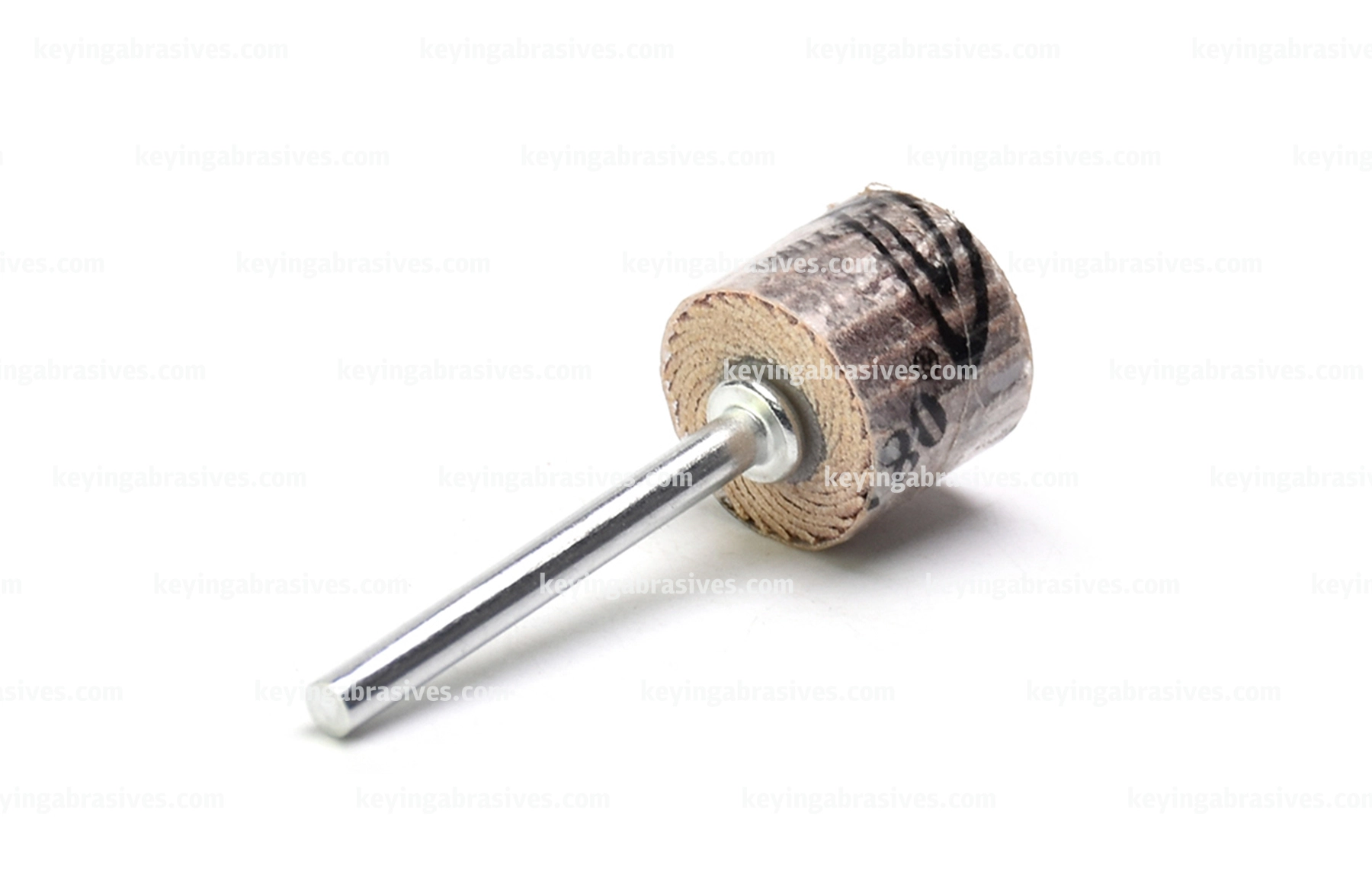

Miniature Unmounted Flap Wheel 15/22inch

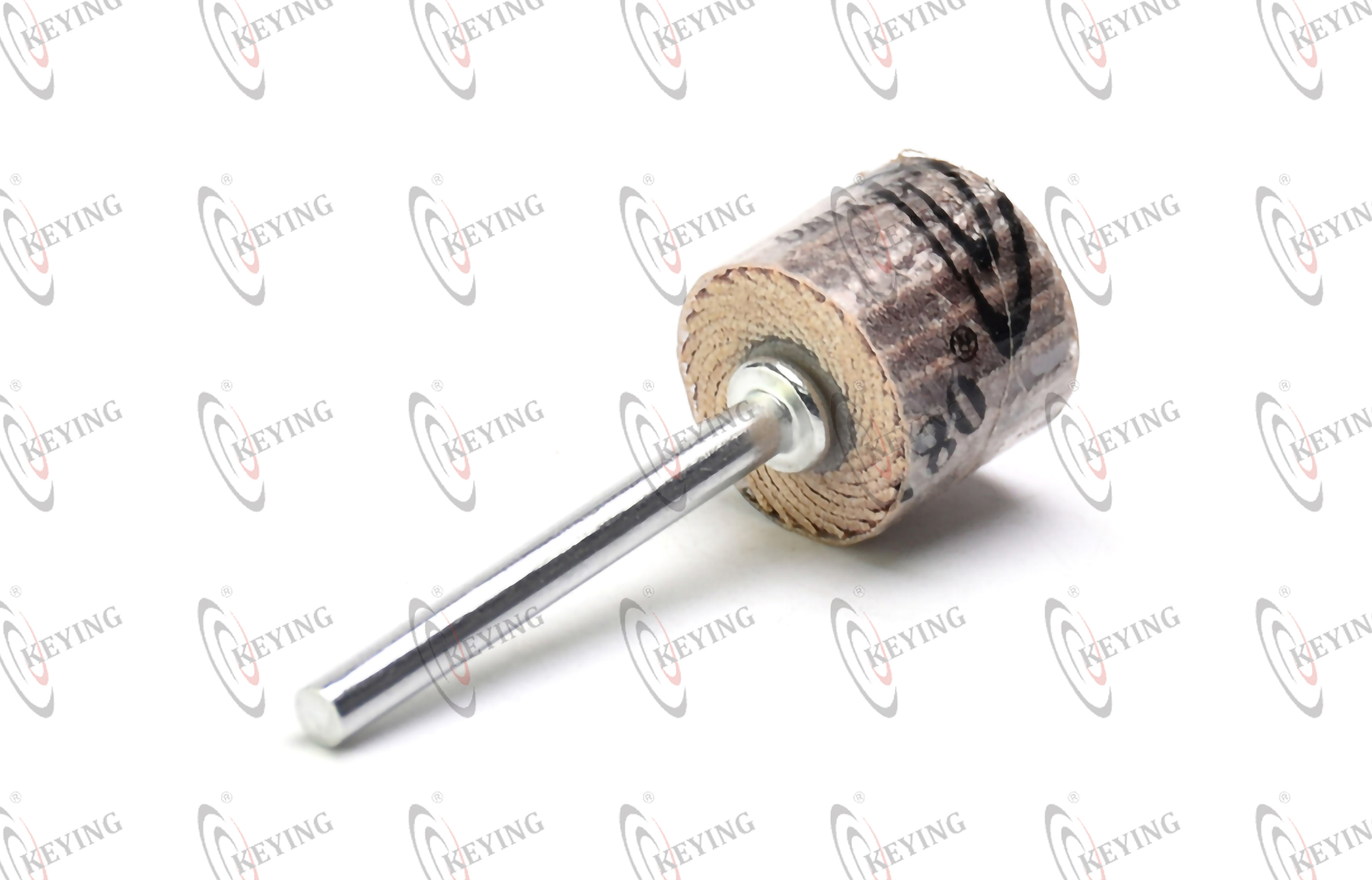

12 12 3 2

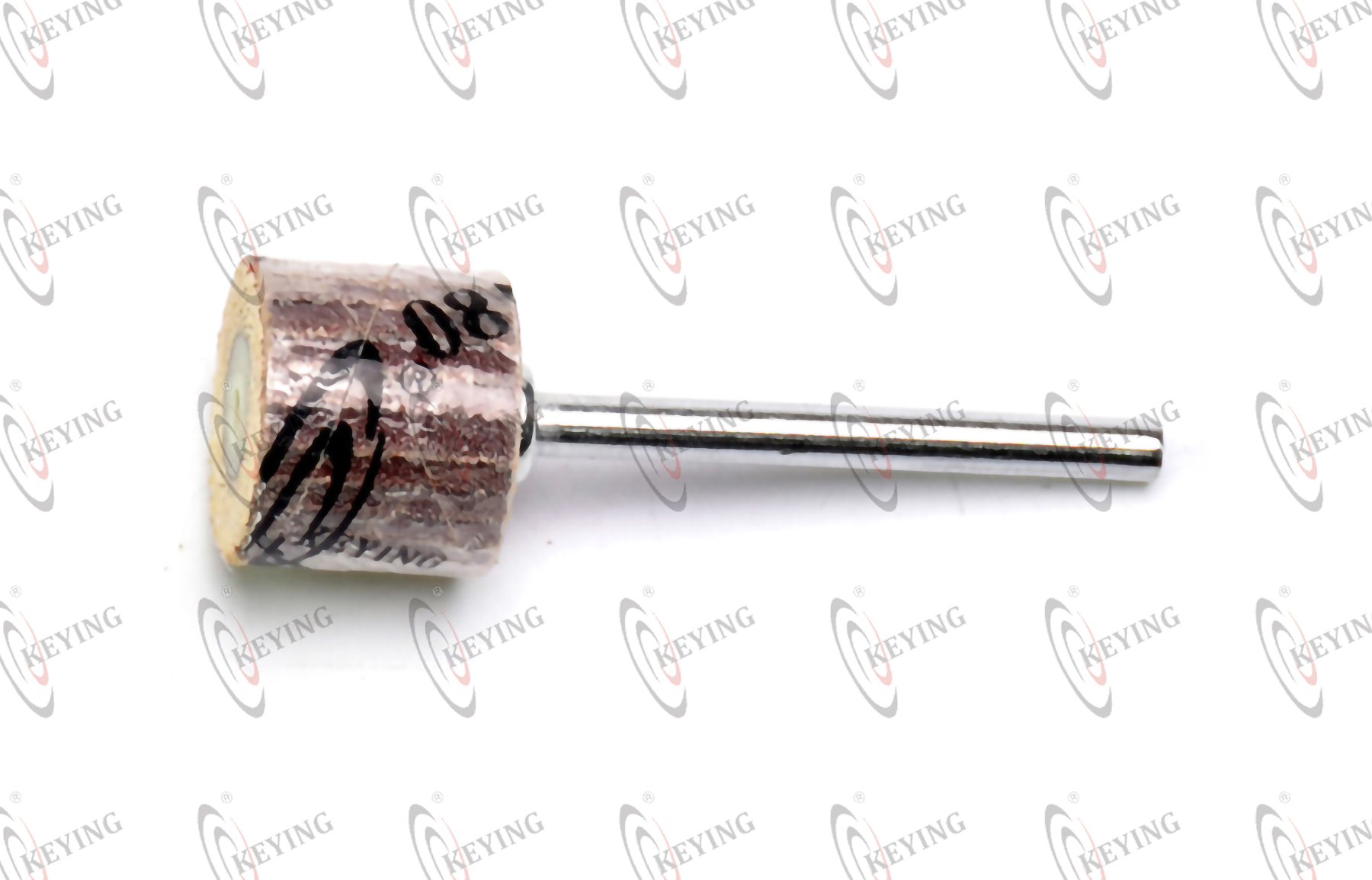

12 12 3 5

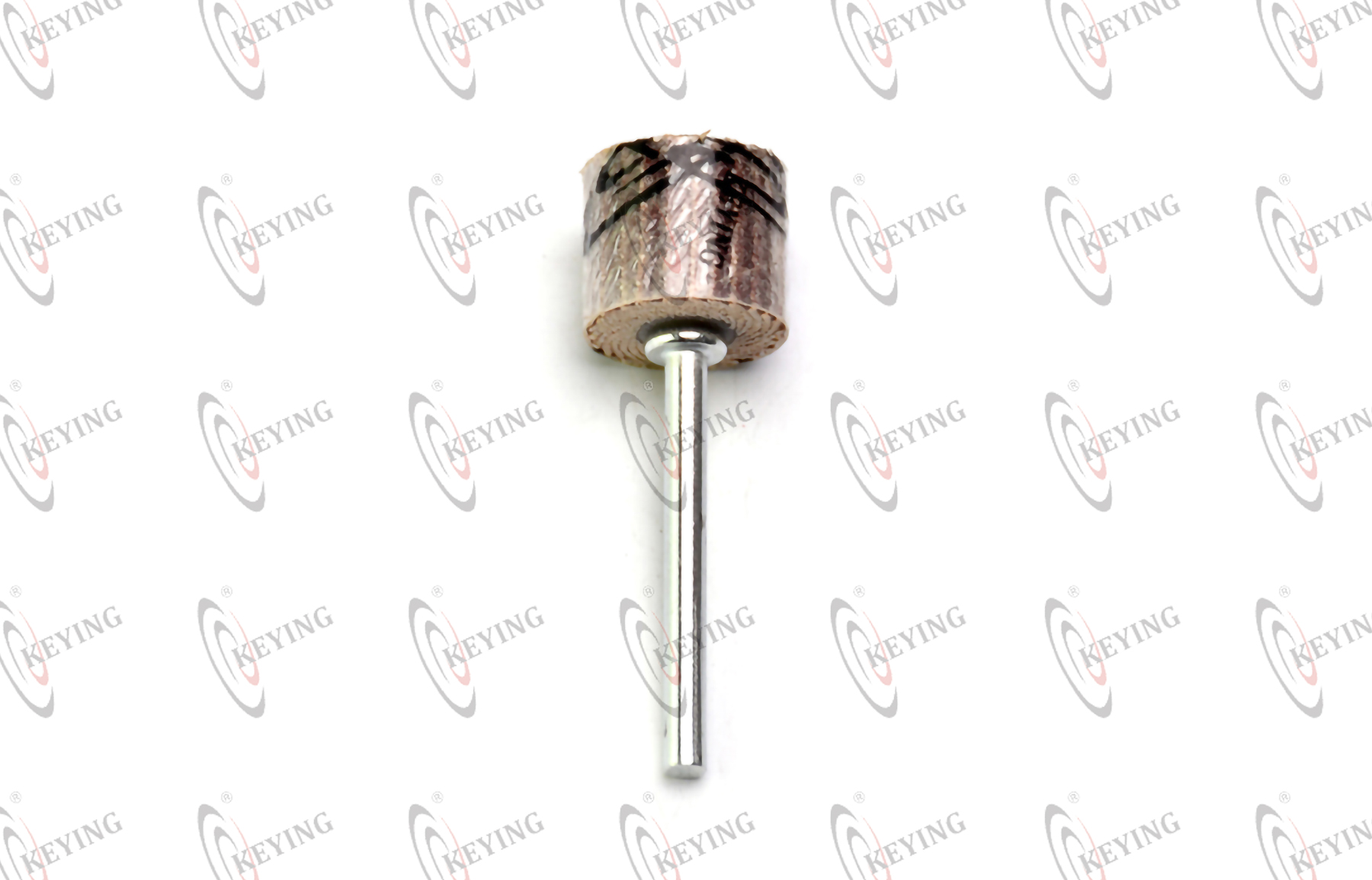

12 12 3 6

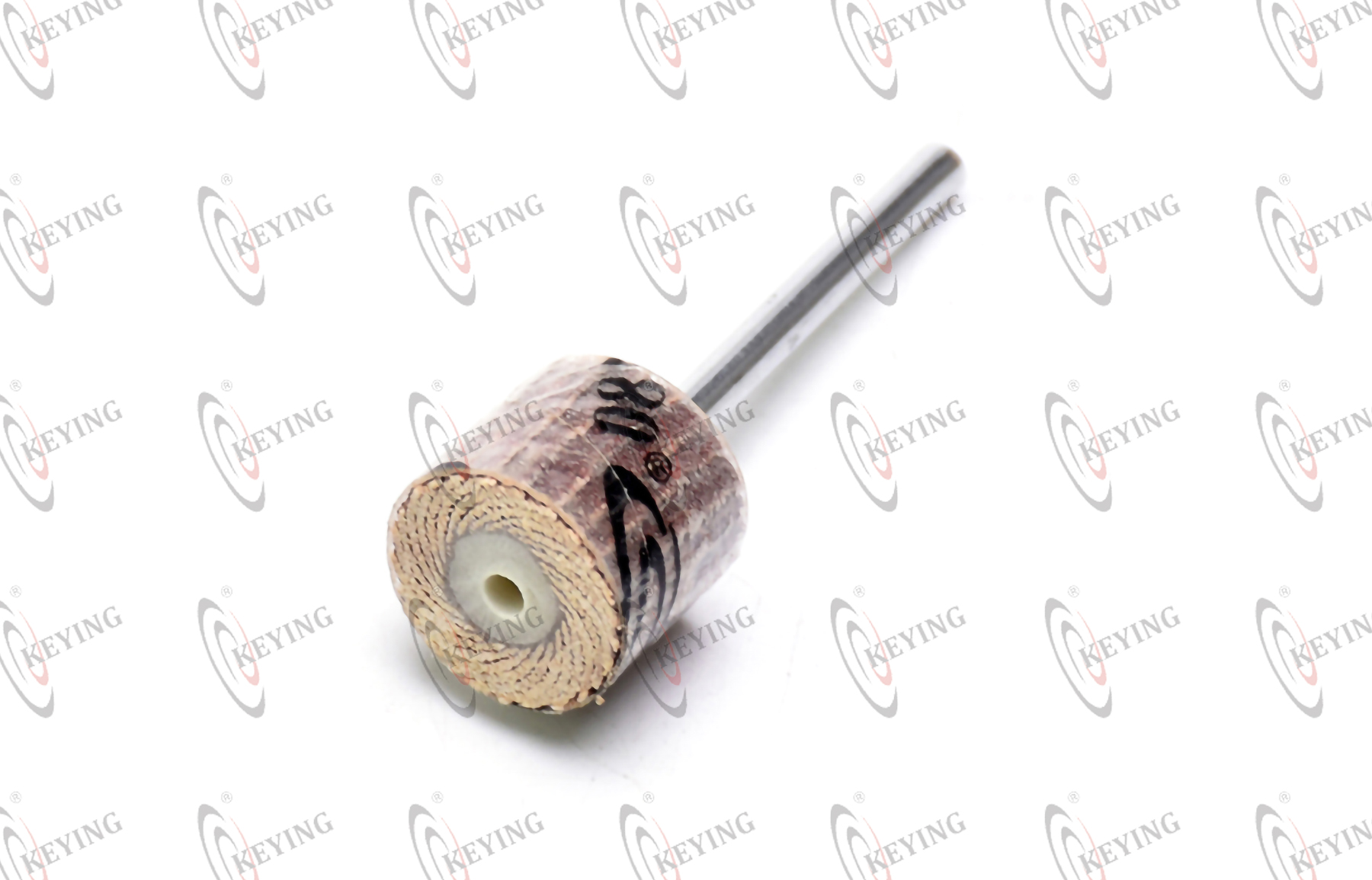

12 12 3 4

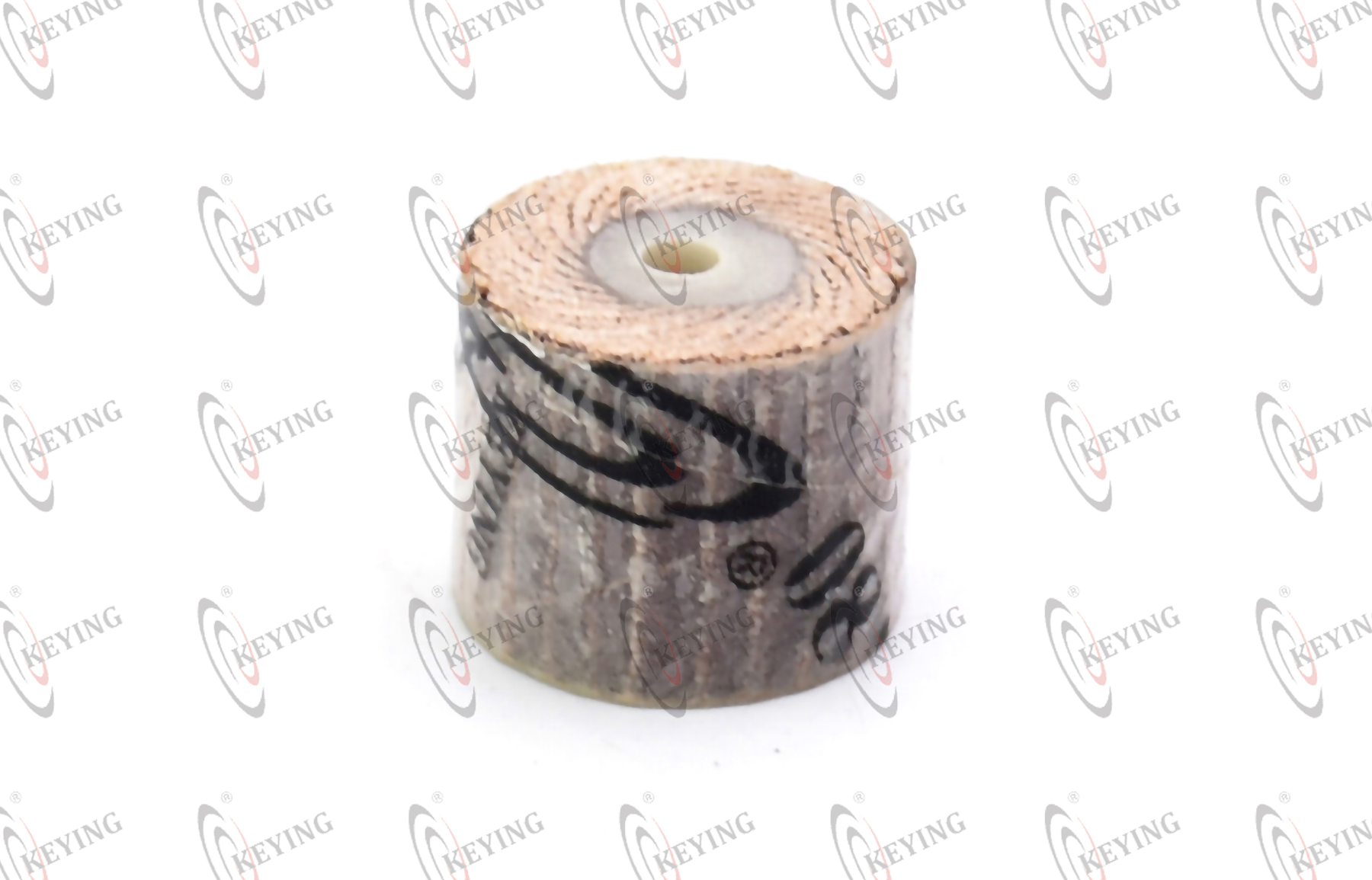

12 12 3 3

KEYING Miniature Unmounted Flap Wheels are characterized by high elasticity, high performance, and strong grinding force. Our Unmounted Flap Wheel is characterized by the ability to fit with different materials and irregular surfaces without dead angles, flexible surface contact, and processing application feel is more elastic than the handle page-wheel and effortlessly. Our Standard Unmounted Flap Wheel can meet the needs of most customers.

  • Mainly used in mechanical processing, hardware, casting, auto parts, aviation, high-speed train, shipbuilding, and other early and fine processing industries.

  • Especially suitable for Steel, Cast steel, Stainless, steel (INOX), Non-ferrous metals, Cast iron, Plastics, and other materials.

  • An unmounted Flap Wheel is a kind of abrasive wheel in which the head that can be replaced, and the biggest difference with the handle wheel is that the head can be manually removed, without frequent replacement of the supporting tool chuck rod.

Specifications of Flap Sanding Wheel Head 15/22inch



Application

·Stainless Steel

·Metal

·Non-Ferrous Metal

·Aluminum Alloy Products

·Cast Iron, Etc

BrandKEYINGCommodity Code
Compatible Tool

Electric Tool

Pneumatic Tool

Electric Mill

Manipulator And Other Tool

Country Of OriginChinaRaw MaterialAluminium Oxide
Silicon Carbide
Zirconia
Inner Hole Size3mmFor Use On

·Metal Surface Treatment

·Derusting

·Deburring

·Cleaning Welding Scar

·Cleaning Coating

·Polishing

·Painting Removingand Pre-Treatment.

Grit Size80#, 100#, 120#, 150#, 180#, 240#, 320#, 600#
Outside Diameter Range12mmIndustries

·Mechanical  Processing

·Hardware

·Casting

·Auto Parts

·Aviation

·High-Speed Train

·Ship Building

·Other Early And Fine Processing Industries

Cloth BaseDomestic Abrasive Clothes
lmported Abrasive Clothes
Maximum RPM20000ShapeStandardStandard Pack Quantity100pcs

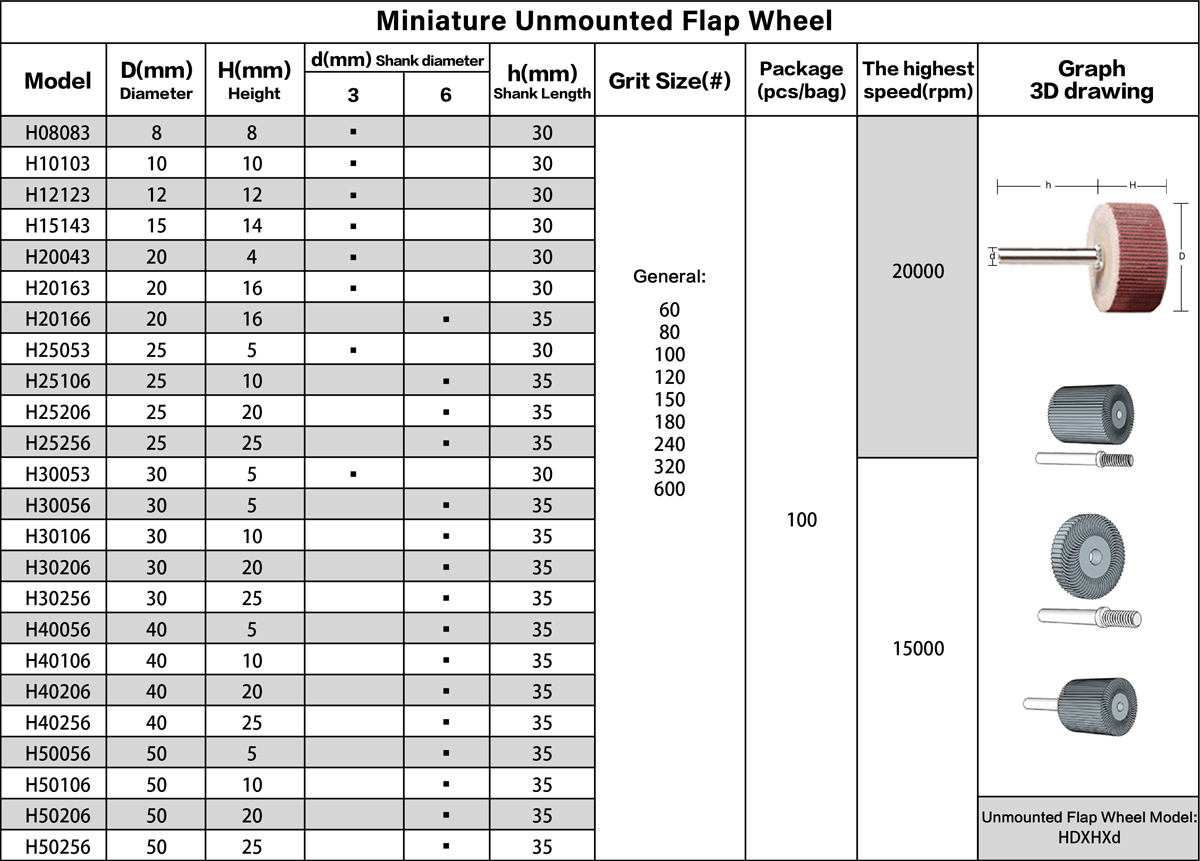

Table of Flap Sanding Wheel Head 15/22inch

Flap Sanding Wheel Head Size Table


Safety Warning of Miniature Unmounted Flap Wheel 15/22inch

Instructions:

Safety Warning of Miniature Unmounted Flap Wheel 15/22inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Mini Unmounted Flap Wheel ( adoptor Screw Shank) Products
Aluminum Oxide Miniature Unmounted Flap Wheel (AO)
Aluminum Oxide Miniature Unmounted Flap Wheel (AO)
Miniature Unmounted Flap Wheel 19/32inch
Miniature Unmounted Flap Wheel 19/32inch

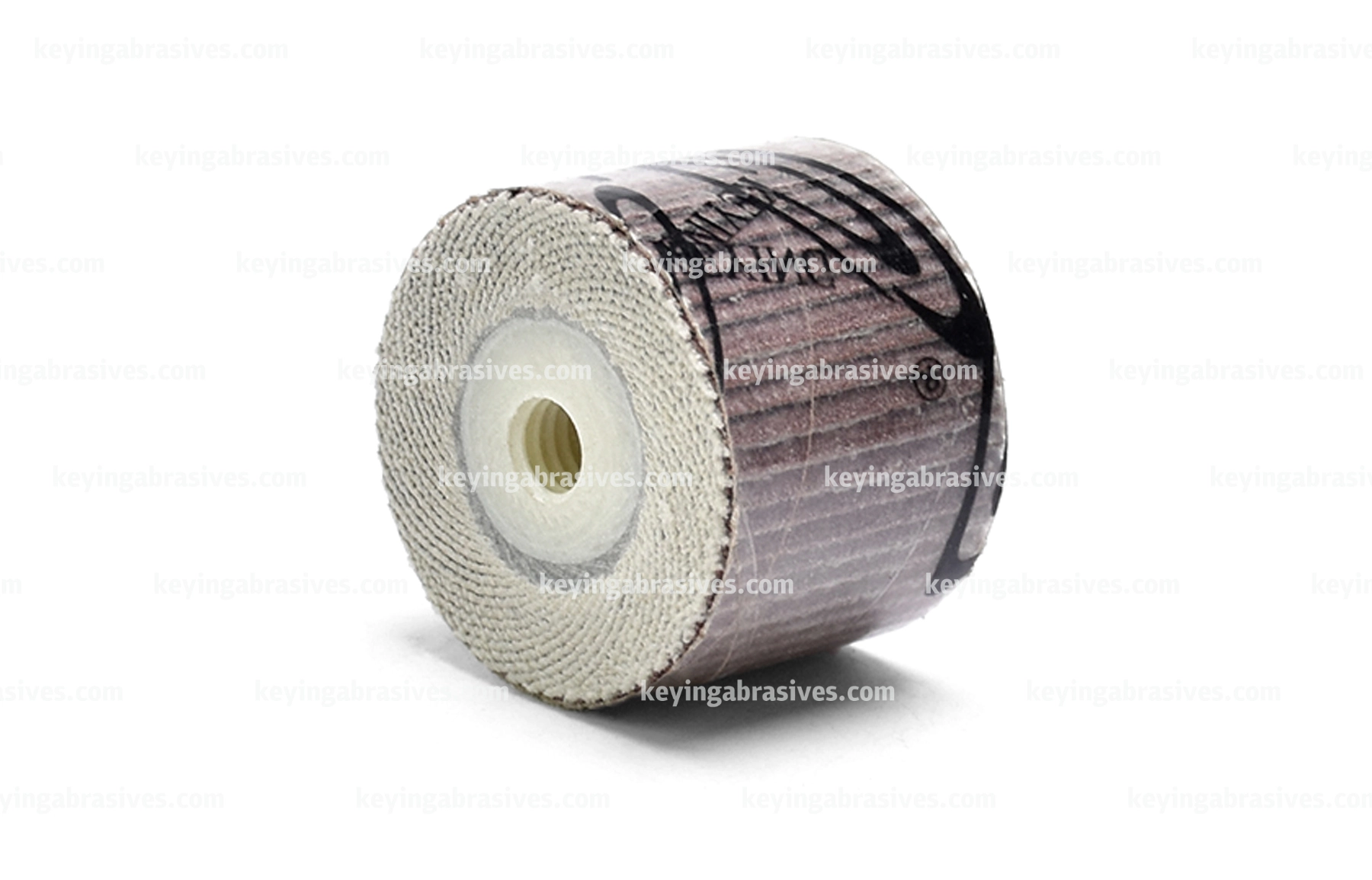

Silicon Carbide Miniature Unmounted Flap Wheel (SC)
