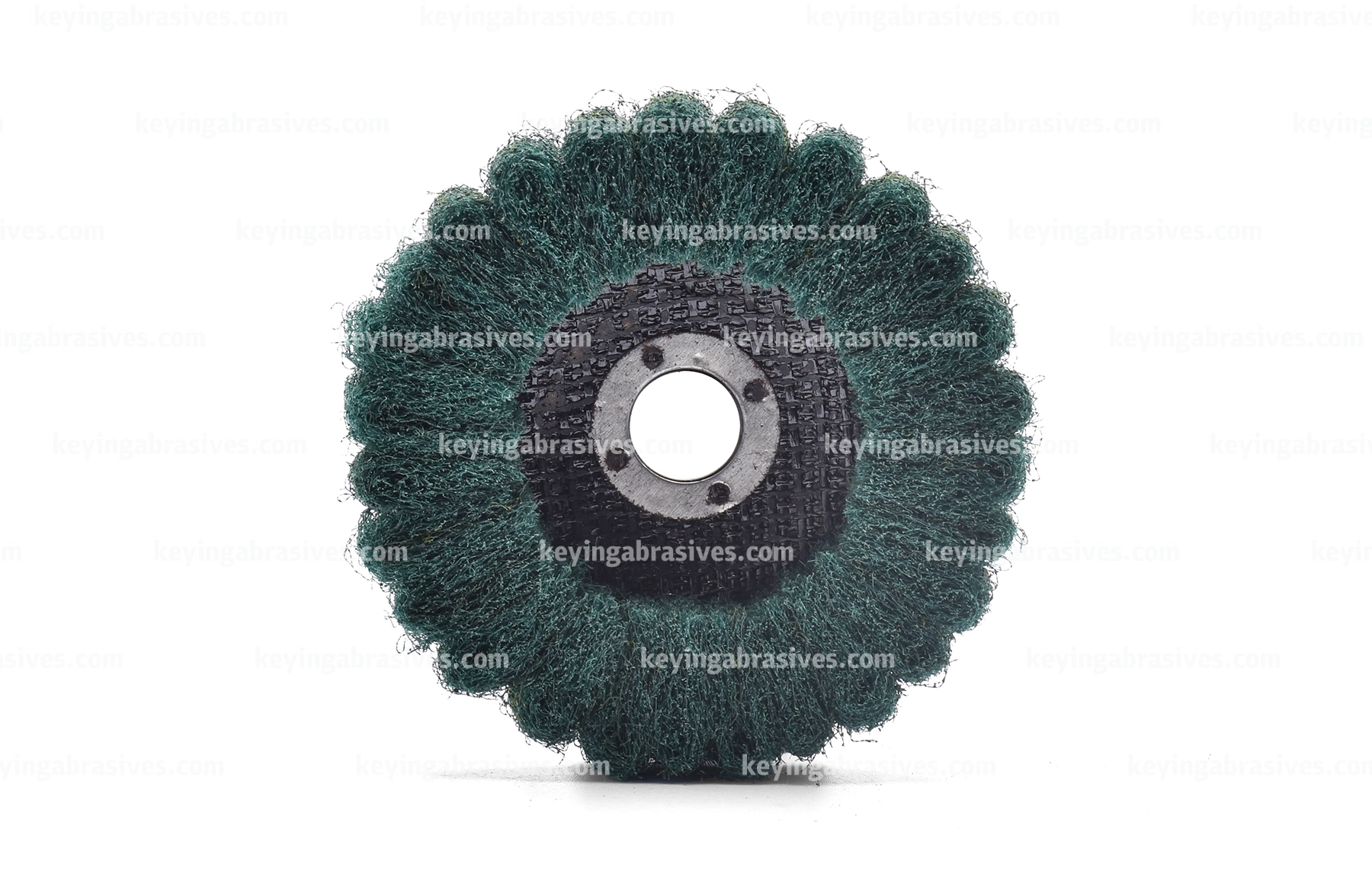

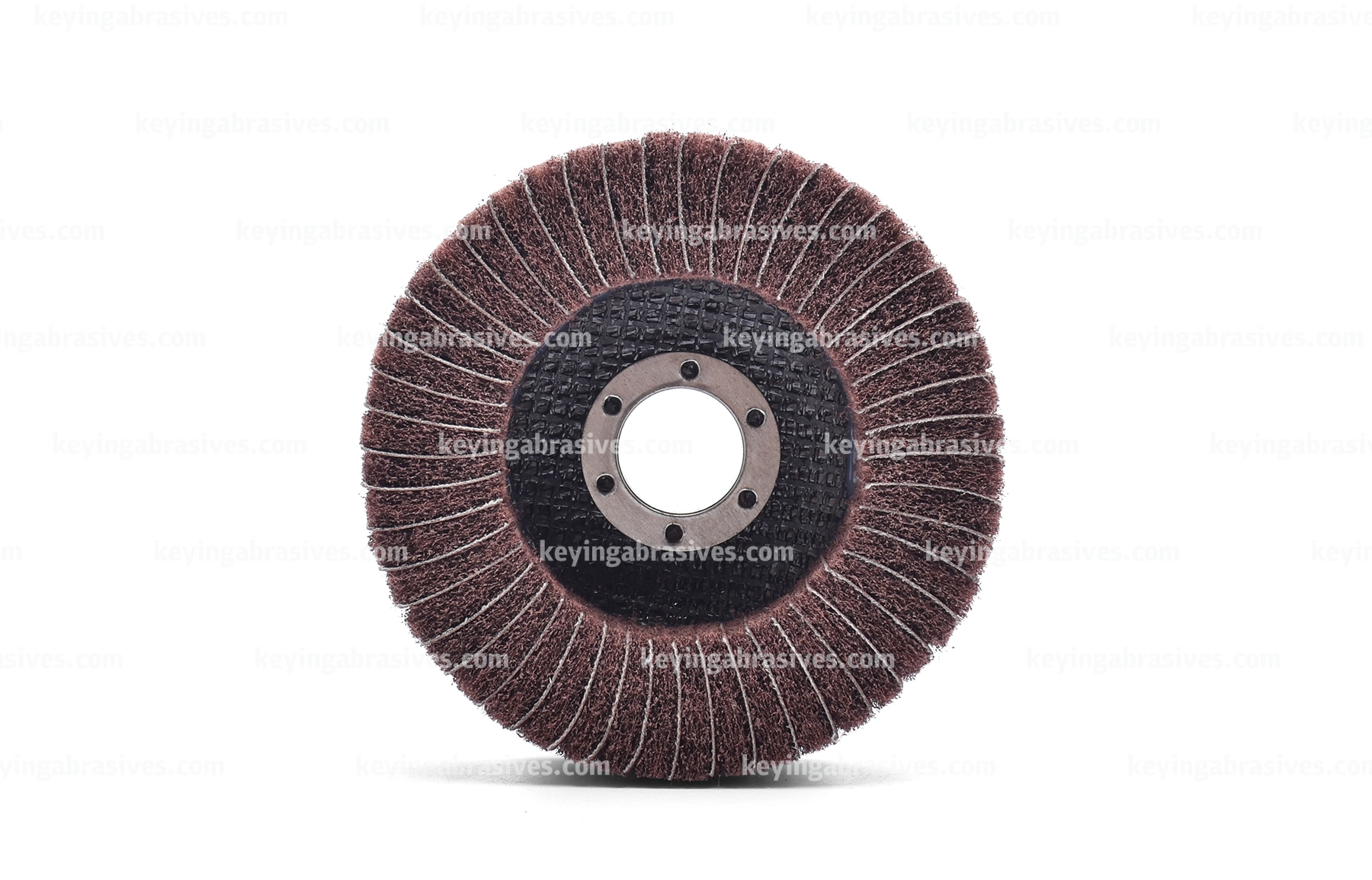

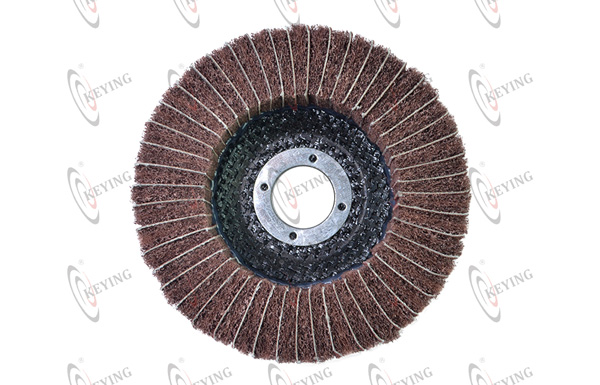

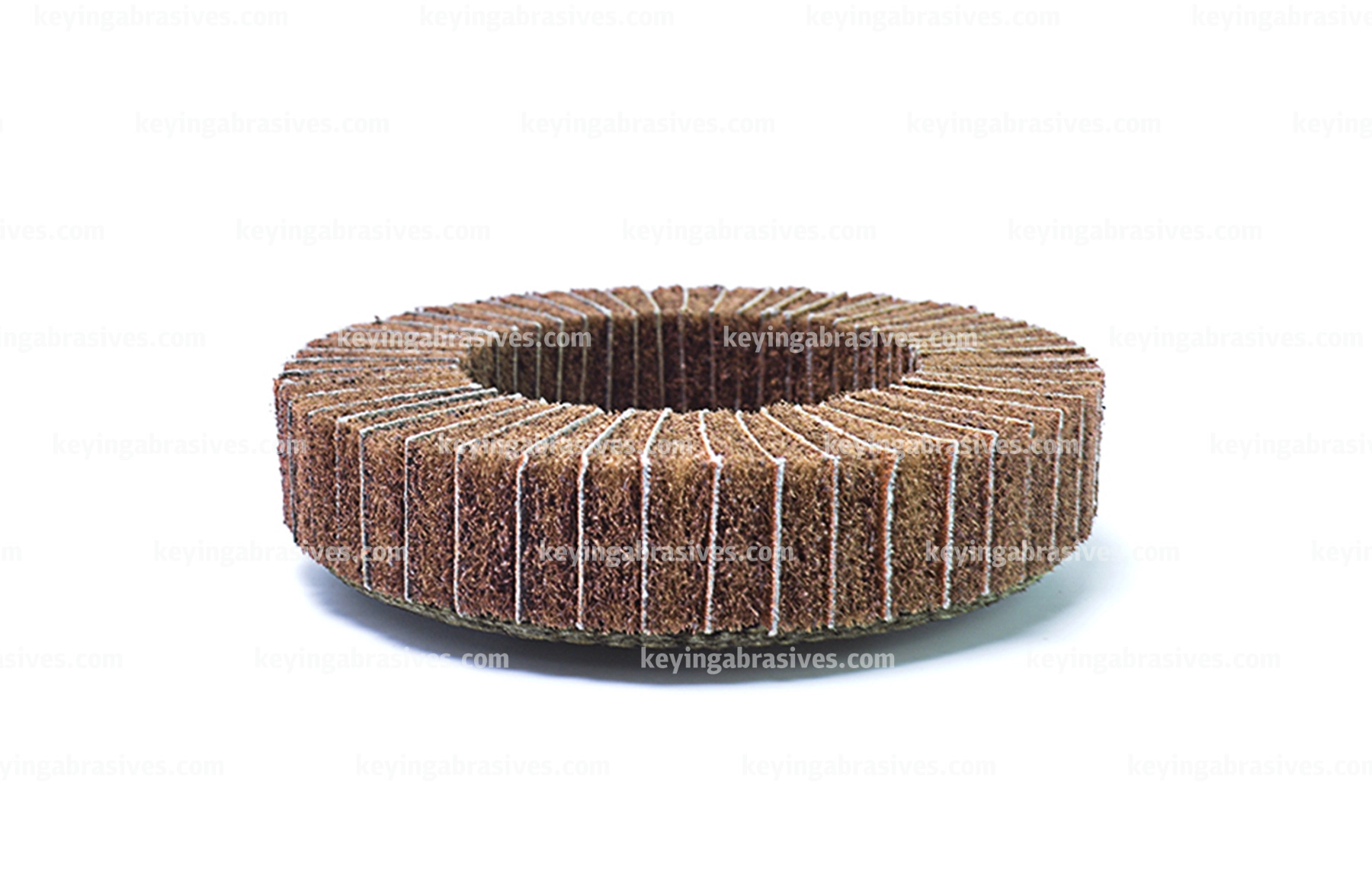

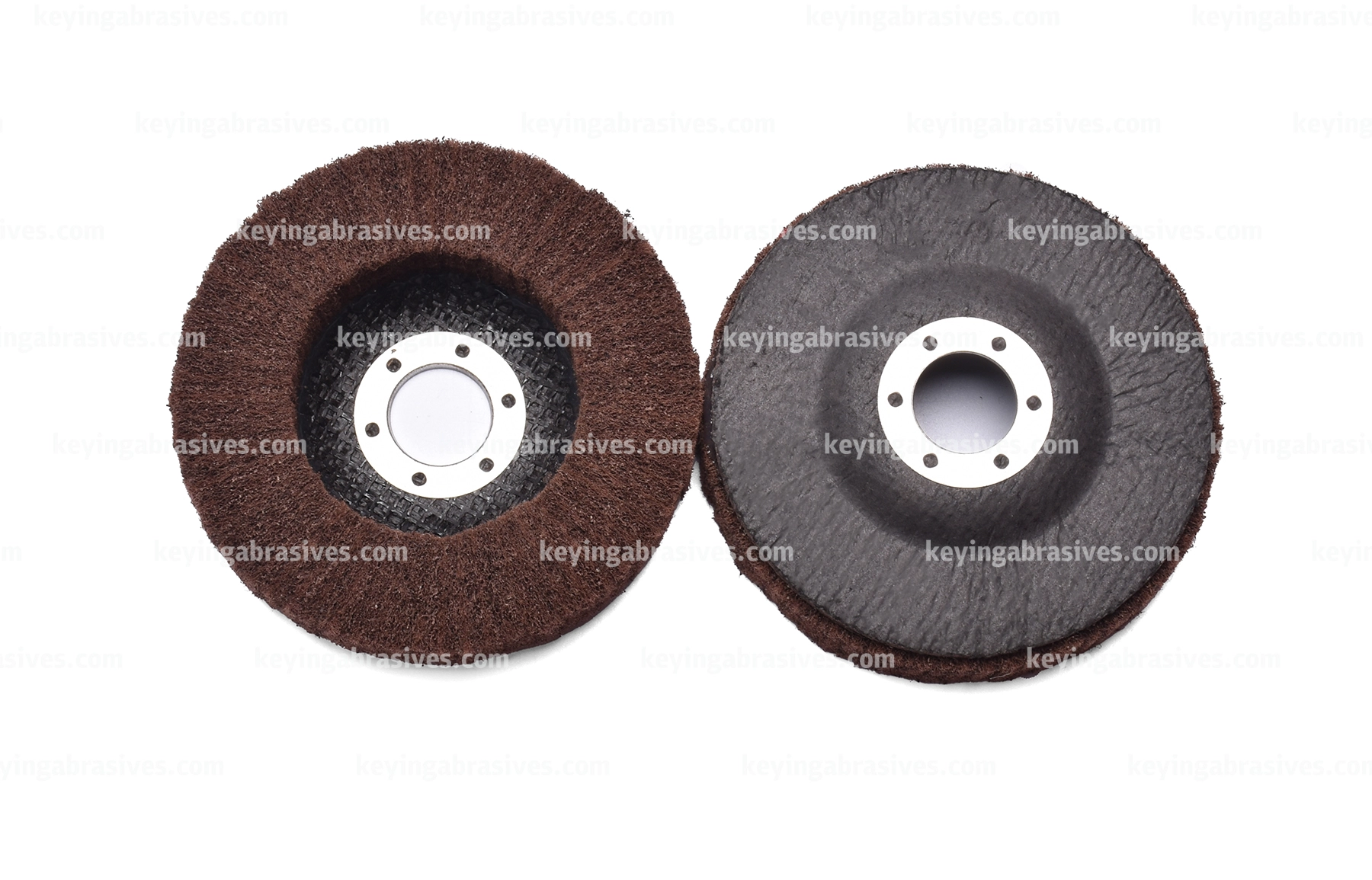

Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS)

Name: Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS)
Brand: Wenling Keying Abrasives Co., Ltd.



The non-woven and abrasive-cloth flaps are stuck to a glass-fabric backing pad, meaning that the discs can be used face-down on large surfaces. Long tool life is achieved through the dense packing of the flaps.

The non woven flap disc is designed for working on large surfaces with speed-adjustable angle grinders.

 Contact us

Call us +86(0)576-86711667

Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS) Non-woven Flap Disc (with Abrasive) Size Table


Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS) Non-woven Flap Disc Size Table

Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS) Specification:

Type: Plate Shape
Max. RPM: 7000~19000 RPM
Outer Diameter: 100mm/115mm/125mm/150mm/175mm
Centre Hole Diameter: 16mm/22mm
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC)
Grit Size: Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

Safety Warning of Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS)

Instructions:

Safety Warning of Non-woven Abrasive Cloth Flap Disc - Plate Shape (PS)

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
