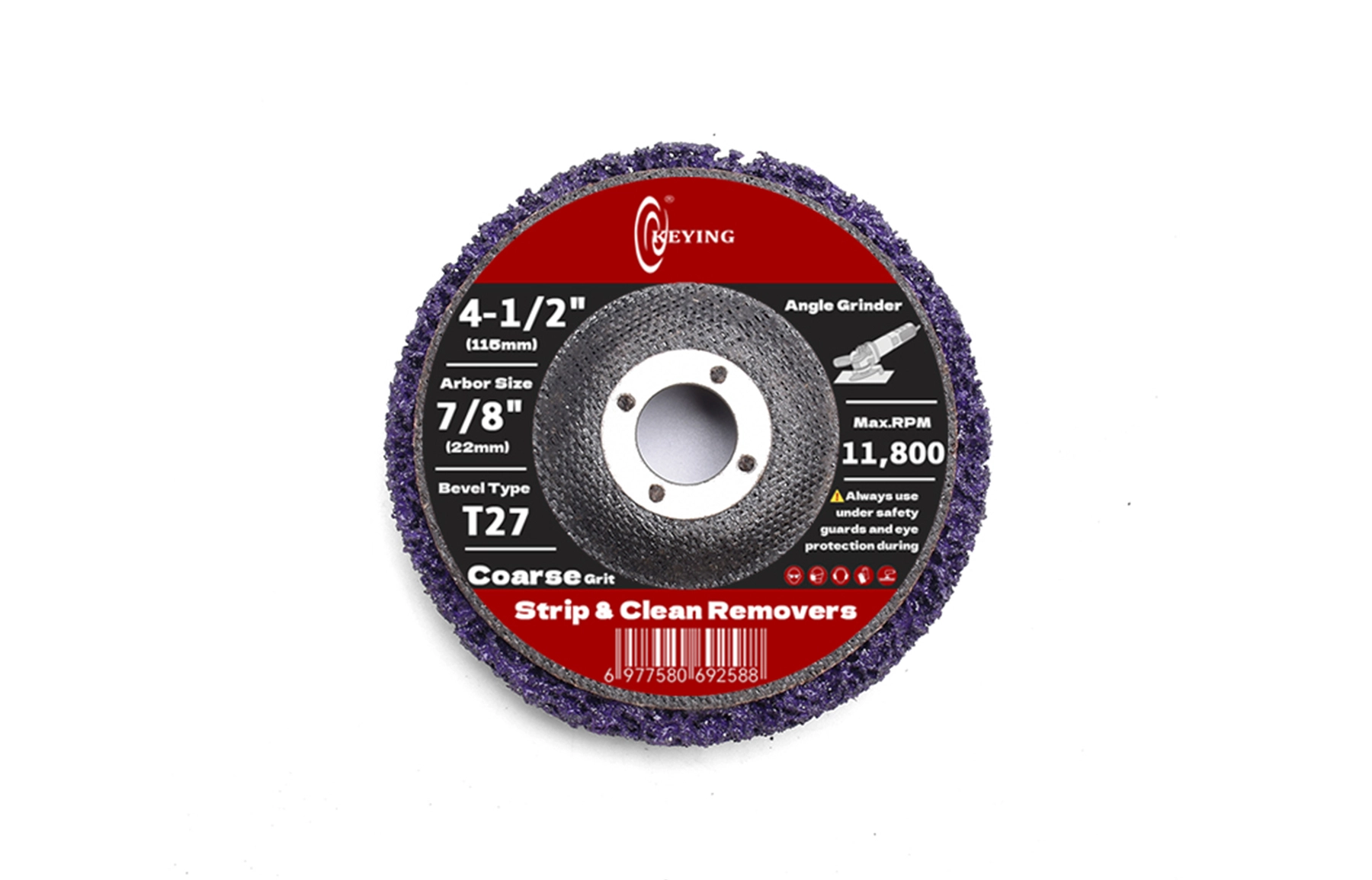

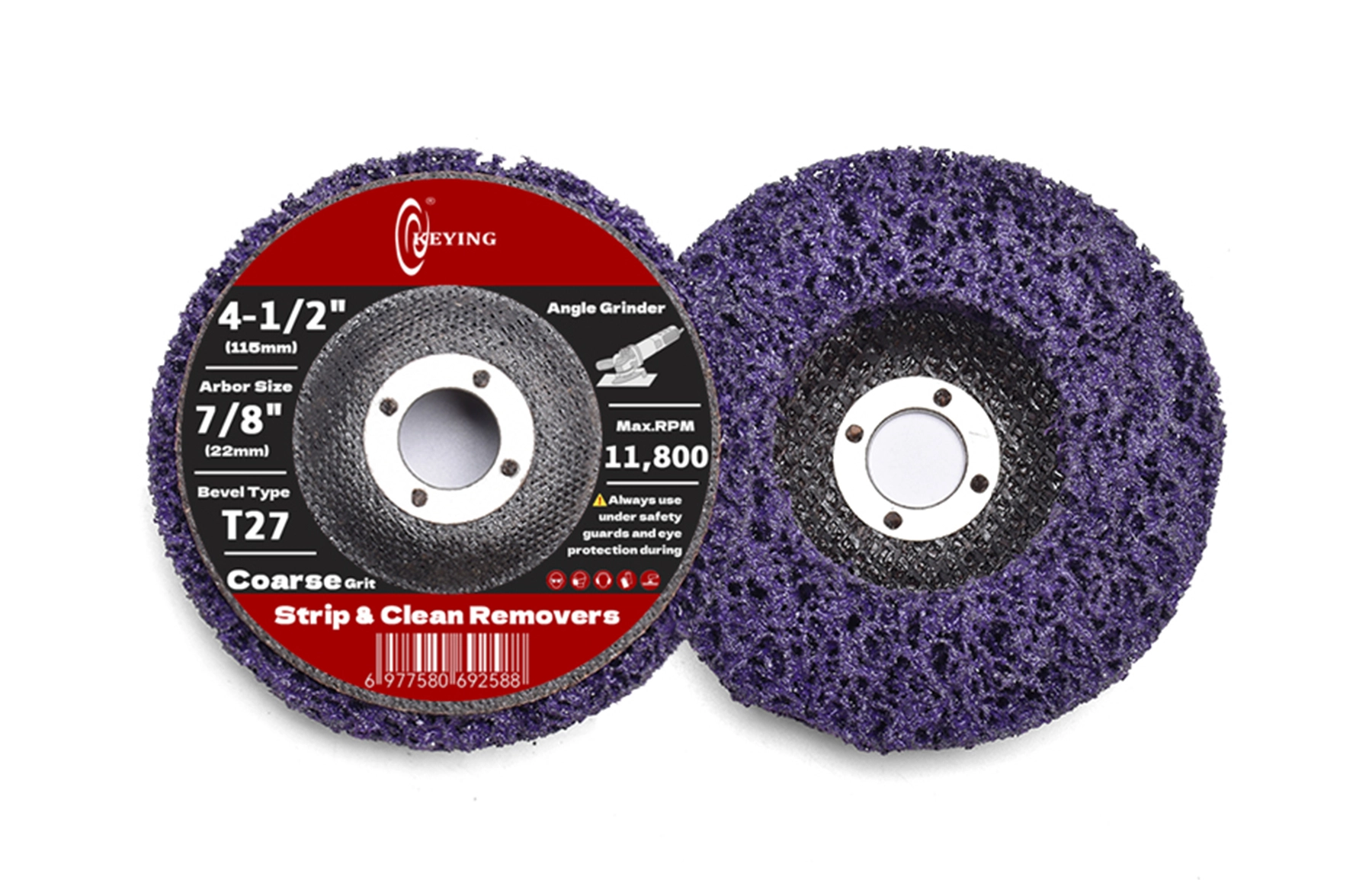

Silicon Carbide Paint Striper Disc with Fibre Backing (SC)

silicon carbide paint striper disc with fibre backing sc

For general grinding of parts made of aluminum, copper, bronze, titanium, and fiber reinforced plastics.

Especially recommended for titanium alloys.

paint rust removal disc is very suitable for the aviation industry, especially since silicon carbide is the only approved abrasive, such as engine components.

Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Grit Size Table Corresponding To Raw Materials

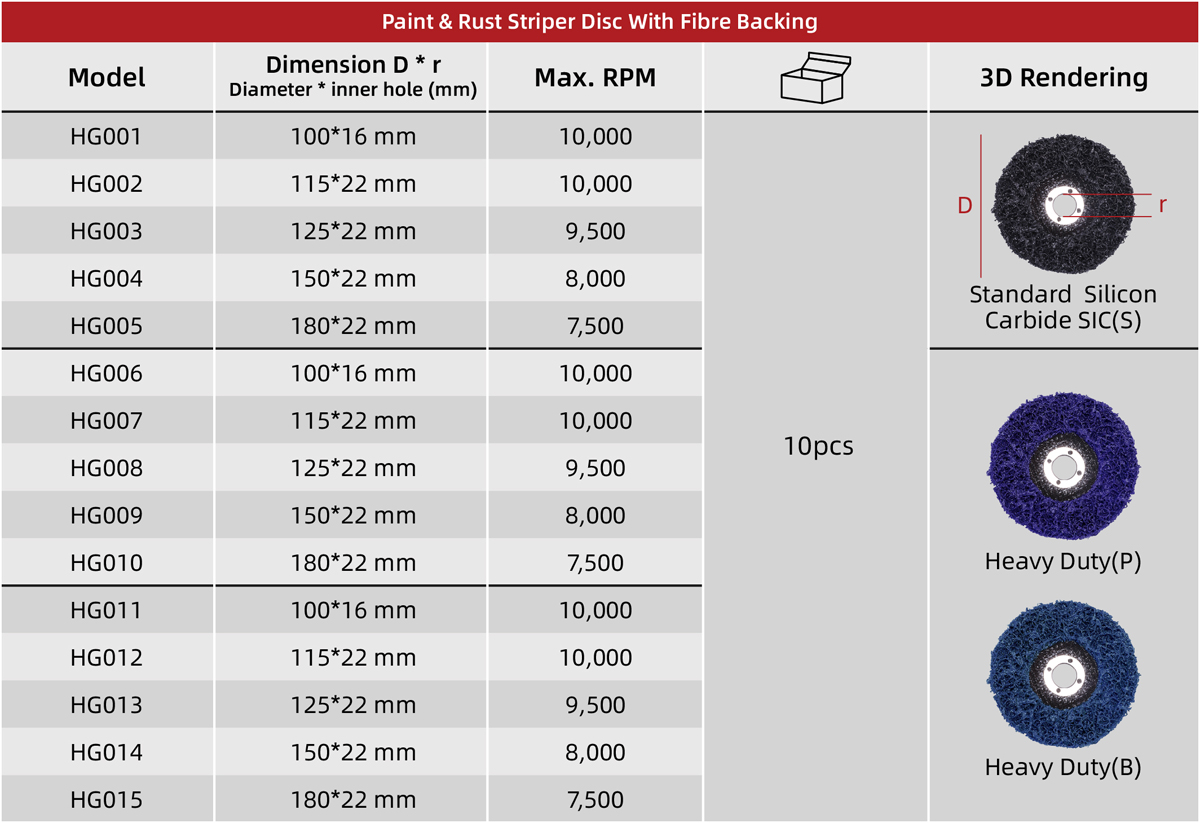

Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Paint Striper Disc Size Table


Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Specification:

  • Max. RPM: 7000~10000 RPM

  • Outer Diameter: 100mm/115mm/125mm/150mm/180mm

  • Center Hole Diameter: 16mm/22mm

  • Other Raw Materials: Aluminum Oxide(AO)


Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Materials that can be worked:

  • Aluminium

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconell and Hasteloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Titanium alloys

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Zinc

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Elastomers

  • Fibre-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Applicable Industries

Applications

  • Surface work

  • Roughening

  • Cleaning

Silicon Carbide Paint Striper Disc with Fibre Backing (SC) Applicable Industries

Safety Warning of Silicon Carbide Paint Striper Disc with Fibre Backing (SC)

Instructions:

1. Please try to choose an operation indoor environment and wear protective guards and goggles.

2. Never exceed the recommended maximum permitted rotational speed for safety reasons.

3. In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.


Safety Warning:

1. The clamping length between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
