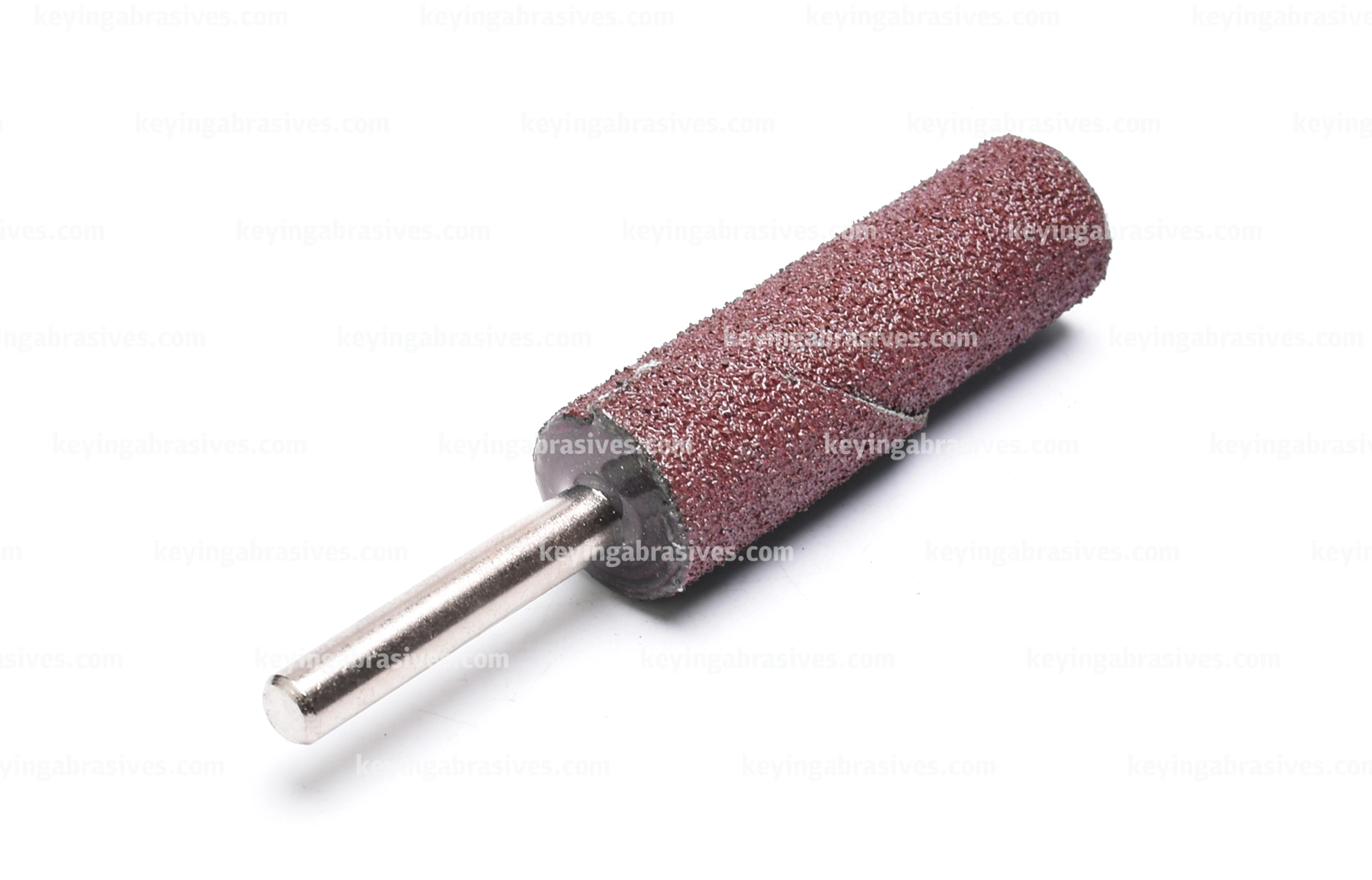

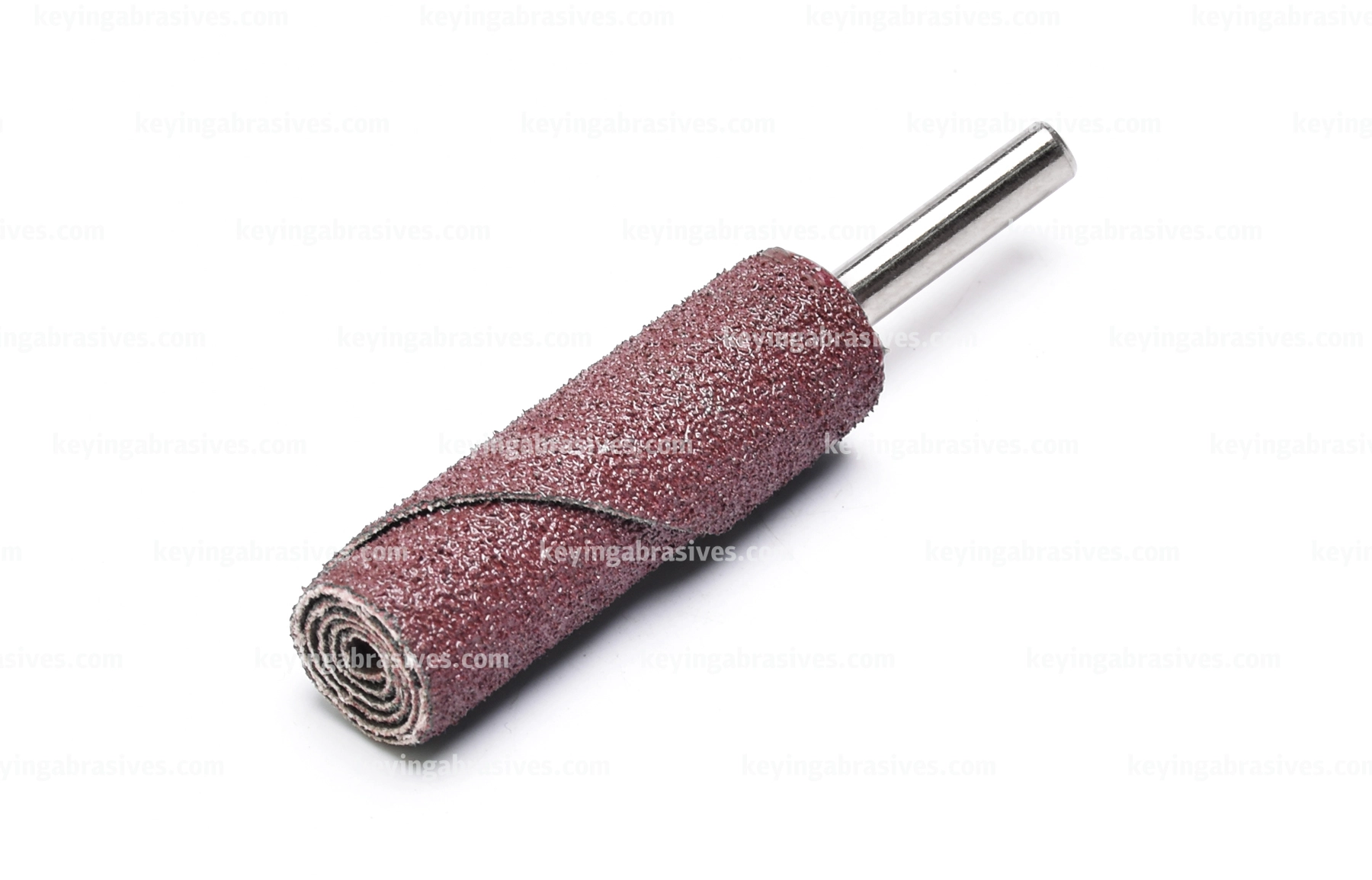

Cartridge Rolls With Shank - Cylinder Shape (CL)

cartridge rolls with shank   cylinder shape cl 3
cartridge rolls with shank   cylinder shape cl 2
cartridge rolls with shank   cylinder shape cl 1
cartridge rolls polishing1

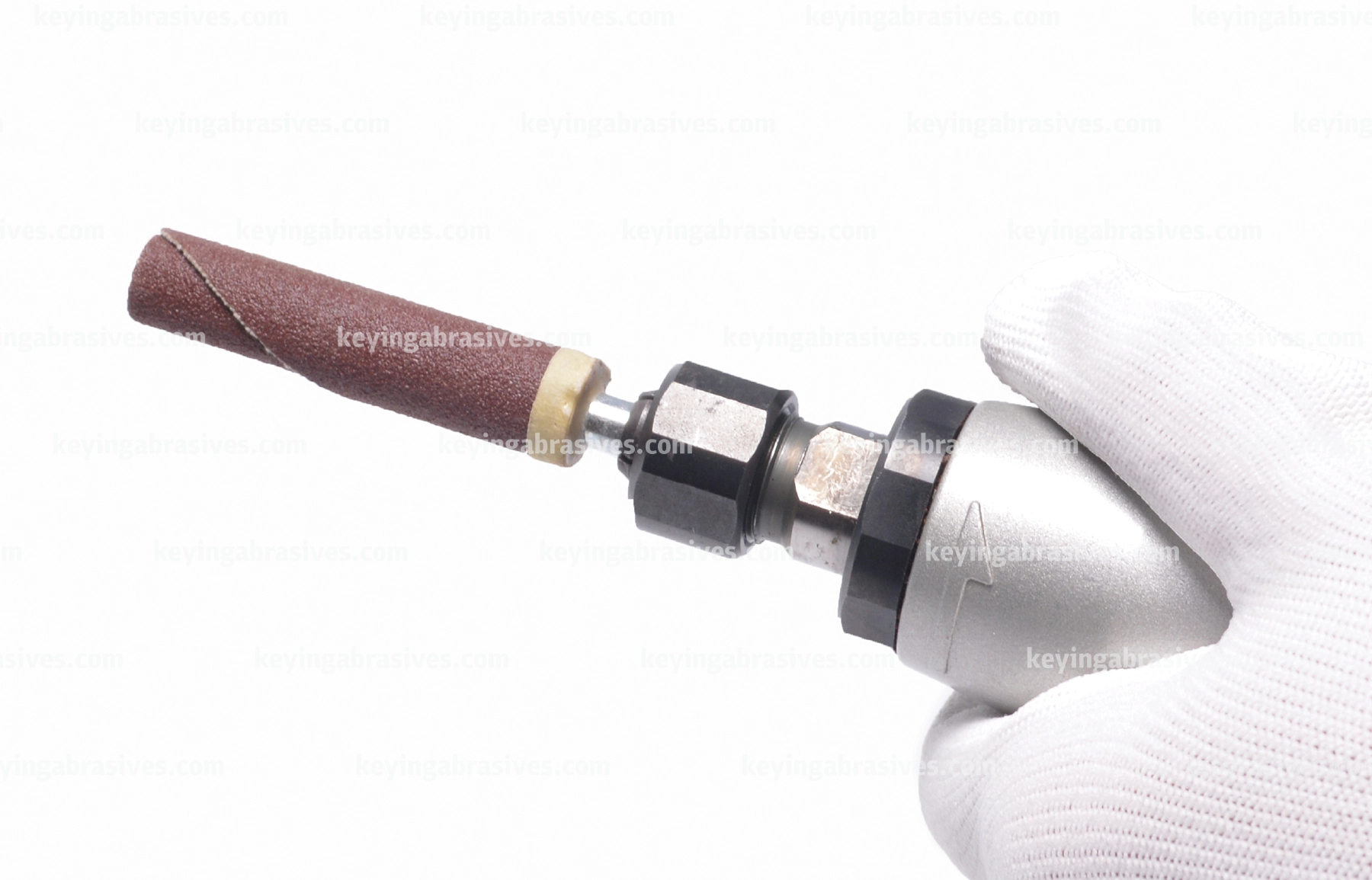

Cartridge rolls fit onto a compatible mandrel that attaches to a rotary tool such as a die grinder or drill. Together, the mandrel and cartridge roll enables the user to grind or finish hard-to-reach areas of a workpiece. To ensure the correct fit, the center hole diameter of the cartridge roll must be equal to the diameter of the mandrel pilot inserted into the cartridge roll.

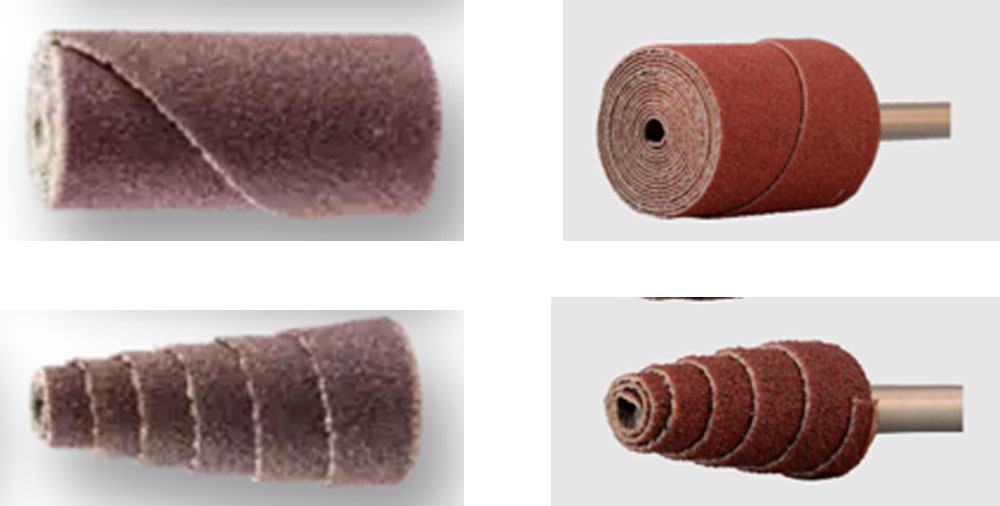

Shape Chart of Cartridge Rolls with Shank - Cylinder Shape (CL)

Shape Chart of Cartridge Rolls with Shank - Cylinder Shape (CL)


Cartridge Rolls With Shank - Cylinder Shape (CL) Cartridge Rolls With Shank Size Table

Cartridge Rolls With Shank - Cylinder Shape (CL) Cartridge Rolls With Shank Size Table


Cartridge Rolls With Shank - Cylinder Shape (CL) Specification:

  • Type: With Shank

  • Max. RPM: 12000~25000 RPM

  • Shape: Cylinder Shape

  • Outer Diameter: 7mm/9mm/10mm/12mm/13mm/15mm/19mm/20mm

  • Shank Diameter: 3mm/6mm

  • Raw Materials: Aluminum Oxide(AO), Zirconia(Z)

  • Grit Size: 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#/600#

  • Other custom tapered cartridge rolls can be customized.

Safety Warning of Cartridge Rolls with Shank - Cylinder Shape (CL)

Instructions:

1. Please try to choose an operation indoor environment and wear protective guards and goggles.

2. Never exceed the recommended maximum permitted rotational speed for safety reasons.

3. In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.


Safety Warning:

1. The clamping length between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Cartridge Rolls With Shank Products
Cartridge Rolls With Shank 19/32inch
Cartridge Rolls With Shank 19/32inch
Cartridge Rolls With Shank 3/4inch
Cartridge Rolls With Shank 3/4inch

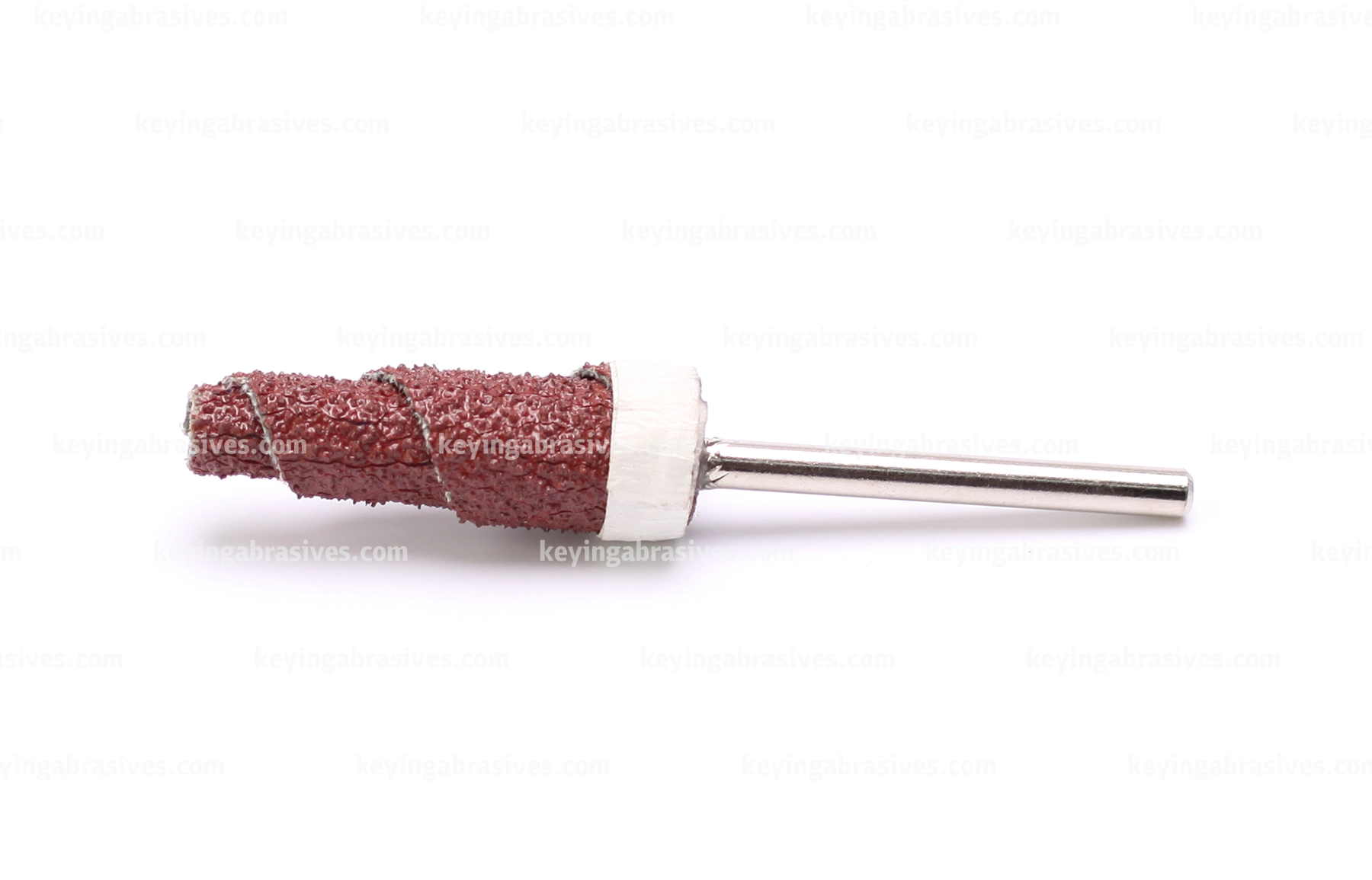

Cartridge Rolls With Shank 23/64inch
