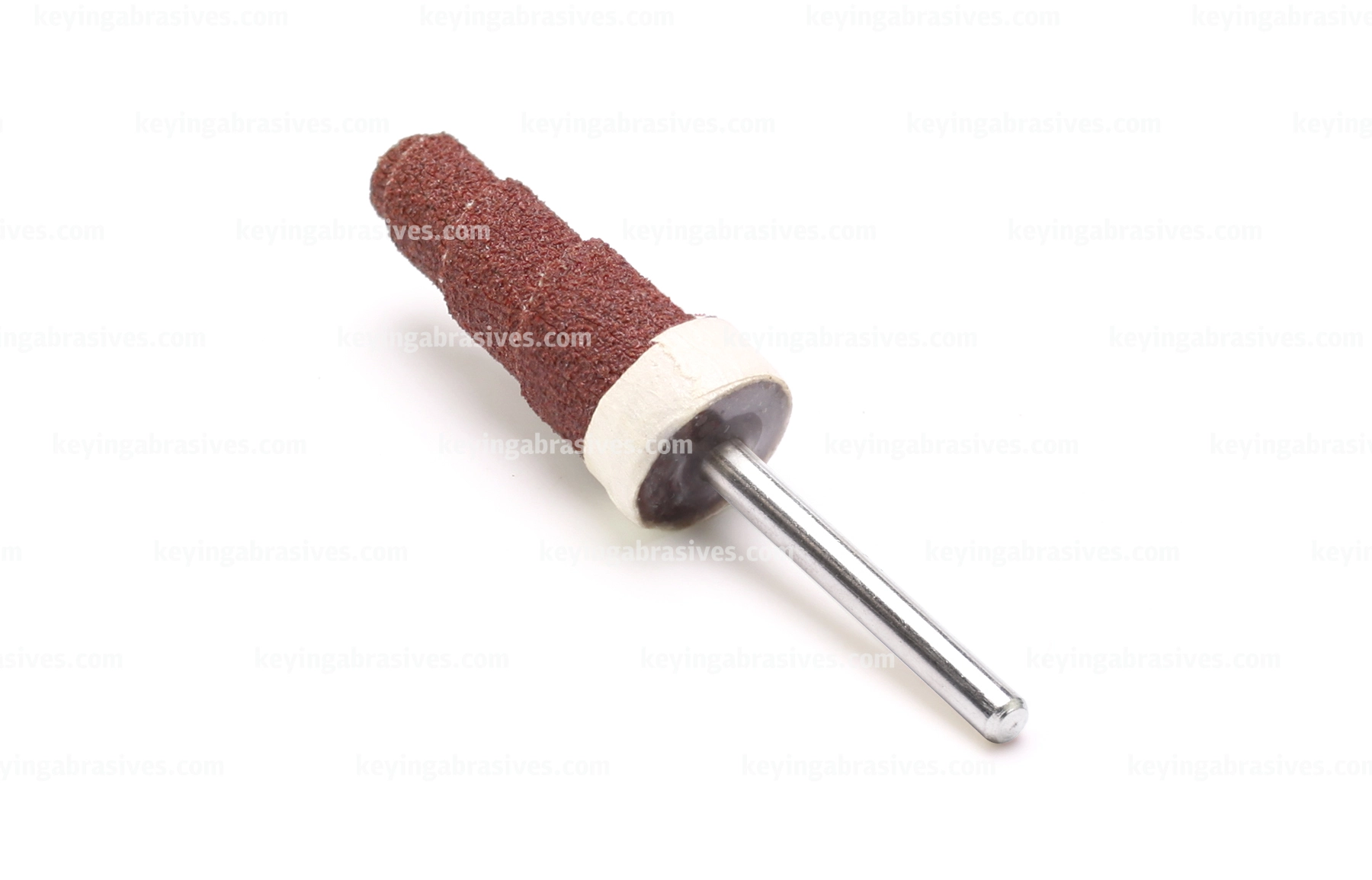

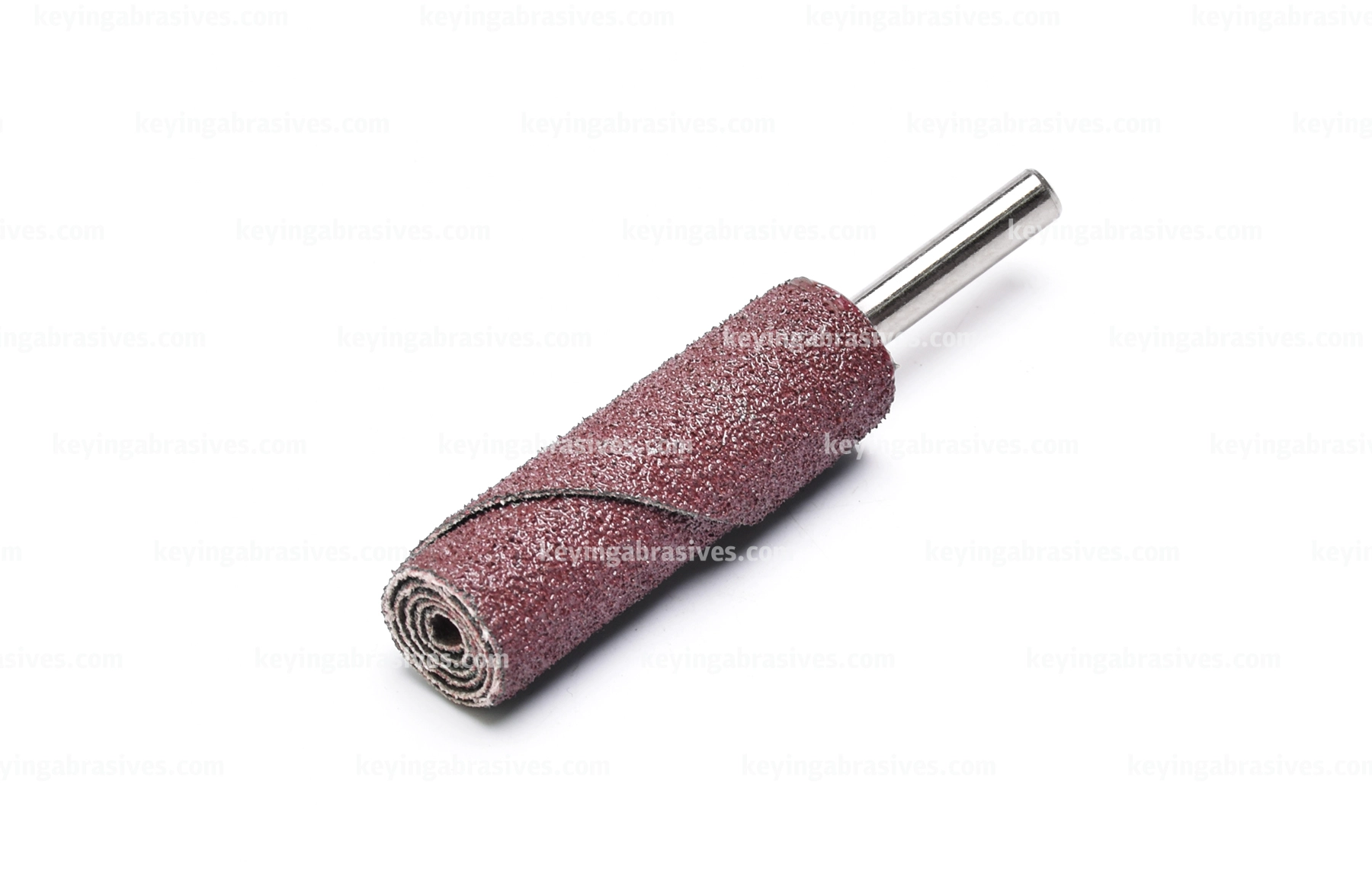

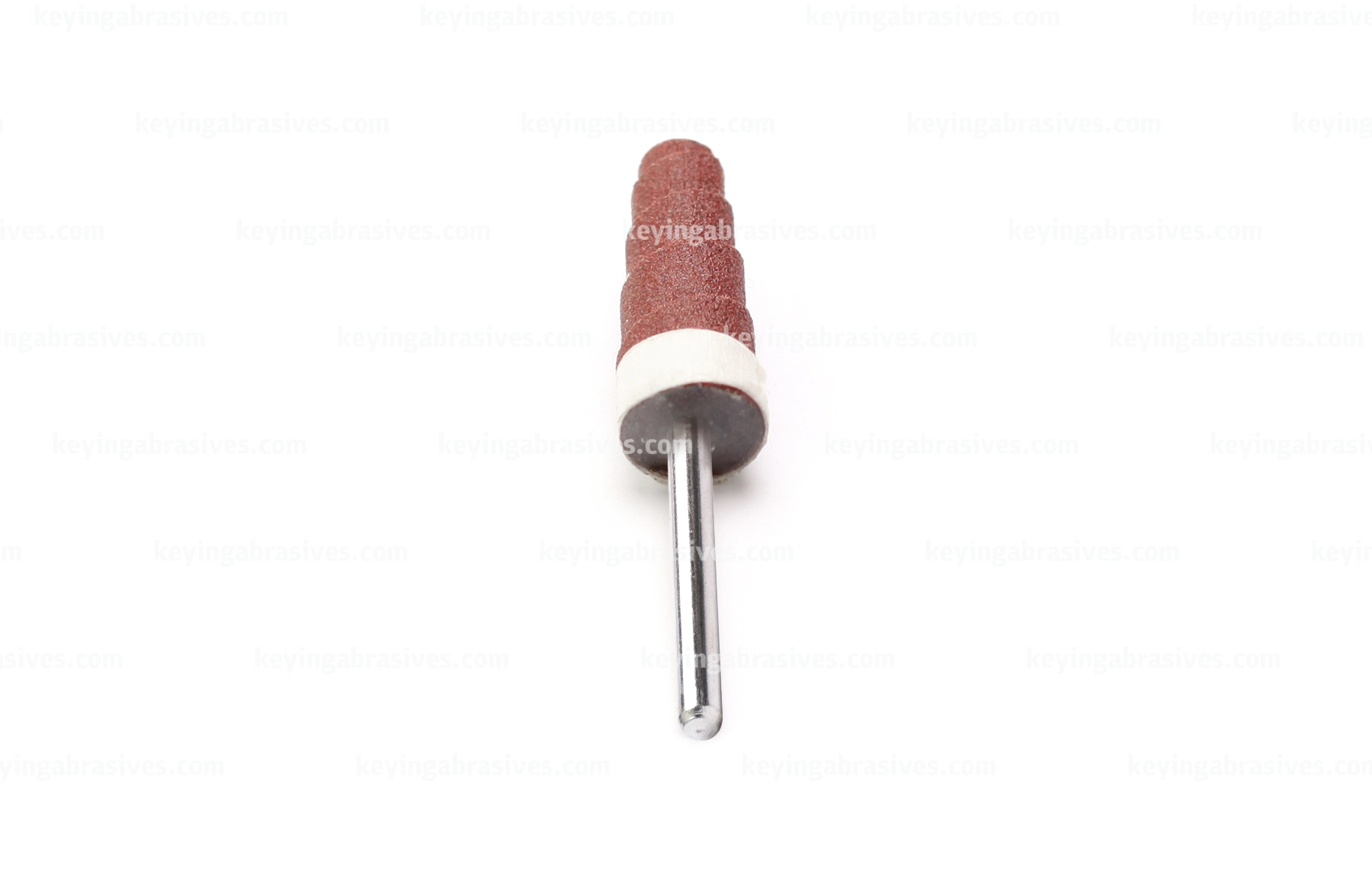

Cartridge Rolls With Shank 3/8inch

cartridge rolls with shank   conical shape bs 7
cartridge rolls with shank   conical shape bs 3
cartridge rolls with shank   conical shape bs 4
cartridge rolls with shank   cylinder shape cl 3
cartridge rolls polishing1

Table of Cartridge Rolls with Shank 3/8inch

Table of Cartridge Rolls with Shank 3/8inch


Cartridge Rolls with Shank 3/8inch Specification:

  • Diameter: 3/8 inch=10mm

  • Max. RPM: 23000 RPM

  • Raw Materials: Aluminum Oxide(AO), Zirconia(Z)

  • Grit Size: 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#/600#

  • Shank Diameter: 3mm、6mm (Other sizes can be customized)

  • Other custom tapered cartridge rolls can be customized.


Cartridge Rolls with Shank 3/8inch Materials that can be worked:

  • Titanium

  • Other non-ferrous metals

  • Hard non-ferrous metal

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Cartridge Rolls With Shank 3/8inch Applicable Industries

Applications

  • Leveling

  • Deburring

  • Work on edges

  • Sharpening

  • Weld dressing

  • Fine grinding in multiple steps

Cartridge Rolls With Shank 3/8inch Applicable Industries

Safety Warning of Cartridge Rolls With Shank 3/8inch

Instructions:

Safety Warning of Cartridge Rolls With Shank 3/8inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Cartridge Rolls With Shank Products
Cartridge Rolls With Shank 1/2inch
Cartridge Rolls With Shank 1/2inch

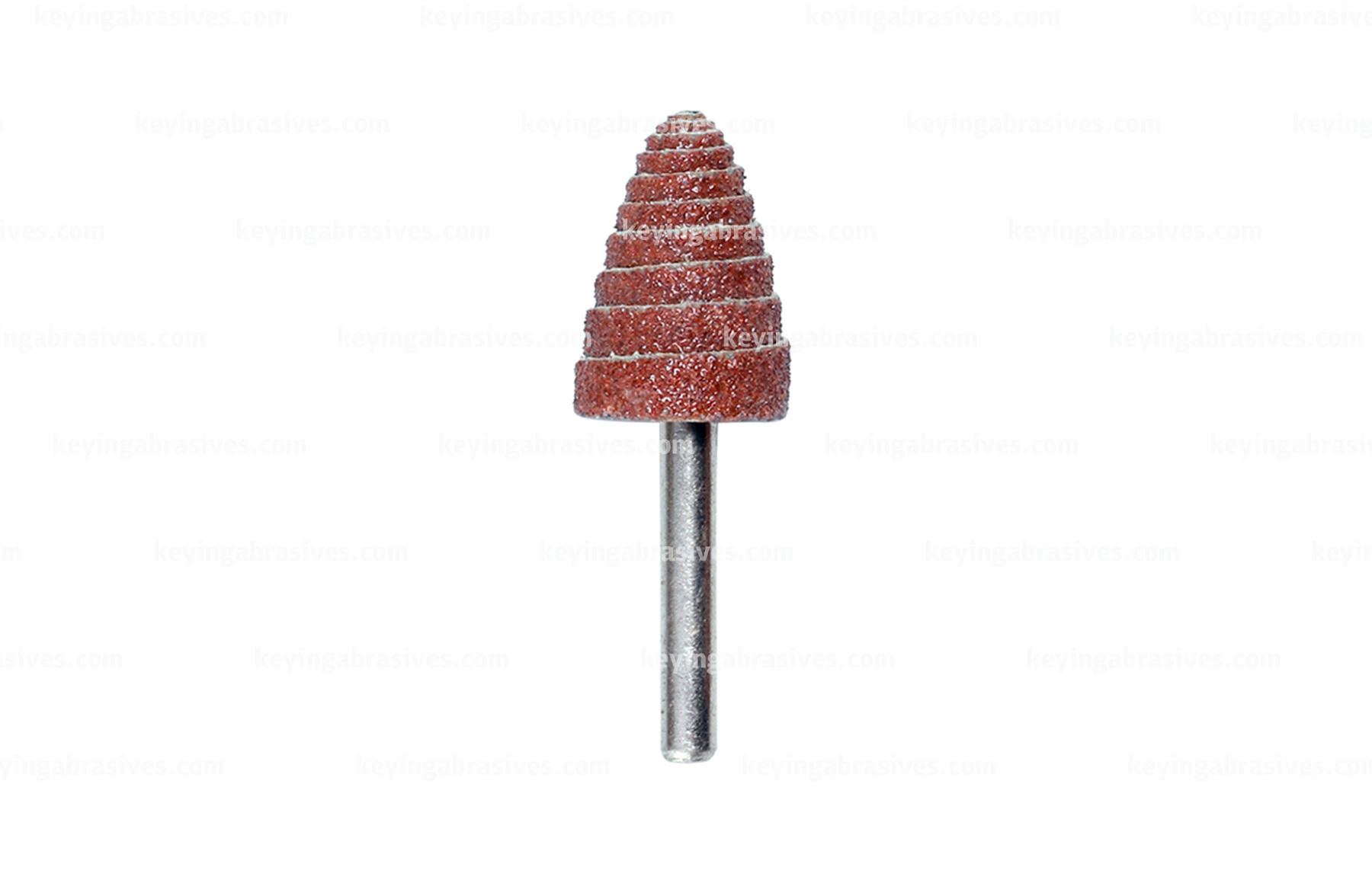

Cartridge Rolls With Shank - Conical Shape (BS)
Cartridge Rolls With Shank - Conical Shape (BS)
Cartridge Rolls With Shank - Cylinder Shape (CL)
Cartridge Rolls With Shank - Cylinder Shape (CL)
