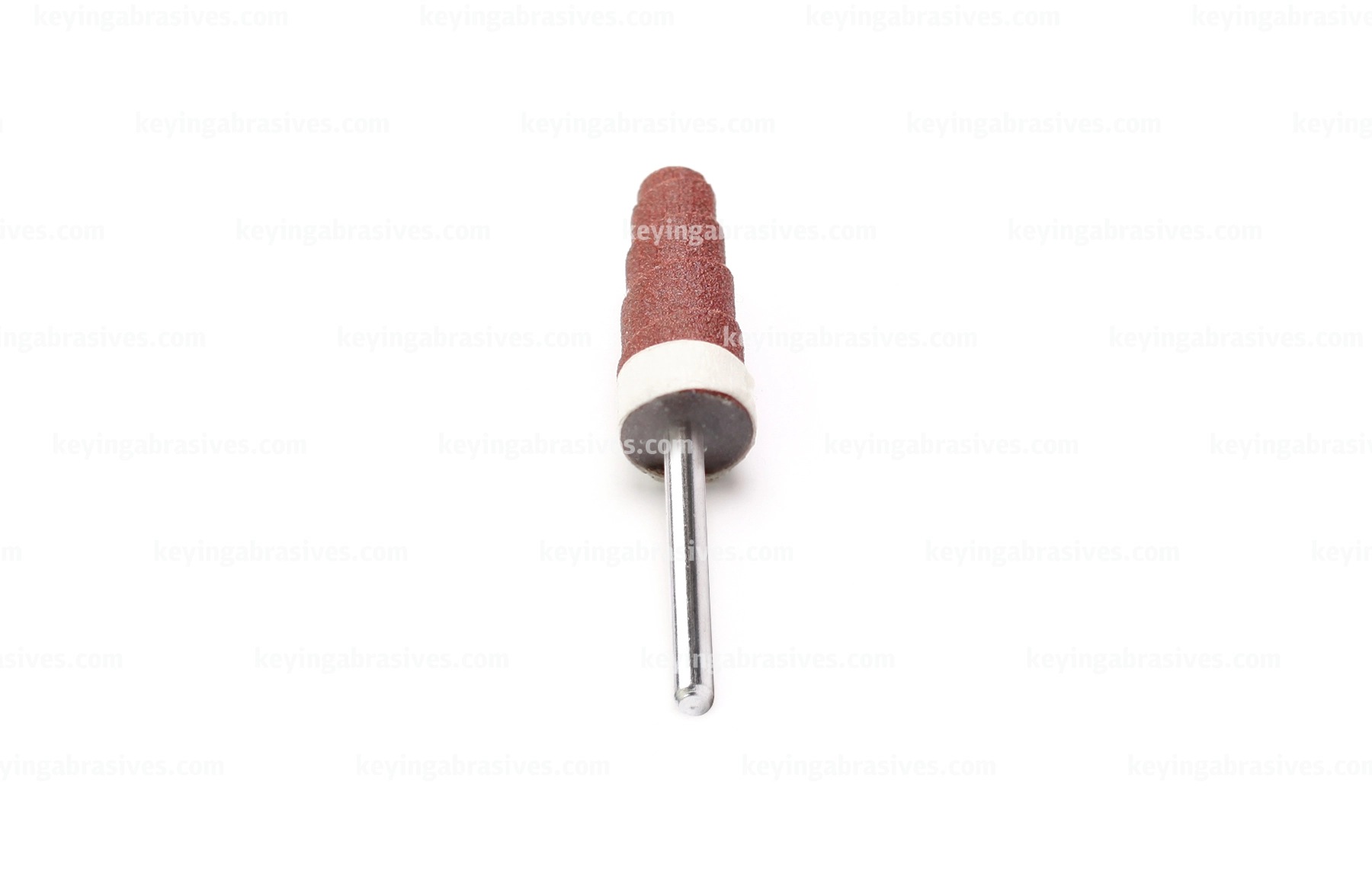

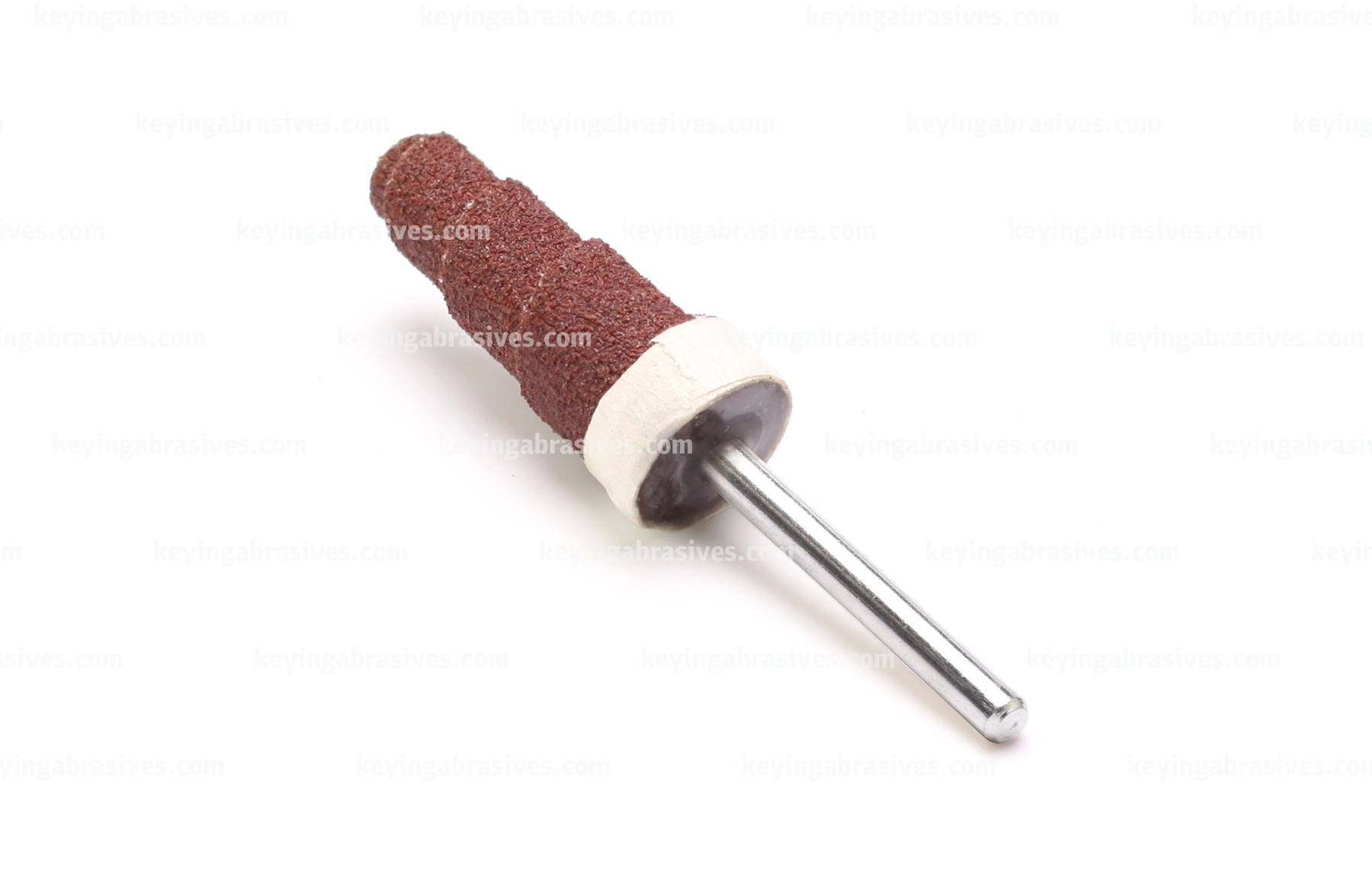

Cartridge Rolls With Shank 9/32inch

cartridge rolls with shank   conical shape bs 7
cartridge rolls with shank   conical shape bs 3
cartridge rolls with shank   conical shape bs 4

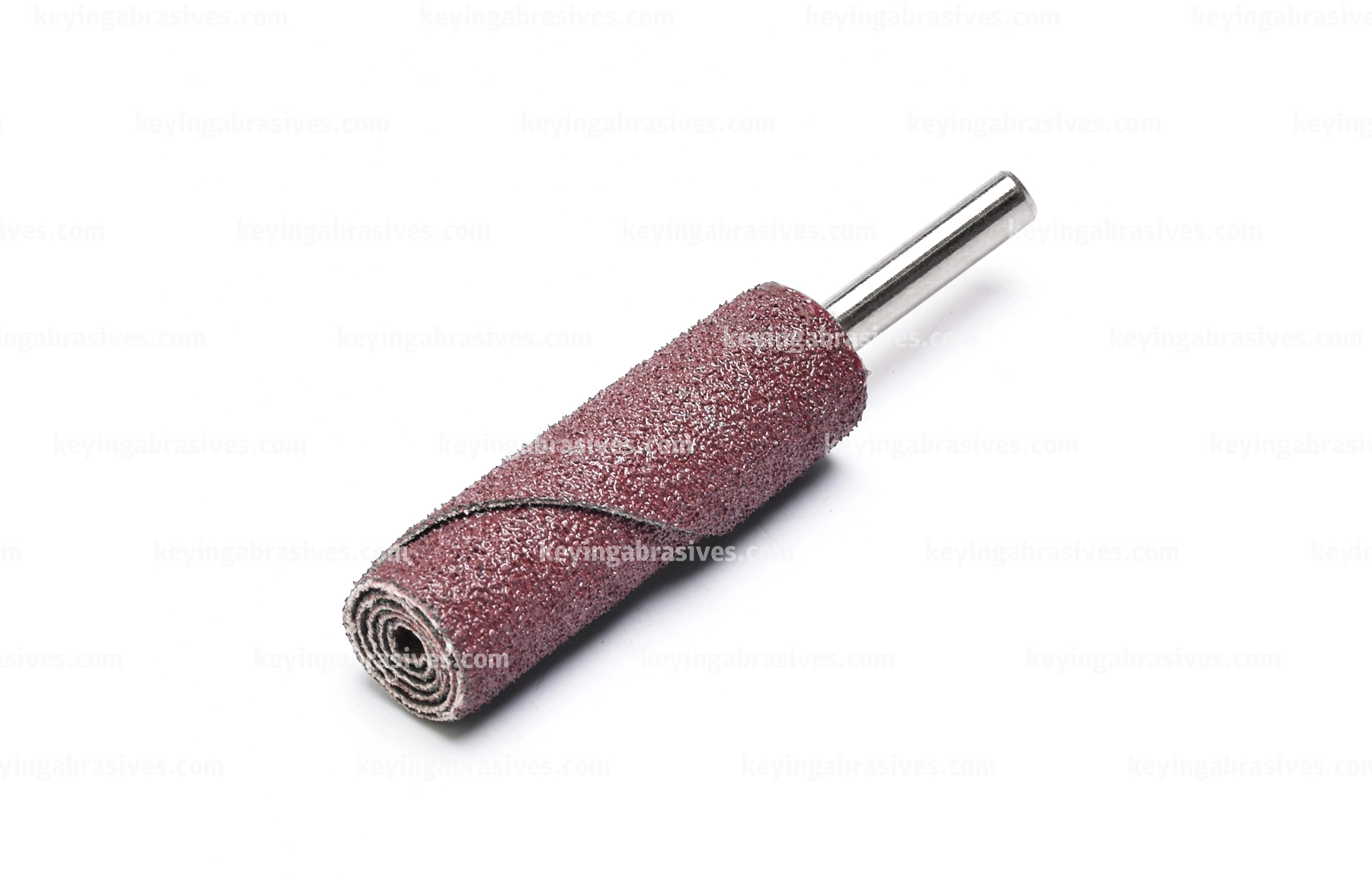

cartridge rolls with shank   cylinder shape cl 3
cartridge rolls polishing1

Table of Cartridge Rolls with Shank 9/32inch




Cartridge Rolls with Shank 9/32inch Specification:

  • Diameter: 9/32 inch=7mm

  • Max. RPM: 25000 RPM

  • Raw Materials: Aluminum Oxide(AO), Zirconia(Z)

  • Grit Size: 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#/600#

  • Shank Diameter: 3mm、6mm

  • Other custom tapered cartridge rolls can be customized.


Cartridge Rolls with Shank 9/32inch Materials that can be worked:

  • Titanium

  • Other non-ferrous metals

  • Hard non-ferrous metal

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Cartridge Rolls With Shank 9/32inch Applicable Industries

Applications

  • Leveling

  • Deburring

  • Work on edges

  • Sharpening

  • Weld dressing

  • Fine grinding in multiple steps

Cartridge Rolls With Shank 9/32inch Applicable Industries

Safety Warning of Cartridge Rolls With Shank 9/32inch

Instructions:

Safety Warning of Cartridge Rolls With Shank 9/32inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
