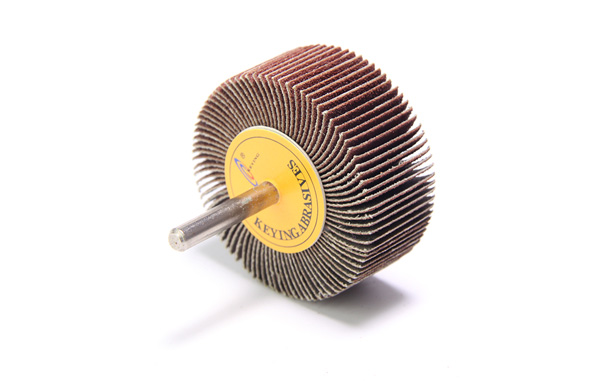

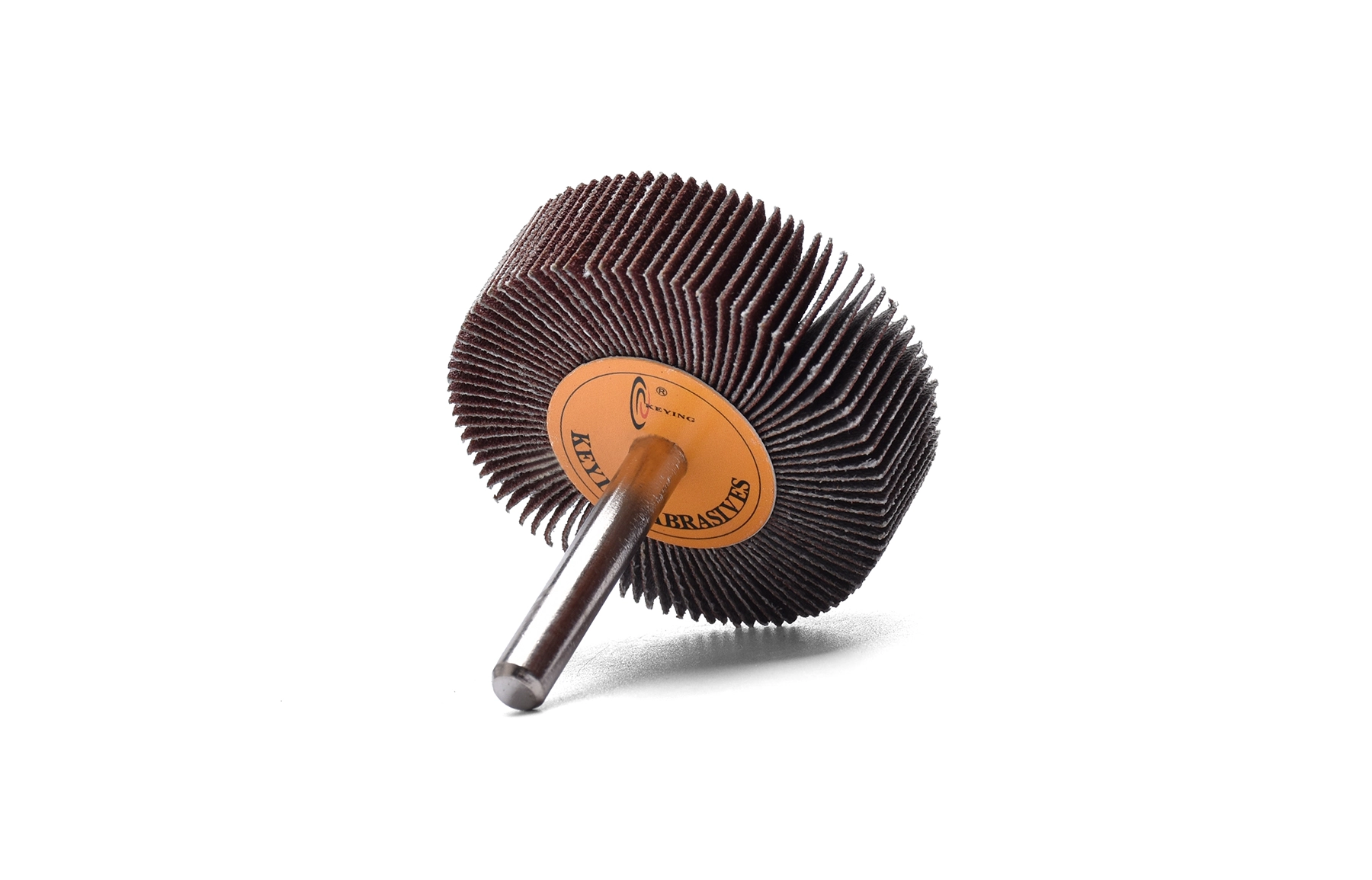

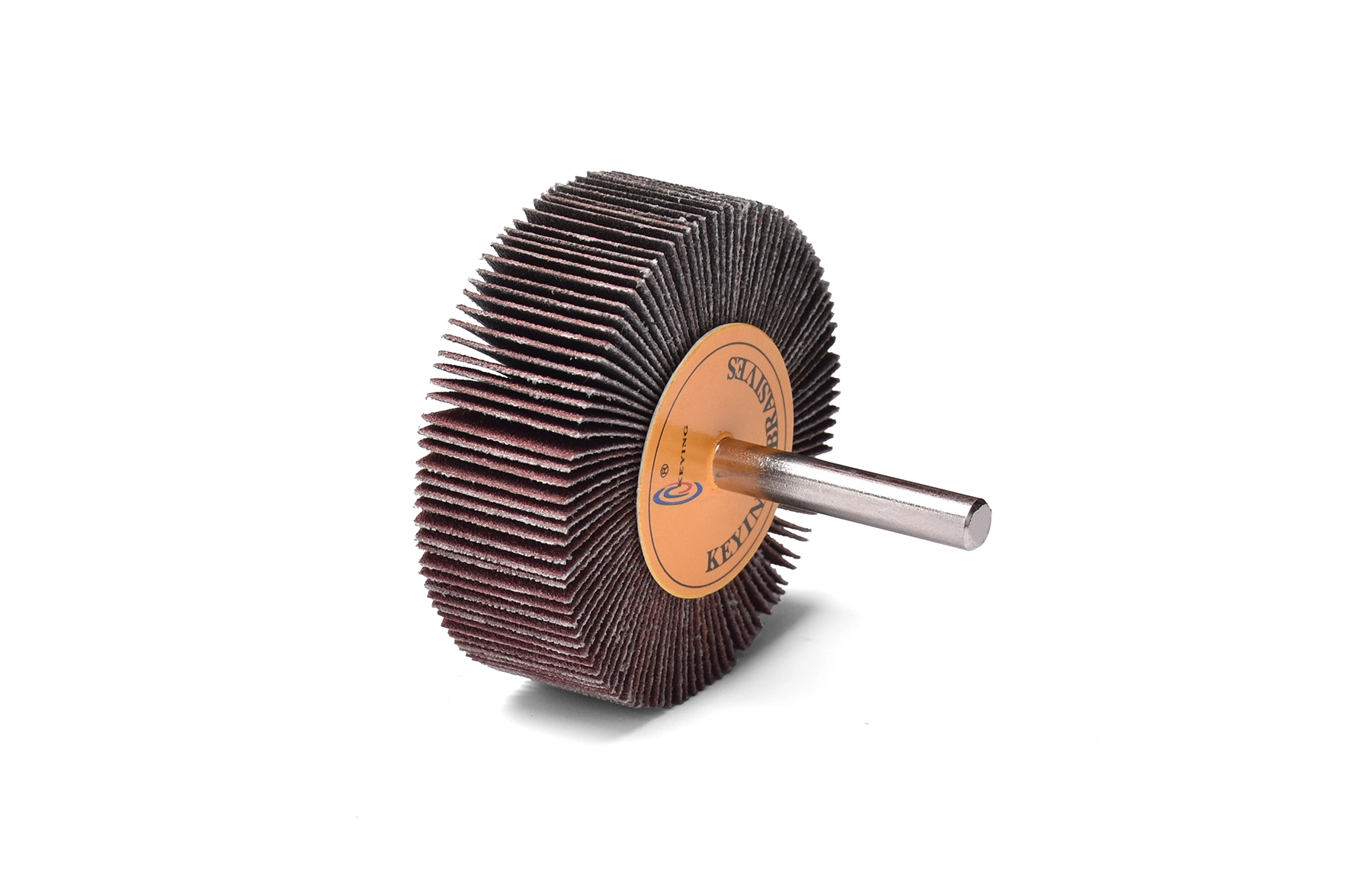

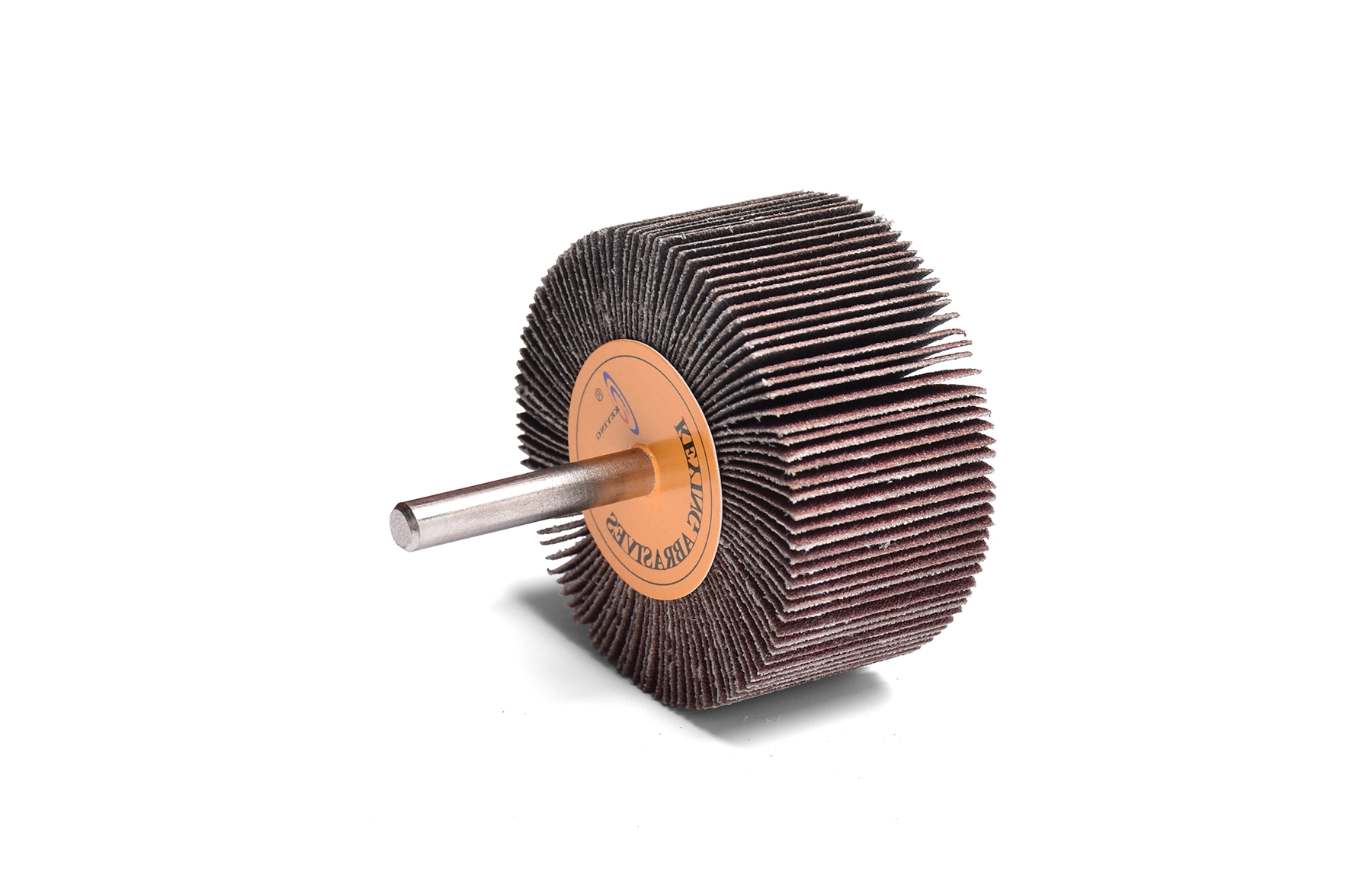

Flap Wheel 2-3/8 Inch

flap wheel 2 3 8 inch

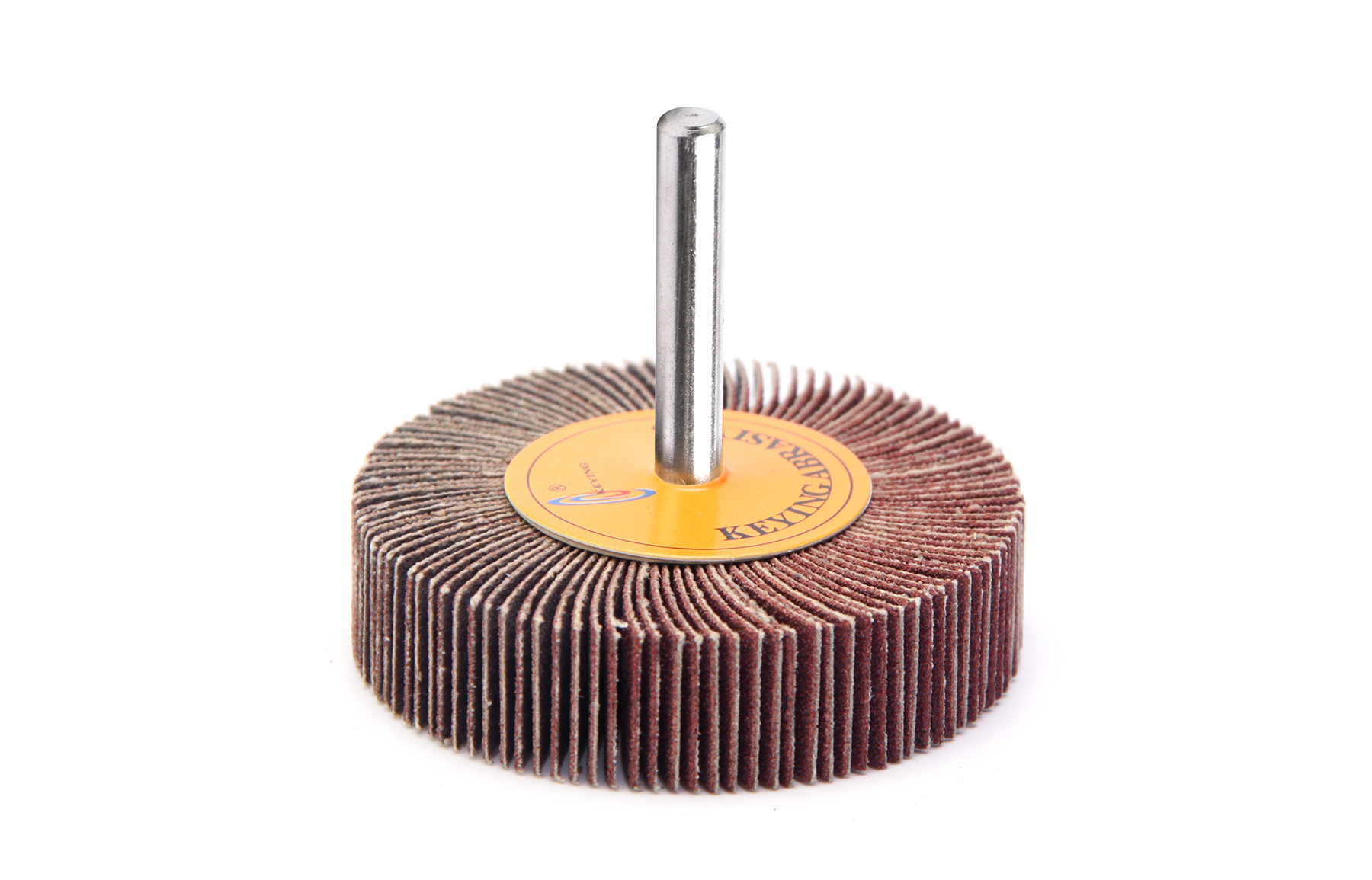

mounted flap wheels 60 15 6 2
mounted flap wheels 60 50 6 4
mounted flap wheels 60 50 6 3
mounted flap wheels 60 50 6 5

On the Mounted Flap Wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.

Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

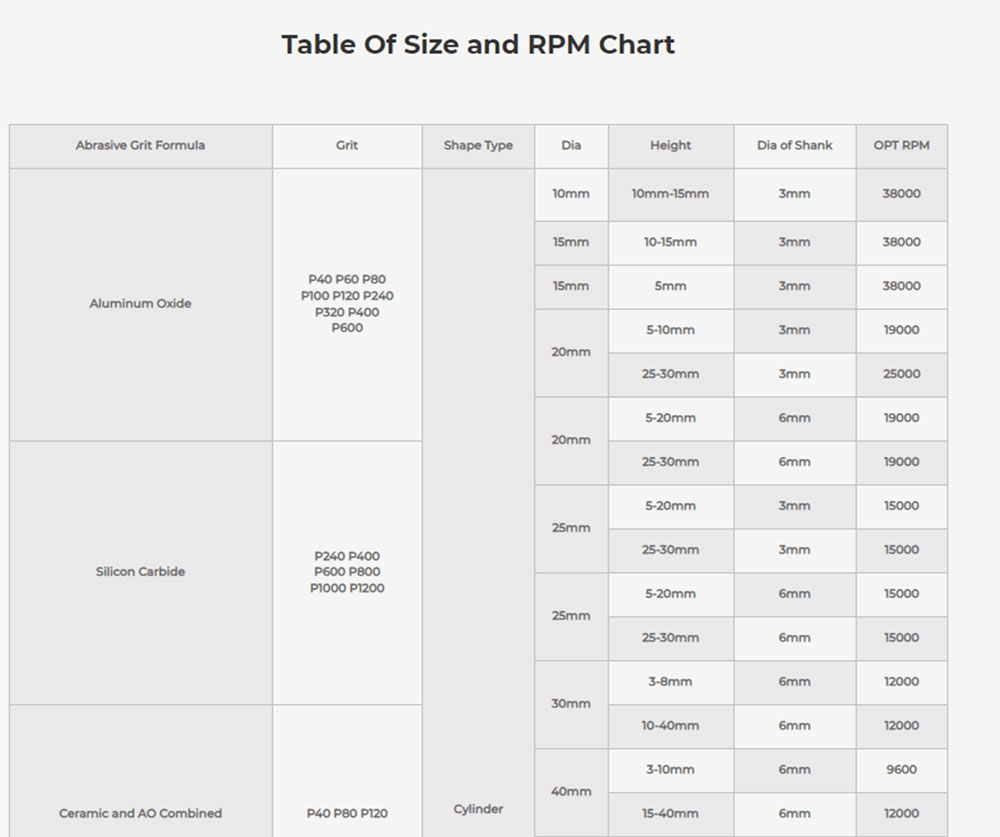

Table of Flap Wheel 2-3/8 Inch Size

Table of Flap Wheel 2-3/8 Inch Size

Flap Wheel 2-3/8 Inch Specification:

  • Diameter: 2-3/8 inch=60mm

  • Max. RPM: 15000~18000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

Flap Wheel 2-3/8 Inch Materials that can be Worked

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel

Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.

Flap Wheel 2-3/8 Inch Applications

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Flap Wheel 2-3/8 Inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel 2-3/8 Inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Flap Wheel 2-3/8 Inch Applicable Industries

Safety Warning of Flap Wheel 2-3/8 Inch


Safety Warning of Flap Wheel 2-3/8 Inch

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Standard Mounted Flap Wheel Products
Flap Wheel 1inch
Flap Wheel 1inch

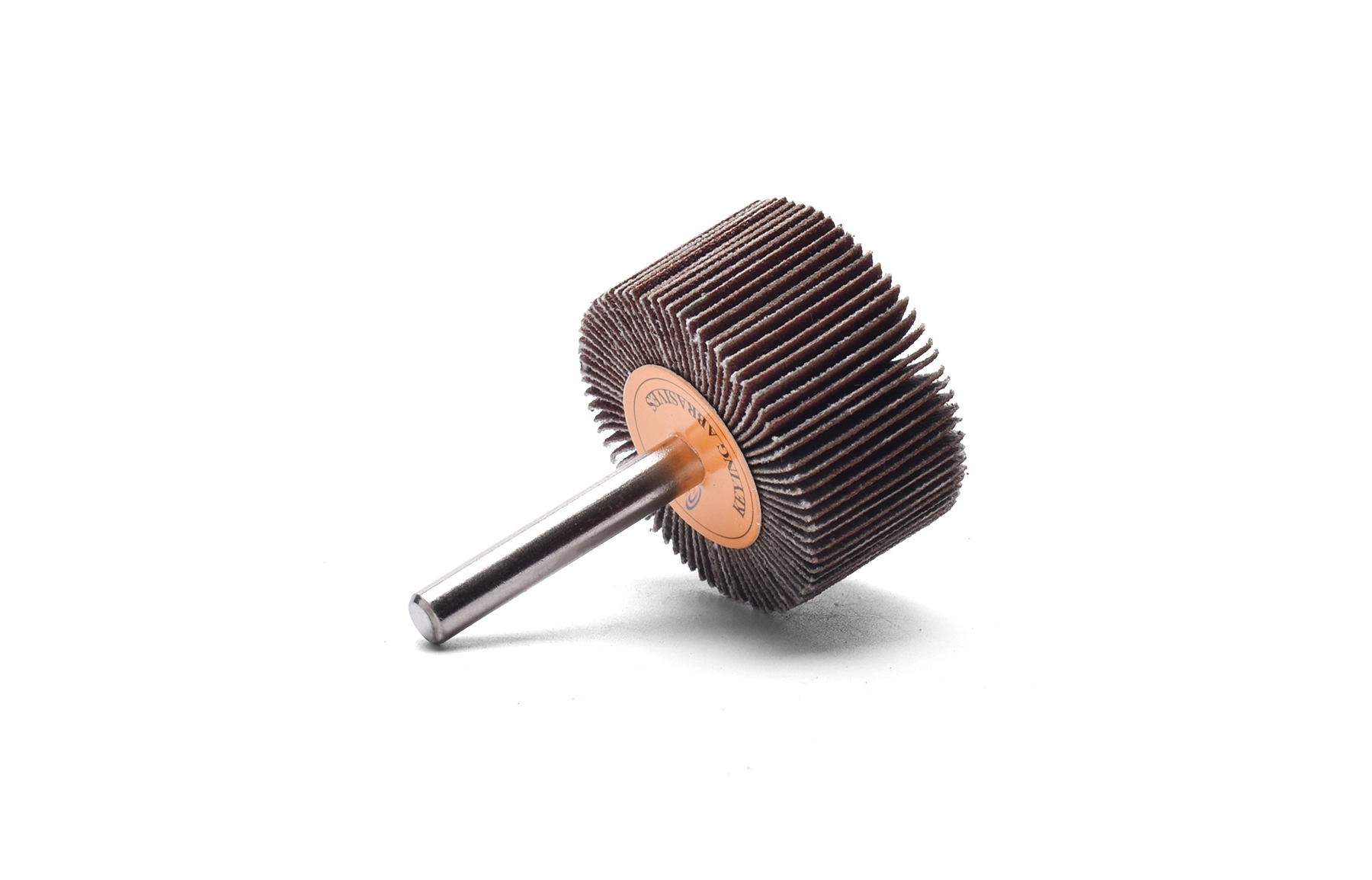

Abrasive Clothes Flap Wheel (AO)
