Flap Wheel M8 - Screw Hole

flap wheel m8 screw hole 80 50 8 3 1
flap wheel m8 screw hole 80 50 8 3 3
flap wheel m8 screw hole 80 50 8 3 2
flap wheel m8   screw hole
m14 100 2

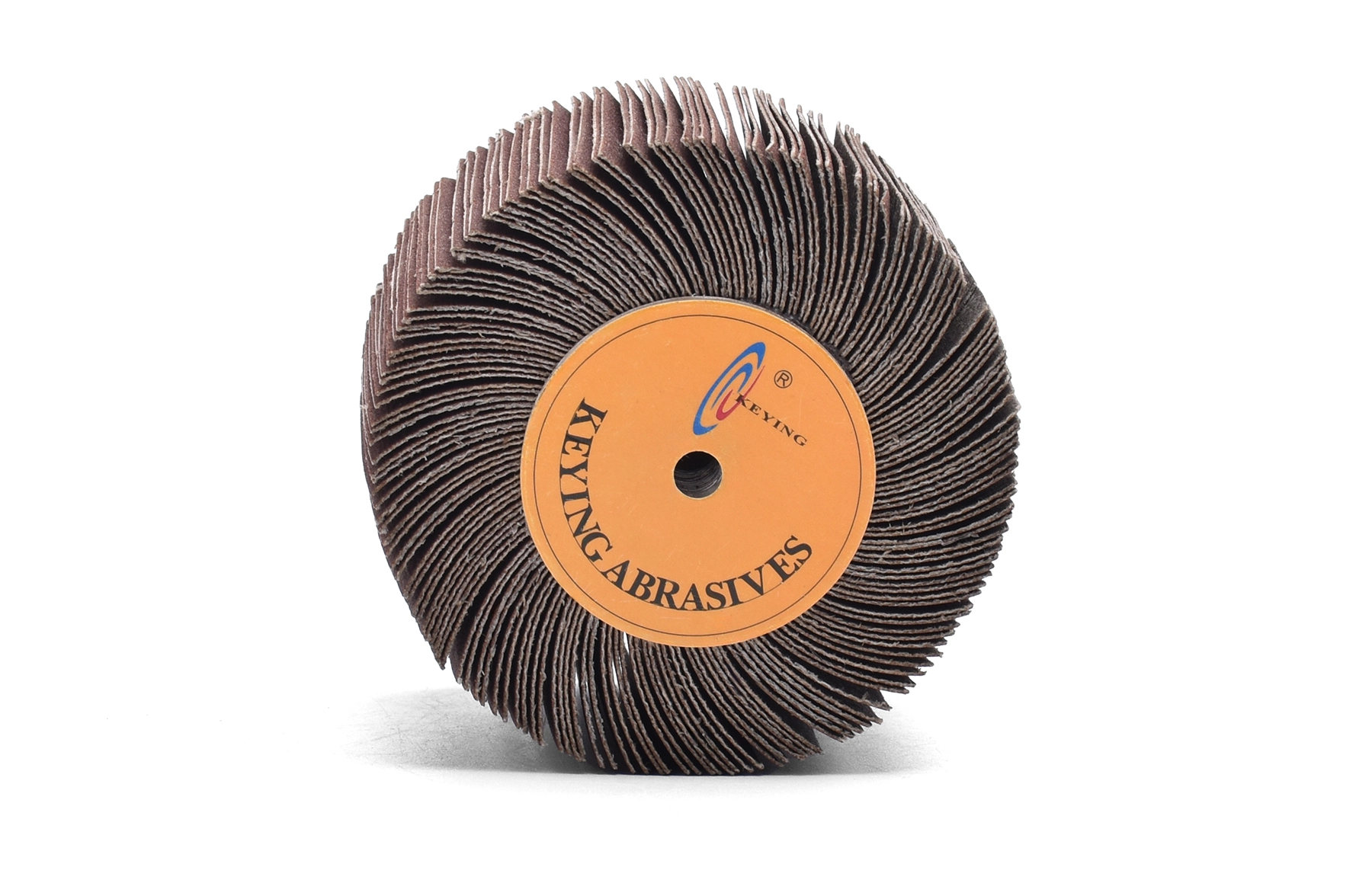

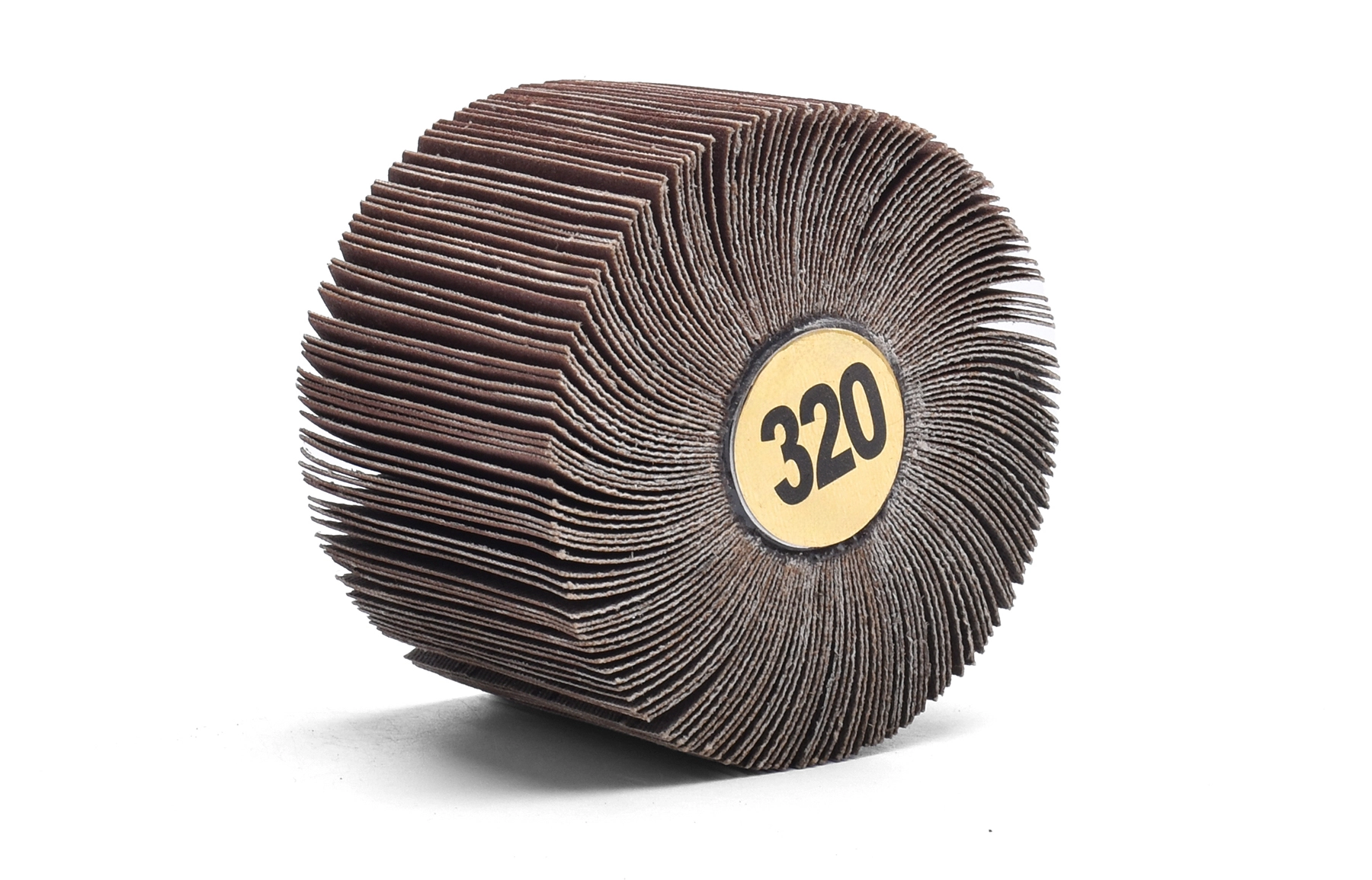

This non-standard custom Mounted Flap Wheel is M8 Screw Hole Type, the middle hole is 8mm screw hole, and the middle of the page wheel adopts imported high-quality special glue. Due to the different use and particularity of the workpiece in industrial processing, the conventional type of Mounted Flap Wheel can not be satisfied, so we support sample processing and map processing. In order to improve the application ability of movable handle page wheel in processing, customized for customers.

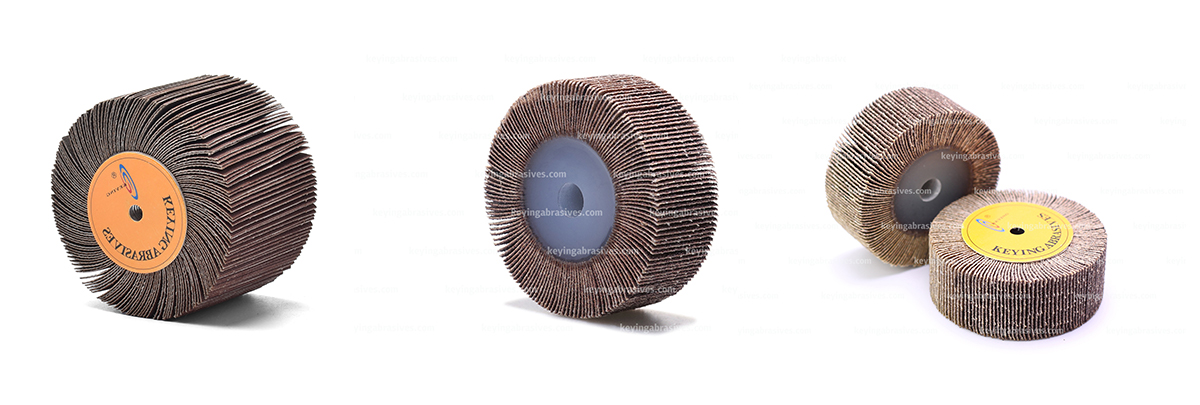

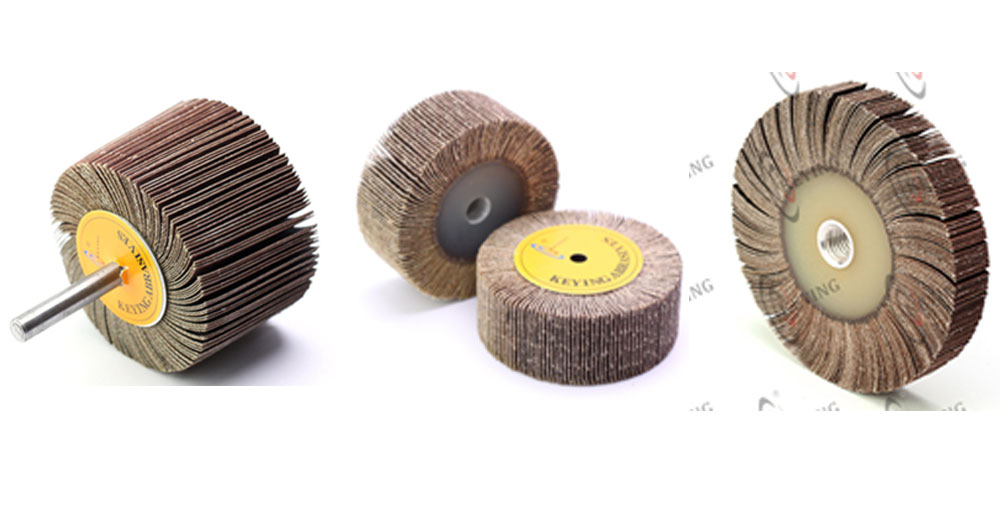

Shape Chart of Flap Wheel M8 - Screw Hole

Shape Chart of Flap Wheel M8 - Screw Hole

Shape Chart of Flap Wheel M8 - Screw Hole


Flap Wheel M8 - Screw Hole Specification:

  • Max. RPM: 25000 RPM

  • Center Hole Diameter: 8mm Screw Hole

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 60#~600#


Flap Wheel M8 - Screw Hole Materials that can be Worked:

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.

Flap Wheel M8-Screw Hole Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel M8-Screw Hole Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Flap Wheel M8-Screw Hole Applicable Industries

Safety Warning of Flap Wheel M8-Screw Hole

Instructions:

1. Please try to choose operation indoors environment and wear protective guards and goggles.

2. Never to exceed the recommanded maximum permitted rotational speed for safety reasons.

3. In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.


Safety Warning:

1. The clamping lenght between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Flap Wheel M8 Products

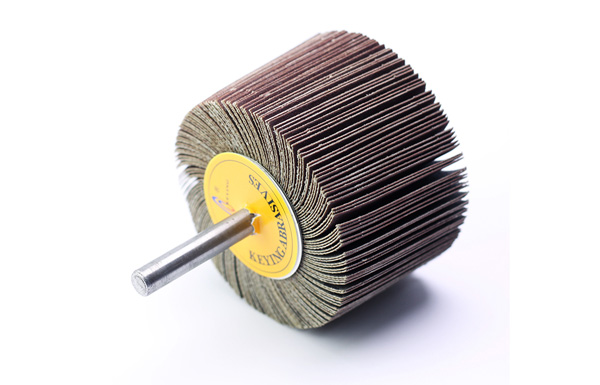

Flap Wheel M8 2-3/8inch
Flap Wheel M8 2-3/8inch
Flap Wheel M8 1-9/16inch
Flap Wheel M8 1-9/16inch

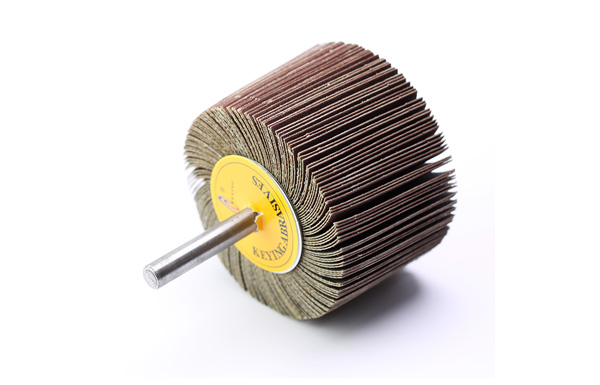

Aluminum Oxide Flap Wheel M8 (AO)
Aluminum Oxide Flap Wheel M8 (AO)
