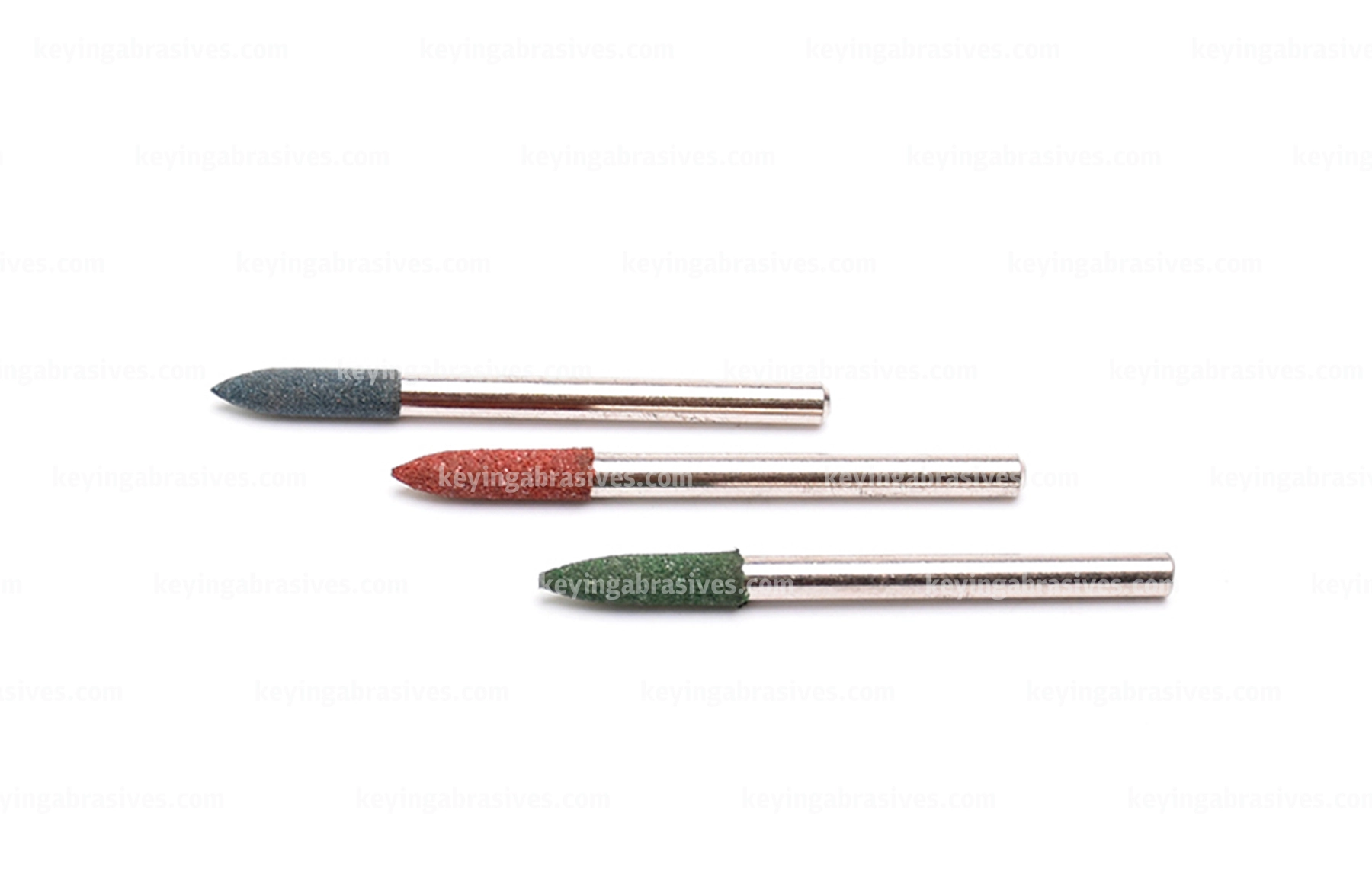

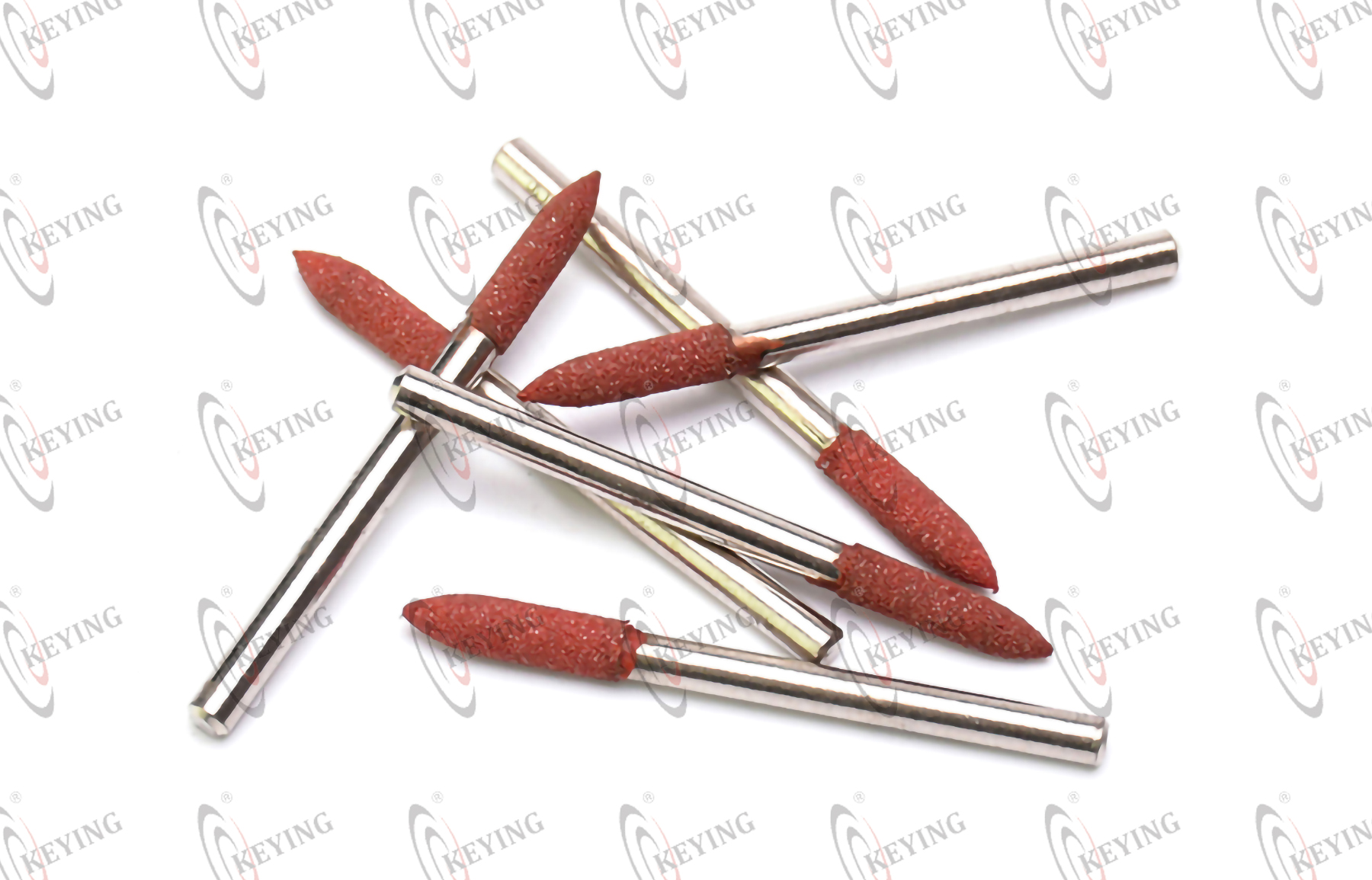

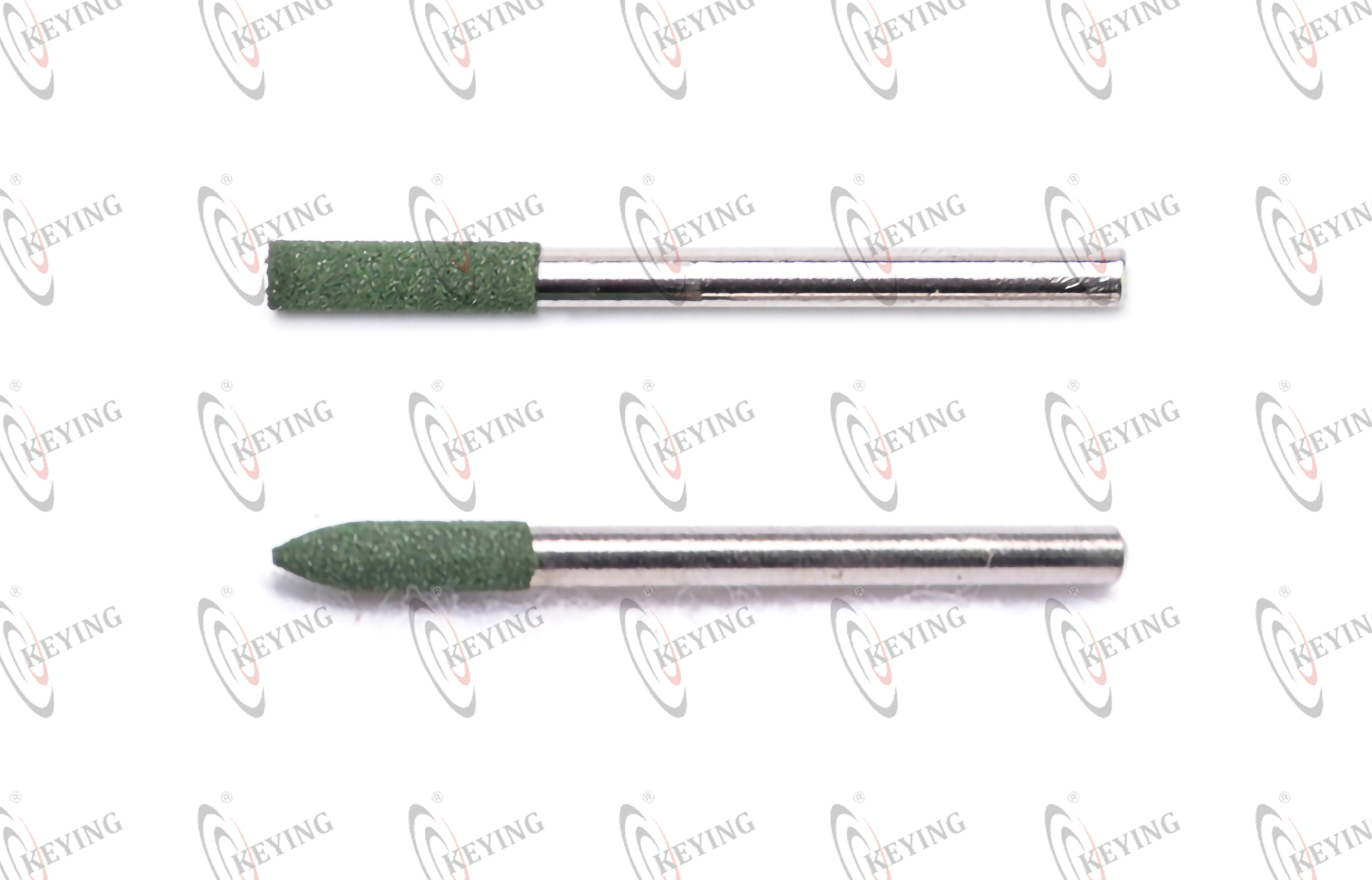

Grinding Head X 1/8inch

Grinding Head X 1/8inch 1
Grinding Head X 1/8inch 2
Grinding Head X 1/8inch 3
Grinding Head X 1/8inch 4
Grinding Head X 1/8inch 5

KEYING Rubber Mounted Head has a variety of specifications and granularity, accept non-standard size customization, including diameter, handle diameter, material, handle length and so on. The most prominent characteristics of KEYING Rubber Mounted Head are good grinding force, stable performance, long service life, small dust, can cooperate with the use of various high speed power tools or pneumatic tools. Mainly suitable for all kinds of casting molds, metal products, such as grooves, edges and holes concave and convex cleaning, to weld, deburr and fine polishing processing.

Specifications of Grinding Head X 1/8inch

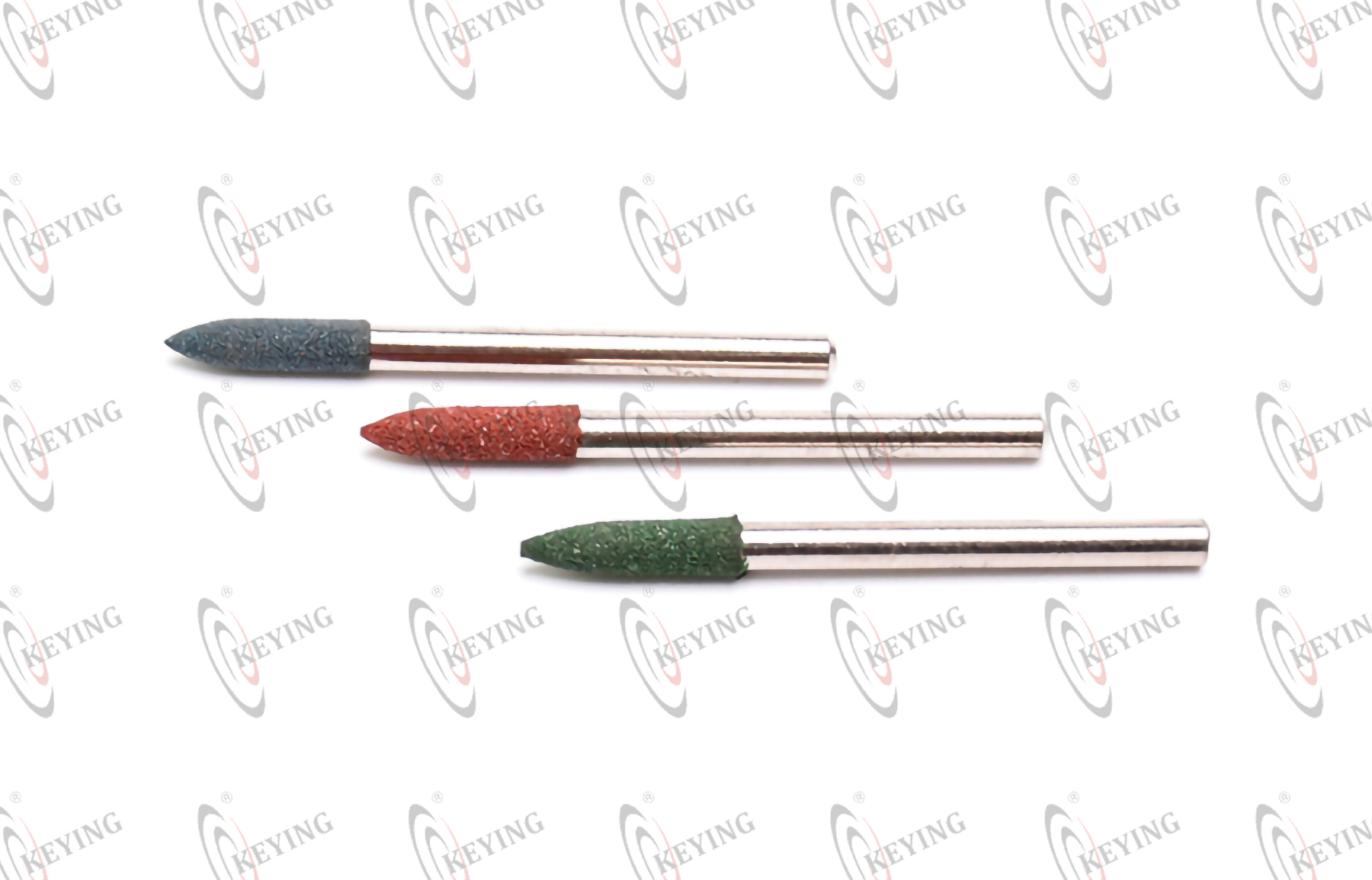

3mm*13mm*3mm Conical Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXBS3133+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove   Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile   Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeConicalStandard   Pack Quantity100pcs

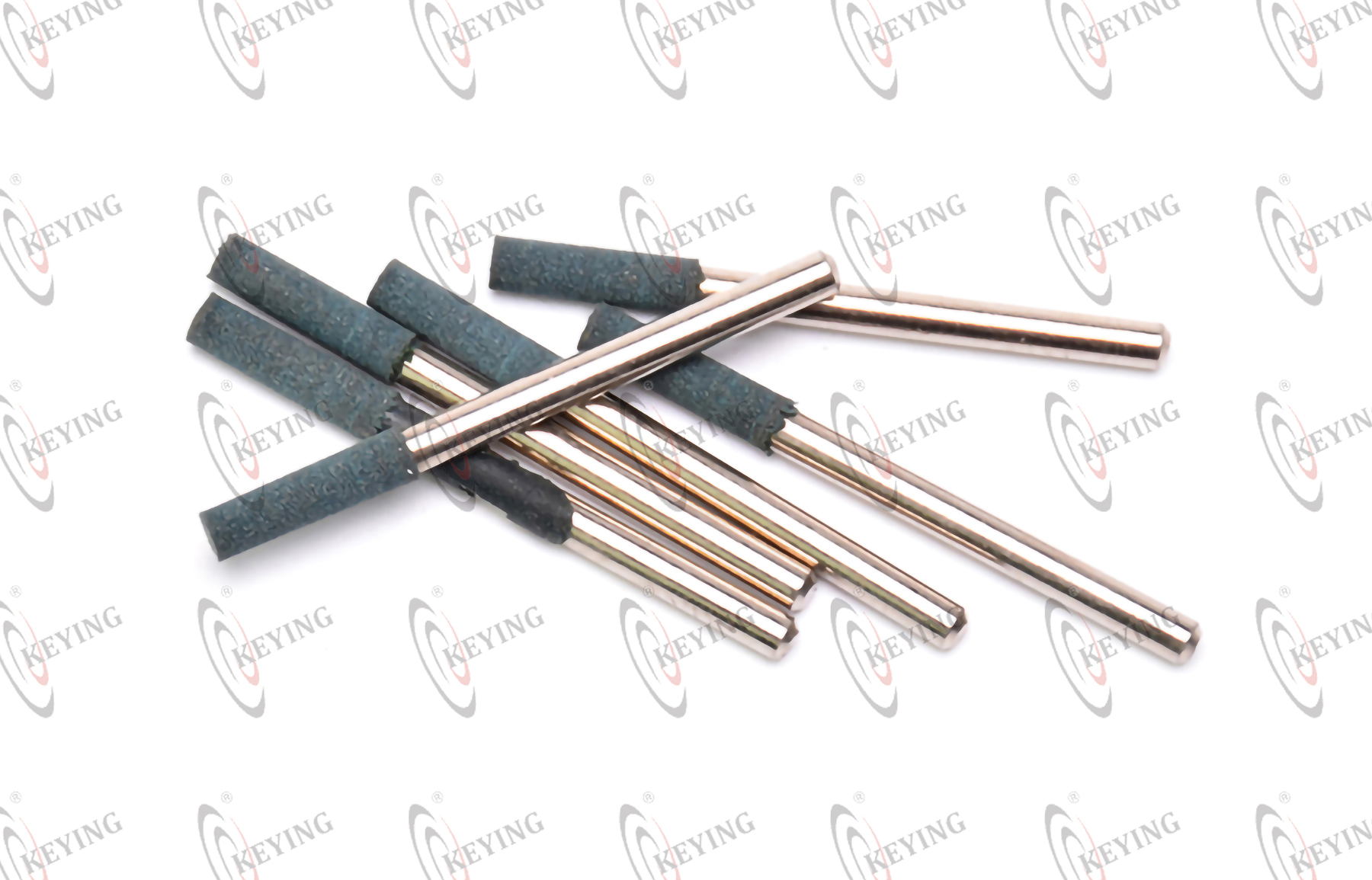

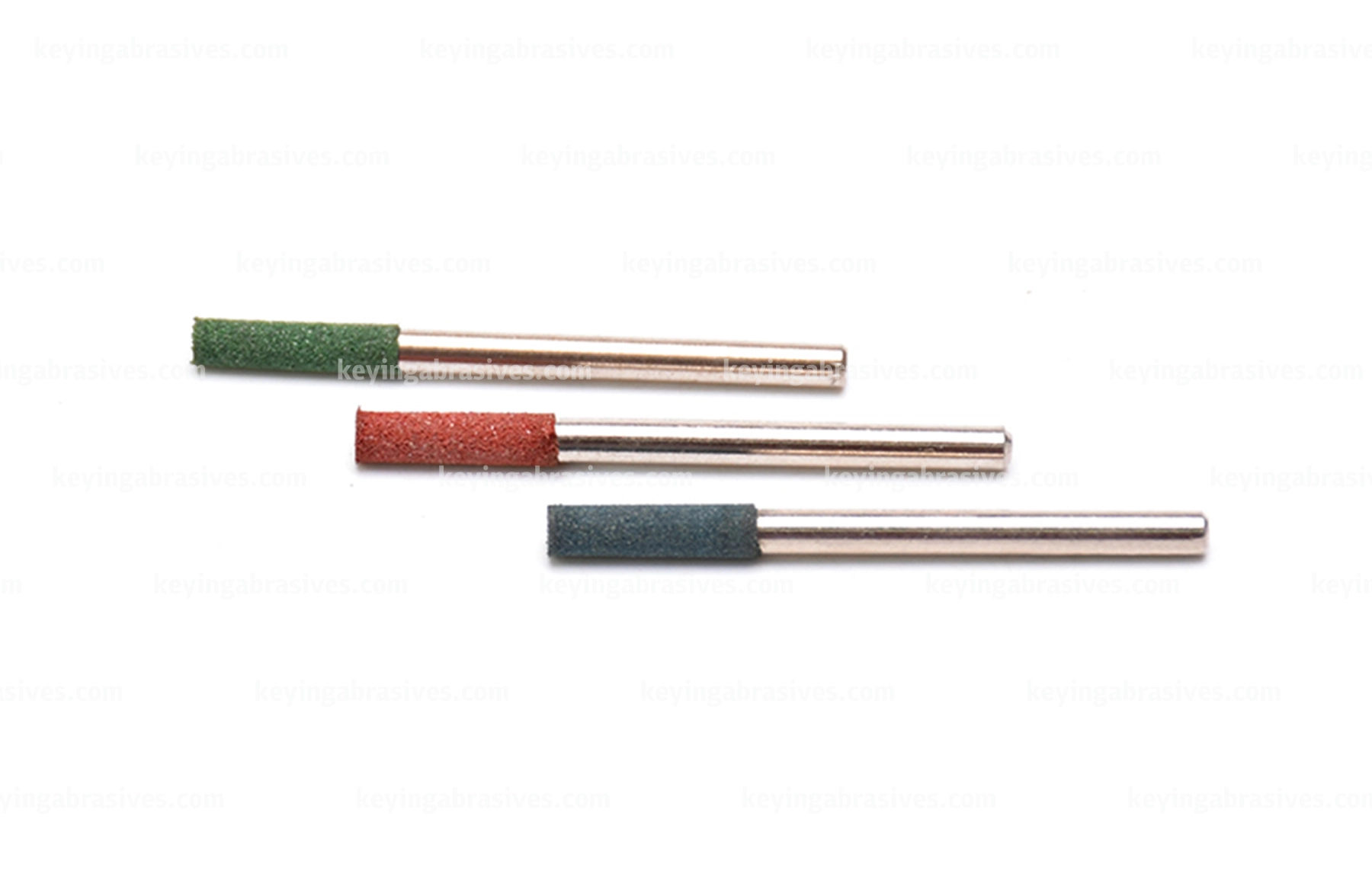

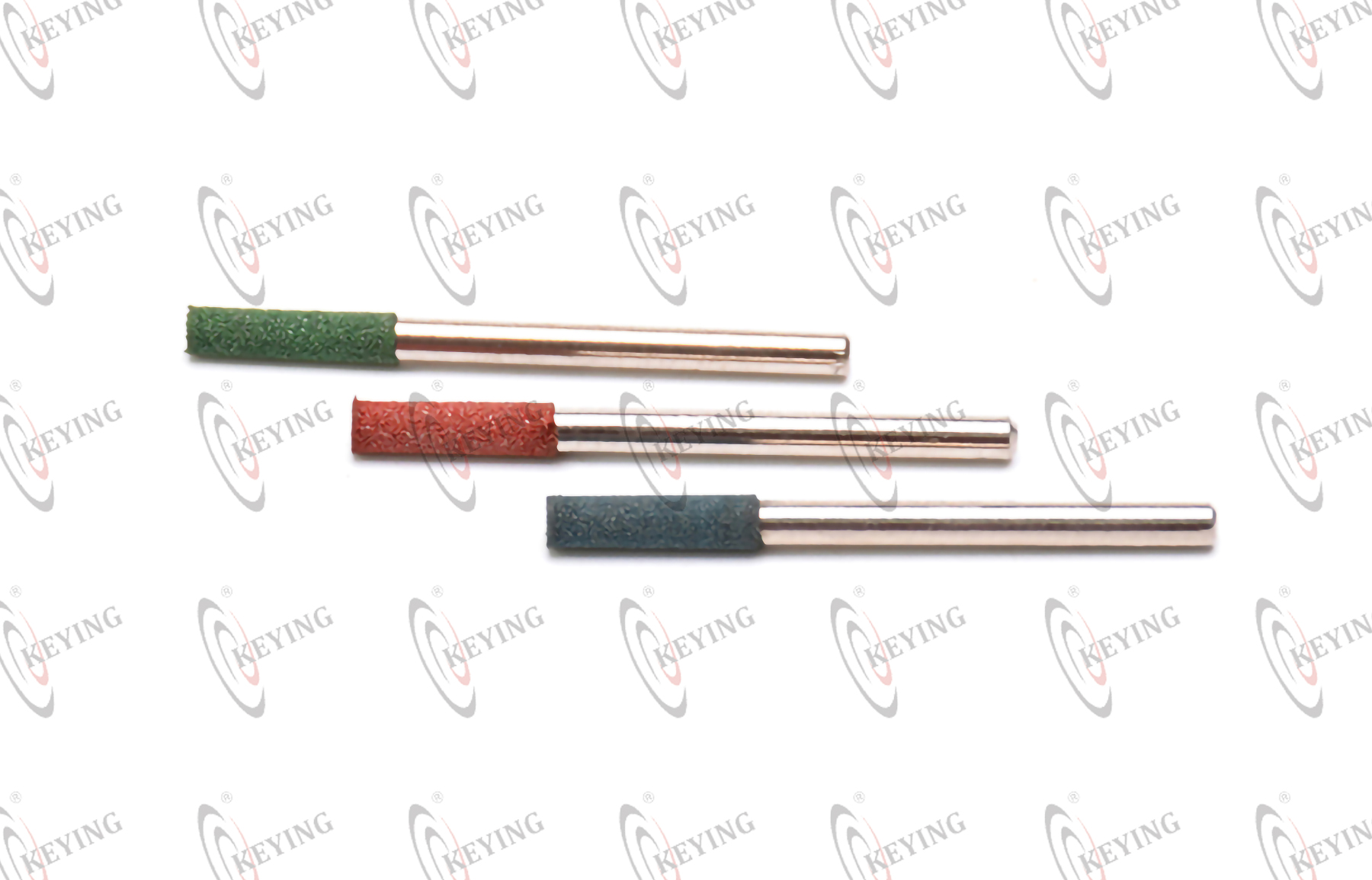

3mm*13mm*3mm Cylinder Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXCL3133+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile   Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeCylinderStandard   Pack Quantity100pcs
3mm*13mm*2.35mm Conical Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXBS3132.35+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeConicalStandard   Pack Quantity100pcs
3mm*13mm*2.35mm Cylinder Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXCL3132.35+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeCylinderStandard   Pack Quantity100pcs
3mm*13mm*3.175mm Conical Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXBS3133.175+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeConicalStandard   Pack Quantity100pcs
3mm*13mm*3.175mm Cylinder Rubber Mounted Head Φ3mm
ApplicationRemove Burn Marks, Scales, Rust, Scratches, Dents And Chuck Marks Of The Resin Mold Cleaning Treatment; As Well As Suitable For Paint Removal, Electroplating And CoatingBrandKEYINGCommodity CodeXCL3133.175+Grit+AO
Compatible Tool

High Speed Power Tools

Pneumatic Tools

Country Of OriginChinaGrit TypeAluminium Oxide
Silicon Carbide(80#, 120#)
Diameter*Height3mm*13mmFor Use OnClean Grooves, Edges And Inner Holes Of Casting Molds And Metal Products, Remove Weld, Deburr And Fine PolishGrit60#, 80#, 120#, 180#, 240#, 320#, 400#, 600#
Make-to-order: 800#, 1500#
Shank Diameter
IndustriesAutomobile Manufacturing, Mechanical And Electrical Engineering, Gem Processing IndustryColourPurple, Red, Green, Bean Sauce, Blue, Gray, Brown, Light Blue, Gellow, Cgan
Maximum RPM25000ShapeCylinderStandard   Pack Quantity100pcs

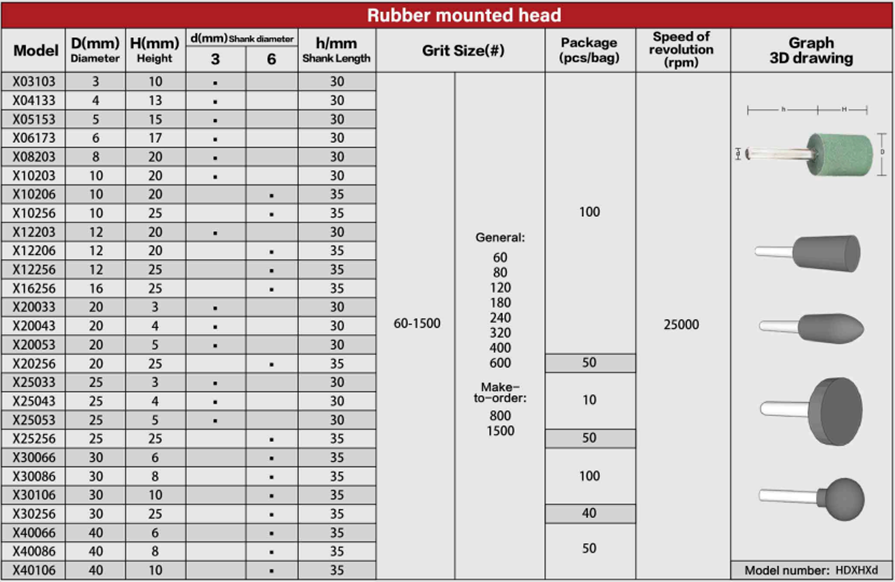

Table of Grinding Head X 1/8inch

Table of Grinding Head X 1/8inch


Features of Grinding Head X 1/8inch

  • The most prominent features of this series of products are soft polishing and fine polishing.

  • Used for fine grinding and polishing, can make the workpiece surface to a higher level of surface finish such as mirror.

  • Widely used in precision polishing and deburring technology, edge seam grinding process.

  • Can cooperate with various high speed electric tools or pneumatic tools.

Grinding Head X 1/8inch Applicable Industries

Applications

  • Remove burn marks, scales, rust, scratches, dents and chuck marks of the resin mold cleaning treatment

  • As well as suitable for paint removal, electroplating and coating

Grinding Head X 1/8inch Applicable Industries

Recommendations for Use:

  • By adjusting the granularity of the rubber material, the processing scratches can be prevented.

Grinding Head X 1/8inch Applicable Industries

Matching Tool Drives:

  • Angle grinders

  • Mini angle grinder

Grinding Head X 1/8inch Applicable Industries

Safety Instructions OF Grinding Head X 1/8inch

How To Use Grinding Head X 1/8inch

Instructions:

Safety Instructions OF Grinding Head X 1/8inch



Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
