Name: M10 Flap Wheel 2-3/8inch
Brand: Wenling Keying Abrasives Co., Ltd.

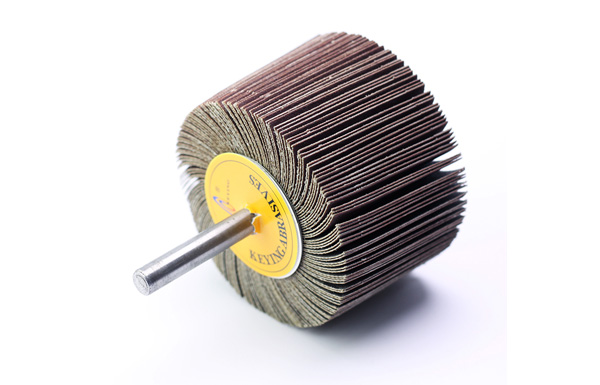

M10 Flap Wheel 2-3/8inch



KEYING M10 Flap Wheel is manufactured from high-quality domestic cloth and pure imported cloth, this product uses imported binder (glue), this series of products have high performance, strong grinding force, synchronous consumption stability, long service life, small dust, beautiful appearance, high cost performance characteristics.

 Contact us

Call us +86(0)576-86711667

Table of M10 Flap Wheel 2-3-8inch Size

M10 Flap Wheel 2-3-8inch Specification:

Diameter: 2-3/8 inch=60mm
Max. RPM: 15000~18000 RPM
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size: 40#~1200#
Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

M10 Flap Wheel 2-3-8inch Materials that can be worked:

Aluminium
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconell and Hasteloy)
Bronze
Hard non-ferrous metal
Titanium
Copper
Soft non-ferrous metal
Brass
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Steel, cast steel

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.

Advantages：

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.

M10 Flap Wheel 2-3-8inch Applications:

Leveling
Deburring
Surface work
Weld dressing
Structuring (matt finishing, brush matting and satin finishing)
Fine grinding in multiple steps

M10 Flap Wheel 2-3/8inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

M10 Flap Wheel 2-3/8inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Safety Warning of M10 Flap Wheel 2-3/8inch

Instructions:

Safety Warning of M10 Flap Wheel 2-3/8inch

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
