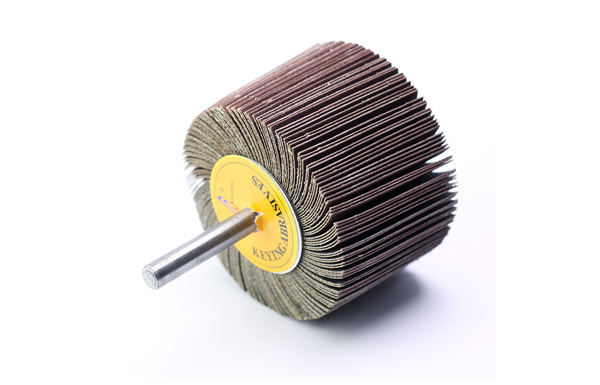

KEYING M10 Flap Wheel is manufactured from high-quality domestic cloth and pure imported cloth, this product uses imported binder (glue), this series of products have high performance, strong grinding force, synchronous consumption stability, long service life, small dust, beautiful appearance, high cost performance characteristics.

Table of M10 Flap Wheel 4inch Size

Table of M10 Flap Wheel 4inch Size


M10 Flap Wheel 4inch Specification:

  • Diameter: 4 inch=100mm

  • Max. RPM: 9000 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)


M10 Flap Wheel 4inch Materials that can be worked:

  • Aluminium

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconell and Hasteloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel


Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.


M10 Flap Wheel 4inch Applications:

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting and satin finishing)

  • Fine grinding in multiple steps

M10 Flap Wheel 4inch Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

M10 Flap Wheel 4inch Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

M10 Flap Wheel 4inch Applicable Industries

Safety Warning of M10 Flap Wheel 4inch

Instructions:

1. Please try to choose an operation indoor environment and wear protective guards and goggles.

2. Never exceed the recommended maximum permitted rotational speed for safety reasons.

3. In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.


Safety Warning:

1. The clamping length between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
