Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch

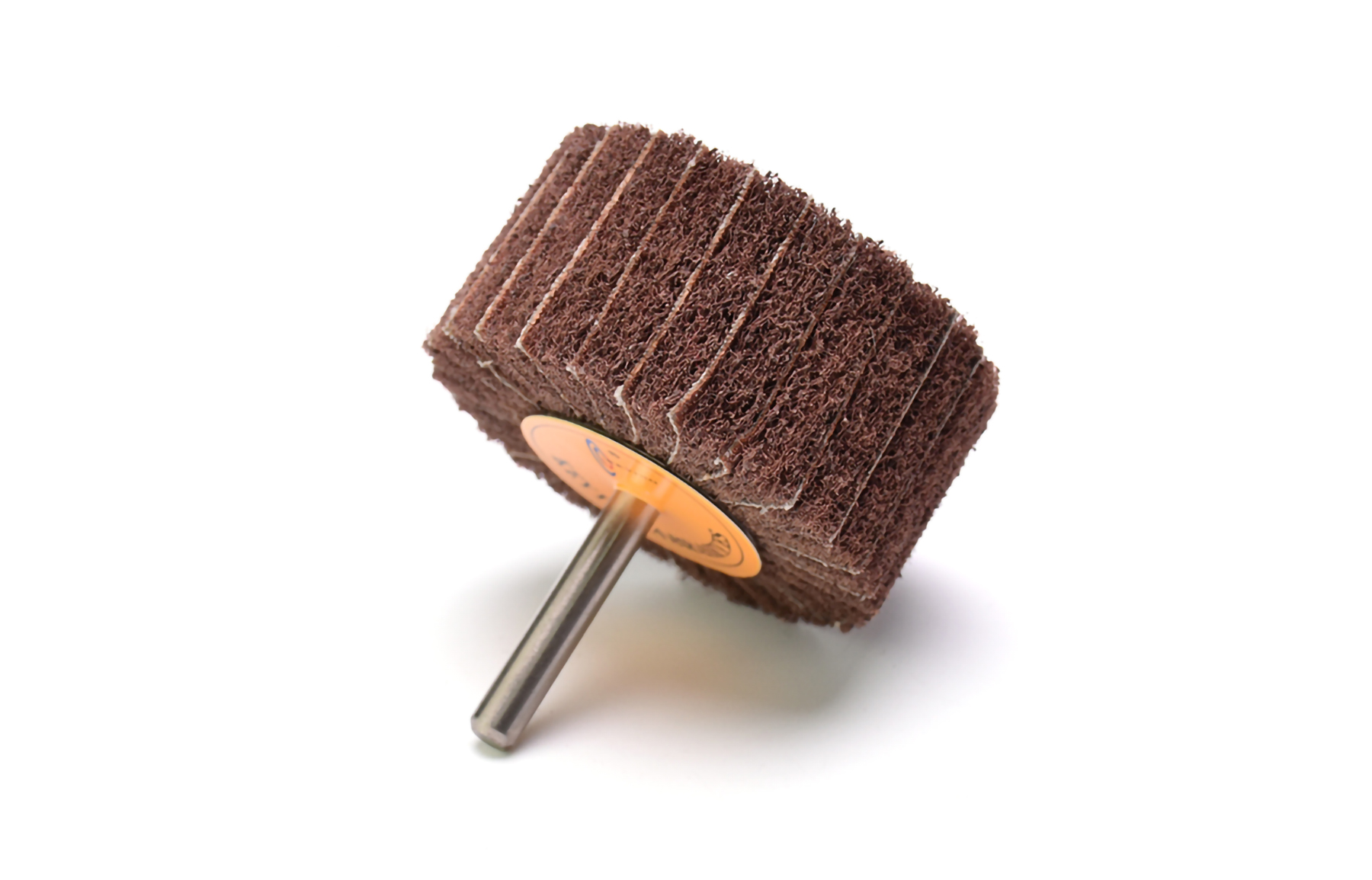

60 25 6

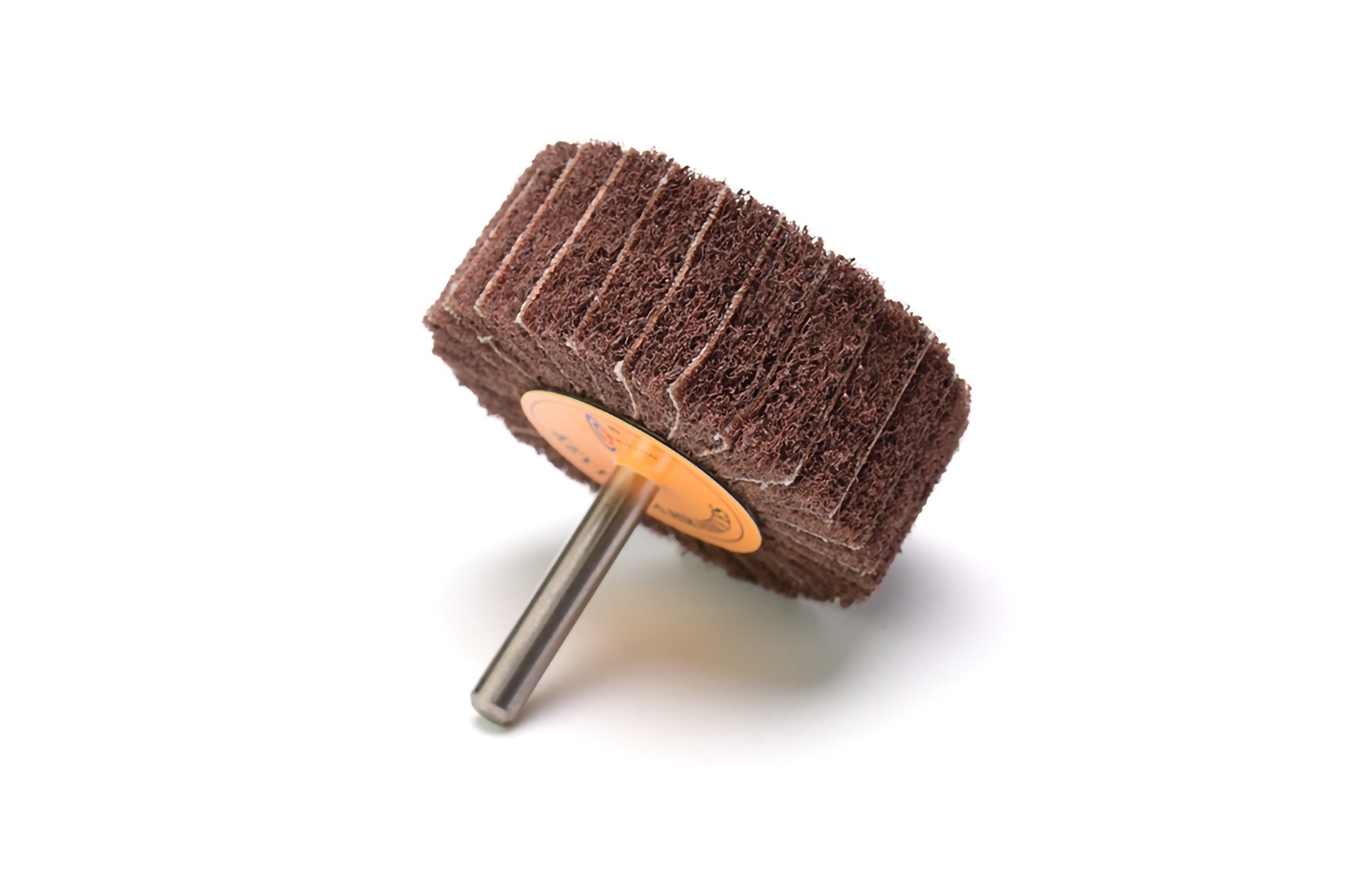

60 20 6 1

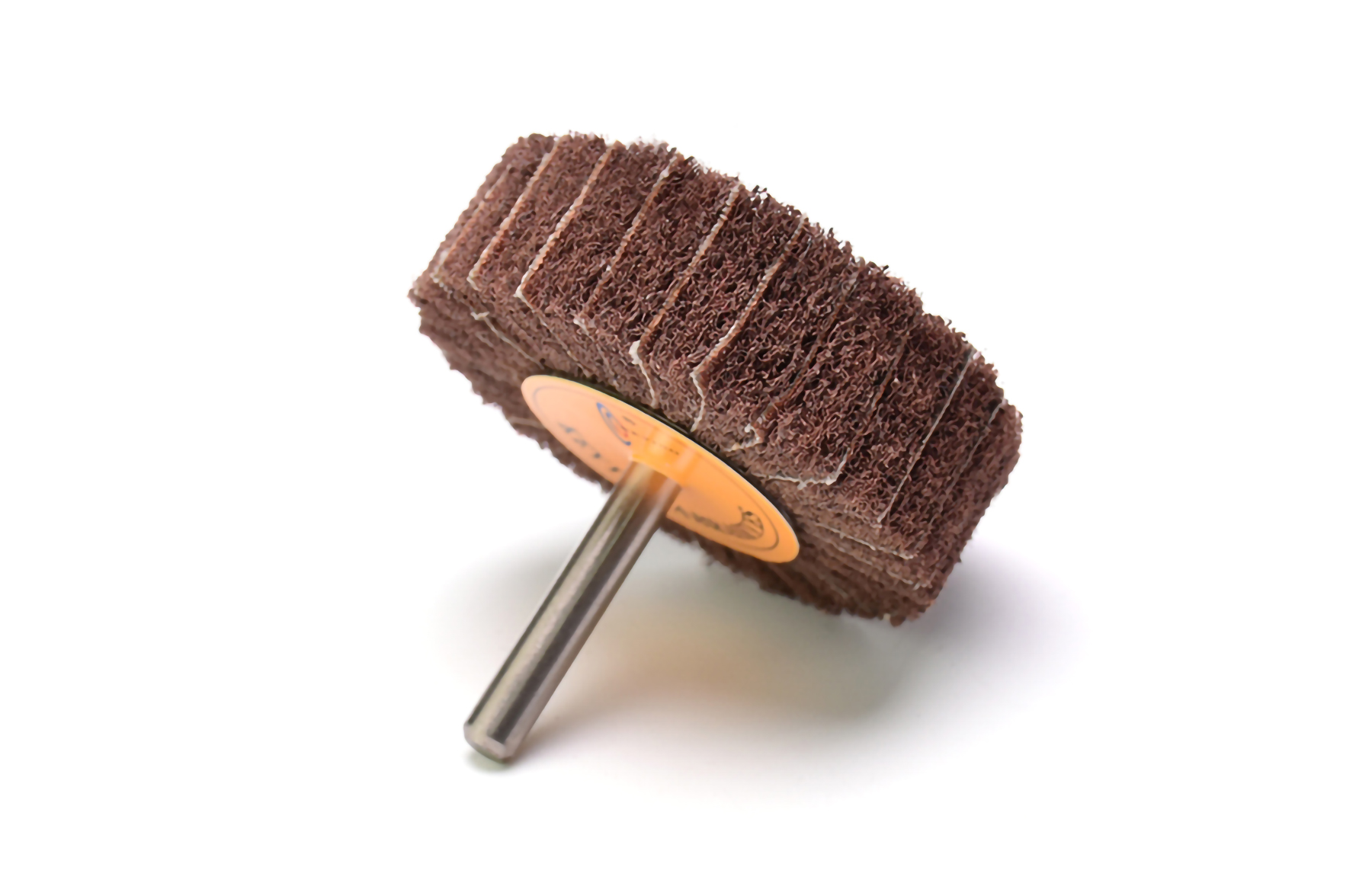

60 15 6 1

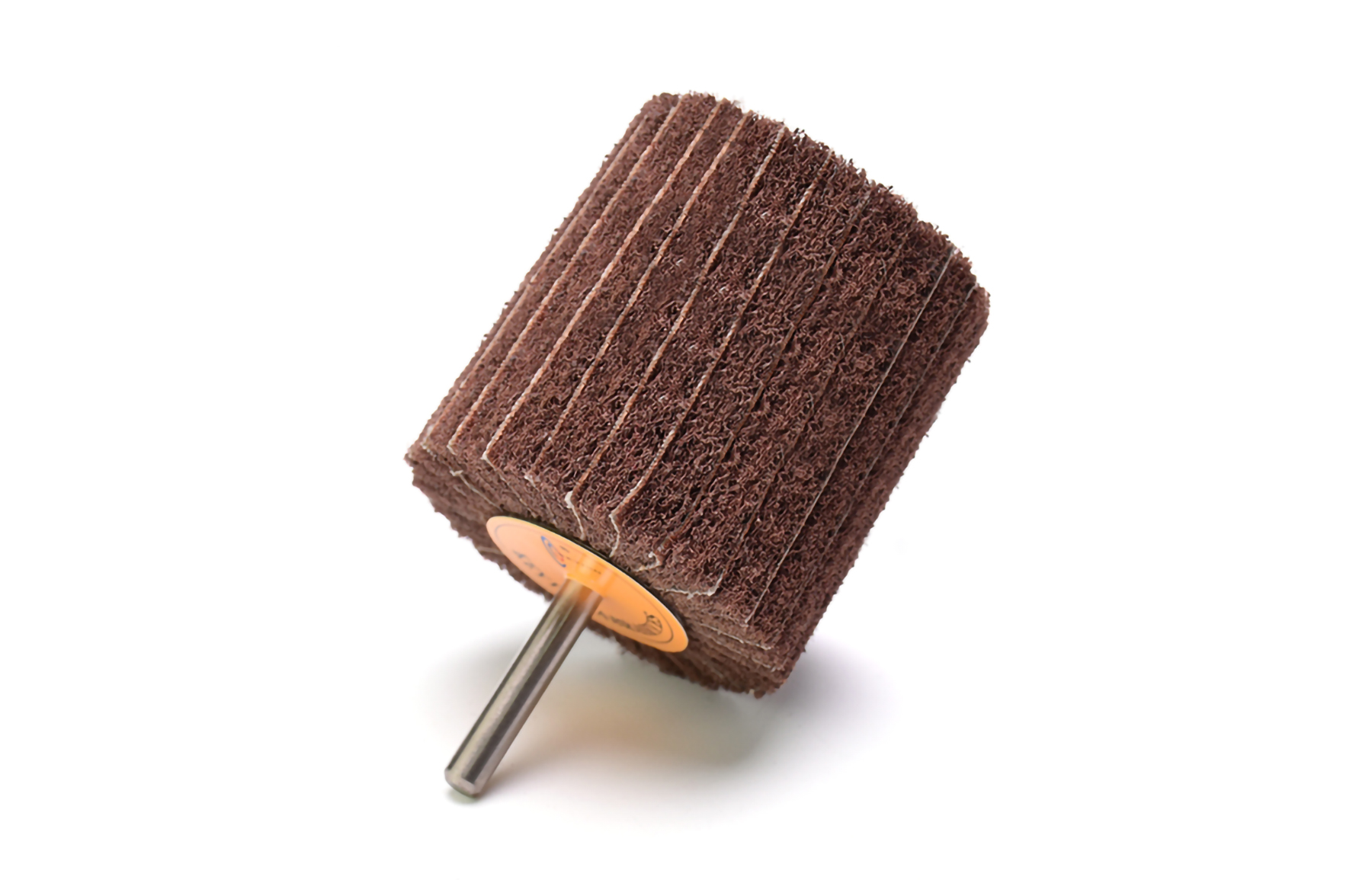

60 50 6 1

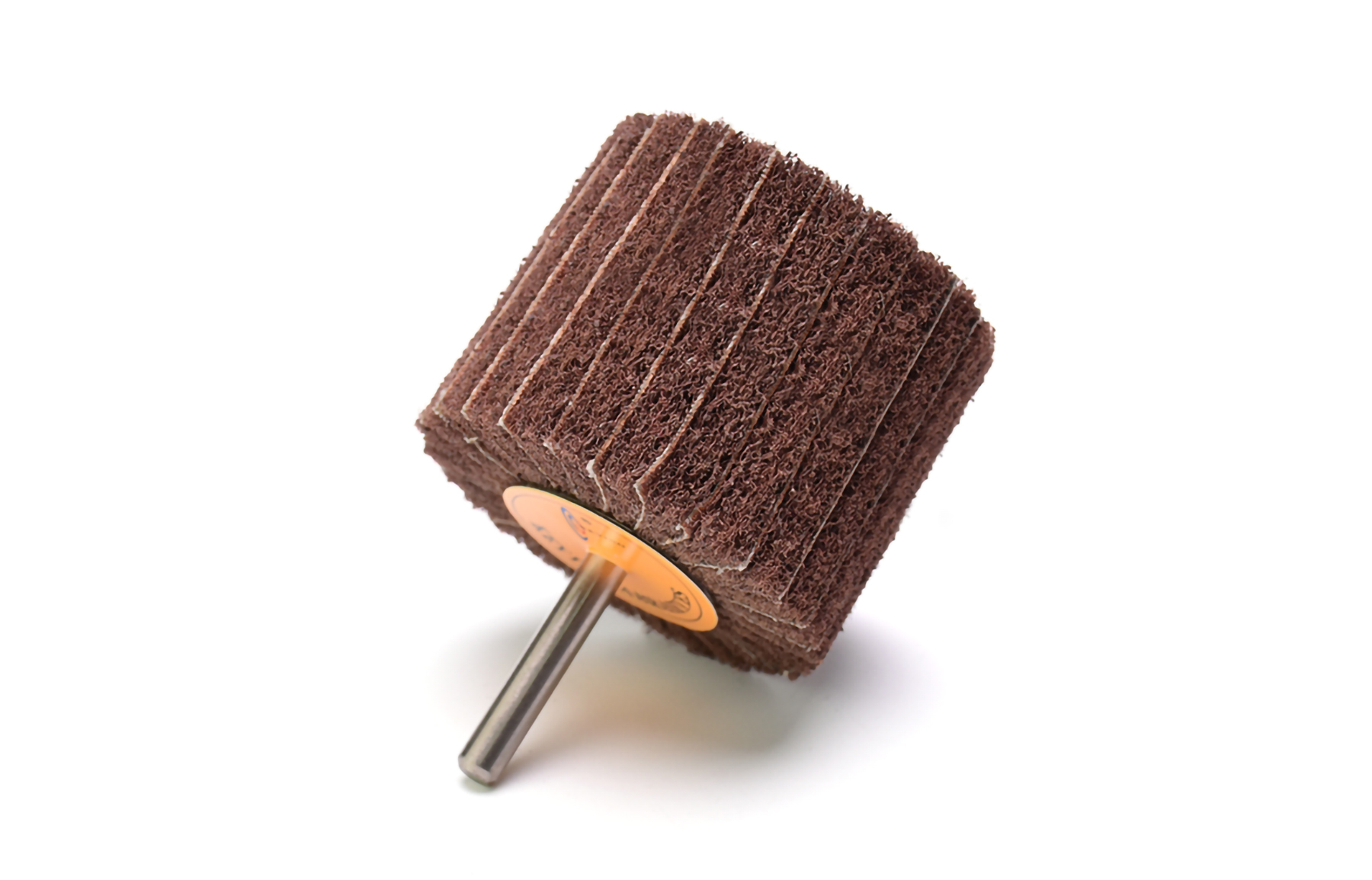

60 40 6 1

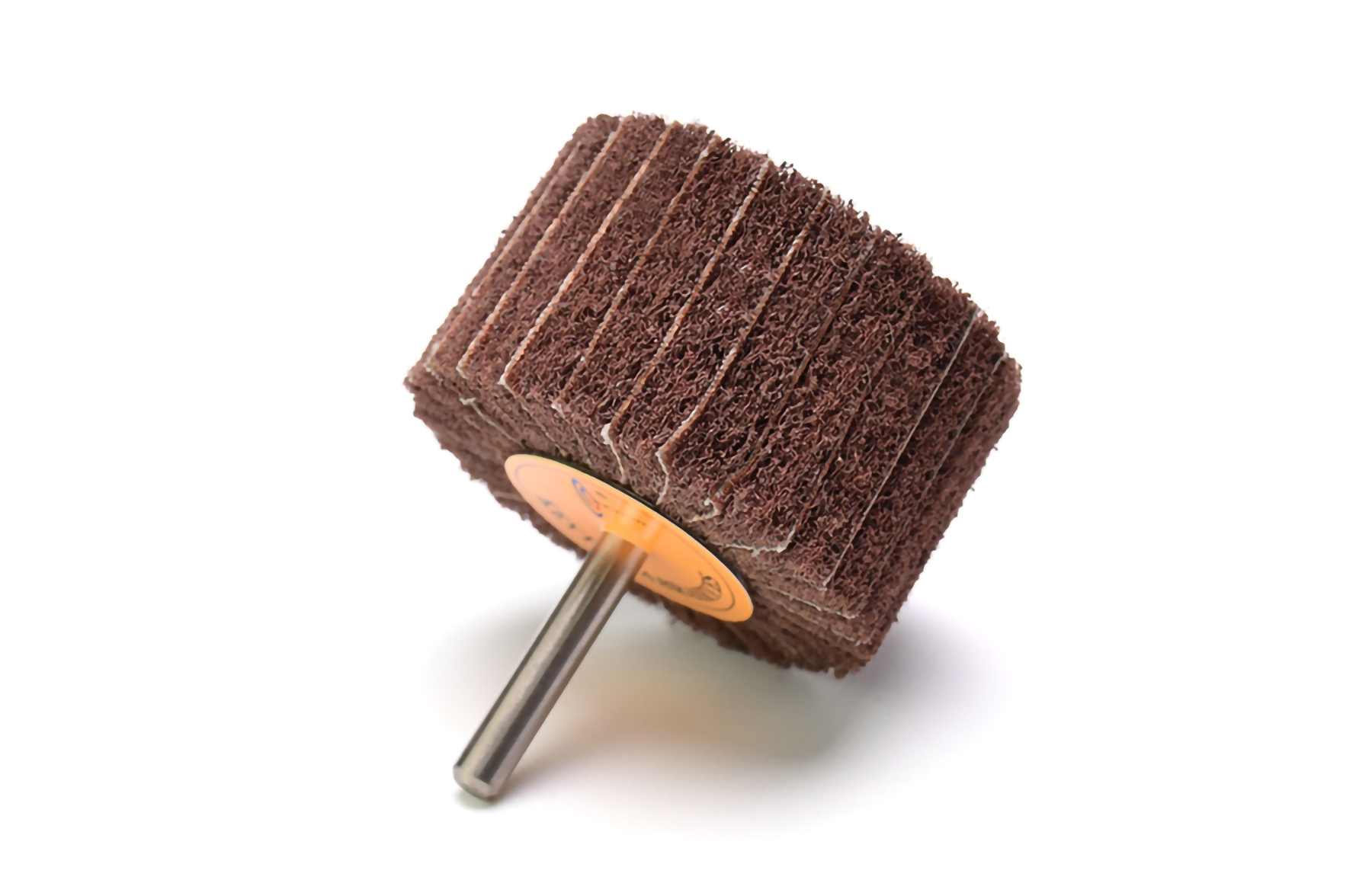

60 30 6 1

Table of Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch



Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch Specification:

  • Diameter: 2-3/8 inch=60mm

  • Max. RPM: 9500 RPM

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC)

  • Grit Size: Coarse-60#/80#, Medium-100#/120#, Fine-150#/180#, Very Fine-240#/320#, Ultra Fine-400#/600#, Micro Fine-800#/1000#

  • Shank Diameter: 3mm, 6mm, 3.175mm, 6.35mm (Other sizes can be customized)


Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch Materials that can be worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Titanium alloys

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Zinc

  • Stainless steel (INOX)

  • Thermoplastics

  • Fiber-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch Applicable Industries

Applications

  • Roughening

  • Deburring

  • Surface work

  • Cleaning

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch Applicable Industries

Safety Warning of Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch

Instructions:

Safety Warning of Non-woven Abrasive Cloth Flap Wheel With Shank 2-3/8inch


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Non-woven Flap Wheel (with Abrasive) Products
Non-woven Abrasive Cloth Flap Wheel With Shank 1-9/16inch
Non-woven Abrasive Cloth Flap Wheel With Shank 1-9/16inch
Non-woven Abrasive Cloth Flap Wheel With Shank 2inch
Non-woven Abrasive Cloth Flap Wheel With Shank 2inch

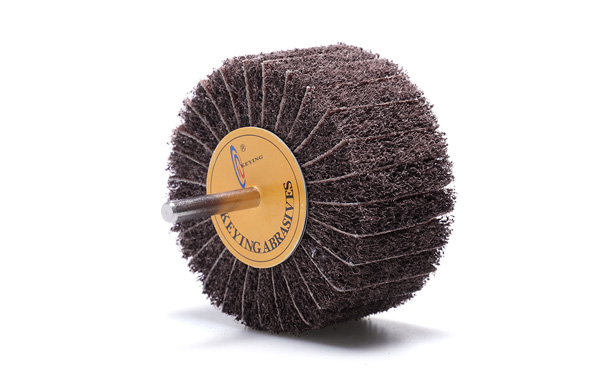

Silicon Carbide Non-woven Abrasive Cloth Flap Wheel With Shank (SC)
