Spiral Band - Cylinder(CL)

spiral band cylinder cl

Spiral Band is a versatile abrasive that can be used to access inner and outer contours for grinding, sanding, and shaping on all metals, including stainless steel and nickel alloys, as well as wood and fiberglass. It conforms to contours to remove parting lines or seams, imperfections, and burrs with abrasive spiral bands

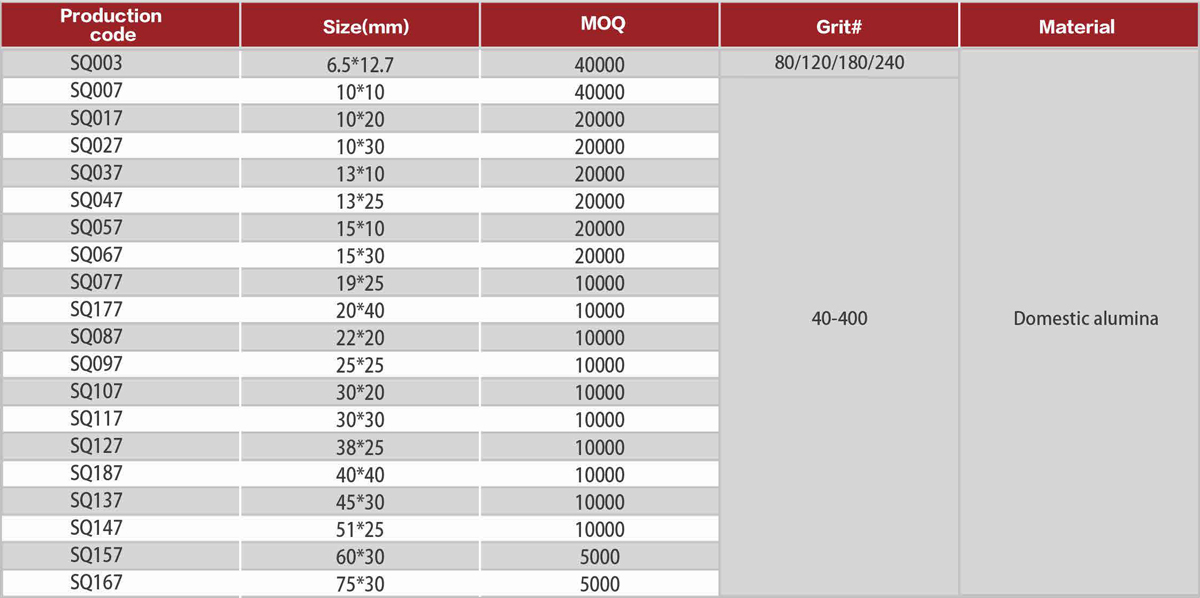

Table Of Spiral Band - Cylinder(CL)

Table Of Spiral Band - Cylinder(CL)


Specification Of Spiral Band-Cylinder (CL):

  • Max. RPM:5000~55000 RPM

  • Outer Diameter:6.5mm/10mm/13mm/15mm/19mm/20mm/22mm/25mm/30mm/38mm/40mm/45mm/51mm

  • Other Raw Materials: Silicon Carbide (SC)

  • Grit Size (Aluminum Oxide): 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#


Spiral Band-Cylinder (CL) Materials that can be worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Bronze

  • Hard non-ferrous metal

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Thermoplastics

  • Fibre-reinforced duroplastics (GRP, CRP)

  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)

  • Steel, cast steel

Spiral Band-Cylinder(CL) Applicable Industries

Applications

  • Roughening

  • Leveling

  • Deburring

  • Surface work

  • Work on edges

  • Sharpening

  • Weld dressing

  • Fine grinding in multiple steps

Spiral Band-Cylinder(CL) Applicable Industries
