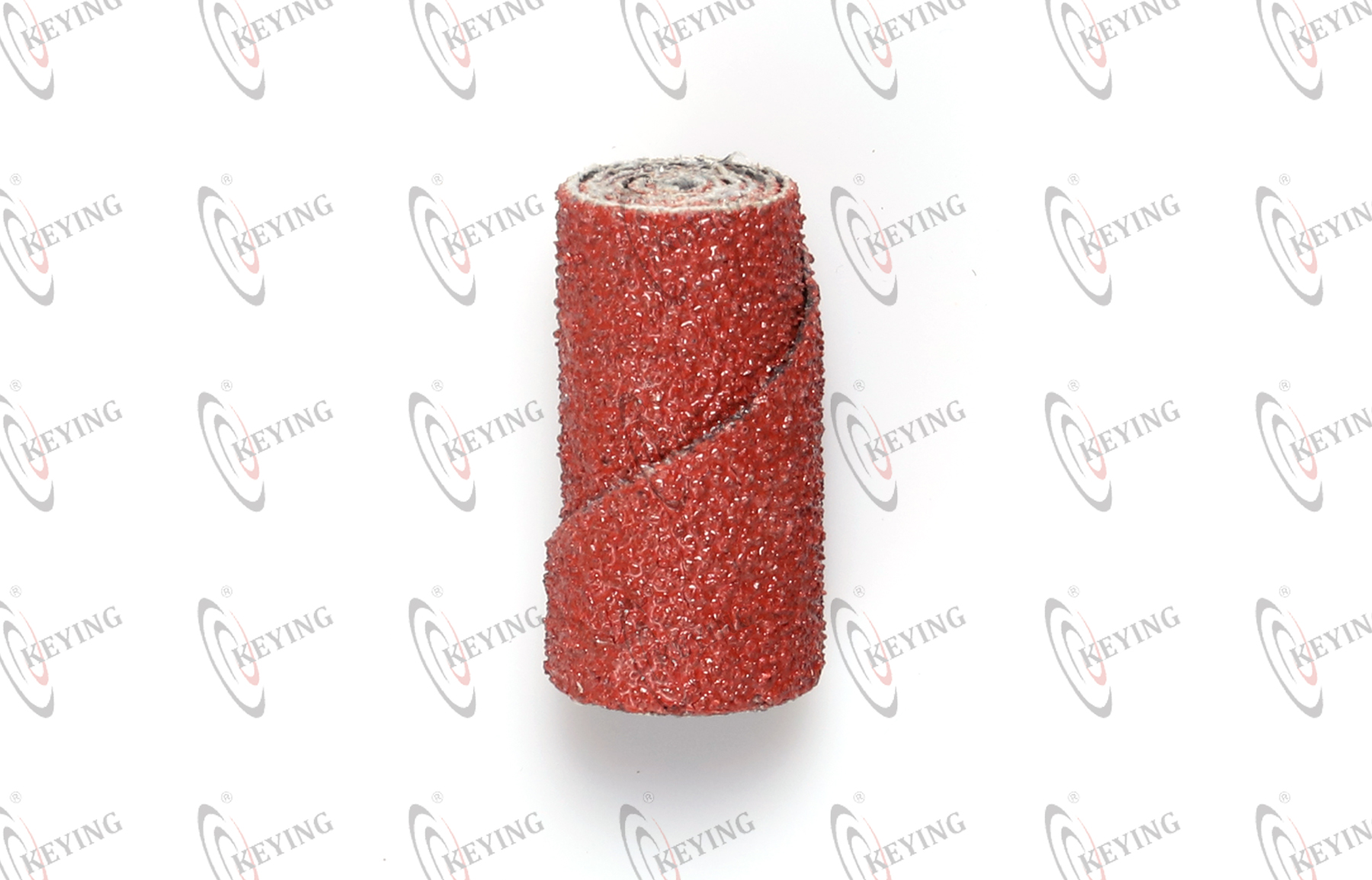

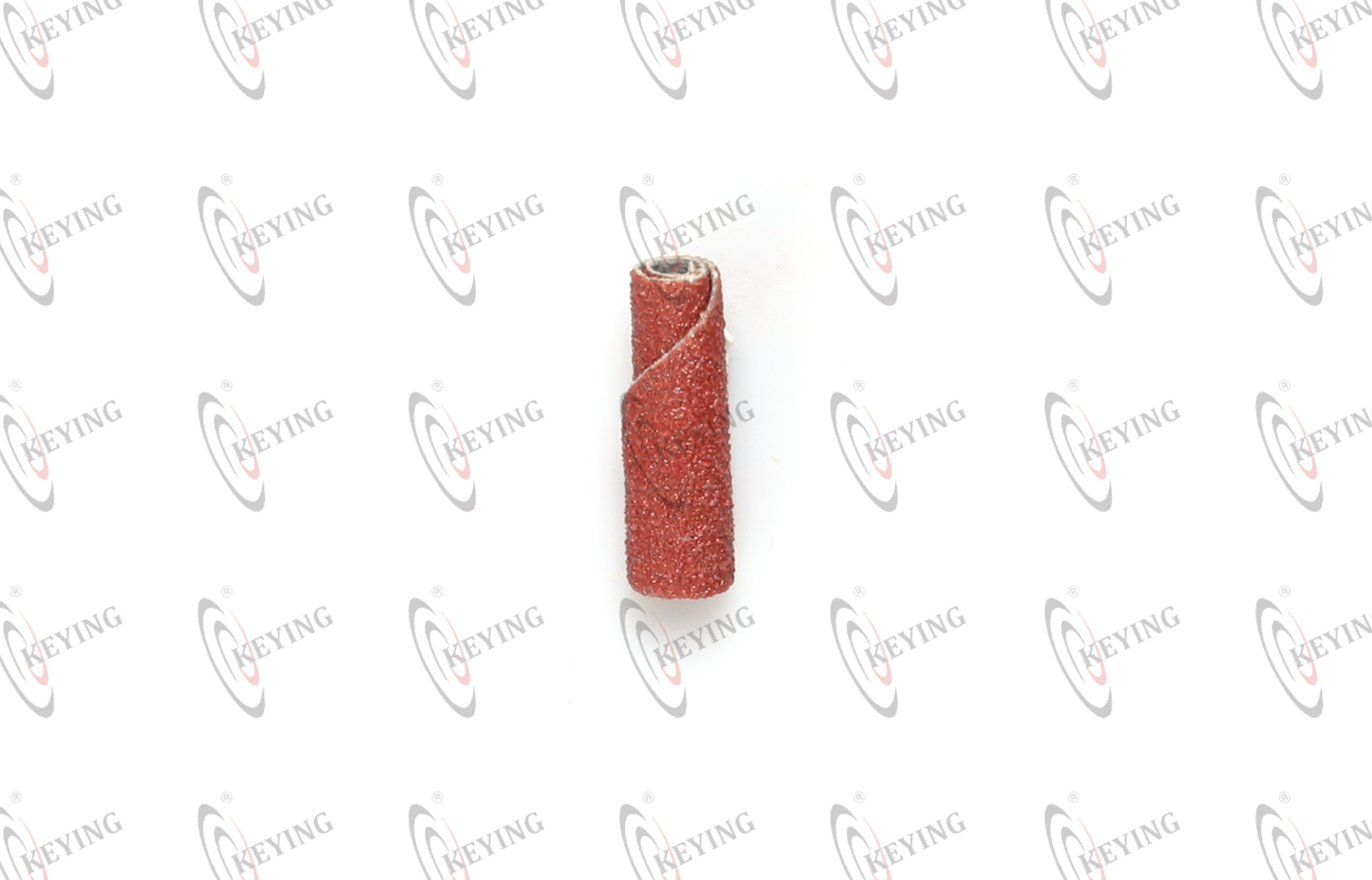

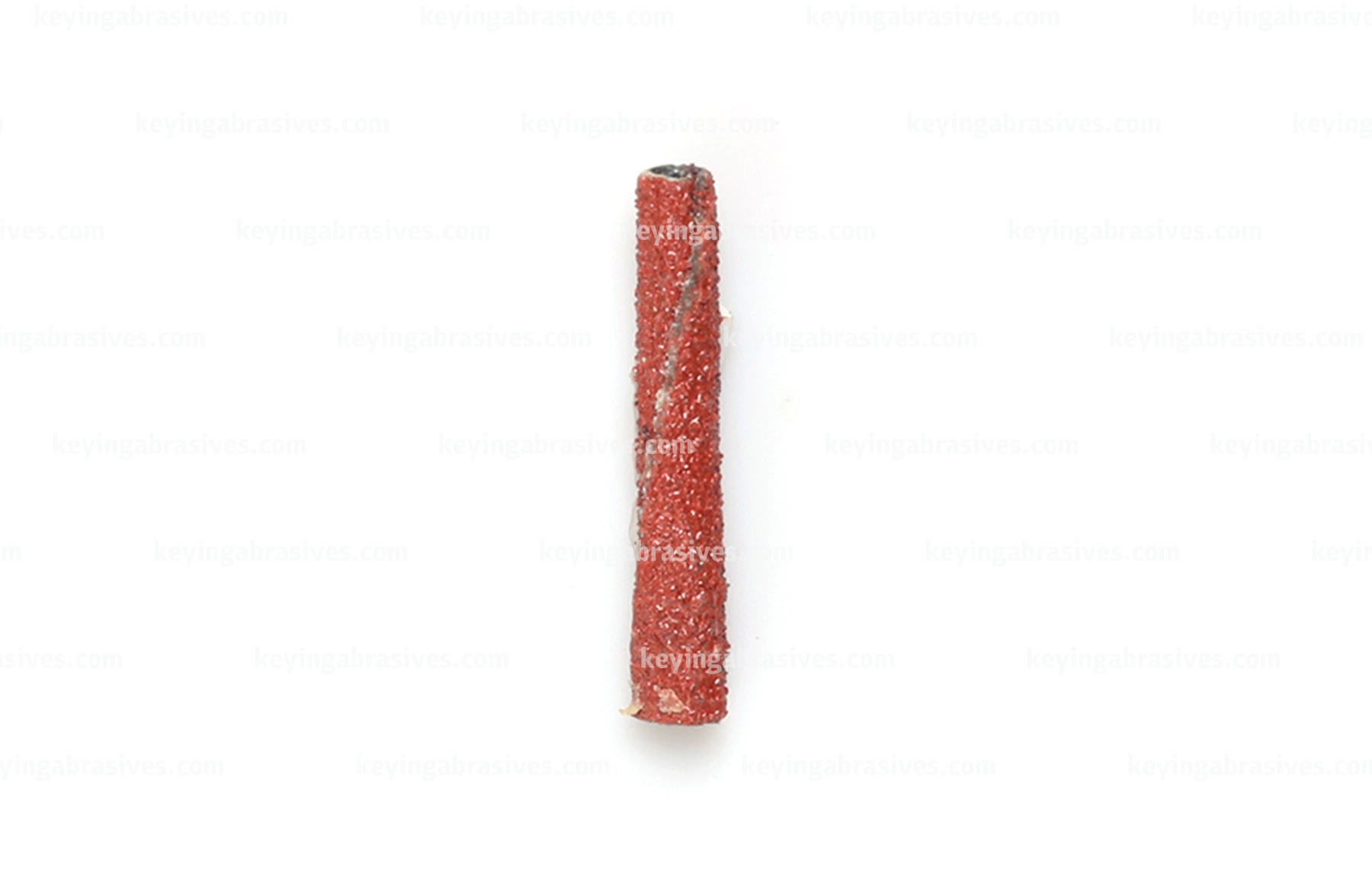

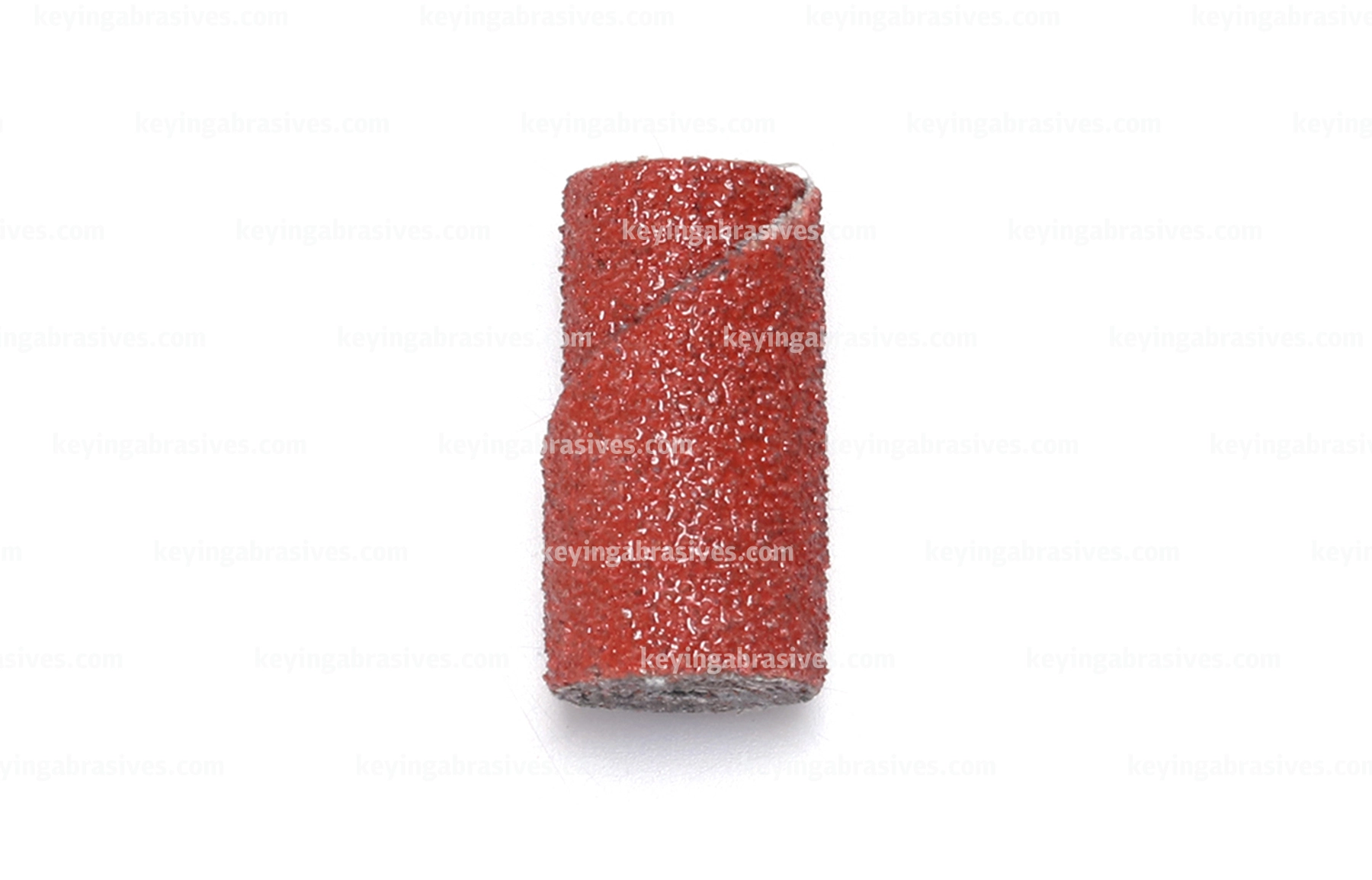

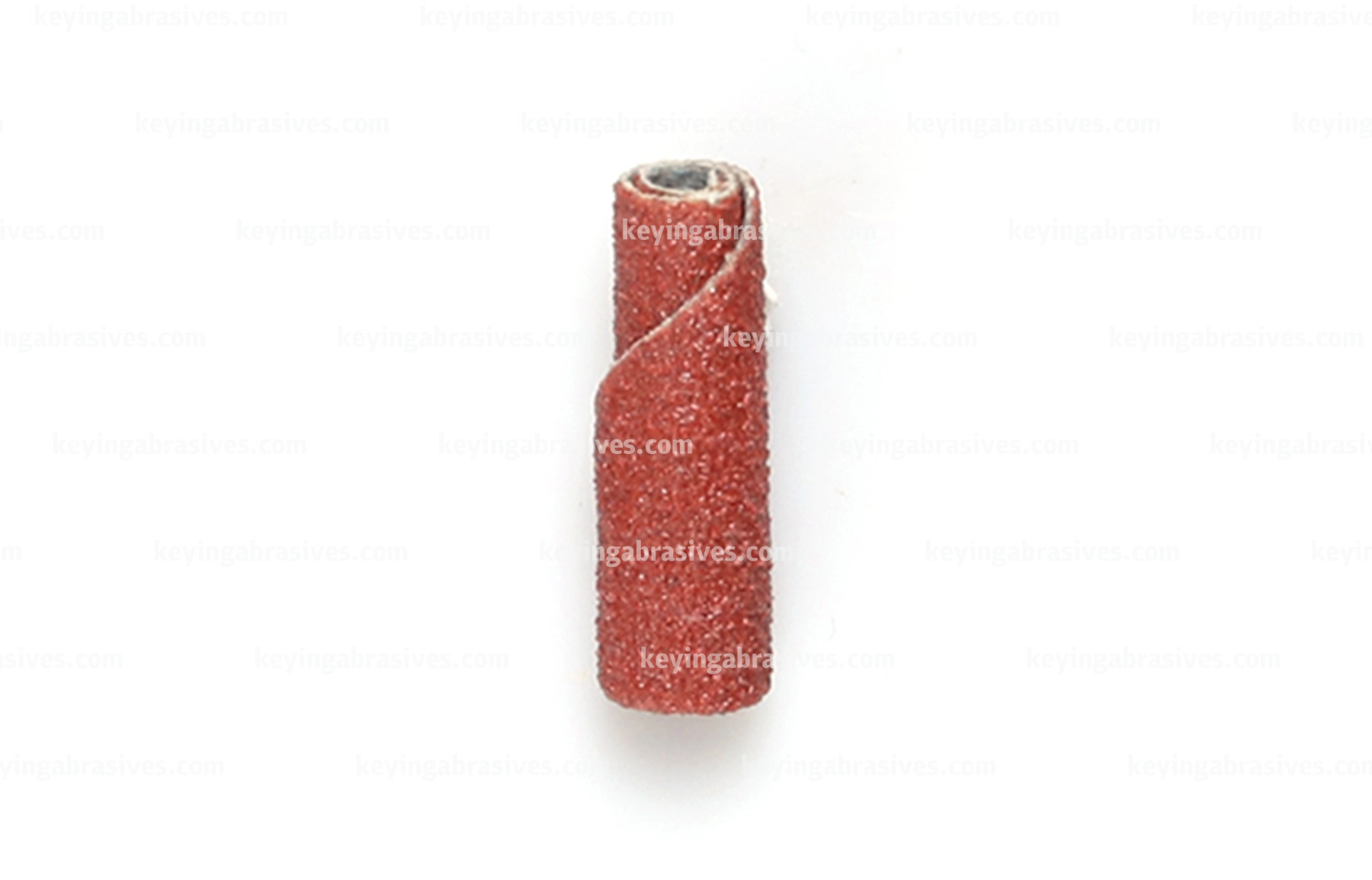

Cartridge Rolls - Cylinder Shape (CL)

Name: Cartridge Rolls - Cylinder Shape (CL)
Brand: Wenling Keying Abrasives Co., Ltd.

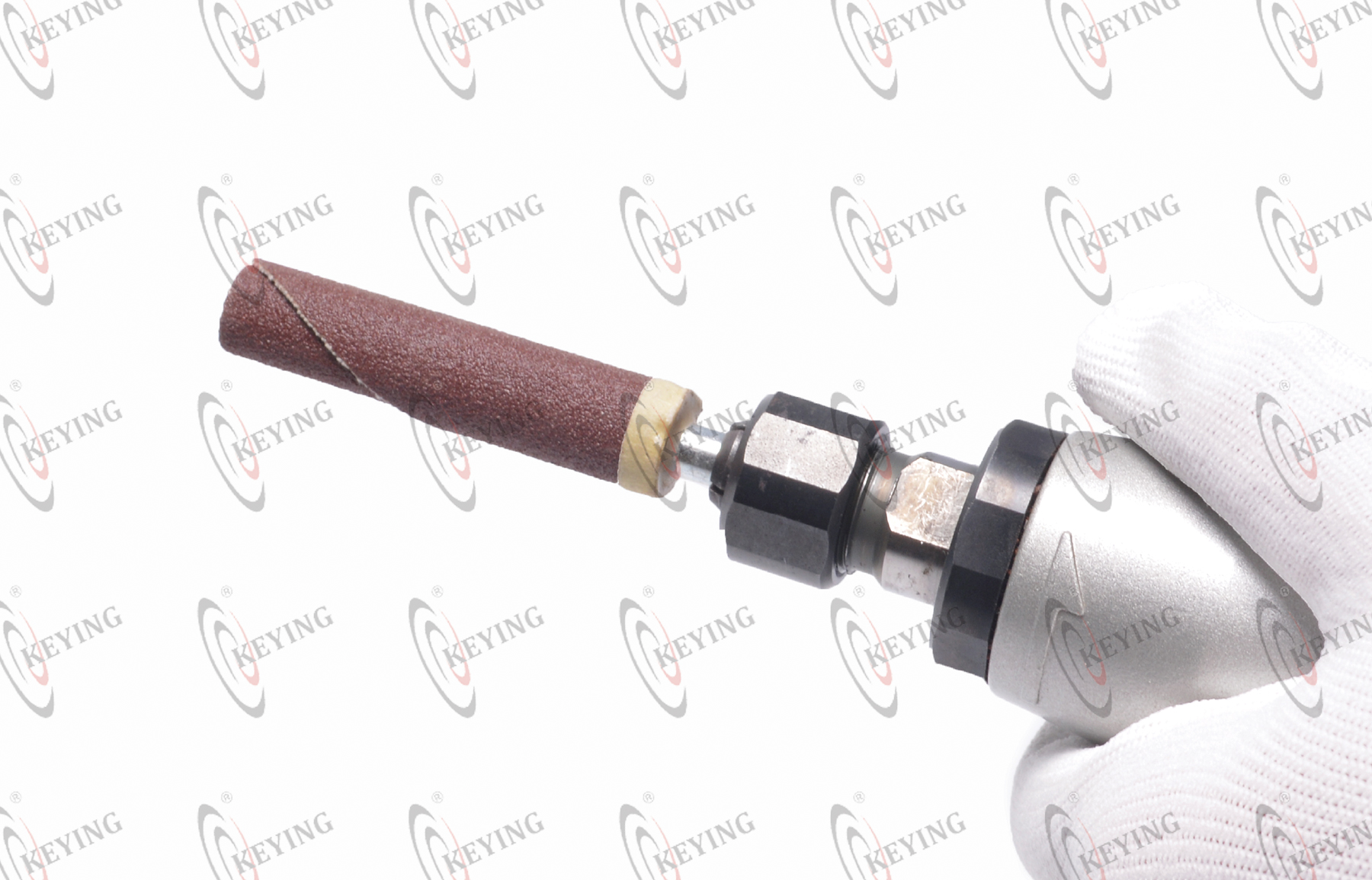

Cartridge Roll gives you easy access to small, hard-to-reach spaces for sanding and finishing. As the outermost abrasive layer wears down, the cloth backing frays to expose fresh abrasive layers for the continued cutting action. It has a closed coat of aluminum oxide abrasive secured with a heat-resistant resin bond.

 Contact us

Call us +86(0)576-86711667

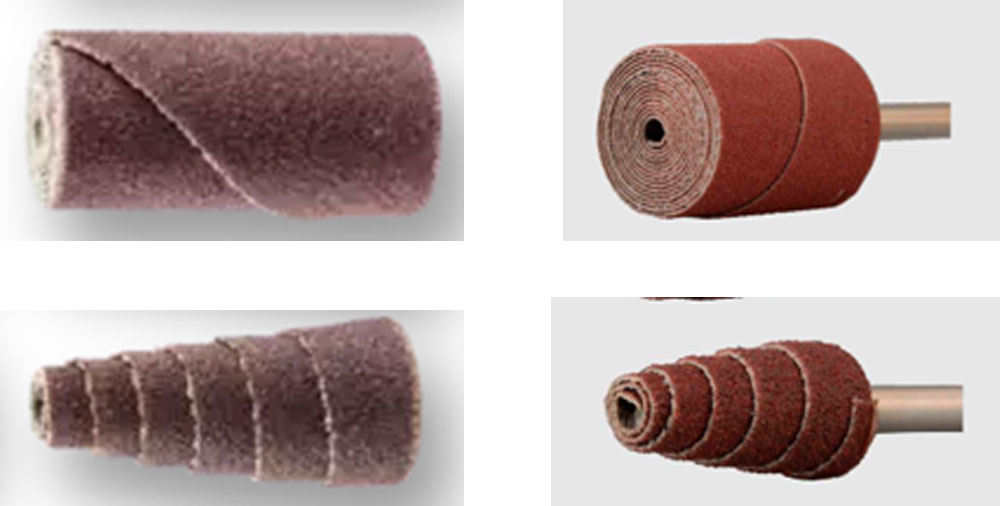

Shape Chart of Cartridge Rolls - Cylinder Shape (CL)

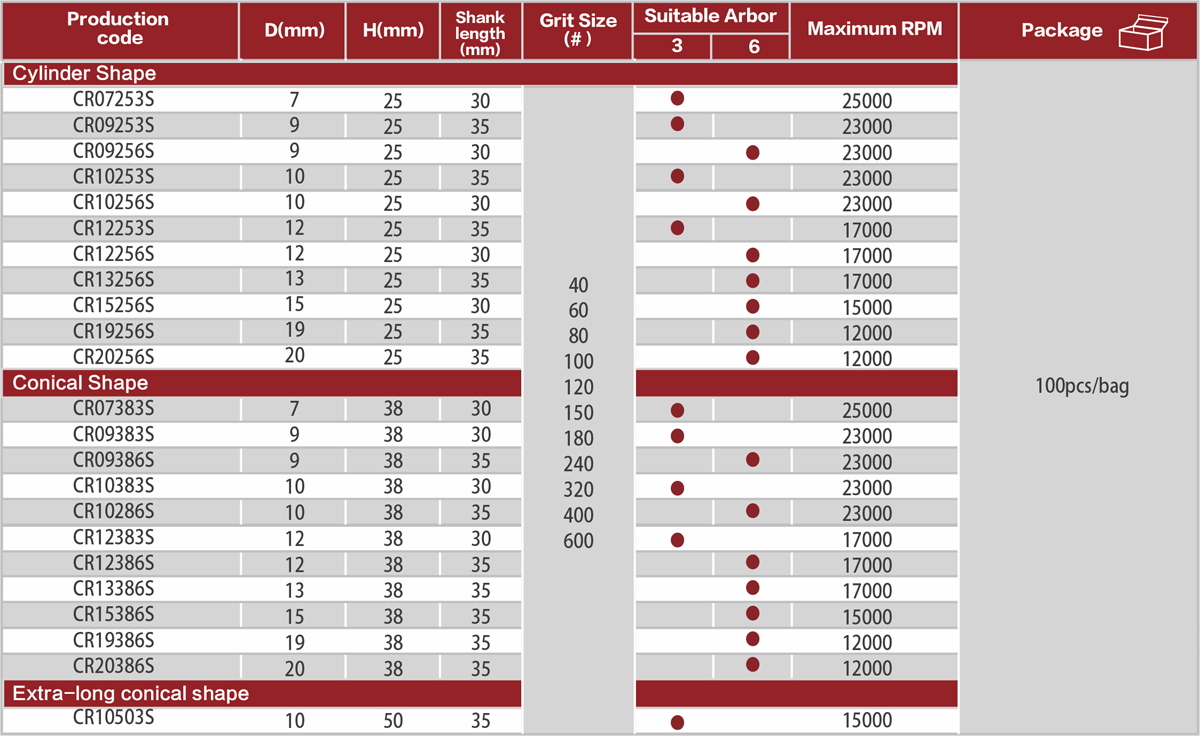

Cartridge Rolls-Cylinder Shape (CL) Cartridge Rolls Size Table

Cartridge Rolls - Cylinder Shape (CL) Specification:

Type: No Shank
Shape: Cylinder Shape
Max. RPM: 12000~25000 RPM
Outer Diameter: 7mm/9mm/10mm/12mm/13mm/15mm/19mm/20mm
Raw Materials: Aluminum Oxide(AO), Zirconia(Z)
Grit Size: 40#/60#/80#/100#/120#/150#/180#/240#/320#/400#/600#

Safety Warning of Cartridge Rolls - Cylinder Shape (CL)

Instructions:


Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
