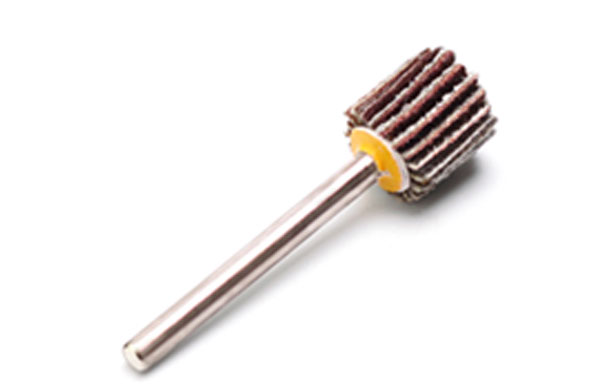

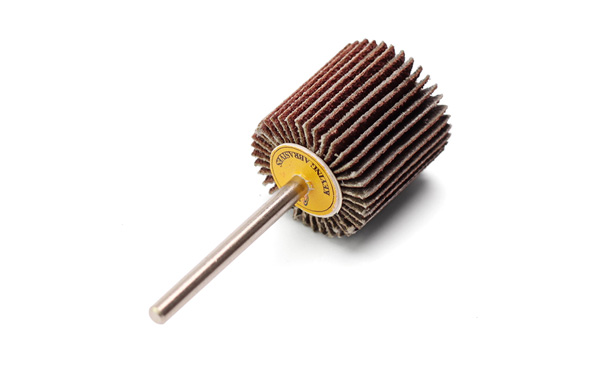

Flap Wheel - Cylinder Shape (CL)

flap wheel cylinder shapecl
flap wheel cylinder shape cl

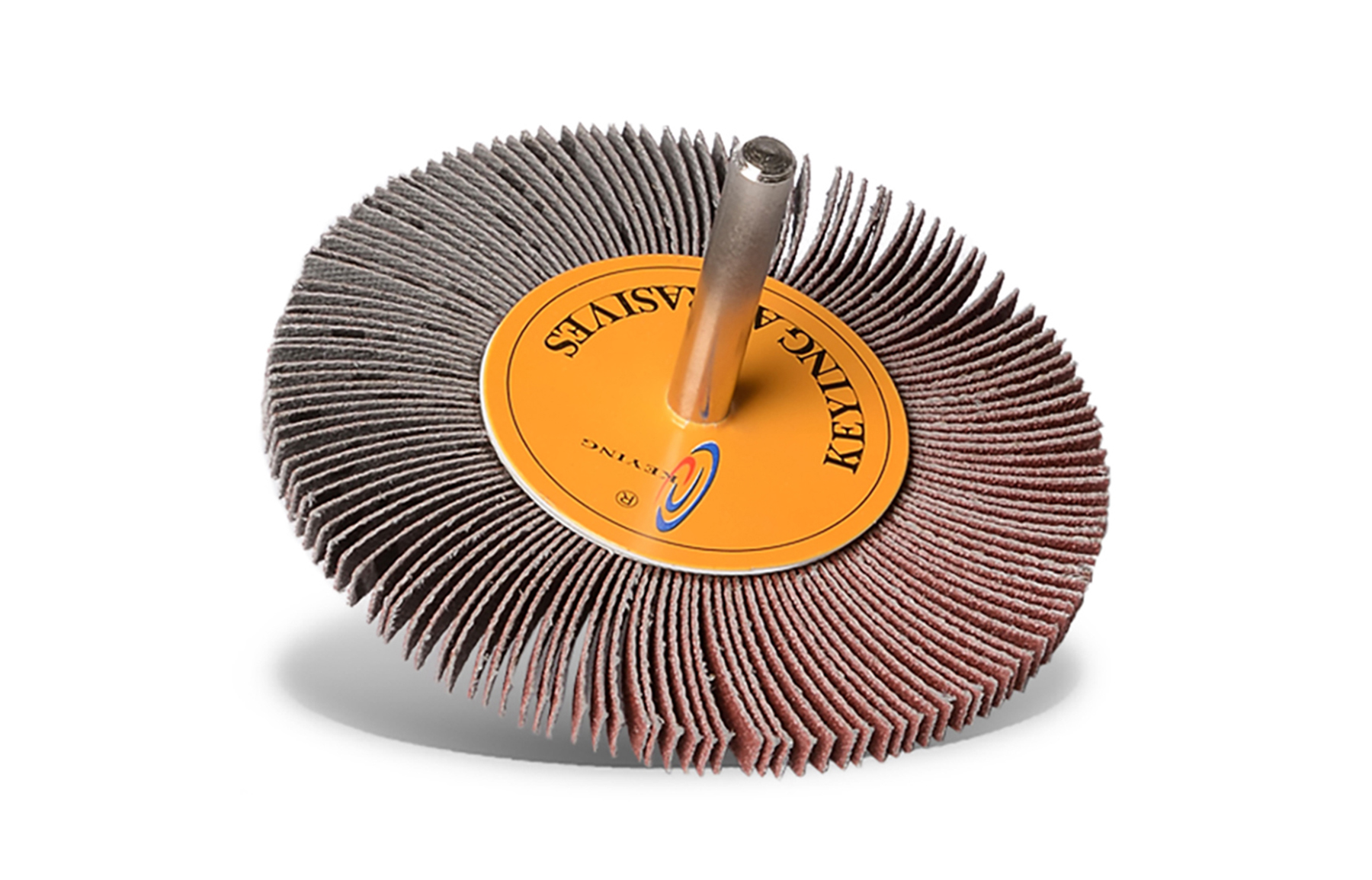

80 5 6

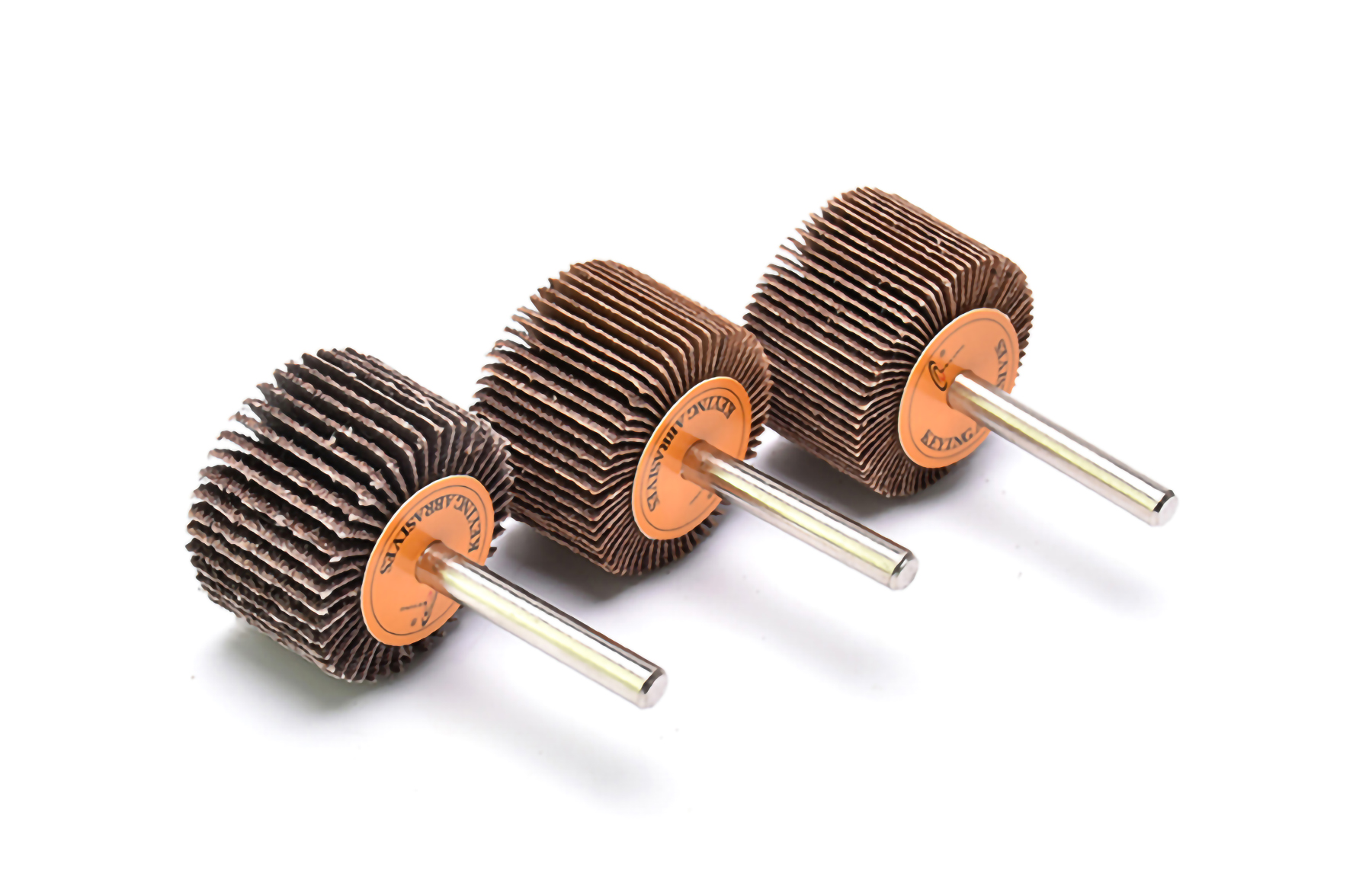

16889
16883

On the Mounted Flap Wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.

Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.

Shape Chart of Flap Wheel - Cylinder Shape(CL)

Shape Chart of Flap Wheel - Cylinder Shape(CL)


Specification of Flap Wheel - Cylinder Shape(CL)

  • Max. RPM: 6120~76300 RPM

  • Shape: Cylinder Shape

  • Diameter: 10mm/15mm/20mm/25mm/30mm/40mm/50mm/60mm/75mm/80mm/100mm

  • Shank Diameter: 3mm/6mm/3.175mm/6.35mm/8mm/10mm (Other sizes can be customized)

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 40#~1200#


Grit Size Table Corresponding To Raw Materials of Flap Wheel - Cylinder Shape(CL)

Grit Size Table Corresponding To Raw Materials of Flap Wheel - Cylinder Shape(CL)


Flap Wheel - Cylinder Shape(CL) Materials that can be Worked:


Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages of end grinder flapper wheels


- High flexibility for optimum adaptation to contours

- Steadily high stock removal throughout the entire tool life, with the aggressive coated abrasive resin being constantly liberated

- The design of opening spaces and flat bonding enables the abrasive tools to be used in a face-down position, allowing for close contact with edges and corners.


Flap Wheel-Cylinder Shape (CL) of Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel-Cylinder Shape (CL) of Applicable Industries

Application Purpose

  • Levelling

  • Deburring and Welding grinding

  • Structuring Surfaces

  • Step-by-step fine grinding

Flap Wheel-Cylinder Shape (CL) of Applicable Industries

Safety Warning of Flap Wheel-Cylinder Shape (CL)

 Instructions:

Safety Warning of Flap Wheel-Cylinder Shape (CL)


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
