Name: Flap Wheel M10 With Shank
Brand: Wenling Keying Abrasives Co., Ltd.

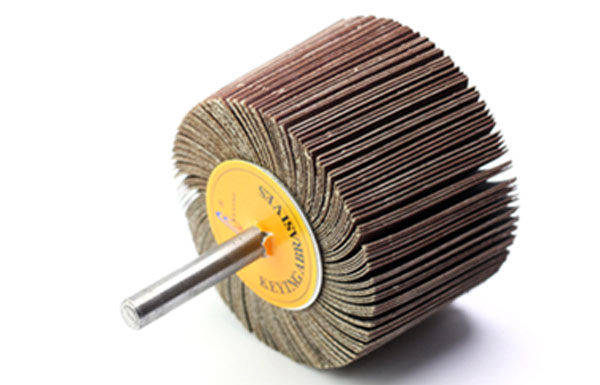

Flap Wheel M10 With Shank

The model of this non-standard customized Flap Wheel with Shank is M10, the specification is 10mm Shank diameter, and the middle of the page wheel adopts imported high-quality special glue. Due to the different use and particularity of the workpiece in industrial processing, the conventional type of Flap wheel with Shank cannot be satisfied, so we support sample processing and map processing. In order to improve the application ability of the Mounted Flap wheel in processing, customized for customers.

 Contact us

Call us +86(0)576-86711667

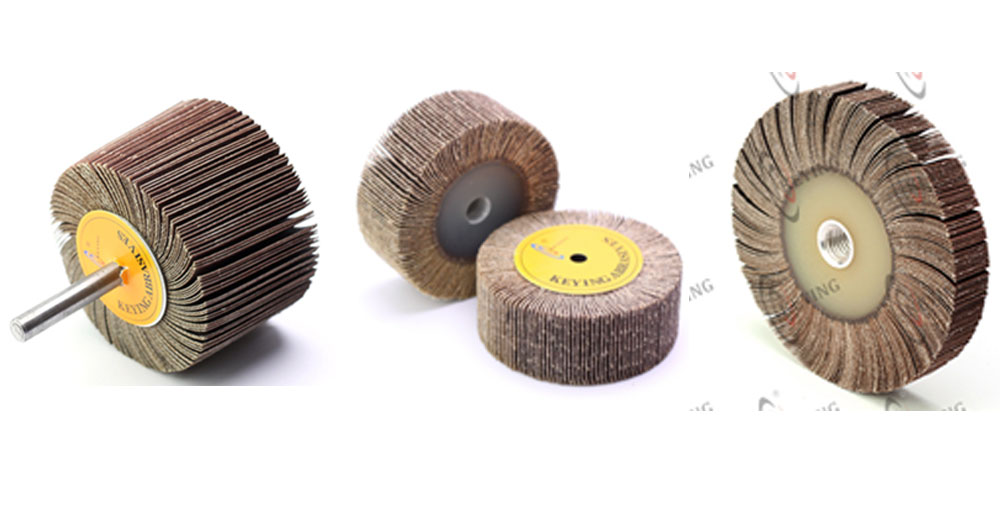

Shape Chart of Flap Wheel M10 With Shank

Flap Wheel M10 With Shank Specification:

Max. RPM: 25000 RPM
Shank Diameter: 10mm
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size: 60#~600#

Flap Wheel M10 With Shank Materials that can be Worked:

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface and slit gaps that difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force effeciently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedure.

Advantages：

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process as face-down position, so can touch closely to the edges and corners.

Flap Wheel M10 With Shank Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Flap Wheel M10 With Shank Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Safety Warning of Flap Wheel M10 With Shank

Instructions:

Safety Warning of Flap Wheel M10 With Shank

Please try to choose an operation indoor environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal loading on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to different grit flap wheels.

Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
