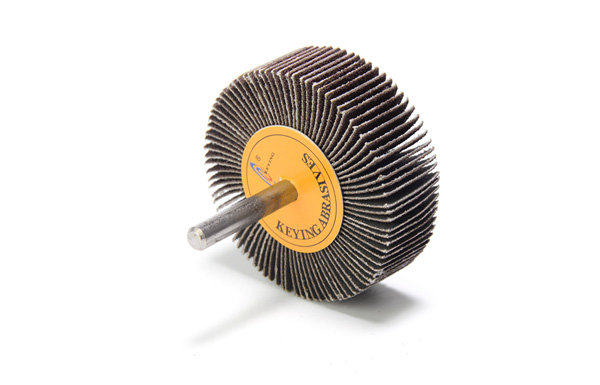

Silicon Carbide Flap Wheel (SC)

silicon carbide flap wheel sc

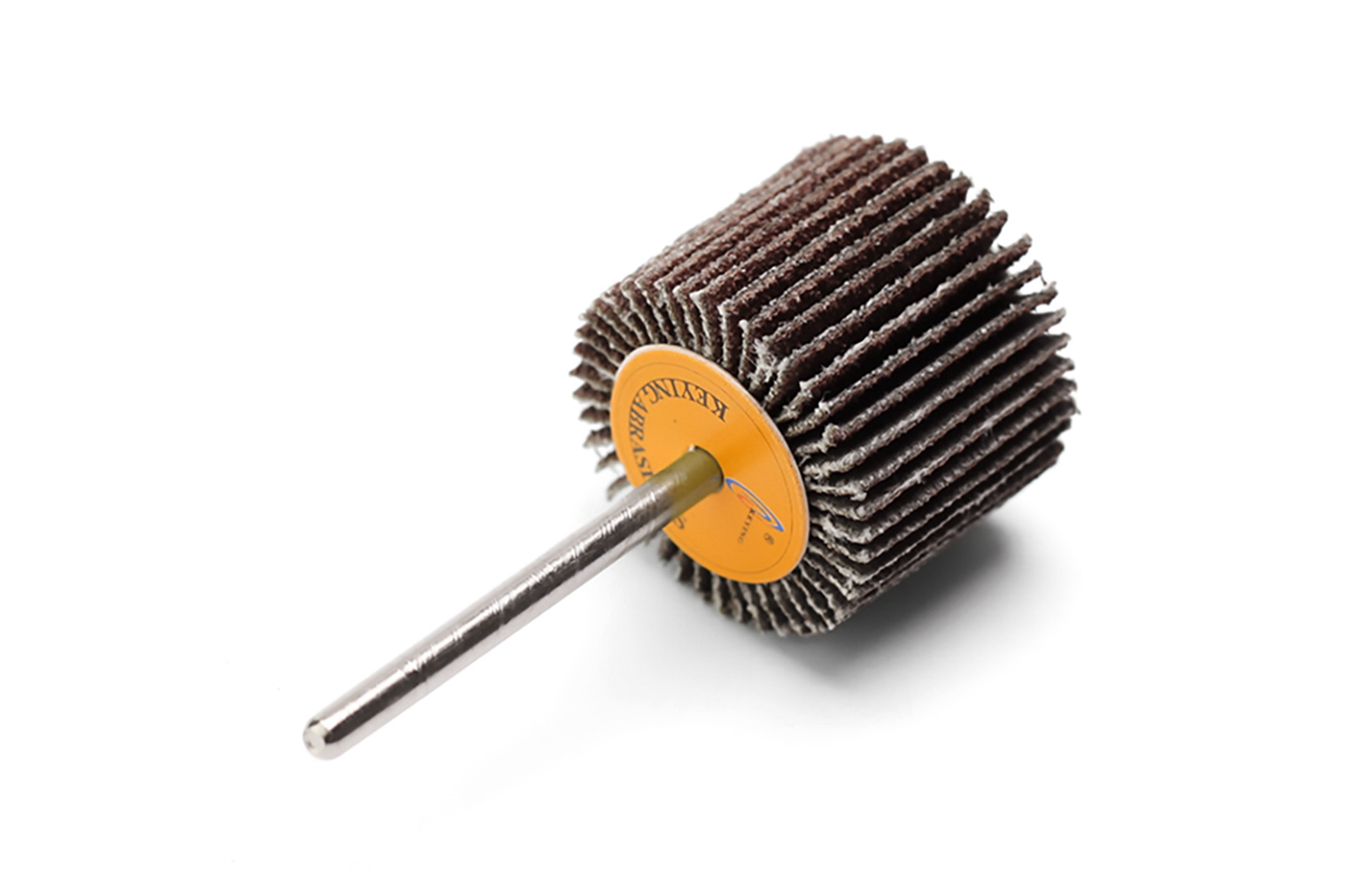

mounted flap wheels 25 20 3 sc

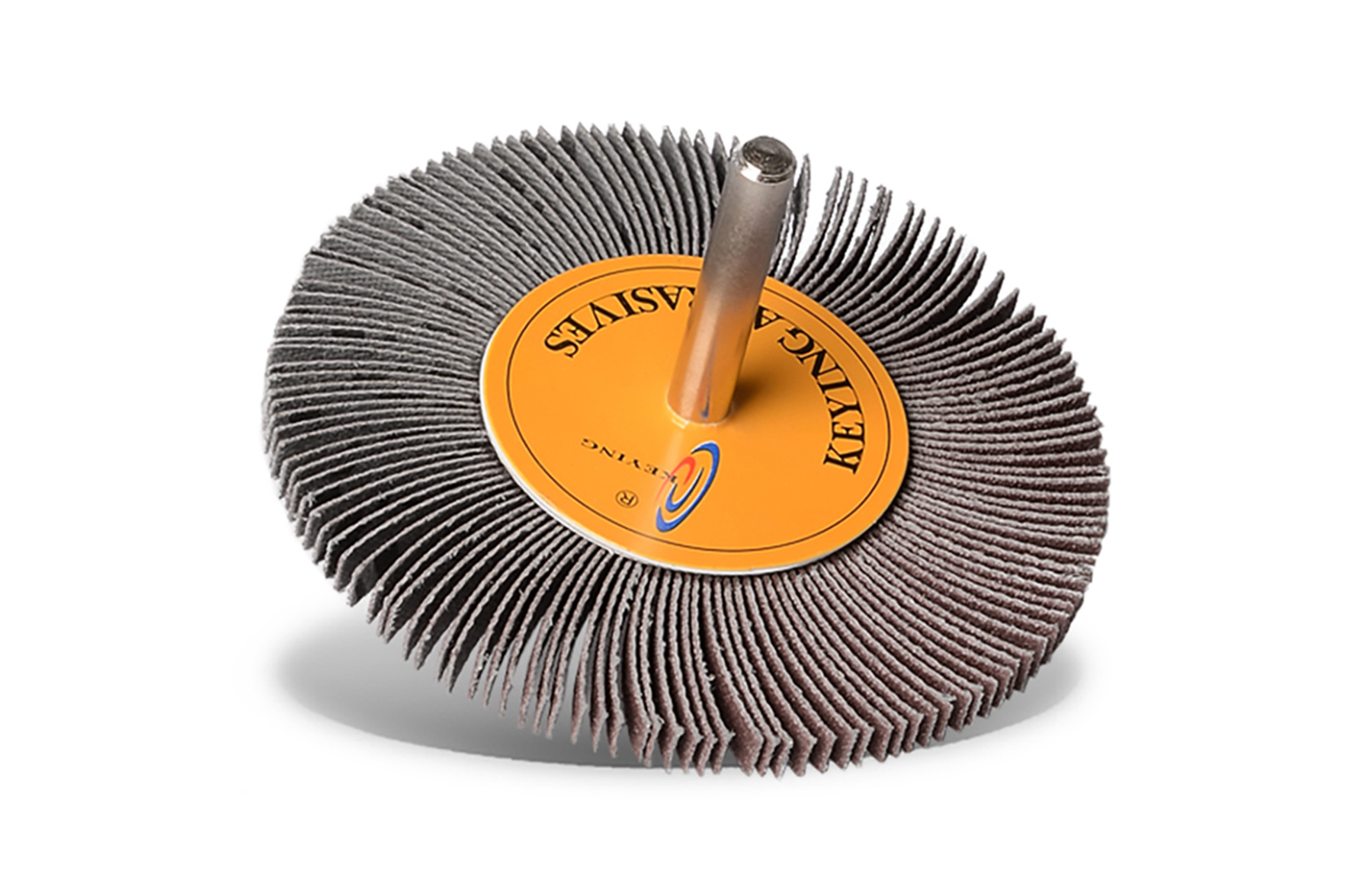

mounted flap wheels 80 5 6 sc

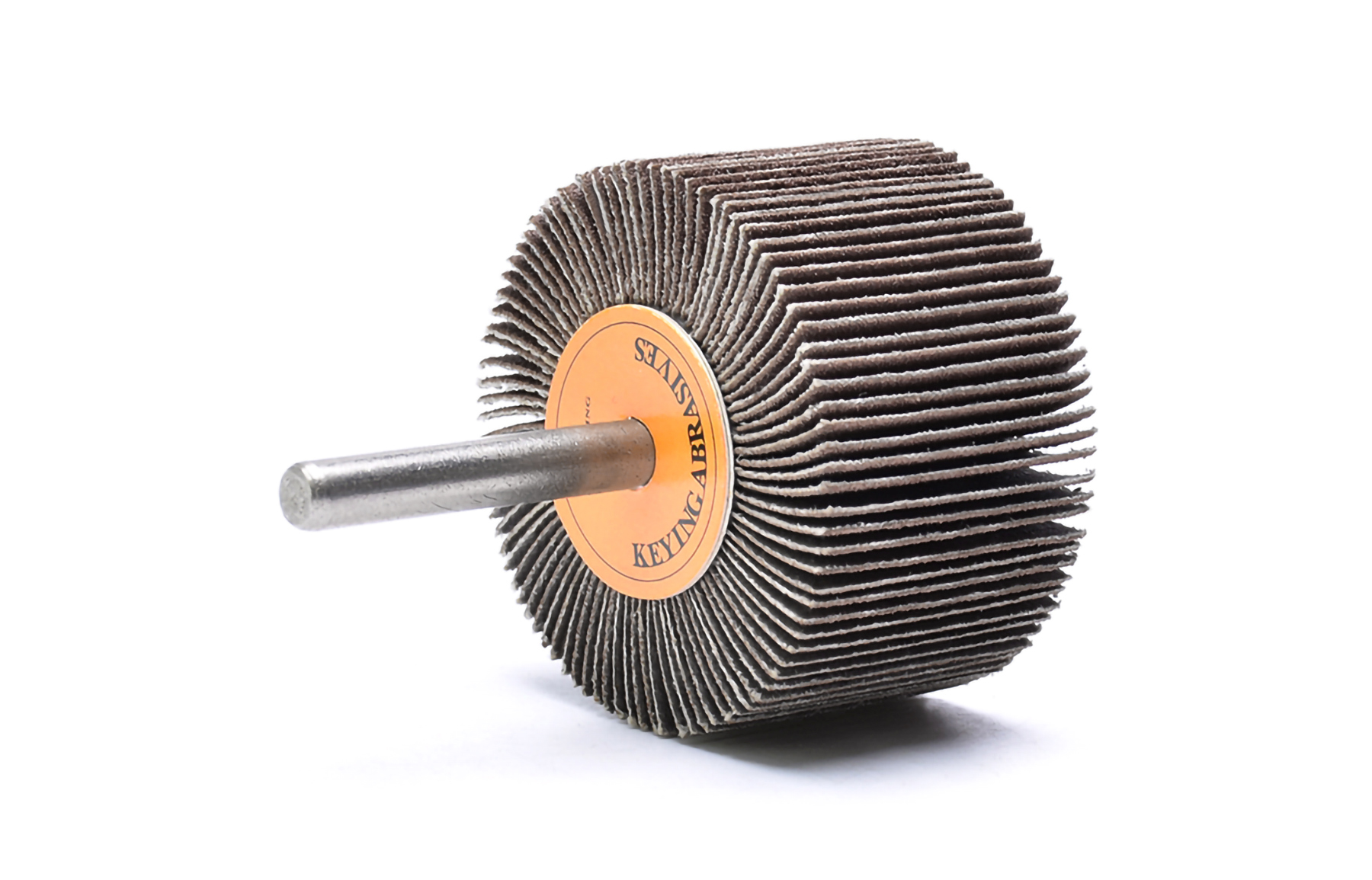

mounted flap wheels 50 30 6 sc

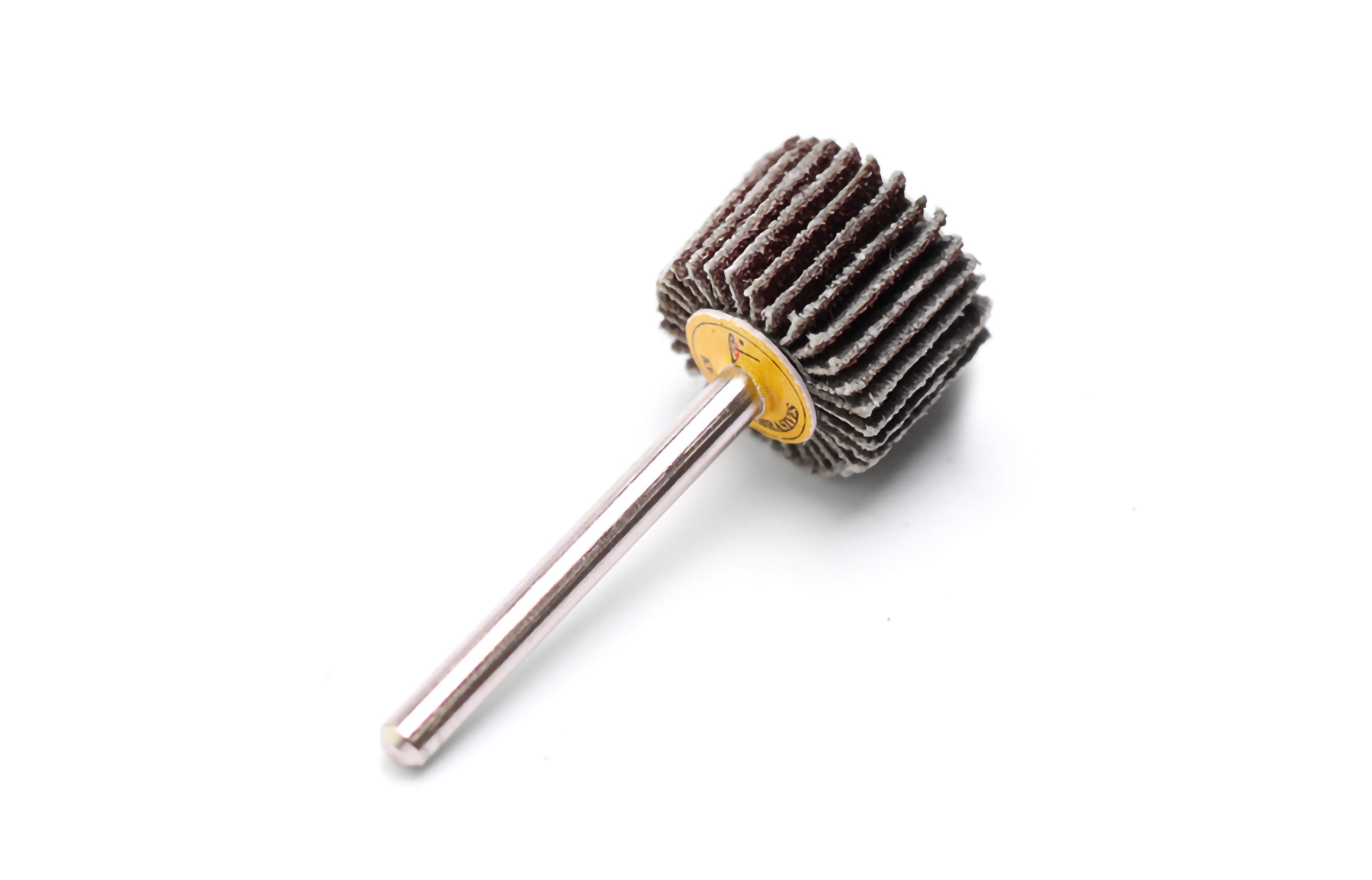

mounted flap wheels 15 10 3 sc

For general grinding of parts made of aluminum, copper, bronze, titanium, and fiber-reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation industry, especially since silicon carbide is the only approved abrasive, such as engine components.

Silicon Carbide Flap Wheel (SC) Grit Size Table Corresponding To Raw Materials

Application·Removal of rust
·Weld preparation
·Removing discoloration
·Sanding down
·Surface finishing
·Deburring
·Smoothing and blending of flaws
BrandKEYINGCommodity CodeFSFS361+Flat+4"+Grit+SC
Compatible ToolAngle grinderCountry of OriginChinaRaw MaterialSilicon Carbide
BackingFiberFor Use OnGlass, Stone, Concrete, Granite, Marble, Ceramic, Rubber, Plastic, FiberglassGrit Size16#, 24#, 36#, 40#, 50#, 60#, 80#, 100#, 120#
Diameter Metric4"/4.5"/5"/6''/7''IndustriesAutomobile manufacturing, construction, light industry, shipbuilding, machinery manufacturingHole Diameter16mm/22mm
Maximum RPM8500-15300Type of hole4 Slotted, 8 Slotted, 6Slitted, FlatStandard Pack Quantity25pcs


Silicon Carbide Flap Wheel (SC) Specification

  • Max. RPM: 6120~76300 RPM

  • Other Raw Materials: Aluminum Oxide(AO), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size(Silicon Carbide): 120#/180#/240#/320#/400#/600#/800#/1200#/1500#/2000#


Silicon Carbide Flap Wheel (SC)Materials that can be worked

  • Aluminium

  • Bronze

  • Stone

  • Titanium

  • Titanium alloys

  • Thermoplastics

  • Stainless steel (INOX)

  • Other non-ferrous metals

  • Hard non-ferrous metal

  • Fiber-reinforced duroplastics (GRP, CRP)

Silicon Carbide Flap Wheel (SC) Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■Tool and mould processing

■ Pipeline

■Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Silicon Carbide Flap Wheel (SC) Applicable Industries

Application Purpose

  • Levelling

  • Deburring and Welding grinding

  • Structuring Surfaces

  • Step-by-step fine grinding

Silicon Carbide Flap Wheel (SC) Applicable Industries

Safety Warning of Silicon Carbide Flap Wheel (SC)

Instructions:

Safety Warning of Silicon Carbide Flap Wheel (SC)


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
