Straight Hole Flap Wheel M10

aluminum oxide straight hole flap wheel ao
straight hole flap wheel m8 2

This non-standard custom Mounted Flap Wheel is a Straight Hole Type, common specifications have 8mm hole and 10mm hole.This one is M10 Straight Hole Flap Wheel, and the middle of the Flap Wheel adopts imported high-quality special glue. Due to the different use and particularity of the workpiece in industrial processing, the conventional type of Mounted Flap Wheel can not be satisfied, so we support sample processing and map processing. In order to improve the application ability of movable handle page wheel in processing, customized for customers.

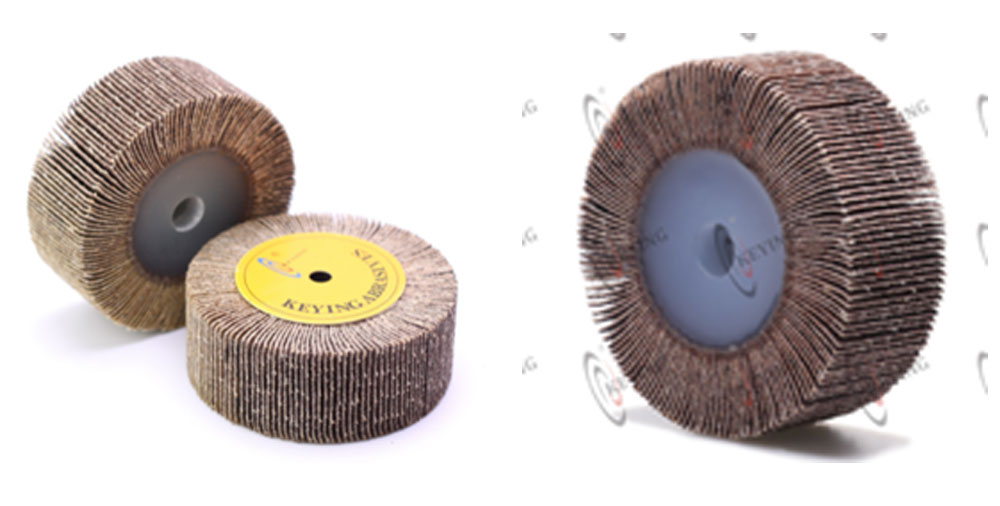

Shape Chart of Straight Hole Flap Wheel M10

Shape Chart of  Straight Hole Flap Wheel M10

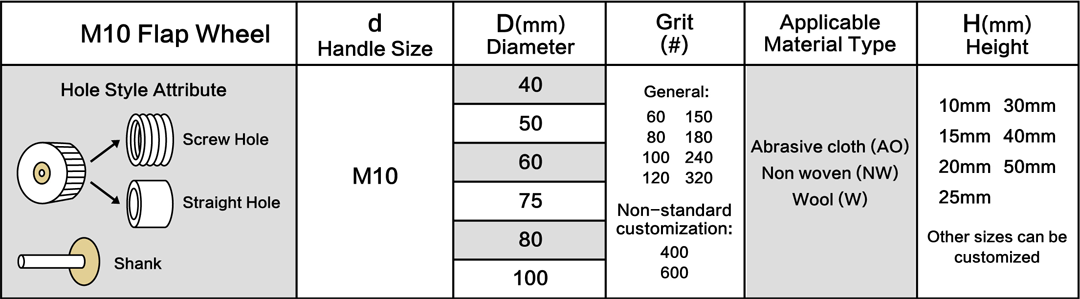

Shape Chart of M10 Flap Wheel Size Table


Shape Chart of M10 Flap Wheel Size Table

Straight Hole Flap Wheel M10 Specification

  • Max. RPM: 25000 RPM

  • Center Hole Diameter: 10mm

  • Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size: 60#~600#


Straight Hole Flap Wheel M10 Materials that can be Worked:

Flap Wheels with Shank

Flap wheels with Shank are suitable for grinding small areas, dead angles, inner hole surfaces, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages:

High flexibility to optimum adaptation to contours

Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so they can touch closely to the edges and corners.

Straight Hole Flap Wheel M10 Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Straight Hole Flap Wheel M10 Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Straight Hole Flap Wheel M10 Applicable Industries

Safety Warning of Straight Hole Flap Wheel M10

Instructions:

Safety Warning of Straight Hole Flap Wheel M10


Safety Warning:

The clamping length between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
