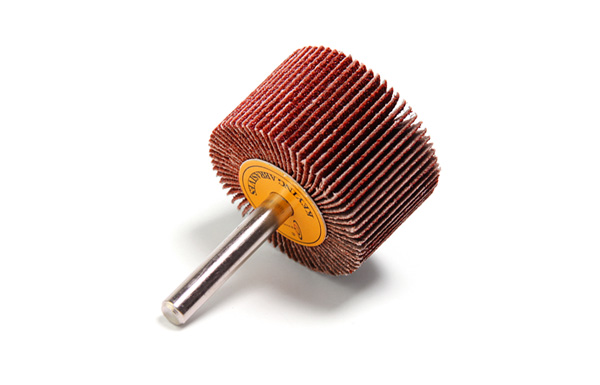

Aluminium Oxide Ceramic Flap Wheel (CAO)

aluminium oxide ceramic flap wheel cao

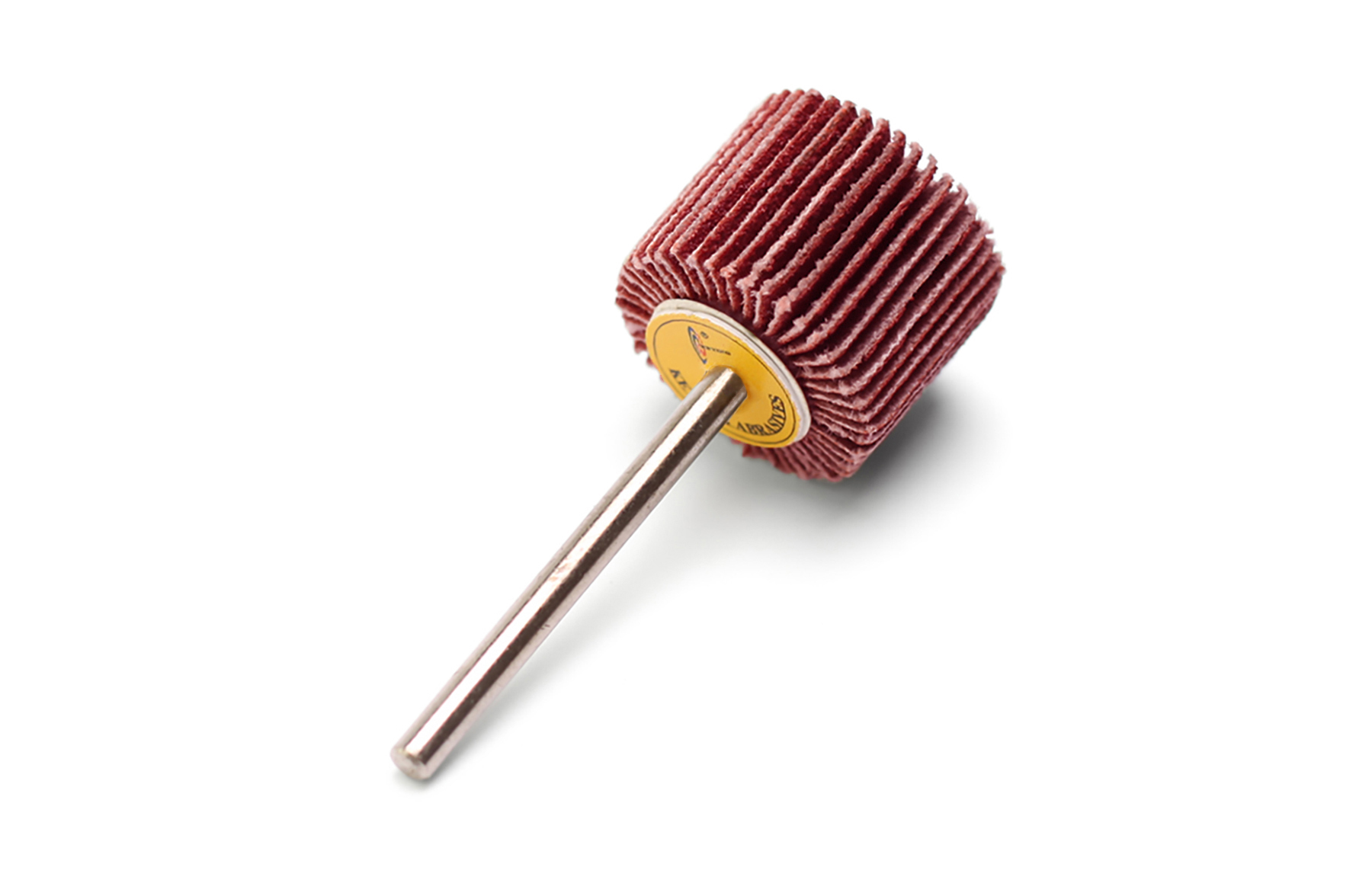

mounted flap wheels 20 15 3 cao

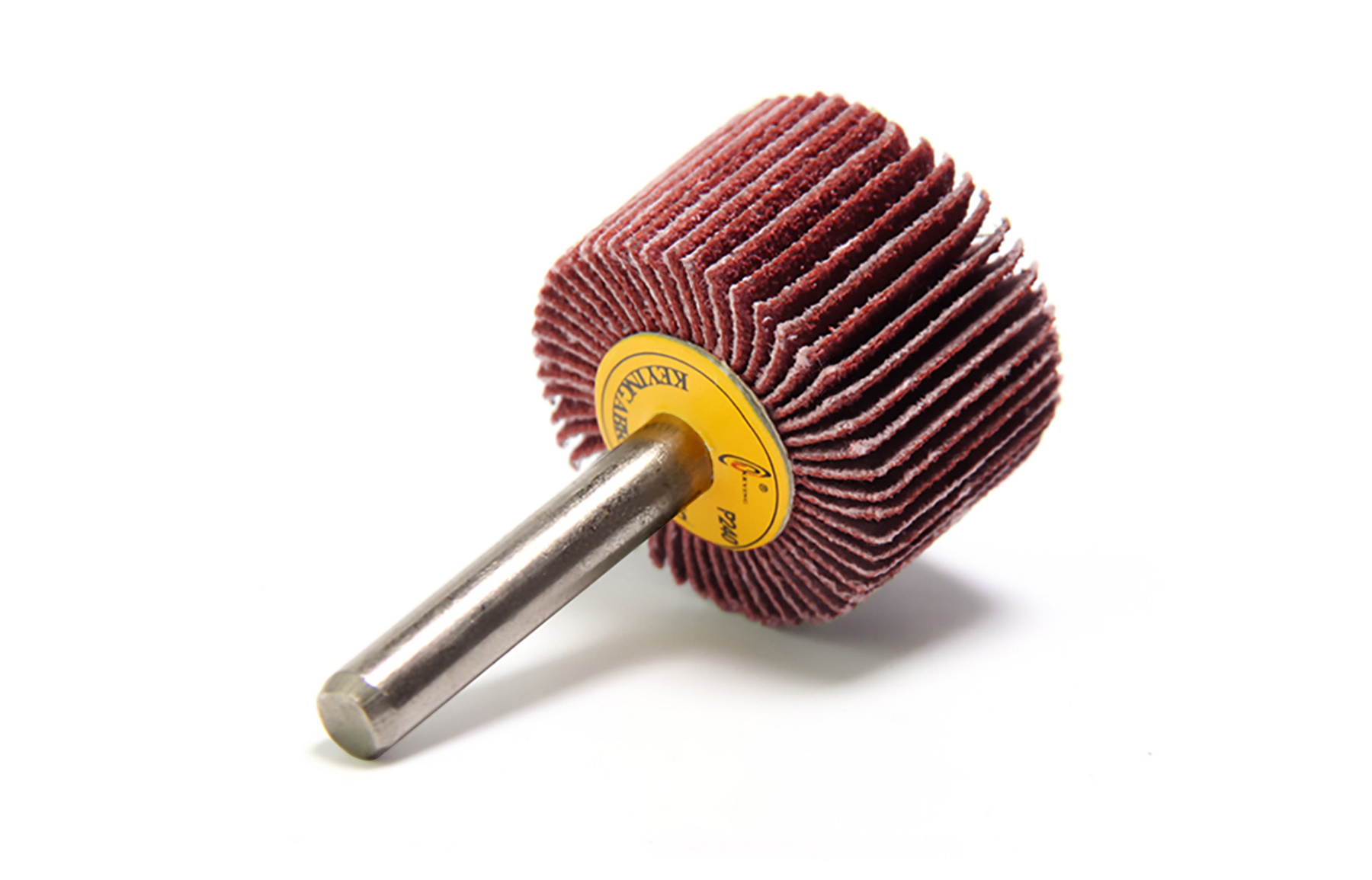

mounted flap wheels 30 20 6 cao

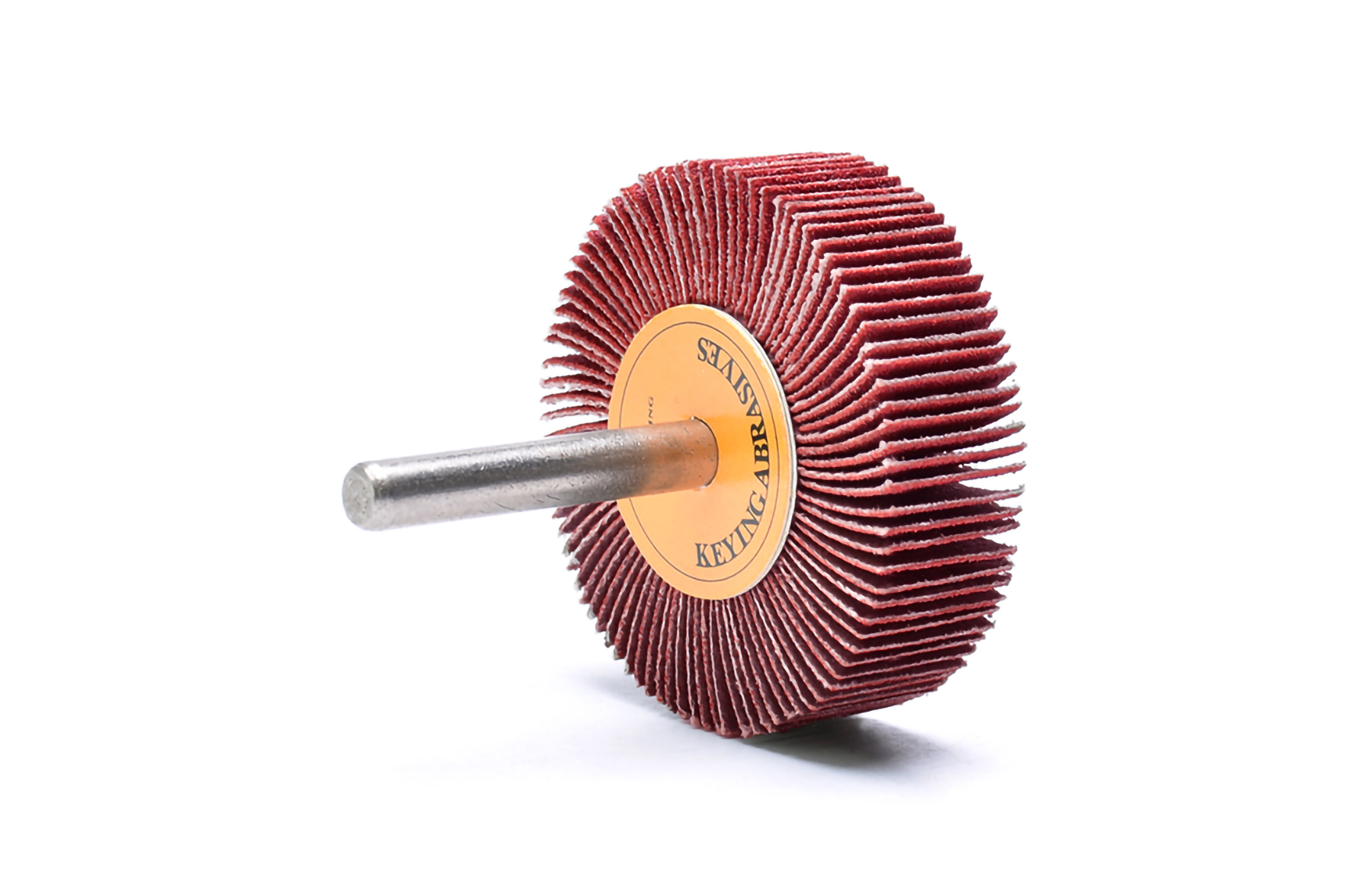

mounted flap wheels 50 15 6 cao

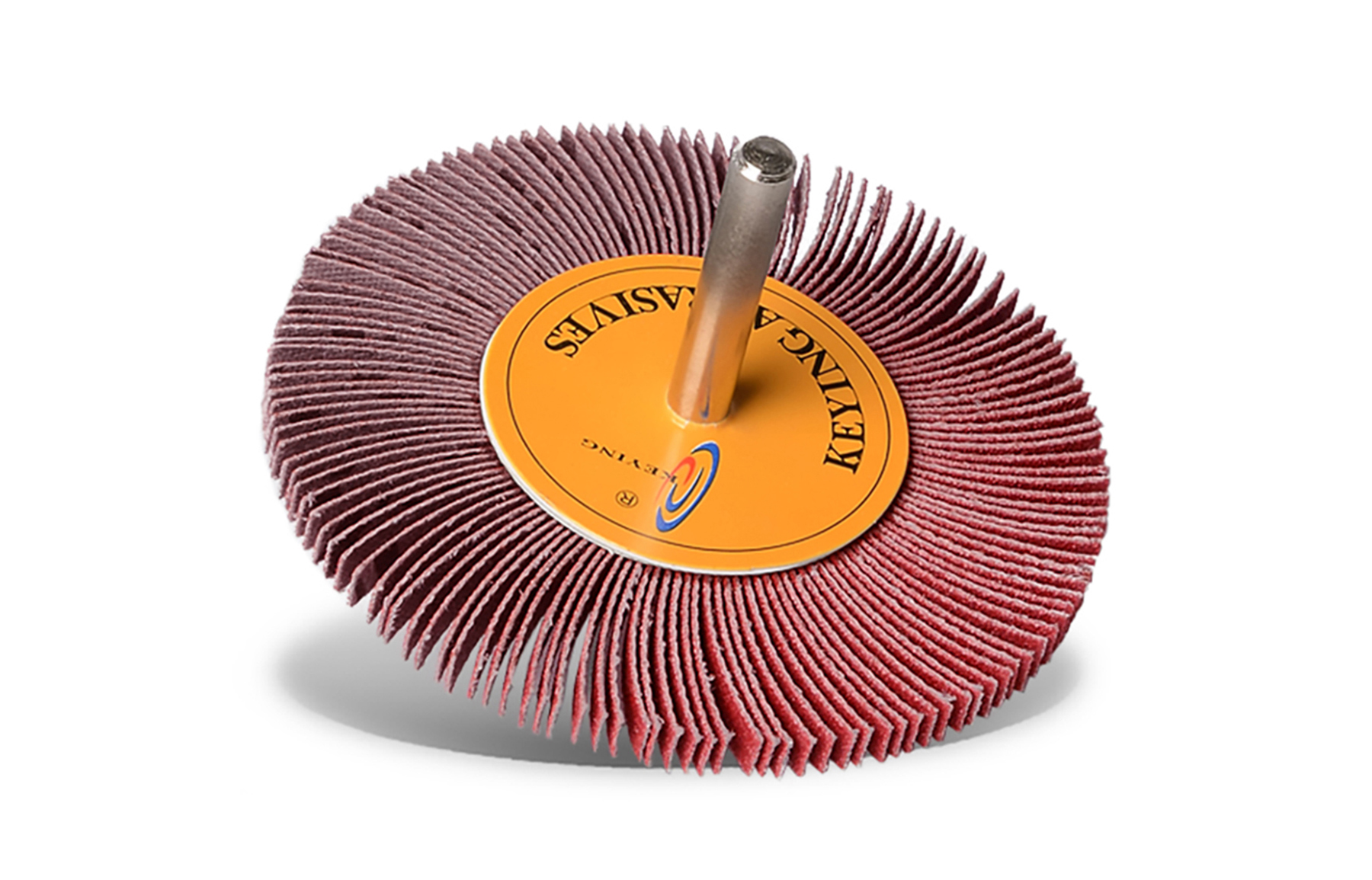

mounted flap wheels 80 5 6 cao

It is used for aggressive grinding on hard materials with poor thermal conductivity, and the removal rate is the highest. Due to the self-sharpening of ceramic oxide particles, the performance has been very high.

Aluminium Oxide Ceramic Flap Wheel (CAO) Grit Size Table Corresponding To Raw Materials

Aluminium Oxide Ceramic Flap Wheel (CAO) Grit Size Table Corresponding To Raw Materials


Aluminium Oxide Ceramic Flap Wheel (CAO) Specification

  • Max. RPM: 6120~76300 RPM

  • Other Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR)

  • Grit Size(Ceramic Aluminum Oxide Combined): 80#/120#


Aluminium Oxide Ceramic Flap Wheel (CAO) Materials that can be Worked:

  • Aluminum

  • Cobalt-based alloys

  • Other non-ferrous metals

  • High-temperature-resistant materials

  • Nickel-based alloys (e. g. Inconel and Hastelloy)

  • Bronze

  • Hard non-ferrous metal

  • Titanium

  • Copper

  • Soft non-ferrous metal

  • Brass

  • Stainless steel (INOX)

  • Grey/nodular cast iron (GG/GJL, GGG/GJS)

  • Annealed cast iron

  • Steel, cast steel


Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieve a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages:

High flexibility to optimum adaptation to contours

Steady high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.


Aluminium Oxide Ceramic Flap Wheel (CAO)Applications:

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Structuring (matt finishing, brush matting, and satin finishing)

  • Fine grinding in multiple steps

Aluminium Oxide Ceramic Flap Wheel (CAO) of Applicable Industries

Applicable Industries:

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Aluminium Oxide Ceramic Flap Wheel (CAO) of Applicable Industries

Application Purpose

  • Levelling

  • Deburring and Welding grinding

  • Structuring Surfaces

  • Step-by-step fine grinding

Aluminium Oxide Ceramic Flap Wheel (CAO) of Applicable Industries

Safety Warning Aluminium Oxide Ceramic Flap Wheel (CAO)

 Instructions:

1. Please try to choose an operation indoors environment and wear protective guards and goggles.

2. Never to exceed the recommanded maximum permitted rotational speed for safety reasons.

3. In order to have a gppd syocl removal rate, quality of surface and thermal laoding on the workpiece, the best performace would with a recomended cutting speed at 15-20m/s.

4. Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.


Safety Warning:

1. The clamping lenght between shank and grinders should be more than 15mm.

2. Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Standard Mounted Flap Wheel Products

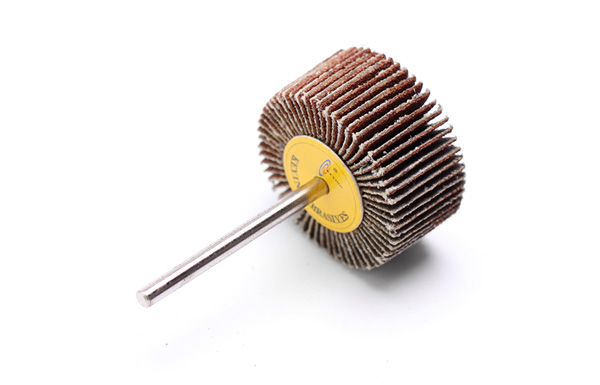

Flap Wheel 1inch
