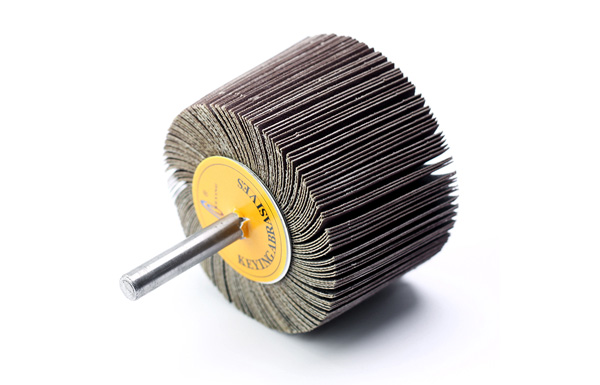

Silicon Carbide Flap Wheel M8 (SC)

silicon carbide flap wheel m8 sc
m14 125 7 sc
silicon carbide straight hole flap wheel sc

For general grinding of parts made of aluminum, copper, bronze, titanium and fiber reinforced plastics.

Especially recommended for titanium alloys.

It is very suitable for the aviation industry, especially silicon carbide is the only approved abrasive, such as engine components.

Silicon Carbide Flap Wheel M8 (SC) Grit Size Table Corresponding To Raw Materials



Silicon Carbide Flap Wheel M8 (SC) Specification:

  • Max. RPM: 6120~76300 RPM

  • Other Raw Materials: Aluminum Oxide(AO), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)

  • Grit Size(Silicon Carbide): 120#/180#/240#/320#/400#/600#/800#/1200#/1500#/2000#


Silicon Carbide Flap Wheel M8 (SC) Materials that can be worked:

  • Aluminium

  • Bronze

  • Stone

  • Titanium

  • Titanium alloys

  • Thermoplastics

  • Stainless steel (INOX)

  • Other non-ferrous metals

  • Hard non-ferrous metal

  • Fiber-reinforced duroplastics (GRP, CRP)

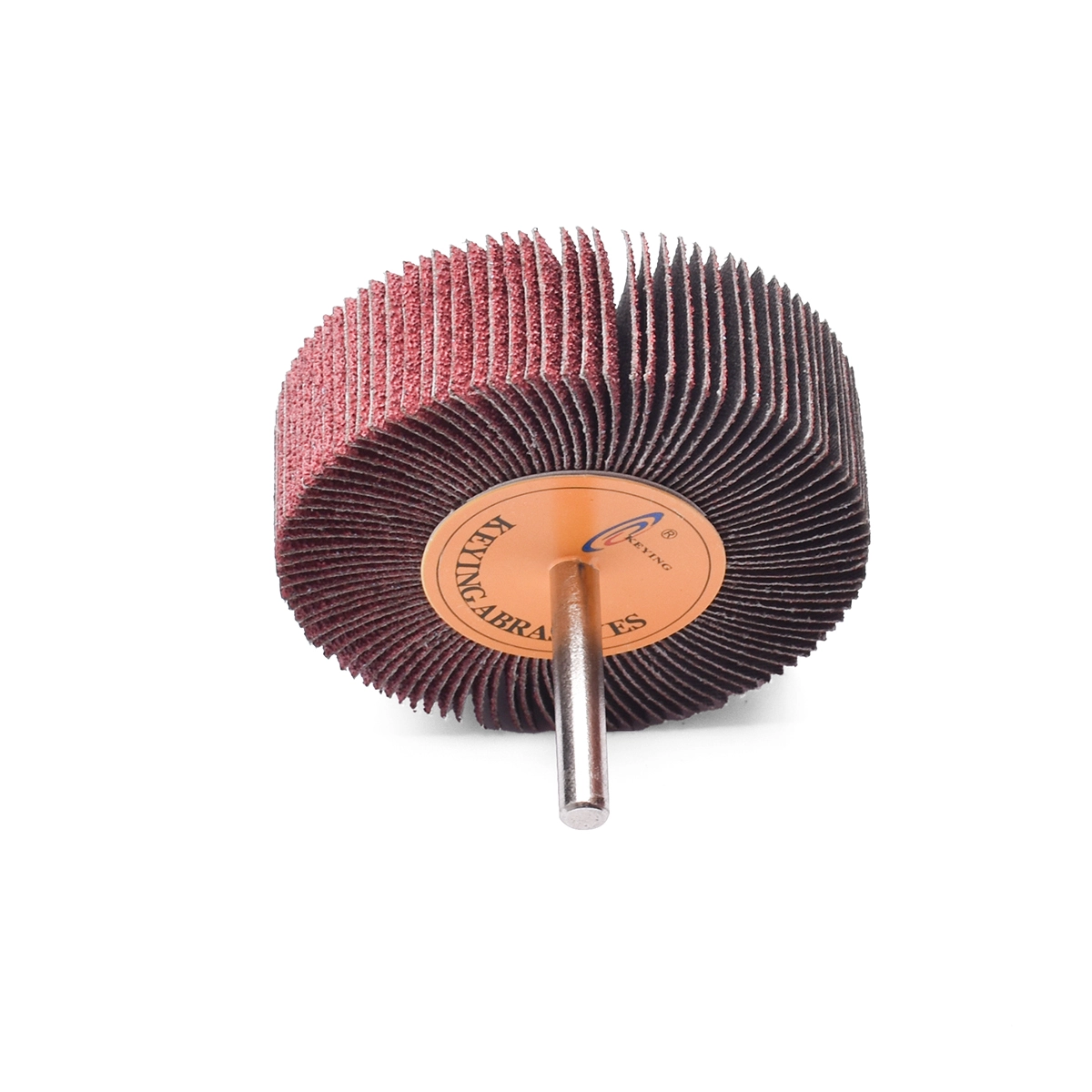

Flap Wheels with Shank

Flap wheels with Shank is suitable for grinding small area, dead angle, inner hole surface, and slit gaps that are difficult to reach. The Features of the abrasive clothes are various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.


Advantages:

High flexibility to optimium adapation to countours

Steadly high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly

The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.


Silicon Carbide Flap Wheel M8 (SC) Applications:

  • Leveling

  • Deburring

  • Surface work

  • Weld dressing

  • Fine grinding in multiple steps

  • Structuring (matt finishing, brush matting, and satin finishing)

Silicon Carbide Flap Wheel M8 (SC) Applicable Industries

Applicable Industries

■ Chemical processing industries

■ Building

■ Steelworks

■ Tool and mold processing

■ Pipeline

■ Shipping Building

■ Automotive industry

■ Aerospace, gas turbine treatment and repair

■ Machine engineering

Silicon Carbide Flap Wheel M8 (SC) Applicable Industries

Application Purpose

■ Leveling

■ Deburring and Welding grinding

■ Structuring Surfaces

■ Step-by-step fine grinding

Silicon Carbide Flap Wheel M8 (SC) Applicable Industries

Safety Warning of Silicon Carbide Flap Wheel M8 (SC)

 Instructions:

Safety Warning of Silicon Carbide Flap Wheel M8 (SC)


Safety Warning:

The clamping lenght between shank and grinders should be more than 15mm.

Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.

If you have any questions, please contact us immediately
Contact Keying Abrasives Now
Other Flap Wheel M8 Products
Flap Wheel M8 2inch
Flap Wheel M8 2inch
Flap Wheel M8 3inch
Flap Wheel M8 3inch
Flap Wheel M8 - Screw Hole
Flap Wheel M8 - Screw Hole
